Check Valves Dealers in Andheri West, Mumbai

• Seat Test: Body-16KG/CM2
• Available Sizes:: 50mm to 300mm
• Temperature Rating: 20°C to 80°C
• End Connection:: Wafer Flangeless
• Testing Standard:: As per API 598.
• Design and Testing Standard:: Recommended for both horizontal & vertical installations.
• Installation:: For Flanges drilled as per ANSIB 16.5, DIN 2632/2633 and BS10 Table.
• 1. Body: IS 210 Cast Iron Grade 220
• 2. Disc: IS 210 Cast Iron Grade 220 (Epoxy Powder Coated)
• 3. Seat: Nitrile Rubber
• 4. Shaft: SS 410
• 5. Spring: SS 304
• 6. Bush: Nylon

Alarm Check Valve serves as a check valve by trapping pressurized water above the clapper and preventing reverse flow from sprinkler piping. The valve is designed to initiate an alarm during a sustained flow of water (such as the flow required by an open sprinkler) by operating an optional water motor alarm and/or alarm pressure switch. These too have a universal approval from LPCB, FM Global, Underwriters Laboratories and etc.   Specifications Material: Ductile Iron Pressure: 300psi End Connections: Flanged/Grooved Sizes: 200NB, 150NB, 100NB, 80NB Approvals: UL&FM

• Material: Stainless steel
• Connection Type: Thread
• Surface Type: Coated
• Inlet (mm): 65 mm
• Flanged (mm): 180 mm
• Outlet Size (mm): 50mm
• Pressure (Bar): 35Bar
• Flow Rate (L per min.): 15L per min.

Cast Check Valves are designed and developed in accordance with various international industrial standards. They are manufactured from the finest quality components and under precise direction of experienced quality controllers. One can avail these in various materials, dimensions, ranges, sizes and other specifications as per their precise demands and requirements. Cast Check Valvesare one of the most preferred selections for clients owing to its precise design, accurate dimensions and longer service life.

• Size: 2 inch
• Material: Stainless Steel
• Surface Finish: Polished
• Automation Grade: Manual
• Media: Water
• Country of Origin: Made in India
• Technique: Hot Rolled

• Material: Cast Iron / Stainless Steel
• Application: Water Fitting
• Color: Silver
• Feature: Durable
• Type: Lift Type
• Pressure: High Pressure, Low Pressure, Medium Pressure

Industrial valves are devices that are used to regulate liquids, gases, and slurries. The flow of liquids or gases can be controlled using these valves. This can be done through pipes and other passageways by opening, closing, and partially obstructing the passageway or pipe.

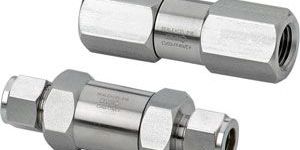

We are offering check valves. check valves : series - cv03 stainless steel 316 check valves features • available in ss316, all wetted parts in accordance with nace mr01-75 • heat code traceable to certified material test report • instant shut off in upstream condition • the cracking pressure from 1 to 25 psig (0.07 to 1.8 bar) • variety of end configurations includes sealexcel® well-lok™ tube fittings, malefemale npt, bspt and bspp pipe connection • every valve is factory tested.

We bring forward Lift Type Non Return Valves to meet fluid control requirements of industries, like petrochemical, chemical, sugar, pharmaceutical and others. The design of valves does not include penetration, which is the best feature of it. The seal welded seat ring has been provided for easy replacement and fully guided disc is there to ensure restriction free travel of fluid.

Forged Steel Gate Valves, Bronze Valves, transformer valves

• Size: 1.1/2inch, 1.1/4inch, 1/2inch, 1inch
• Material: Carbon Steeel, Stainless Steel
• Application: Gas Fitting, Oil Fitting, Water Fitting
• Color: Silver
• Automatic Grade: Automatic
• Pressure: High Pressure, Medium Pressure
• Feature: Blow-Out-Proof, Casting Approved, Durable, Easy Maintenance.
• Type: Valve
• Pattern: Plain

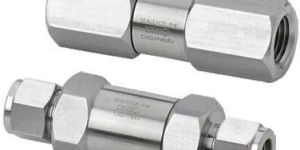

Specifically designed flow control of fluids and gases in corrosive and hazardous environment, we Manufacture and Supply high quality Check Valves. Precisely fabricated using up-to-date technology, we make sure that Check Valve is durable and provide maximum efficiency. Used in process control, instrumentation and flow control applications, these are low cost alternatives in fluid and gaseous control systems. Timely delivery of all orders and competitive prices are our priorities.   Features Available in High Grade Stainless Steel, Bass materials Variety of end connections includes Male / Female threaded NPT, BSP, BSPT, ISO, DIN and JIS tapered pipe ends. 100% factory tested for both crack & reseal Complete Heat Traceability   Pressure / Temperature Ratings : Pressure Rating 316SS – 1/8” to 3/4"- 5000 psig CWP (345 bar) 1” – 3000 psig CWP (207 bar) Brass – 1/8” to 1” – 3000 psig CWP (207 bar Working Temperatures Viton seal -15o F to 375° F (-26oC to 190oC) Fluorocarbon Rubber -15oF to 400° F (-26oC to 204oC) Buna – N Rubbe -30o F to 275oF (-34oC to 135oC) Neoprene Rubber -45o F to 250o F (-43oC to 121oC) Orifice : 1.078” to 0.656” (2.0 mm to 16.7 mm) Cv Factor : 0.18 to 6.56 Working : Choice of fixed pressure cracking points from 1/3 to 25 psi (.02 to 1.75 bar ) or as per customers requirements. Valves may initially crack at higher than subsequent cracking pressure if are not actuated for a period of time

J+j automation uk ltd is one of the leading manufacturing & supplying company of high quality check valves.

Check  valves  are  used  for  controllng  flow  in  one diretion  only. Check  valves  should  never  be used  as  code  safety  relief  devices. Note : End  connections  available  in  NPT;  BSPT  ; Tube size; BSPP 100%  valve  are  factory  tested  prior to  despatch Pressure range from 1,000 to 10,000 psi. Cracking pressure 1 psi to 25 psi.

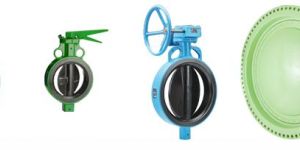

Aquaseal: Integrally-moulded Butterfly Valve in PN 10 Aquaseal - PN 10 – Wafer Type – Size 2”-24”   Aquaseal: Integrally-moulded Butterfly Valve in PN 16 Wafer Type – Size 2”- 24” Lugged Type – Size 2”- 24” Flanged Type- Size 6”- 36”   Aquaseal Plus - Integrally-moulded Butterfly Valve - Class 150 Wafer Type – Size 2”- 24” Lugged Type – Size 2”- 24” Flanged Type- Size 6”- 36”   Aquaseal 25 - Integrally-moulded Butterfly Valve – PN 25   For More Details Please Click Here.   Aquaseal Max - Large-size Fabricated Steel Butterfly Valve   For More Details Please Click Here.   Aquaseal Chek – Dual-Plate (Wafer Type) PN10 – Size 2”- 8” PN16 – Size 2”- 8” Class 125 – Size 2”- 8”   Aquaseal FabChek ( Fabricated Steel Check Valve) PN6 – Size upto 120” PN10 – Size upto 120” PN16 – Size upto 120”   For More Details Please Click Here.

We offer a wide array of Industrial Check Valve, which is used in various industries. These steel made Industrial Check Valves are appreciated for their high durability and efficiency. This check valve is available in different specifications. Valve Selection includes : Ensure safetyTrouble-free performanceValve functionMaterials compatibilityAdequate ratingsProper installationOperationMaintenance Technical Data : Pressure rating up to 3000 psi (206 bar) @ 210C (700F).Temperature rating from -200C (-40F) to +1900C (3740F) with special seals.Fixed cracking pressure.316 stainless steelWide choices of end connections : Tube Fittings, Male & Female NPT or ISO 7/1 thread. Testing : Every valve is 100% factory tested for cracking and reseals performance.Other optional tests are available upon request. Applications : Process controlInstrumentationFlow control applications

Features : check  valves  are  used  for  controllng  flow  in  one direction  only. Check  valves  should  never  be used  as  code  safety  relief  devices.   Note : End  connections  available  in  NPT;  BSPT  ; Tube size; BSPP 100% valve are factory tested prios to despatch. Pressure range from 1,000 to 10,000 psi.

FEATURES  Available in SS316, all wetted parts in accordance with NACE    MR01-75•  Heat Code Traceable to certified material test report•  Instant shut off in upstream condition•  The cracking pressure from 1 to 25 psig (0.07 to 1.8 bar)•  Variety of end configurations includes SEALEXCEL®     Well-Lok™  Tube Fittings, Male/Female NPT, BSPT and BSPP     pipe connection•  Every valve is factory tested OPERATING PARAMETERS Pressure Rating           : upto 3000 psig (205 bar) at CWPTemperature Rating   : upto 198ºC with Viton®O-Ring APPLICATIONS •  Gas•  Liquid •  Fluid handling
