Vibrating Table Dealers in Mumbai

• Type: Anti Vibrating Table
• Certification: CE Certified
• Condition: New
• Driven Type: Hydraulic
• Warranty: 1year
• Automation Grade: Manual

Features : Anti-Vibration Top - 100% Anti-Vibration area will be provided Well polished black color Granite laminated over thick heavy kadapa slab. Between 1" Height anti vibration rubber pad. MOC - Made of 18 Swg. Electro-Galvanized G.I. 50 x 100 Frame attractively finished in epoxy powder coating. Anti-Vibration mounts - provided at 2 stage for double dampening effect. Mounted on shock absorbing special heavy duty Anti-Vibration mounts. 4 Nos. below the work top and 4 Nos. on foot of the table. Foot level height adjustment. Special Shore 'D' hardness Rubber used for the Anti Vibration Mounts. All AVT's / VIT's are tested with calibrated Vibration meter. Working Height of Table can be Sitting – 750 mm or Standing – 900 mm Mount options : Standard Elastomeric Mounts. Advanced Shock Resistant Air Spring Mounts. Advanced Auto Leveling Pneumatic Mounts.

• red: red
• red: red

suppliers and exporters of Vibrating Table in india. These vibrating tables are manufactured under the surveillance of our experts and by using high grade raw materials. These tables are tested thoroughly by our team of experts on various quality parameters to ensure their defect-free nature. The checks and tests are done in our laboratory, which is designed as per the industry standards. Offered Vibrator Table Machine is timely delivered in qualitative packaging at our customers' destinations to assure their convenience. This vibration table generates the sinusoidal vibration when fed with variable frequency through the controller. Principle application of a Vibrating Table is to uniformly fill the mould, drive out air bubble and compact the product to achieve superior mould strength and higher surface finish.Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

• Weight: 100-1000kg
• Power: 1-3kw
• Driven Type: Electric
• Automation Grade: Semi Automatic
• Application: For highly sensitive instruments like Electronic Balance.
• Usage: Laboratory

The anti-vibration table is designed for use in the laboratory or metrology room to provide suitable working conditions for devices that are sensitive to vibrations and shocks. The table comprises two separate parts – An internal working surface consisting of a large granite slab mounted on rubber shock absorbing mounts. An external service table with steel frame and adjustable leveling feet.

• Weight: 100-1000kg
• Color: Blue
• Voltage: 110V
• Power: 1-2kw
• Driven Type: Electric
• Warranty: 1year
• Automation Grade: Semi Automatic

The Vibrating Table is one of the supreme array of Vibrating Equipments that ensures flawless settling of compact, dry, and bulk materials in containers. It ensures considerable gain in net weight of container or reduction in size of the contents to facilitate use of smaller containers. It helps to bring down packaging as well as shipping costs. We offer electromagnetic as well as electromechanical versions to suit several applications. These are available at leading industry rates.

This wooden table is covered with “formica” and has a marble anti-vibrating surface which supports the analytic scale.

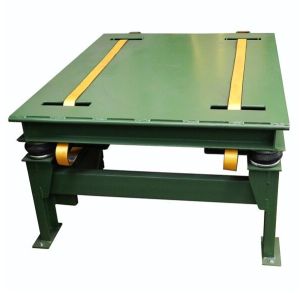

NAVCO Vibrating Tables are custom engineered to fit your specific application requirements. Our tables are available with several different drive options, depending on the power source available and the application requirements. Each table is designed with a vibration isolation system that allows the energy input to the material to be maximized while minimizing the vibration transmitted to the frame and supporting foundation. NAVCO is extremely experienced at seamlessly integrating custom vibratory tables into existing processes and providing the controls needed to maintain precise control of your vibrating table.       Vibrating tables have been successfully utilized in a diverse set of applications through a wide range of industries. Including: Densification of bulk materials Vibration or fatigue testing Shakeouts Compaction Unloading materials Benefits : Reduction of shipping costs resulting from increased container weight, smaller container sizes, and consistent container weights Low maintenance and operation costs thanks to NAVCO’s experience and proven reliability in vibrating tables   Common Table Arrangements : Grid Tops Powered Roller Grid Tops Load Cells Jolt Tables Low Profiles Scale Frames Container Retaining Fixtures Special Construction Materials Vibrating tables have been successfully utilized in a diverse set of applications through a wide range of industries. Including: Densification of bulk materials Vibration or fatigue testing Shakeouts Compaction Unloading materials Benefits : Reduction of shipping costs resulting from increased container weight, smaller container sizes, and consistent container weights Low maintenance and operation costs thanks to NAVCO’s experience and proven reliability in vibrating tables Common Table Arrangements : Grid Tops Powered Roller Grid Tops Load Cells Jolt Tables Low Profiles Scale Frames Container Retaining Fixtures Special Construction Materials

• Size: 900mm L 600mm B X 900mm H,900mm L 600mm B X 750mm H

Anti-Vibration Table are designed to absorb shocks and vibrations for working with instruments like Balance.

• Power: 2 H.P. Single Phase Motor
• Weight: 130 kg
• Size: 900 x 600mm
• Vibrations: 3000 / min
• Top Plate: 5mm thick M.S.

• Country of Origin: India
• Type: Vibrating Table

Capacity(based on double shift of 300 days and standard block of 390x190x190mm) RTQM4: 4 pieces/pallet Capacity/Hour: 960standard blocks Theoretic Capacity / year: 64,000cubic meters Main Features: Integrated vibrating table and synchronous vibrate system. The section steel frame and advanced welding process making machine strong. Driven shaker grate with composite move for material feeding. Hydraulic components are from overseas. Operation is smoothly and reliable. PLC control system is Siemens. Control system with automatic operation, inter operation and manual operation. The Dimension is very small. For the settlement, a simple workshop is ok. The investment is not big and organization for production is flexible. The range of products is vast. Main Technical Parameter: Operation cycle: 15-28s (depending on the types of products) Height of product: 50-200mm Pallet size: 900 x 550 x30~ 35mm (wood) Work area: 820x500mm Machine power: 25kW Dimension of machine: 4210x1500x2542mm Weight of machine: approximate 6000KG

• Power: 4-6 kw
• Item Code: CT-06
• Vibrating Range (Amplitude): 3-4 mm
• Max Weight: 0-200 kg

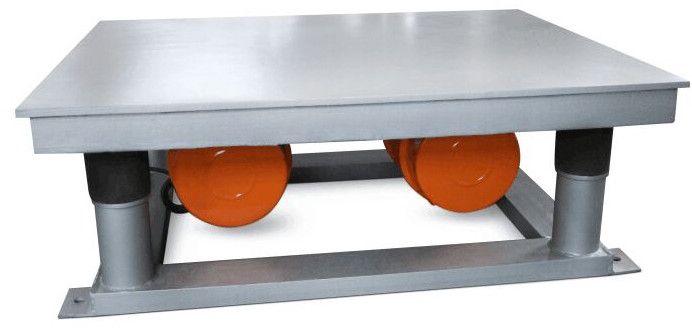

Electromagnetic vibrating table consist of solid base plate and a vibrating top. The top platform vibrates at 3000 vibrations per minute through an electromagnet housed inside. Each table is supplied with a control panel, which supplies pulsating current to electromagnet and also controls the amplitude of vibration. Control panel operates on 230 V.A.C. single phase Used for packing of products. Testing of welding joints. Eleminating vords in moulded parts. Achieving uniformity in ceramic moulded parts.

Electromagnetic vibrating table consist of solid base plate and a vibrating top. The top platform vibrates at 3000 vibrations per minute through an electromagnet housed inside. Each table is supplied with a control panel, which supplies pulsating current to electromagnet and also controls the amplitude of vibration. Control panel operates on 230 V.A.C. single phase.

• Usage/Application: Industrial
• Power: 2 kW
• Material: MS
• Automation Grade: Automatic
• Phase: Three
• Vibrating Range: 3-4 mm
• Table Dimension: 600 x 600 mm

NAVCO Vibrating Tables are custom engineered to fit your specific application requirements. Our tables are available with several different drive options, depending on the power source available and the application requirements. Each table is designed with a vibration isolation system that allows the energy input to the material to be maximized while minimizing the vibration transmitted to the frame and supporting foundation. NAVCO is extremely experienced at seamlessly integrating custom vibratory tables into existing processes and providing the controls needed to maintain precise control of your vibrating table. Benefits : Reduction of shipping costs resulting from increased container weight, smaller container sizes, and consistent container weights Low maintenance and operation costs thanks to NAVCO’s experience and proven reliability in vibrating tables

For compaction of concrete Cubes, Cylinders & Beams. The table deck has stops along its edges to prevent moulds from walking off the table during operation. The variable pitch pulley arrangement permits the frequency to be varied step-less between a maximum of 3600 vibrations down to 2600 vibrations per minute. A speed regulation handle is provided for increasing or decreasing the frequency. The vibrator is mounted on cushioned Steel vibrating deck. A switch is provided for starting the motor. Operation on 440 V, three phase, AC supply.
