Vimalfire Control Pvt Ltd LBS Marg, Mumbai, Maharashtra

Water Tank Capacity could vary from 1800 to 6000 Liters. It would be made of stainless steel sheets or M.S. Sheets of necessary gauge thickness. M.S Tank would be treated for anti-corrosion to last for years. The tank is of welded construction and is suitably mounted on chassis for proper load distribution on axles and minimizing chassis flexion stresses. Tank is secured sturdily and could be removed easily. Baffles plates are provided inside the tank to absorb water hammer effect while in motion. Care is taken so that full contents could flow towards the pump. Adequately sized Man Hole and Cleaning Hole are also provided for easy maintenances.

The manually operated Self-inducting non-aspirating Foam Monitor made of Stainless Steel, capable to discharging 1000 US GPM (3785 LPM) at 100 psi (7 bar) inlet pressure over a range of 65 to 70 meters in horizontal direction. Foam monitors are very compact in construction and gives good flexibility of the operation while fighting with fire. Foam proportioning 3 % is done with help of Foam Inductor placed within the Nozzle. The Foam Monitor also have facility for on verting WaterFoam jet to fog and vice-versa very quickly and easily, even during continuous operation. Foam Monitor is provided with self-locking swivel gear bearing for rotation in horizontal and vertical direction through hand wheel operation even under high operating pressures. A single fire fighter can manually operate the Foam Monitor with large flow capacity, long-range capability. The monitor assembly is designed to withstand the nozzle reaction force experienced during the operation of jet fog.

SHOOTFIRE offers you complete range of DCP extinguishers on wheels, with capacity varying from 25kgs to 500 kgs. With accurate fabrication of vessels conforming to relevant IS specifications, these units ensure long life and peak performance. Special protection against corrosion is given to increase its life. From 25 kg to 100 kg all capacities of extinguishers are available on trolleys made of tubular steel sections and mounted on high quality solid rubber tiers. A single man can easily move these extinguishers to the actual site of fire. In higher capacities (from 50kg) a bottom diffuser system can be fixed for thorough agitation of powder and smooth discharge. There are also provision for giving protector box for gas cylinders (N2 CO2) where extinguisher units are going to be exposed to extreme heat and dust. Extinguisher volume and piping design ensures the complete usage of powder with high discharge rate and throw up to 12 meters.The parts are mounted in such a way that all parts can be easily dismantled for maintenance and repair works.

To meet the requirements of quality and maintenance of conscious customers we have developed an extinguisher that is maintenance free and is of highest quality available in Indian market. Though this extinguisher could be used for any type of extinguishing agent, it is particularly ideal for foam extinguishers. Concentrated foam chemical which is highly corrosive, affects the mild steel foam extinguisher and its working parts quickly and as a result every now and then the extinguisher parts has to be changed and whole extinguishers may have to be replaced. With this type of extinguisher, you can practically forget about maintenance, it will maintain its readiness and function like a new extinguisher for years and years.

Floating roof tanks are considered to be the safest hydrocarbon storage vessel with respect to its vapor suppression ability. Even in these tanks, there exists an area, which exposes the hydrocarbon vapor to air, which is known as rim seal area. The SHOOTFIRE Fire Protection System for Floating Roof Tank is a fully automated extinguishing system. It is specifically designed and manufactured for extreme fast detection and extinction of any type of rim seal fires as per the National & International Safety Standards.

The Electrically Operated Remote Control non-aspirating Foam Monitor made of Stainless Steel, capable to discharging 1000 US GPM (3785 LPM) at 100 psi (7 bar) inlet pressure over a range of 60 meters in horizontal direction and 25 meters in vertical direction. Water operated Jet Ratio Controller Pump (JRCP) is provided, suitable for feeding foam concentrate solution to the monitor nozzle from distance of 50 meters. The Foam Monitor has facility for converting WaterFoam jet to fog and vice-versa very quickly and easily by remotely. Foam Monitor is provided with self-locking swivel gear bearing for rotation in horizontal and vertical direction remotely.

Size : 4 inches

Casing made from light alloys, having a discharge rate of 275 to 1100 LPM at 4.2 kg cm2. It has 75 mm round threaded single suction and 63 mm instantaneous type single delivery with blank cap. A well-balanced light aluminum alloy impeller mounted on common shaft to engine ensures full torque transmission and high efficiency.

Aqua Foam Nozzle which can form the discharging part of monitors are considered to be a technological marvel in fire fighting because of the highest discharging ability and the maximum hydraulic efficiency with respect to the conversion to the available pressure energy to maximum throw after the induction of foam concentrate in to the water stream. In large tank fires, process fire, blowout fire, scenarios, high volume long-range nozzles only could provide the means of controlling or extinguishing. These nozzles enable you to apply maximum amount of foam solution expanded to about 1:4 on to the burning fuel surface from very far distance. These high discharges enable you to utilize mass stream approach for High Local Application densities and which in turn lead to Quick Beach Head Information. The nozzle which could be supplied with stand post monitors and trailer mounted units will have aqua jet controller pump as a sub-accessory. This pump helps you to transfer foam concentrate from as far as 70 meters, to nozzle inlet, using water from single hydrant.For any particular size of hydrocarbon risk, you can now have the most efficient nozzle in the world to “attack and not just resist”.

PERSONNEL PROTECTIVE EQUIPMENT, generally known as PPE forms a basic necessity for every industry handling hazardous chemicals and liquids. While there are different types of PPE Equipment for different safety applications, for Oil and Gas industries, Petrochemicals, Fertilizers and Chemicals etc., the GAS PROTECTIVE SUIT is of greater significance. Hazardous chemicals and liquids such as liquefied gases viz. LPG, LNG, propane, ammonia, chlorine, liquid nitrogen etc., if comes in contact with naked skin it causes cold burn. Severe or prolonged exposure of such chemicals or liquefied gases may even result in fatalities. To handle such hazardous products safely, after rigorous R&D efforts Vimal has successfully developed GAS PROTECTIVE (LOW TEMPERATURE) SUIT for the first time in India.

DCP Tender of 1000 and 2000 kg is most ideal and sophisticated equipment to combat oil fires. Automatic actuation is through one manual lever on one cylinder, which in turn sets of all the cylinders automatically. As the pressure reaches 1.5 kgcm2, the powder valve is automatically opened. The time required for pressure builds up, gives monitor operator enough time to position the monitor and time enough to take hose reels to actual position of fire. The complete unit can also be offered with manual operation. Body works, cabin and control panel are fully illuminated for efficient night time operation.

Suitable for B & C class of fires such as fire in inflammable liquid, petroleum products, oils, grease, paints, lacquers, flammable gases and electric equipment.Most useful where other extinguishing agent create residual damage.

Suitable for B & C class of fires such as fire in inflammable liquid, petroleum products, oils, grease, paints, lacquers, flammable gases and electric equipment.

Butyl Suits This suit which hardly weighs 4 kg. is an ideal protective garment for handling hazardous chemicals and toxic gases. It is made out of polyamide fabric with butyl coating on both, inside and outside. This easy to wear suit is most ideal for handling ‘FURFURAL’. One of the most dangerous chemicals is handled frequently in petrochemical industries. The suit comes with a provision for carrying Breathing apparatus to work in toxic atmosphere for hours together.

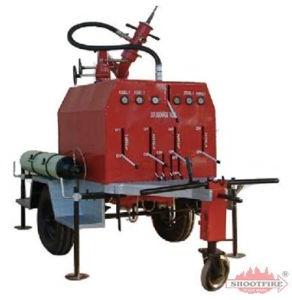

The 3D Hazchem Multipurpose 3 in 1 Monitor is specially designed to throw Water, Foam, Dry Chemical Powder and spray, Jet & Fog through single nozzle to fight against hydrocarbon polar solvent fire by a single fire fighter. The Multipurpose 3 in 1 Monitor is provided with non-aspirating type nozzle capable to discharging 1000 US GPM (3785 LPM) at 100 psi (7 bar) inlet pressure over a range of 60 meters in horizontal direction and 15 meters in vertical direction. Water operated Jet Ratio Controller Pump (JRCP) is provided suitable for feeding foam concentrates solution to the monitor nozzle from distance of 50 meters & above. The Monitor has facility for converting Water Foam Jet to fog and vice-versa and also Dry Powder can be jetted from the centre of nozzle very quickly and easily, even during continuous operation. Monitor is provided with self-locking swivel gear bearing for rotation in horizontal and vertical direction through hand wheel operation even under high operating pressures. The monitor assembly is designed to withstand the nozzle reaction force experienced during the operation of jet fog.

Material : LTB – Gr.2
