Vitro Pharma Santacruz, Mumbai, Maharashtra

VITRO PHARMA MACHINERY" has been actively involved in the manufacturing of filtration system more than Fifteen years. We are now adding one more our best product "Zero Hold Up Filter Press" to our range of Product.     REVERSE FLOW ZERO HOLD UP TYPE   Here the direction of flow of liquid is exactly opposite to the flow in standard filter i.e. the impure liquid to be filtered enters the filter from the bottom into the center channel & goes to the top of each plate. The clear filtrate flows out from openings on side of plates to the shell & then to the outlet. This flow ensure almost 100% filtration of the liquid which is not so with the standard flow type.   Salient Features Complete filtration of the batch without any hold up due to reverse flow of liquid hence large saving in time & cost. Back wash facility can be provided for continuous operations. No scavenger arrangement required. The cake, filtered & solids remain totally enclosed allowing filtration of toxic, hazardous & explosive liquids. No contamination of internal surface of shell. The top dome structure ensures fast & easy removal of cartridge assembly & cleaning of cake. Other features same as standard flow type   Important Link Tablet Capsule Ointment Breavage & Winery machine Liquid/ dairy section Injectable Section

Salient Features High capacity due to short transport time and simultaneous inspection of 6/5/4/3/2 Objects depending on size of object. Simple design allows easy change of object holder spacing to enable machine to handle large objects. Absolute secure guidance and holding of the object by very efficient mechanical system. Clear and functional illumination of object adjustable to the operator's field of vision. The good objects are discharged in a group. Quick change of size parts and easy cleaning. Best illumination system. The rotation velocity is infinitely variable. Sturdy and simple construction consciously avoiding all parts that need frequent repair. Discharge chute for customer's own magazine. Machine can be in line connected with existing sealing & labeling machine. Digital counter for infeed and ejected vials. Microprocessor based logic controllers for Rejection failsafe alarm.

Salient Features Inbuilt Scrambler & Unscramble. 24". Suitable For 2 ml to 100ml vial. No vial no filling. No stopper machine stop. Rigid vibration free construction for trouble free performance. S.S. Elegantly matt-finished body. Elegant and easy control panel for total control on operation. Minimum change over time from one size to another container or fill size. Drip Trey provided.

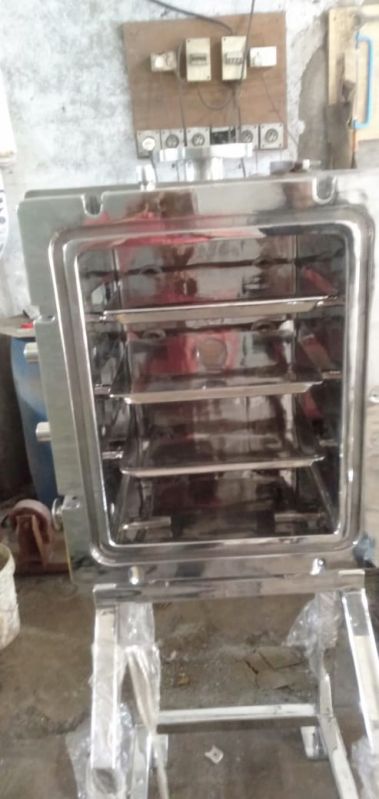

Features: All stainless steel 304 316 316L CGMP or mild steel externals with stainless steel internals (vapor and product contact parts). Hollow pad type heating shelves which are easily removable for maintenance.  Condensor and condensate receiver fitted on the dryer body or stand alone for remote installation. Fully welded skirt on vacuum dryer body for flush mounting through the wall. External insulation of dryer with protective panels in stainless steel or mild steel powder coated.

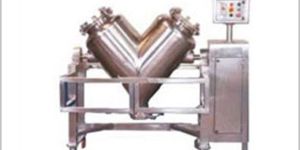

The rotating shell V-Type blenders are used only for dry mixes and have no packing glands(seals) around shafts entering the chamber to cause potential problems. Modifications such as the addition of baffles to increase mixing shear have been made to these type of blenders.     SALIENT FEATURES Minimal Attrition when blending gragile granules. Large-Capacity equipment available. Easy to load and unload. Easy to clean. Minimal maintenance.

The rotating shell V-Type blenders are used only for dry mixes and have no packing glands(seals) around shafts entering the chamber to cause potential problems. Modifications such as the addition of baffles to increase mixing shear have been made to these type of blenders. SALIENT FEATURES Minimal Attrition when blending gragile granules. Large-Capacity equipment available. Easy to load and unload. Easy to clean. Minimal maintenance.

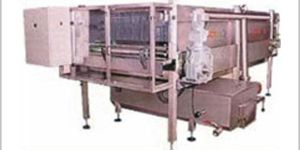

This tunnel washing machine is most ideal for ROUND BOTTLES and finds wide application in PHARMA, FOOD INDUSTRIES.The automatic loading arrangement facilitates loading of bottles on to SS wire mesh conveyer through feed conveyor or bottles are pushed manually from feed table. This saves manpower as bottles are feed into pockets automatically. The automatic unloading mechanism consists of unloading bottle on to a wire mesh conveyor which continues on to turn table.Three cycle rinsing allows flexibilities of various wash cycles such as fresh water, demineralised water etc. as per the rinsing requirement of bottle. All the pumps are made of SS and all the water contact parts are made of SS 304 on a heavy base of MS painted structure.   The total rinsing cycle is smooth and limit switches/sensors are built at every stage to sense bottle reversal or bottle obstruction and stop the machine.

  The fully automatic Bottle Warmer is used for warming cold filled carbonated soft drinks in PET bottles of sizes 500ml, 1.0L, 1.5L and 2.0L for a minimum temperature rise of 15 deg C up to a maximum of 20 deg C to ensure no visible condensation on the bottle as its exit. The output of the warmer is limited to 15% more than the rated filler speed for 1.5L bottles and has a capacity to hold 10 minutes accumulation of the these bottles with filler running at its rated speed. As such any size of Bottle Warmer can be supplied depending on user's specific requirement.

SPECIAL FEATURES: Capability to handle a large range of tube sizes Automatic cap tightening No-tube-no-fill device Automatic tube infeed Adjustable filling pump and several optional attachments

A high effective recirculating air system is provided. The filtered air, heated electrically, is re-circulated with fresh air in selected proportions for optimum drying. Uniform air circulation, controlled temperature, sturdy construction and large working space are the valuables of the oven which is suitably designed to cover wide temperature range. Loading and unloading is faster and simple. In higher capacities trays trolley rolls in and out of the chamber. For continuous operation a spare trolley can be had for loading while the drying cycle is taking place.

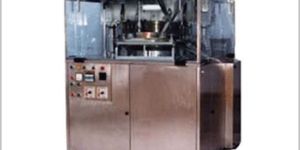

Classsification Mini Single Rotary No. Of Station 6 10 12 16 16 20 23 Tooling D D D B D D DB Max Comp Pressure (Tonnes) 6.5 6.5 6.5 6.5 10 10 6.5 Power (HP) 1 1 1 1 2 2 2 Turret RPM (MinMax) 1833 1833 1833 1833 1833 1833 1833 Output Tablet Min (Min Max) 108200 180330 220400

Tablet Inspection Machine The machine is most ideal for visual inspection of tablets. both coated and uncoated types, in all sizes high speed ensures strict quality control and good checking rate Contact parts made of Stainless steel or synthetic Nylon endless conveyor belt,washable and easily replaceable Adjustable conveyor speed & tablet feed Extra large vertically adjustable hopper,holding capacity 25-30 kg Dust collecting tray provided with cleaning brush 100% tablets reversed for inspection High safety ensured by guards Special discharge chute provided for smooth and safe discharge

Nylon endless conveyor belt,washable and easily replaceable. Adjustable conveyor speed & tablet feed. Extra large vertically adjustable hopper,holding capacity 25-30 kg Dust collecting tray provided with cleaning brush. 100% tablets reversed for inspection. High safety ensured by guards. Special discharge chute provided for smooth and safe discharge.

Packs Tablets Capsules upto 12" dia upto 38 " dia capsules "0" capsules 1,2,3,4,5 1000's 5 fills per min 5 fills per min - 5 fills per min 500's 5 fills per min 10 fills per min 5 fills per min 10 fills per min 250's 10 fills per min 15 fills per min 10 fills per min 15 fills per min 100's 20 fills per min 25 fills per min 15 fills per min 20 fills per min 50's 25 fills per min 30 fills per min 20 fills per min 30 fills per min 20's 30 fills per min 30 fills per min 20 fills per m

Coating Pan are made of stainless steel all contact parts of S.S 304, S.S 316, S.S 316L. The unit is Equipped With suitable hot air Blower with thermostatic Control. No foundation requirement. Models available from 12" -24"-36"-48" - 60". Adaptability for lower size of coating pan & polishing pan. Validation documentation can be provided on request. Matching exhaust blower available. Heaters & blowers are electrically interlocked. Perforated bowls with suction device for increased productivity, energy conservation and dust control. Standard & GMP models are available.

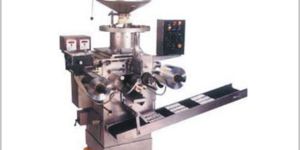

SALIENT FEATURES Strip Sealing Machine is built on advanced technology to fulfill the requirement in pharmaceutical packing industry.Strip Sealing Machine gives high speed and uninterrupted performance at low maintenance cost. They are ideal for high speed sealing of coated or uncoated tablets, capsules or lozenges of any shape or size in aluminium foil, polythene, cellophane or any other heat sealing material.   Applications Pharmaceutical Tablets, Hard gelatin capsules, Granules, Dragees, Powders etc. Also Sugar Cubes, Lozenges, Biscuits, Chewing Gums, Toffees, Buttons, Pins, Pencil Batteries, Small ball bearings and many other small components.

The Pressurised Steam Sterilizer is a small, simple to operate, table - top autoclave for sterilization of linen, glass ware, syringes, instruments etc. It is mainly intended for use in doctors and dentists surgeries, out patient clinics, laboratories, & hospital wards. Some of the internationally accepted combinations of temperature and time for sterilization are   118°C HELD FOR 30 MINUTES. 124°C HELD FOR 15 MINUTES. 129°C HELD FOR 10 MINUTES.   The Pressurised sterilizer is supplied with your desired set pressure to suit your sterilization temperature.   Construction Features: The chamber, Back plate and door are made from tested, 304 grade of stainless steel. Radial arm locking arrangement is of high tensile steel for maximum safety of the door.

Chamber Volume : 32 Ltrs

We are offering Steam Sterilizer

Salient Features Meets GMP and FDA norms.Construction follows the latest standards. Fabrication is under taken to codes appropriate to customer. Available with Centrifugal Gear Lobe Roto pump.Top lid fitted with pressure gauge, safety valve & air vent. Gives crystal clear filtration.Available models: 8, 14, 18, 24 & 33 inches plate diameter. All contact parts made out of SS 304 316 316L. High degree of finish to all contact parts.

The Vitro range of stainless steel Horizontal Plate Type Filter Presses are made to special modular design that guarantees precisely the right filtration requirements for each application. Available in a wide range of output capacities, with different number and height of filter plates, as well as a choice of flow pumps, the Vitro Filter Presses meet customer's exact need.

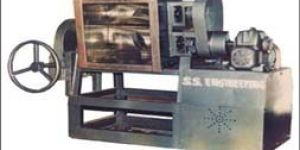

SIGMA MIXER consist of "W" shaped container made of either Mild Steel or Stainless Steel 304 or 316 with jacket of Carbon Steel covering two side for heating or cooling application & dust free cover to get Vacuum if desired or normal cover. The mixing elements (Blades) are of Sigma type Steel casted and duly finished two in number which contra rotate inward fitted at close or specified clearance with the container to give thorough and uniform mixing. There is a Gland pusher of Gun Metal Bush which ensure minimal friction and extend the life of mixing elements (Blades) Shaft.SIGMA MIXER as the name suggests contains mixing element (Blades) of Sigma type two in number which contrarotates inward to achieve end to end circulation & thorough & uniform mixing at close or specified clearance with the container. The mixed product can be easily discharged by tilting the container by hand lever manually either by system of gears manually operated or motorised.

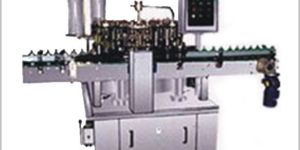

Vacuum Filler is a Rotary Level Filler which fills with vacuum principle and maintains same level while filling particular size / adjustment. It is used for filling only Non-Carbonated Liquids.   Applications FILL-LIQUOR PHARMA LIQUIDS HOUSEHOLD LIQUIDS IN GLASS RIGID BOTTLES & CONTAINERS.
