Voltage Relays Dealers in Mumbai

• Brand Name: NMC
• 92*192*150mm: 85V-265V AC/DC
• PASSWORD PROTECTED: LOW COST
• CONTROL FAIL BLOCKING: METAL BODY

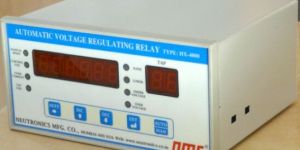

Nmc’s microcontroller based automatic voltage regulating relays (avr relays) are latest technology based relays used for regulating the secondary voltage of power transformers with on load tap changer (oltc). The parameter settings are made through the front panel keys & are stored in nvram. Independent time delays can be set for first control pulse & subsequent pulses. Built-in tap displays tap number of power transformer. Oltc is blocked for uv, ov, oc, cf, minmax tap positions & tap fail . In manual mode, tap raiselower can be achieved through front keys. In test mode, relays, display and led indications can be checked. A pair of contacts are available for raise, lower, uv, ov, manual mode, cf, tf & oc. There are two nos. Of 5 amps c.t.’s available, one for the over current blocking and l.d.c. & other for measuring the current. features : ø microcontroller based architecture with ad converter. Ø password protected. Ø auxiliary supply : 85v-265v acdc ø linear or inverse time response. Ø relay “on timer” ø built-in tap position indicator upto 40 taps. Ø readout of primary secondary voltages, current & tap no. Ø readout of kv ki voltage & current. Ø 7 segment bright red led displays. Ø independent lower, raise & nominal value settings. Ø blocking for uv, ov, oc, control fail, tap fail & minmax tap no. Ø auto manual mode of operation. Ø test mode & factory reset mode. Ø single pulse or continuous pulse operation. Ø line drop compensator (l.d.c.). Ø data logging. Ø modbus rs 485 ø rtc ø 4-20ma output from pt voltage & tpi for scada. Ø pt display of 433v instead of 110v. Ø over current blocking. Ø additional c.t. For measuring the current ø blocking for min. & max. Tap no. Ø master slave features.

• Usage: industrial
• Mounting Type: Din Rail
• Number of Poles: 2 Pole
• Phase: 3 phase

• Relay Type: Voltage Relay, Overload Relay

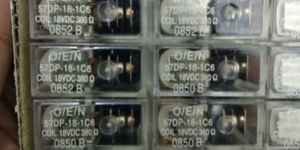

• Brand Name: OEN
• Voltage: 18V Coil Voltage
• Number of Poles: 5
• Model No: 57DP-18-1C6 OEN
• Current: 6A
• Voltage Type: DC
• Height: 26 mm
• Width: 13 mm
• Mounting: PCB

• Material: Aluminium, Plastic, Raw Aluminium
• Color: Blue, Metallic, White
• Voltage: 110 V, 220 380 V, 440 V
• Condition: New, Old
• Warranty: 1 Yr, 2 Yrs
• Type: Sugar Cube Relays
• Power: 1-3kw, 3-6kw, 6-9kw, 9-12kw
• Feature: Accuracy, Auto Controller, Dipped In Epoxy Resin, Durable, Heat Resistance
• Phase type: Double Phase, Single Phase, Triple Phase
• Contact Materials: Copper

SPECIFICATION System: 3Phase 4wire /1 Phase system. System Voltage: 380 to 41 5 VAC II Under Voltage factory set. Burden on supply : < 3VA. Temperature: -20~C to +5S C Humidity :< 95% Rh condensing, Dimension: 89(L)x 17.S(B)x58{H)mm. Mounting : DIN 35mm Rail I 2x M4 screw. Weight :80gms. FEATURES Trip level 75% of supply voltage. Time delay user set from 5 . 15 minutes. LED indication for "Power up" and "Relay on". Consistent reliability with accuracy. OUTPUT RELAY 1 NC contact / 1 NO contact Rated voltage: 250 VAC Switching capacity: 1250 VA (5 A /250 VAG) Fusing: SA fast acting. APPLICATION Control panel Feeder /motor Generator Transformer MODELS UVR-903 L3 3 4 N | L3 3 4 N | 8 NC | COM 6 7 NO UVR-901 4 N | L1 1 | COM 6 7 NO

Special Features         • Most compact yet ultra flexible protection relays • Micro controller based True RMS Measurement • Under or over voltage selection with automatic range   selection • Two Time delay ranges in one unit • User selectable Normal/Fail safe Modes • User selectable Auto/Manual Reset • Wide power supply range from 90-270V AC/DC

• Condition: New
• Brand Name: Stelmec
• Frequency: 50 Hz
• Weight: 2.5 Kg (approx)
• Model: SLR 140V
• Casing WxHxD: 134 x 180 x 212 mm
• Casing Cutout Size WxH: 110 x 158 mm
• Casing Degree of Protection: IP 54
• Rated Voltage: 110V AC
• Voltage Setting: +-5% of setting +-0.5% of nominal
• Over Voltage Setting: 50 - 180% of Un (U Greater than) (steps 1%)
• Under Voltage Setting: 10 - 100% of Un (U Less than) (steps 1%)
• Residual Voltage Setting: 2 - 88 V (UoGreater than) (steps 1V)
• Indications LED: Aux, Start, Trip & Type of Fault Indications
• Indications LCD: User friendly display mode for control, settings, Instruments and Fault data
• Burdens PT And AC: Less than 1.6VA @ 110V AC / 0.5VA @ 63.5V DC
• Auxiliary Supply DC: Greater than 12W - operated relays activated / Greater than 8W -under quiescent condition
• Contact Ratings: 15A @ 230V AC, 15A @ 28V DC Break 75W DC resistive, 1250VA AC
• Auxiliary Relay: 6A @ 230V AC, 6A @ 24V DC
• Ambient Operating Temperature Rang: -10 to 55 degree C
• Storage Operating Temperature Range: -20 to 70 degree C
• Reference Standard: IEC 60255/ IS3231

Voltage Monitor Relay Compact 17.5 mm wide Protects against Phase Loss, Phase Reversal & Phase Asymmetry Multi-voltage from 3 x 208 to 3 x 480 V Selectable Under voltage Over voltage Asymmetry levels Selectable Under Voltage Over Voltage & Asymmetry LED indication for all faults & for change in settings during run time for better security Adjustable time delay.

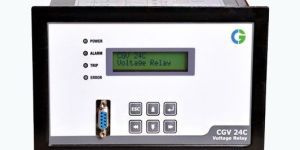

The 'CGV 24C' Numerical Protection Relay is a fully digital relay based on microprocessor technology with analogue to digital conversion of the measured values and subsequent numerical processing. It uses specialized digital signal processor (DSP) as the computational hardware, along with associated software.

Automatic Voltage Regulating Relays, electronic testing equipment

voltage relay, Motor protection relay

under voltage relay, Electrical Instruments, Digital Tap Position Indicator

voltage relay, Digital Panel Meters, Current Transformers

Automatic Voltage Regulating Relay, Electrical Products, Relays, annunciator

Under Voltage Over Voltage Relay, Dc Ammeter

high voltage relays, MCCB Switches, MCCB Switches, Mcb, Coils

Automatic Voltage Regulating Relay, Rep 2002 For Tap

D.c. Voltage Sensing Relay, Tag Blocks, R-Core Transformers

High-Voltage Relays

Automatic Voltage Regulating Relay-AVR, Repeater

A.C. Voltage Sensing Relay, Fuse Monitoring Unit

Sugar Cube Relay 12 Volts / 7 Amps, CMOS IC HEF4000BT, Smd Led
