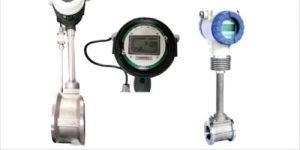

Vortex Flow Meter
40,000 Per Piece
MYKO Vortex Flow Meter bases on vortex street Principal for detection and metering the Liquid, Gas and Steam. It is widely used in Petroleum, chemical, metallurgy, heat supply industry, etc.One triangular prism vortex generator in the flow meter, regular vortex will be generated at both the sides of triangular prism, which is called Karman swirl. Suppose the vortex generation frequency is f, the average flow velocity of medium is V, d is the width of the surface of triangular prism incident flow, Then we get the computation formula.Application : Pure liquids and hydrocarbon with low viscosity (< 10 cP) Water Chemicals that suitable with S.S. 316 Material Saturated steam Superheated steam Industrial gases Compressor air measurement
Vortex Flow Meter
Get Price Quote
Vortex flow measurement technology is used to measure flow of utilities like compressed air, steam & even fuel oil. Vortex meters are reliable & most accurate flow measurement technology available & widely accepted across the industries. We are associated with Omicron U.S.to bring this flow measurement technology for various flow measurement application. Vortex flow meters working principle is von Karman’s effect principle which is based upon viscosity & velocity of fluid media. Vortex flow meters are used for domestic as well as industrial flow application wherever high accuracy is required. Von Karman principle is stated as below. “When a media moves in a direction & hits directly to a bluff body, vortices are generated. The frequency of vortices is directly proportional to the flow rate of media.”This frequency of vortices is then picked up by a coil pick-up placed after shredded rod or bluff body, when vortices hit the pickup. Benefits & Features: No moving parts High Accuracy as high as ± 0.5 % Flow range 10:1 Low pressure drop Pressure & temperature compensation available as optional. We have both integral type & remote type sensors option available as far as mounting is considered. The sensor selection is generally depend upon the application & site conditions. We recommend you to take our expert advice before making selection of appropriate sensor. Technical Specification: Accuracy: ± 0.5% Damping Time 0.2~100s selectable Analog Output: 0-10 VDC/4~20mA. Protection Class: For electronic box IP65 (outdoor) or IP 67 (optional) Lining Material: Rubber, PTFE, Polyurethane, PFA Sensor Material: AISI Stainless steel Measuring Range 10:1, flow rate ≤12m/s (39ft/s) Power Supply: 24 VAC Structure Type: Integral type, remote type, submersible type
Best Deals from Vortex Flowmeters

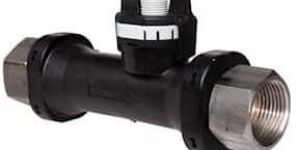

vortex flowmeters
Get Price Quote
Vortex Flow Meters
Get Price Quote
Vortex Flow Meters
