Vritti Associates Mahim, Mumbai, Maharashtra

Toroidal Transformer offer many advantages over a conventional laminated transformer.Toroidal has a round shape with no air gaps,and with the primary and secondary windings uniformly ditributed around the core,"locks in" the magnetic field and makes the toroidal transformer very quiet and efficient. Toroidal Transformer,by meeting today"s requirements for smaller,more efficient,quieter and safer products,are being accepted in an increasing range of electronic and electrical equipment.With toroidal transformer smaller dimensions, lighter weight and low stray magnetic fields, you can build more compact,lower cost quality products without sacrificing performance.

Country of Origin : India

Type : Toroidal Transformers

Certification : CE Certified, ISO 9001:2008

Application : Amplifier, Stabilizer, Voltage Convertor

Feature : Compact, Energy Efficient

Voltage : 110V, 220V, 230V, 380V

Condition : New

Power : 1-5kw, 10-15kw, 15-20kw, 20-25kw, 5-10kw

Driven Type : Electric

Phase : Double Phase, Single Phase, Tripple Phase

Warranty : 1year

Business Diversification Ever since our inception in the year of 2007, we at Vritti Associates have grown from strength to strength with the passion and dedication to offering high quality and reasonable electronic components along with medical and high-tech electronic mechanisms right from Cable Kits, Box Building, Delta Fans, Wire Harness, Switch Mode Power Supply to host of other RSM and Medical Equipments. The entire gamut of products from our house is cent percent export-oriented with the ensured stamp of 100% product testing and thorough total quality management. We supply our products to various countries like USA, Singapore and European Continent catering to a host of industry domains such as Medical, Aviation, Defence, Packaging, Entertainment, Navy, Automation, Energy Saving, Hospitality, CNC Machine Manufacturing, Process Control, Elevator Industry and Testing and Measurement amongst other niche industries. We duly understand their exact needs and business requirements offering highly customizable solutions within the stipulated fulcrum of time as per our business value ecosystem.

Country of Origin : India

Type : Wiring Harness

Thickness : 10-15mm, 15-20mm, 5-10mm

Certification : CE Certified

Length : 1-2Mtr, 2-3Mtr, 3-4Mtr, 4-5Mtr

Application : Automotive Wiring

Color : Black, Brown, Grey, White

Feature : Complete Supply, Flexible, High Quality, Long Life

Inner Material : Copper

Outer Material : PVC

Voltage Rating : 110V, 220V, 380V

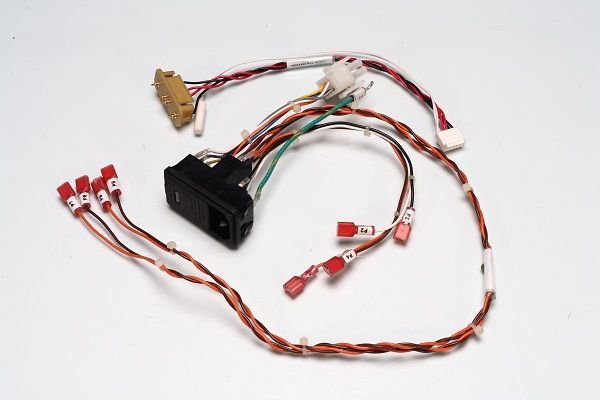

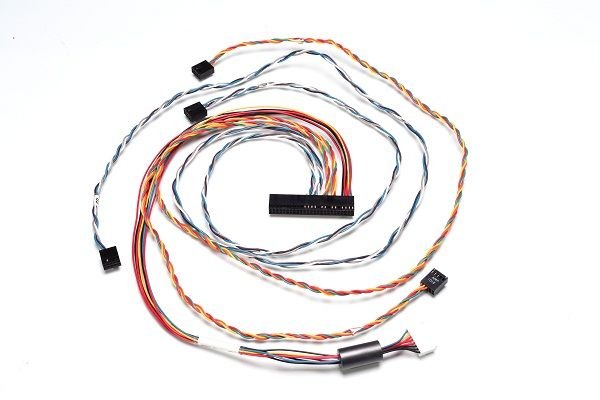

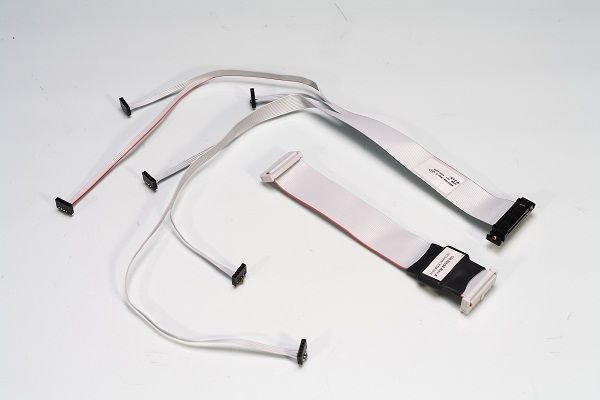

A cable harness, also known as a wire harness, cable assembly, wiring assembly or wiring loom, is a string of cables /wires which transmit informational signals or operating currents (energy).The cables are bound together by clamps, cable ties, cable lacing, sleeves, electrical tape, conduit, a weave of extruded string, or a combination thereof.The company manufactures specialized cable assembly for white goods, office automation, and medical diagnostic equipment, electrical and electronic equipment.Latest Manufacturing Equipment Skilled and Trained manpower State of Art Testing Equipment Stringent Quality Control Flexible in quality, Fast Response to Customer Requirement   World-Wide Components Sourcing Capability By the reality of its international affiliations, spread of global customer base, Miracle has experience of working with a wide range of international quality systems, customers and in-house quality functions; there is a continuous interchange of views towards the better goal.A zero compromise on quality culture that prevails the organization, allows Miracle to deliver the highest quality products and meet customer expectation to the international standard.Product ApplicationsAutomation, Aerospace, Agriculture, Automotive, Avionics, CNCs/Machine tools, Communications, Computer, Conveyor, Defense/Military, Electronics, Energy, Fiber Optic, Infrastructure/Utilities, Instrumentation, Marine, Medical, Mining, Packaging, Transportation/Public transit, Vending.Commitment to Total Quality The principles of Total Quality and ISO standards result in continually updated manufacturing practices and efficiencies. Our manufacturing team is generally divided into cells, organized by product type to provide flexibility and specialized attention in production. Every assembly is quality checked. These principles assure our customers that a quality product is delivered every time.Total Quality Activities Meet customer requirements Reduce development cycle times Timely demand flow manufacturing Improvement Teams Reduce product and service cost Continual training systems

Country of Origin : India

Thickness : 10-15mm

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Length : 2-3Mtr

Feature : Complete Supply, Fine Coated, Non Sparkle, Shock Free

Volume Controls are constructed with the help of 100V transformers . This control switch comes with 11 volume steps (10 regulator steps and 1-zero position) and besides this , they have a E/M relay (24VDC) which makes emergency announcements possible even if control is at position "0".

Country of Origin : India

Weight : 25-50 Gm

Condition : New

Frequency : 1-3GHz

Packaging Type : Corrugated Boxes

Temperature : -40 To +80 Deg C

Vritti Associates are a leading manufacturer of Voltage Stabilizers, having a wide range of different application products for consumer market as well as Industrial use. The in-house manufacturer of Toroidal Transformers has enabled the company to supply diversified products and meet the increasing demand of the market. With the latest computerized manufacturing Technology from Germany, Miracle is fast emerging as a leading manufacturer of exclusive range of Voltage Stabilizers for various Home appliances. It is the First company to bring an Unique concept of WALL Mountable type Stabilizers for A/C"s.The specialized works in the said field designed by our expert R&D engineers, who have got years of professional exposure and experience in the similar field. We have a dedicated team of engineers to give you the best possible system integration.

Country of Origin : India

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Application : Stabilization

Weight : 0.5-1kg

Feature : Auto Cut, Easy Operate, Shocked Proof, Stable Performance

Voltage : 110V

Condition : New

Frequency : 60hz

Power : 10-15kw

A range of high quality low profile encapsulated isolating transformers with twin 115V AC 50/60 HZ primary windings which may be connected in series for 230V or parallel for 115V operation designed for through hole soldering direct to printed circuit boards, mechanical fixing can be supplemented by 4 self tapping screws using holes moulded into the corner of the case.Double section glass fibre reinforced polymide bobbins 5 KV primary /secondary isolation 100% electrical and flash tested High efficiency and low temperature rise Low radiated noise Extra fixing holes for secure board mounted Low interwinding Capacitance

Country of Origin : India

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Phase : Single Phase

Warranty : 1 Year

Finishing : Polished

Usage : Industrial

Size (mm) : 10mm

Toroidal Transformer offer many advantages over a conventional laminated transformer.Toroidal has a round shape with no air gaps,and with the primary and secondary windings uniformly ditributed around the core,"locks in" the magnetic field and makes the toroidal transformer very quiet and efficient.Toroidal Transformer,by meeting today"s requirements for smaller,more efficient,quieter and safer products,are being accepted in an increasing range of electronic and electrical equipment.With toroidal transformer smaller dimensions, lighter weight and low stray magnetic fields, you can build more compact,lower cost quality products without sacrificing performance.Basics of Toroidal TransformerToroidal transformers are built around a ring-shaped core, which, depending on operating frequency, is made from a long strip of silicon steel or permalloy wound into a coil, powdered iron, or ferrite core. A strip construction ensures that the grain boundaries are optimally aligned, improving the transformer's efficiency by reducing the core's reluctance. The closed ring shape eliminates air gaps inherent in the construction of an E-I core. The cross-section of the ring is usually square or rectangular, but more expensive cores with circular cross-sections are also available. The primary and secondary coils are often wound concentrically to cover the entire surface of the core. This minimizes the length of wire needed, and also provides screening to minimize the core's magnetic field from generating electromagnetic interference.

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

A reliable power supply presupposes a sufficiently large supply system with high-performance transformers. The high quality standards set by VRITTI ASSOCIATES are appreciated throughout the world and these are applied to development, manufacture.Power transformers up to 30 KVA class are regularly manufactured and supplied to the domestic/international markets as per various national/international standards. The high quality standards set up by the company are appreciated by our customers in India and abroad.The design, manufacturing and test facilities have been approved to ISO9001:2008 Certification, and the high quality and attention give to customer’s requirements have resulted in  VRITTI ASSOCIATES being granted approval by a significant No. of International & national companies in the electronic & electrical Industries.

Country of Origin : India

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Number of Phase : Three Phase

Voltage Ratio : 220V

Power Rating : 10 KW

Driven Type : Electric

Surface Finishing : Polished

Packaging Type : Wooden Box

Speciality : Robust Construction, Easy To Use, High Efficiency

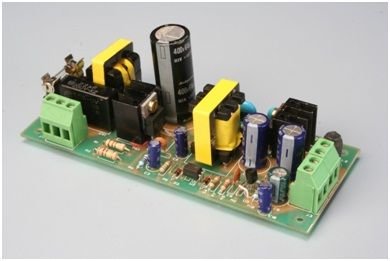

High Quality, High Efficiency, Universal Input, Single/Multiple Output, enclosed switch mode power supplies with screw terminals. Ideal for using communication computer peripherals, audio equipments, test equipments, instrumentation and business machine. Wide Range Universal Input Compact Design Stainless Steel/ Metal Enclosure Easy Installation - Screw Terminals High Efficiency Conducted EMI complies with EN55022-B Short Circuit and Over voltage protection ConstructionOpen Frame

Country of Origin : India

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Feature : Easy To Install, Electrical Porcelain, Sturdy Construction, Superior Finish

Condition : New

Frequency : 50hz

Power : 0-250W

A switched-mode power supply (also switching-mode power supply, SMPS, or simply switcher) is an electronic power supply unit that incorporates a switching regulator in order to provide the required output voltage. The switch mode transformer is used in conjunction with the switching regulator to form a switch mode power supply.Switch mode power transformers are used extensively in electronic applications, usually within a switch mode power supplySwitching Mode Power Transformers, Basic Application CircuitsThe design of a switch mode power transformer will differ depending upon the type of circuit used. There are many variations of switching mode power supplies, but they can be narrowed down to three basic circuit configurations (each also has a mirrored configuration); Buck, Boost, and flyback. Be aware that the name for the Buck circuit varies from industry to industry and from person to person. It may also be referred to as an inverter, D.C. converter, forward converter, feed forward, and others. There are also unipolar and bipolar (push-pull) versions.

Country of Origin : India

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Production Power : 50-100kw

Warrenty : 1 Year

Specialities : Superior Finish, Four Times Stronger, Electrical Porcelain

Thickness : 0-5mm

Weight : 10Kg

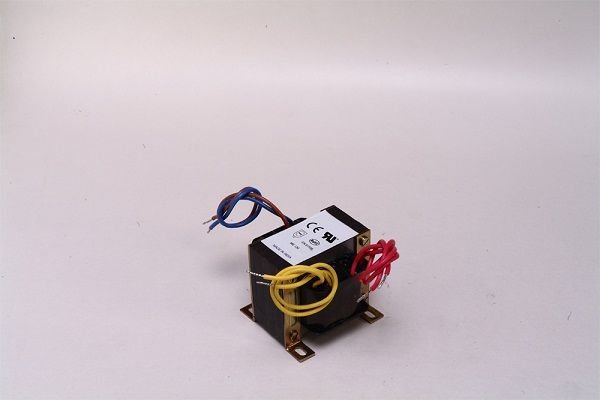

Vritti Associates design and manufacture Power Transformers for a variety of power supply and power conversion applications. Power transformers may be designed in a wide variety of shapes and sizes.Design requirements for a Power Transformers :Typical minimum requirements to be specified for a Power Transformer are: Power rating in VA. Frequency usually 60 Hz. Number of primary windings. Number of secondary windings. Operating voltages levels. Operating current levels Operating frequency is needed for core calculations and wire sizing. Core material is selected for the known operating frequency or frequencies which is typically silicon steel laminations. Other Power transformer design considerations are space limitations and mounting technique. Lead terminations are also specified through the design of a Power Transformer. Power transformer designs vary widely in terms of power rating, voltage and current levels (turns ratios), operating frequency, size, impedance, bandwidth (frequency response), winding and other parameters.

Country of Origin : India

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Number of Phase : Single Phase

Voltage Ratio : 110V

Power Rating : 10 KW

Driven Type : Electric

Warranty : 1 Year

Usage : Industrial

Size (mm) : 10mm

Weight : 5-10 Tons

Overall Length : 10-15 Inch

Packaging Type : Wooden Box

Speciality : Easy To Use, High Efficiency

Vritti Associates design and manufacture Power Transformers for a variety of power supply and power conversion applications. Power transformers may be designed in a wide variety of shapes and sizes.Design requirements for a Power TransformerTypical minimum requirements to be specified for a Power Transformer are Power rating in VA. Frequency usually 60 Hz. Number of primary windings. Number of secondary windings. Operating voltages levels. Operating current levels Operating frequency is needed for core calculations and wire sizing. Core material is selected for the known operating frequency or frequencies which is typically silicon steel laminations. Other Power transformer design considerations are space limitations and mounting technique. Lead terminations are also specified through the design of a Power Transformer. Power transformer designs vary widely in terms of power rating, voltage and current levels (turns ratios), operating frequency, size, impedance, bandwidth (frequency response), winding and other parameters

Country of Origin : India

Voltage : 220 V

Finishing : Polished

Power : 10 KW

Driven Type : Electric

Warranty : 1 Year

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Packaging Type : Wooden Box

Overall Length : 10-15 Inch

Speciality : Robust Construction, Easy To Use, High Efficiency

Vritti Associates introducing international standard Box Series Medical Grade Isolation Transformers with very low noise and minimal Electro-Magnetic Radiation available in different models in aesthetic enclosures suitable for floor or wall mountable type.Vritti Associates' Isolation Transformers offers reinforced safety when using in electronic devices or even for electro medical equipments. Our safety standards are well within the recommended standards in compliance as stipulated by National Electrical Code and as per Underwriters Laboratories safety standards.Vritti Associates manufactures a wide range of transformers for the medical industry. These can be supplied on either a standalone unit or for assembly in customer's equipment.We have models available for both international standards at 115V/60 Hz and in domestic usage at 230/50 Hz.The main transformer is of Toroidal type which we produce in-house and it is one of the most advantageous as compared with other type of transformers mainly it is very efficient, small in size, low noise, low in Electro Magnetic Interference which in turn enhances the performance of the electronic and other electro medical equipments.We follow some of the below regulations which fall under UL 60601-1, CSA C22.2 No.601 and EN 60601-1 standards like Max. patient auxiliary current Max. enclosure leakage current Max. patient leakage current Max. High voltage test between windings Min. creepage distance Min. air clearance Max. temperature rise at load and at over load Limited max. earth leakage current We can offer a wide range of products that can be easily configured. We can provide the required cable assembly, enclosures, and circuitry designs as per your requirements.These transformers are mainly used in computers, Audio/Video monitors, closed circuit surveillance cameras, test and measuring instruments, digital printers, and hospitals and in other electronic/electro medical equipments.

Country of Origin : India

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Finishing : Polished

Power : 10 KW

Driven Type : Electric

Weight : 5-10 Tons

Toroidal Transformer offer many advantages over a conventional laminated transformer.Toroidal has a round shape with no air gaps,and with the primary and secondary windings uniformly ditributed around the core,"locks in" the magnetic field and makes the toroidal transformer very quiet and efficient.Toroidal Transformer,by meeting today’s requirements for smaller,more efficient,quieter and safer products,are being accepted in an increasing range of electronic and electrical equipment.With toroidal transformer smaller dimensions, lighter weight and low stray magnetic fields,you can build more compact,lower cost quality products without sacrificing performance.The main purpose of these transformers is used in energy saving technology which in turn enhances the performance and saving the energy.We have both in single phase and cascaded in three phase as per the utility by the customer.

Country of Origin : India

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Application : Industrial Use

Feature : Easy To Install, Electrical Porcelain, Sturdy Construction, Superior Finish

Condition : New

Frequency : 50hz

Warranty : 1year

Production Power : 100-250kw

Toroidal inductors and transformers are electronic components, typically consisting of a circular ring-shaped magnetic core of iron powder, ferrite, or other material around which wire is coiled to make an inductor. Toroidal coils are used in a broad range of applications, such as high-frequency coils and transformers.Toroidal inductors can have higher Q factors and higher inductance than similarly constructed solenoid coils. This is due largely to the smaller number of turns required when the core provides a closed magnetic path. The magnetic flux in a high permeability toroid is largely confined to the core; the confinement reduces the energy that can be absorbed by nearby objects, so toroidal cores offer some self-shielding.Common Mode Chokes Common Mode Chokes are used when many electrical devices may be connected to the same power lines (or power supply lines) and therefore substantial electrical noise can exist on these lines. Line filters prevent excessive noise from being conducted between electronic equipment and the AC line. Noise is typically common to both lines and in the same direction. Common mode chokes are designed so that common mode current creates a magnetic flux (through mutual inductance) that adds to attenuate the CM noise signal. The normal (differential) mode currents create magnetic flux that ideally cancel each other out so the normal signal frequencies are not attenuated. Any inductance encountered by the differential signal is the result of imperfect coupling of the two coils. Design requirements for a common mode choke It is typical for the inductance value of a common mode choke to be specified as a minimum requirement, thus insuring the crossover frequency is not shifted too high. The frequency range of the interfering signal should be given to allow proper calculation of the attenuation of unwanted signal noise in the design. Proper wire sizing is accomplished by specifying the voltage and current levels across and passing through the common mode choke. Toroid InductorsToroid style common mode chokes are designed to provide the highest common mode impedance over the widest frequency range. These parts are ideal for any application requiring a high DC current bias and are well suited for use in switch-mode power supplies. Common mode chokes are most effective in filtering supply and return conductors with in-phase signals of equal amplitude. Differential mode inductors are available for filtering out-of-phase or uneven amplitude signals.A Toroidal inductor is an inductor that is designed on a doughnut shaped core. Toroidal inductors offer small size, less leakage inductance and lower electromagnetic interference (EMI).Design requirements  for  a Toroidal Inductors:Typical minimum requirements to be specified for a Toroidal inductor design are: No load inductance in uH Full load inductance in u HDC Current in Amperes AC Current in Amperes peak to peak Operating frequency is needed for core calculations and wire sizing Core material is selected for the known operating frequency or frequencies. Other Toroidal inductor design considerations are space limitations and mounting technique. Lead terminations are also specified through the design of a Toroidal inductor. Pulse TransformerA pulse transformer is a transformer that is optimized for transmitting rectangular electrical pulses--that is, pulses with fast rise and fall times and a relatively constant amplitude.Principle 8 Operating Principles Magnetizing (No-Load) Current Voltage Drop Voltage-Time Product Kickback Voltage Secondary Load Current Effects of Winding Capacitance The Trailing Edge Pulse Distortion The magnetic flux in a typical A.C. transformer core alternates between positive and negative values. The magnetic flux in the typical pulse transformer does not.  The typical pulse transformer operates in an “unipolar” mode (flux density may meet but does not cross zero.) Pulse transformer designs vary widely in terms of power rating, inductance, voltage level (low to high), operating frequency, size, impedance, bandwidth (frequency response), winding capacitance, and other parameters. Designers try to minimize parasitic elements such as leakage inductance and winding capacitance by using winding configurations which optimize the coupling between the windings.

Country of Origin : India

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Application : Industrial Use

Condition : New

Power : 1-5kw

Driven Type : Electric

Warranty : 1year

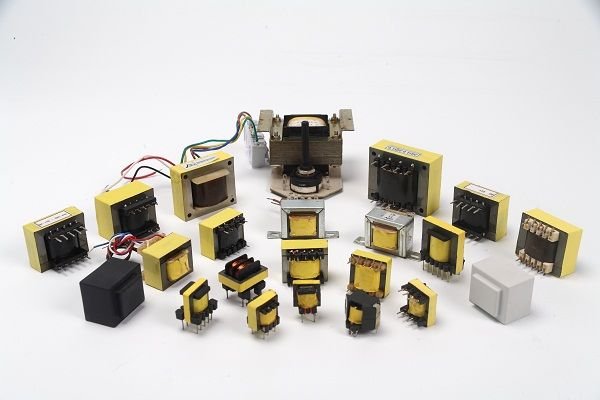

Transformer refers to the static electromagnetic setting which can transfer power from one circuit to another one. In AC circuits, AC voltage, current and waveform can be transformed with the help of Transformers. Each transformation is usually to transfer from one circuit to another one by the way of electromagnetism, but it has no direct relation with this circuit. It also can be transformed through electromagnetism (electrical manner). This electromagnetism is known as auto-transformer.Basics of E & I TransformersTransformer plays an important role in electronic equipment. AC and DC voltage in Power supply equipment are almost achieved by transformer’s transformation and commutation. At the same time the electrical parameters transformed by transformer are not one but a few ones.Simple schematic diagram of the transformer is shown below. It is connected by closed-magnet (iron cores), two windings and AC power supply. The winding is called the primary winding; another winding is connected with load, and it is called secondary windingsNo-load state of Transformer: viz. the disconnecting state between the secondary winding and load (Figure 1-2). Connect the primary winding and the power supply of AC voltageU1, and then it will produce alternating current I0, this current is called no-load currents. This current set up alternating magnetic flowf0 which is closed along iron core magnetic circuit. At the same time, it traverses the primary winding and secondary winding, and then produces inducting electromotive forceE2 (secondary no-load voltage).

Country of Origin : India

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Phase : Single Phase

Warranty : 1 Year

Speciality : Robust Construction, Easy To Use, High Efficiency

Packaging Type : Wooden Box

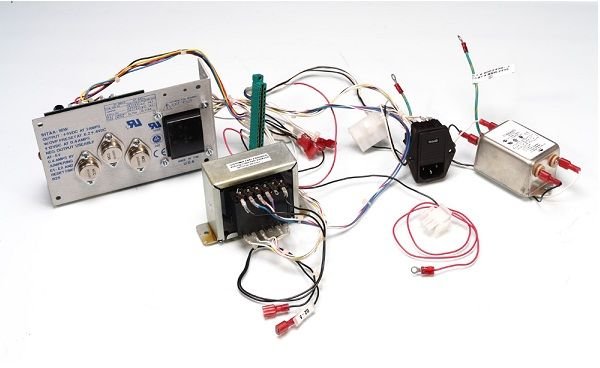

Box-Build Assembly refers to the complete assembly of a customer’s finished product.  PCB Solutions offers complete “Box-Build” Assembly services.Many of our customers are manufacturers that require a contract manufacturer for not only their Assembly needs, but for the final assembly of their innovative products.We can meet your box build assembly requirements, from surface mount and through hole assembly to cable manufacturing, panel wiring and complete cabinet assembly.We're dedicated to lean manufacturing techniques in all of our operations, including box build assembly. We have numerous box build assembly work cells dedicated to our customers’ products, ensuring that we continually maximize efficiency and improve our processes through enhanced operator knowledge and experience.

Country of Origin : India

Certification : ISO 9001:2015, ISO 13485:2016, AS 9100 Rev D

Condition : New

Frequency : 50Hz

Power : 0-5Kw

Warranty : 1Year

The purpose of this Transformer is to match the Impedance of the loudspeaker or a number of loudspeakers to the optimum load of the tube or transistor. In other words, the transformer transforms the Impedance of the speaker, so that the impedance which it presents to the primary winding is equal to the load of the Output stage active element (tube to transistor). Dual Outputs: 4 & 8 Ohms. Maximum Ambient Temperature: 40 deg C. Frequency Response: 40Hz to 20,000Hz (-2dB). Connections: 150 +/- 10mm multi stranded PVC wire. Stripped and Tinned.

Country of Origin : India

Feature : Cost Effectiveness, Durable, Easy To Use

Condition : New

Finishing : Polished

Packaging Type : Box

Phase : Single Phase
