Water Curtain Nozzle Dealers in Mumbai

Water Curtain Nozzle distributes water in a flat curtain extending all the way to the ground. Water Curtain Nozzle when mounted in pendent position acts as a window spray nozzle to protect interior walls, windows and other openings of the building which are affected by fire. The nozzles when mounted in horizontal position with flow towards ground, a flat water curtain are produced to segregate the area which is under fire. Water Curtain Nozzles are available in Brass and Stainless Steel construction with different flow rate. MAXIMUM WORKING PRESSURE 12 Bar (175 PSI) EFFECTIVE WORKING PRESSURE 1.4 - 3.5 bar (50 - 150 PSI) END CONNECTION ½" BSPT, (NPT OPTIONAL) INCLUDED WATER SPRAY ANGLE FOR EACH K-FACTOR 140°, 120°, 110°, 100°, 90°, 80° & 65° ORIFICE SIZE AND MM (INCH) METRIC (US) K-FACTOR K23 K30 K37 K45 K53 K72 K98 K120 K140 FINISH Brass finish, Chrome plated Brass (Optional) Strainer Option Available

Model: WC - Brass construction Model: WCS - Stainless Steel construction K-Factor: Model: WC-15 / WC-15S, K23, K30, K37, K45 Size : 1/2" BSPT Non-automatic open orifice, fix pattern used as curtain nozzle or as window nozzle

• Working Pressure: 1.5 to 3.5 kg/cm2
• Maximum Pressure: 12.5 kg/cm2

this products we start some spare parts as hydrant lugs adopters couplings and others smaller fitting use in fire brigade.

• Material: Aluminum Alloy, Brass, Stainless Steel
• Pressure: `3-6 bar, 1-3 bar, 6-7 bar
• Minimum Order Quantity: 250.0 Piece
• Thread Size: 3/4, 1/2, 1

Material: brass , stainless steel Working pressure : 1. 5 to. 3. 5 kg/cm. Sq Maximum pressure: 12. 0 kg/cm. Sq (175psi) Size : 1/2" , 3/4" and 1" bspt /npt/bsp k - factor: k-22,k-32,k-35,k-40,k-70,k-79,k-89 and k-90. Finish: brass natural finish or chrome plated Spray angle: 150, 160 or 180 degree Model no.: snf2354

• Material: SS304 (carrying handle provided in portable models)

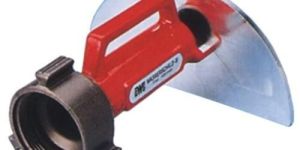

Curtain Nozzle Curtain nozzles create a semicircular spray of water, useful for protecting personnel and equipment from the radiated heat of fire, and preventing the spread of fire. Available in different capacities, with portable and fixed options. Item Description : 63mm Jumbo (Mayura) Curtain Nozzle having 63mm Male Inst. Connection (Flange Connection also available) Material of construction : SS304 (carrying handle provided in portable models)

• Weight: 3.6,5.8
• Inlet Available In: 2 ½” Male Instantaneous

It is specially designed to give low back pressure. It has a constant Gallonage Nozzle. It has a straight stream to wide fog and flush without shut off.Its moulded rubber bumper with flexible fog teeth creates thick fog pattern.

Established in the year 1994, Firetech Equipment & Systems Pvt. Ltd. has designed, manufactured and supplied Fire Fighting Equipments in various ranges to its valued customers. The Equipments and Systems are Designed, Manufactured, and In-house Performance Tested to Indian and International Specifications and Quality Assurance Plan approved by Customers, Consultants, and Inspection Agencies. The Equipments are also approved by TAC Approved Third Parties.
