Weighing Controllers Dealers in Mumbai

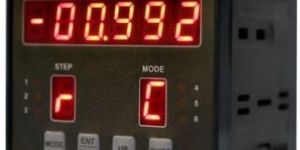

Load indicators are weighing indicators controllers suitable for material dispensing applications. For discharging of material, usually pump or solenoid valve or a gate etc is used. On operation of the dispensing device, due to inertia as well as mechanical delays in switching off; additional material is discharged over and above the set value. Inflation setting is for correction of this error in discharging. User can set the value of extra material being discharged which will be subtracted from the set point and the discharging device is switched off prior to set point is reached avoiding the extra material discharge. eg. if set point is 10 kg and inflation setting is 250 gm, then relay will operate at 9.75 kg giving allowance for the extra material to be discharged. These controllers find applications in material discharge, batching and weighing applications, dispensing controllers etc.

The ASHE MX-450 is a micro-controller based Digital Flow Rate Indicator Totalizer offered in a highly compact, rugged and reliable execution. There are two digital displays on the front panel – the Rate Display and the Totalized display. The RATE display indicates the real time process value and the TOTALIZER display indicates the accumulated (integrated) volume over the selected time scale. The totalized value is displayed on an eight digit counter with non-volatile memory. The flow rate is continuously displayed on a four-digit seven-segment digital display.

• Condition: New
• Application: Loading Indication,Controller,Load Controller,Load Indicator
• Display Type: Digital
• Type: Load Indicators,Load Controllers
• Country of Origin: India
• Color: Grey

• Color: Blue & Rosy Brown
• Condition: New

Our Batch Controller is an intelligent microprocessor-based Batch Controller for Fluid Metering Installations. It can operate either in a "MANUAL" or "AUTO" mode. It has been designed to perform various batch loading applications, such as Tank Trucks, Rail Cars, Industrial Barrel Filling, Barge for Petroleum Liquids, Aviation Fuel, LPG, LNG, Lube Oils, Chemicals, etc. Our Batch Controller communicates with Loading Rack Computer, Gauging Computer and if required, with other Peripheral / Host devices. Batch Controller  has an ex-proof and weatherproof housingSalient Features: Large (240 x 128) Graphic Liquid Crystal Display or Large 6-digit back-lit LCD display Latest Generation Microcomputer Design Dual Communication Ports Pulse Security Conforming to IP - 252 / ISO 6551 Menu Driven Operator Interface Multi functional Alpha-Numeric Keyboard Optional Host Communication Redundancy Data Storage up to 200 transactions(Expandable) Field Programmable Options Self-diagnostic Meter error curve linearization Tamper-proof and sealed calibration facility and approved by Weights & Measures department Accepts all types of interlocks for fail-safe operation Can be used with any make of flow meters and pulse generators RS 232 / RS 485 connectivity Flameproof enclosure for hazardous area application Weatherproof to IP – 65 Electronic Batch Controller: Our Batch Controller has Microprocessor based integrated batch  loading system and dual communication port system. The offered  Batch Controller is a powerful flow computer, designed to meet the requirements of all types of fluid Metering installations for refuellers, tank trucks and marine applications.

Interested buyers can place orders with us, timely delivery of the same are our foremost concern. The raw material that is used for manufacturing superior grade products is sourced from the reliable places after complete quality confirmation.

Ultra mag series standard’s sanitary batch control system engineered for bulk, precision dosing and filling operations from drums, tote® tanks and kettles – virtually hands-free. This system utilizes a non-invasive full bore magmeter for flow volume measurement. Simply dial in desired volume, press enter, and the sanitary batch control delivers a preset volume of material within .05% accuracy. The system is an excellent solution for conductive food products, pharmaceuticals, and cosmetic materials. Common applications lotions shampoo chocolate pie fillings juice concentrates brine pharmaceuticals tomato paste features 3a certification large graphic display tri-clamp® fittings low shear design non-invasive measurement easy to clean design multi-language display standard or metric units of measure measures volume

• Type: based
• Housing: Cast Aluminium
• Analog Output: 2 Nos. Galvanically isolated

We will take this opportunity to introduce VT CORP as a leader in the field of Industrial weighing and bagging machines and material handling equipment for last 40 years. Our heavy duty Weigh Feeder offers accurate weigh feeding of a variety of demanding industrial applications with high feed rates. Its unique design allows the belt to be changed with minimum downtime, and its heavy-duty construction provides larger pulleys and a very sturdy and rugged frame for increased accuracy in high-rate, heavy-duty applications

• Size: 96×96 mm depth 150 mm

Load indicators are weighing indicators controllers suitable for material dispensing applications. For discharging of material, usually pump or solenoid valve or a gate etc is used. On operation of the dispensing device, due to inertia as well as mechanical delays in switching off; additional material is discharged over and above the set value. Inflation setting is for correction of this error in discharging. User can set the value of extra material being discharged which will be subtracted from the set point and the discharging device is switched off prior to set point is reached avoiding the extra material discharge. eg. if set point is 10 kg and inflation setting is 250 gm, then relay will operate at 9.75 kg giving allowance for the extra material to be discharged.

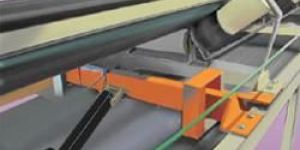

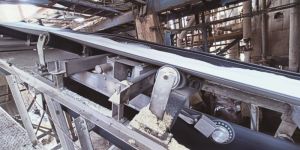

A belt weigher is a part of industrial control equipment used to measure the flow rate of material travelling over a troughed conveyor belt of any length. Many such belt scales are active part of the process flow control of conveyor line. A belt weigher replaces a short section of the support mechanism of the long conveyor belts in process industry. Each system consists of microprocessor based control panel, load cell and belt speed measuring device. We provide material totalizer and flow rate analog signal outputs from belt weighers.

Single or multi-idler weighing system for installation on flat or inclined belt conveyor up to 2m wide.Comprises indicator, up to 3 idler frames, speed transmitter, junction boxes and cabling, Weighed transferred via hight-adjustable load button simplifies installation where conveyor, structure are not straight and true, Encoder ensures correct and precise calculations of feed rate.

• Country of Origin: India

We hold expertise in the manufacturing of Weighing and Bagging Machine Controllers. Our Weighing and Bagging Machine Controllers is manufactured in compliance with set industrial standards. Our Weighing and Bagging Machine Controllers provides high performance and longer working life. Features * One shot key based calibration * Easy to install and use * Multiple dump feature * Programmable auto correction * Auto jog feature Notes * AUTO CORRECTION takes care of feed rate variations and ensures weight within tolerance by trimming at the fine cut * AUTOJOG, initiates Dribble cycle again if the weight filled is below target weight, with pre-programmed * DRY- RUN Feature(in test Mode)helps Installation and Commissioning engineers, to checkout operation of all output devices and tests the status of inputs without the need for material in hopper. Single Step & Single Cycle tells * LEARN Mode of Marathon-5606 computes optimum coarse and Fine cut values in the initial few weighing cycles, resulting in “Best Accuracy-Bagging speed” performance

Belt weigher, An experience of over 17000 installations makes SEG Sweden one of the leading belt scale manufacturers in the world. SEG scales in India have proven themselves in most challenging environment like underground mines and trans-shippers. We are sure that once you use SEG, you will not go back to ordinary scales.

• Display Type: LCD
• Features: Smart calibration, Recipe management ,Process status LEDs,High sampling rate 24-bit data converter The flexibility of quantity, batch size and product.
• Brand Name: Veeraat
• Analog Output: 0 to 10 V DC
• Weighing Range: 1 grams to 100 kg
• Speed: 7-18 (Fills/min)
• Backlight color: Green, White

• Brand Name: METTLER TOLEDO
• Place of Origin: China (Mainland)
• Model Number: C750 Bagging Controller
• Port: JNPT
• Packaging Details: Cardboard Packing Air & Road Worthy

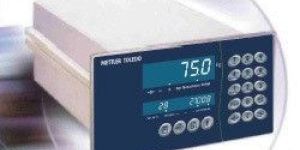

A dedicated bagging controller for bag filling applications. Most suitable for gross or net bagging applications.
