Well Pump Dealers in Mumbai

• Certification: CE Certified, ISO 9001:2008
• Color: MUlticolor
• Voltage: 110V, 220V
• Power: 1-3kw, 3-5kw, 7-9kw
• Warrenty: 5 Years
• Country of Origin: India
• Number Of Stages: Single-stage Pump
• Motor Phase: Three

• Power Range: V4: 0.37kW - 3.7 kW (0.5HP - 5HP)
• Speed: 2880 RPM

submersible pumps are vertical, multi stage, centrifugal pumps with motor at the bottom & pump at the top. The water enters at the bottom of the pump and flows upwards through many stages. The stainless steelbronze impellers rotate inside the diffusers with inherent guide vanes. The diffusers direct water leaving each impeller towards the suction opening of the next impeller. Such a flow through each stage of impeller and diffuser combination adds pressure at each stage and finally water under high pressure is discharged through outlet at the top.

Features : Most suitable for Airconditioner Cleaning. Unique oil less pump is compact, super lightweight. Unbeatable in pumping performance. Very Durable & long lasting. Adjustable pressure for Evaporator & Condenser cleaning. A Quality product from Kyowa, Japan. Other Applications – Car engine compartment Cleaning. Washing and finishing in plasterers work. Tool processing equipment Cleaning. Farm tool and machine Cleaning. Insecticide spraying in gardens and to trees. Printing machine Cleaning. Steel Pipe Cleaning.

We are noted Supplier of Deep Well Hand Pumps based in Maharashtra, India. In order to meet varied demands of the buyers, we make them available in different specifications. Further, we have adopted smart logistics network to entertain safe and swift deliveries. Buyers are free to place orders with us, we promise to deliver the same within a given time frame.   Technical Data : Cylinder diameter (mm) - 63.5 Maximum Stroke (mm) - 125 Approx. discharge at about 75 watt input m3/h: at 10 m head 1.8 at 15 m head 1.3 at 20 m head 1.0 at 25 m head 0.9 at 30 m head 0.8 Pumping lift (m) - 10 – 50 Population served (nos.) - 300 Households (nos.) - 30 Water consumption (lpcd) - 15 – 20 Type of well - Borehole Material : Pump head galvanised steel Handle galvanised steel Pump stand galvanised steel Pump rods galvanised steel Riser pipes galvanised GI pipe Pump cylinder cast iron / brass Plunger/footvalve brass Local manufacturing All “above ground components” have a potential for local manufacturing, the other parts need a high degree of quality control to ensure a reliable operation. The cost of the tooling requirement is substantial and therefore the number of manufacturer will be limited. Installation : The installation of the India Mark II Pump need well trained area mechanics or a mobile team with lifting tackle and comprehensive tool kit.Maintenance : This pump has limited “Community Management Potential”, but it is reliable and popular with the communities. To service the India Mark II Pump skills and tools are needed which exceeds the ability  of a village-level caretaker. However trained area mechanics can successfully maintain the pump.

• Pump Body: Cast iron, with UNI ISO 228/1 gas threaded suction and discharge openings, threaded side openings for installing a pressure gauge and pressure switch.
• Pump Body Cover: Cast iron
• Eject Or Assembly: PPO techno polymer (approved for drinking water).
• Impeller: Brass or PPO techno polymer, with centrifugal radial flow type
• Mechanical Seal: Ceramic and graphite
• Motor Shaft: Stainless steel AlS1420
• Motor: with thermal overload protector in single phase motor
• Protection: IP44
• Insulation: Class F

• Brand Name: UEW

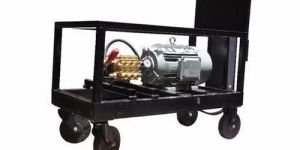

• Pressure: 130-150 bar
• Warranty: 6 Months
• Power Source: Electric
• Max Flow Rate: 1500-2000 Psi
• Material: MS
• Model: X-SERIES
• Motor Horsepower: 20
• Phase: 3 Phase
• Automation Grade: Automatic
• Maximum Discharge Flow: 150 bar
• Portable: Yes
• Motor: 5 - 20 HP
• Speed: 1450 RPM
• Discharge Flow: 10-40 LPM Max

Single Phase Capacity 0.25 HP to 2 HP             Three Phase Capacity 0.25 HP to 10 HP

Deep well Hand pump as per Bureau of Indian Standard Specifications IS-9301: 1990 with 63.5mm dia cast iron brass sleeved cylinder assembly, Deep well Hand pump as per Bureau of Indian Standard Specifications IS-13056: 1991 r Bureau of Indian Standard Specifications IS-13056: 1991 – Amendment 6, with 50mm dia cast iron brass sleeved open top cylinder assembly with extractable plunger and foot valves assemblies.

While it is a very sturdy pump, it is very important that the pump be manufactured to very exacting standards with strict adherence to quality control.The pump body parts are Hot-Dip Galvanized and as such are extremely durable over the years.the additional benefit of being VLOM(Village Level Operation & Maintainence) & therefore the downtime of the pump during its life is very little.VLOM 50 has recently been designed to combine the cost effectiveness of Mark II with the VLOM facilities.

Eductor when designed appropriate are able to create full vacuum. They are thus very useful in Chemical Industry where clean vacuum is required. CONNECTIONS Eductors may be supplied in any connections as suitable to the application. They may be flange or thread connected on to clamp hose pipe.

• Features: High water pulling capacity,Low power consumption which results in energy saving,Operates at wide voltage levels
• Kw/Hp: 0.1 to 10
• Supply Phase: 1 Ph
• Delivery Pipe: 21 to 40
• No. of Stages: 0 to 10
• Residential Pumps Type: Centrifugal Shallow Well Jet

Motor• Suitable in Wide Voltage• Winding Wire - High Quality Insulation• Shaft - Stainless Steel• Thrust Bearing - High Quality Carbon Vs Steel Combination• All Fasteners - Stainless Steel• Motor - Water filled/Oil filled• Higher Efficiency - Higher Water Discharge at Low Power Consumption• Copper RotorPump• All Pump Parts - Stainless Steel• 40% Higher Efficiency  • Wear & Abrasion Resistence• Lower Suction Housing - Precision Cast Stainless Steel• Hexagonal Pump Shaft - Higher Strength Against Radial Load• In-built Strainer - Prevent Sand & Particles Entry• Negligible Maintenance Cost• Excellent Aesthetics  Applications • Irrigation and Drip Irrigation• Sprinkler, Gardening and Bungalows• High Storey Buildings• Industrial Water Supply Schemes

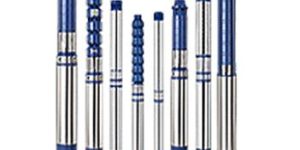

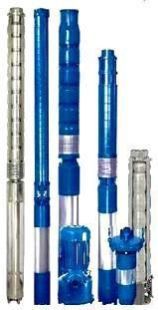

PEW Submersible Borewell pump suitable for 3", 4', 6", 8" and 10" borewell are made with superior quality raw materials and unique design to ensure best in-class performance with lowest operating cost and zero maintenance for years. Matchless and unique hydraulic design of bowl, impeller and diffuser is put together to construct a most energy efficient pump. Highly sophisticated engineering and State of the art manufacturing process results in world class quality and consistency. Compact and high efficient design saves electricity by 20% to 40% as compared to old conventional designed pumps.

Deep well Hand pump as per Bureau of Indian Standard Specifications with 63.5mm dia cast iron brass sleeved cylinder assembly, Deep well Hand pump as per Bureau of Indian Standard Specifications IS-13056: 1991 r Bureau of Indian Standard Specifications IS-13056: 1991 – Amendment 6, with 50mm dia cast iron brass sleeved open top cylinder assembly with extractable plunger and foot valves assemblies.

• Motor Horse Power: 150 HP
• Type: VERTICAL
• Motor Phase: Three Phase
• Country of Origin: Made in India
• Number Of Stages: Multi Stage Pump
• Brand: LUBI
• Warranty: 12 months

Afridev Hand Pump Afridev deep well hand pump (VLOM) is suitable for lifting water from depths of 10 meters. to 45 meters. Afridev hand pump is suitable for boreholes with casing sizes of 100 mm, 115mm, 127mm, 150mm or 200mm internal diameterNote: If the Afridev pump is to be used in dug wells, suitable provision must be made for location of the rising mains and modifying the suction pipe if necessary. A brief description of the major pump subassemblies and components are as given below. Pump head, handle front, handle rear, rod hanger, rod hanger pin, fulcrum pin, bearing bushes inner & outer with cover. Steel cone plate assy. with compression rubber cone. Stand assy. (with different options) Cylinder assy. with suction pipe. Pump rods (eye & hock type) set (9+1) UPVC rising mains (10 Nos.) Rod centralisers (10 Nos.) + Riser pipe centralizer (10 Nos.), polypropylene rope, fishing tool, m16 socket spanner, 2 nos of double ended spanners 17/18.Stroke Length: 225+/-3mm. Discharge – 16.5 Litres for 40 continuous strokes per minute.

• depth: 600 ft

Air Compressor Pumps are designed to draw water from borewells at any depth. * The compressed air will enter in the borewell through pipe line upto the bottom, where it is connected to a water pipe which pushes the water to the field, overhead tank or places where the water is required. * The water can be drawn at any depth, even at 600 ft. * The maintenance is very simple. * Compressors can be operated with motor or diesel engines. * No foot valve is required.

• Warranty: 12 Months
• Motor Horsepower: 1 to 5 HP
• Motor Phase: Three Phase
• Maximum Discharge Flow: 100 - 500 LPM
• Maximum Head: 15 to 50 m
• Discharge Outlet Size: 25 to 50 mm

• Type: Borewell Pumps
• Voltage: 110V, 220V, 380V
• Application: Agriculture, Deep Well Pumping, Household, Industry, Water
• Theory: Axial Flow Pump, Centrifugal Pump, Electromagnetic Pump, Reciprocating Pump, Rotary Pump
• Automatic Grade: Automatic, Fully Automatic, Manual, Semi Automatic
• Power: 1-3kw, 3-5kw, 5-7kw, 7-9kw
• Pressure: High Pressure, Medium Pressure
• Structure: Diaphragm Pump, Gear Pump, Multistage Pump, Single Stage Pump
• Warranty: 1Year, 2Years
