WESMAN BURNERS
In a furnace the re-circulation of products of combustion can substantially contribute to the speed of heating and temperature uniformity. For low temperature ovens and dryers, suitable re-circulating fans are generally provided to achieve temperature uniformity. However, fans are not practical for high temperature furnaces and kilns. Excess air can help in re-circulation but this will result in wastage of fuel. 30% excess air for a 1100 degree centigrade furnace will require additional 24% fuel than stoichiometric firing. In comparison, high velocity gases entrain and re-circulate more than seven times of own volume will eliminate need for fans or excess air.
Feature : Ceramic Tunnel and Kilns • Heat Treatment Furnaces • Car Bottom Furnaces Scrap • Preheaters Galvanizing Tanks
...more
Self Proportionating Oil Fuel Burners
Considerable fuel savings over conventional burners. � Constant air and fuel ratio. Eliminates dependence on operator's judgement. � Single lever to control fuel and air flow simultaneously. � Also available oil and oil-gas combination burner. Application: � Forging furnace � Galvanizing furnace � Re-heating furnace � Boilers � Non-ferrous melting furnace � Hot air generator � Heat Treatment Furnace
...more
SPRING HEAT TREATMENT FURNACES
Wesman has a full range of spring Heat Treatment Furnaces up to a capacity of 15 MTPH to offer to the Coil and Leaf Spring Manufacturing Industries. These Furnaces comprise of Hardening and Tempering Line. The Hardening Furnace can be Walking Beam Type with Quenching Facility for Polymer or Oil as per the process requirement and the Tempering Furnace can be Conveyor Type. Farnalool Iran - Conveyorized tempering furnace for springsThe Leaf and Bars can be loaded to the Hardening Furnace by suitable charger or manually over water cooled rollers. The Hardening Furnace can be Walking Beam Type with minimum number of walking beams depending the length of the Leaf Springs and the Coil Bars to minimize the heat leakages. The Walking and the Fixed Beams are provided with suitable saw teeth and curved teeth to have minimum supporting area for the Leaf Springs and the Coil Bars for better heat treatment during hardening. The walking beam can be Hydraulically or Electro-mechanically operated. The Leaf and Coil Bars can be end-discharged at the opposite end or side-discharged over water cooled Rollers to suit customer’s press for forming Leaf and Coils tailor made to give best results.
...more
Speedmullors
altWESMAN SIMPSON Speedmullors are carefully designed and proportioned to achieve maximum mixing performance and energy efficiency while still providing some versatility in applications typical to these sizes of sand systems.
Features : 1. The original Speedmullor, 2. Higher productivity
...more

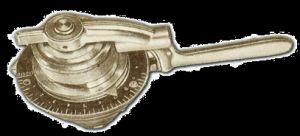

Sensitrol Oil Valves
Sensitrol Valve is a tight shut-off valve with precision V-oil port for micro-metering and uniform flow of oil through-out the 180 degree sweep of the control handle. Sensitrol Valves are tight shut-off valve to prevent dribbling oil into burners during shut-down. It also permits the convenience of shutting off the burner without disturbing the Sensitrol's limiting orifice setting. Sensitrol valves are available in 6 sizes depending on oil flow requirements.
...more
ROTARY HEARTH TYPE FURNACES
Wesman has a full range of Rotary Hearth type Heat Treatment and Reheating Furnaces up to a capacity of 150 MTPH to offer to the Seamless Steel Pipe, Rail Wheel and Axle manufacturing and Forgings Industries. Mostly billetsblooms are placed horizontally on the hearth. Rotary hearth furnaces for vertical loading of the material can also be offered. Two independent hydraulically operated machines are used for charging and discharging of material one at a time on the rotating hearth. Charging machine will pick-up the material from the Charge Roller Table placed at a particular location and place the material through charge door on the hearth at a predetermined location. Simultaneously, the discharge door will also open-up and the discharging machine will pick-up the hot material from the hearth and deliver the material to a discharge roller table. Both charging and discharging doors shall be driven by dedicated electro-mechanicalhydraulic drive arrangement.
...more

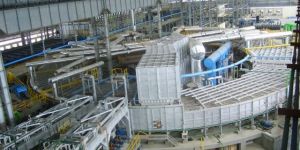

Rotary Hearth
Wesman has a full range of Rotary Hearth type Heat Treatment and Reheating Furnaces up to a capacity of 150 MTPH to offer to the Seamless Steel Pipe, Rail Wheel and Axle manufacturing and Forgings Industries. Mostly billetsblooms are placed horizontally on the hearth. Rotary hearth furnaces for vertical loading of the material can also be offered. Two independent hydraulically operated machines are used for charging and discharging of material one at a time on the rotating hearth. Charging machine will pick-up the material from the Charge Roller Table placed at a particular location and place the material through charge door on the hearth at a predetermined location. Simultaneously, the discharge door will also open-up and the discharging machine will pick-up the hot material from the hearth and deliver the material to a discharge roller table. Both charging and discharging doors shall be driven by dedicated electro-mechanicalhydraulic drive arrangement. Rotating hearth is fitted with adequate number of supporting rollers in two rows and move over rails anchored to the ground. Centering rollers are placed on the inner side of rotating hearth to prevent lateral displacement. Hearth rotation is made through two numbers electro-mechanical or hydraulic drive units placed at 180° apart. Hearth indexing arrangement is provided to stop hearth at stations for charging & discharging simultaneously. The furnaces are fired with Wesman’s high efficiency burners supported by a full complement of combustion system consisting of combustion fan, atomizing fan, oil heating and pumping systems andor gas trains. In addition auto ignition, flame failure safety and complete control systems are offered. Practically any type of liquid or gaseous fuel can be used viz. Furnace Oil, Light Diesel Oil, LPG, Natural Gas singly or a combination of any oil or gas in case of dual fired furnaces.
...more
Return Sand Multi-Coolers
WESMAN SIMPSON MULTI-COOLERS are specifically designed to provide the mixer with sand that is cooled to temperatures that allow optimal mulling, premixed to eliminate return sand variations and with a moisture content controlled within tight tolerances. The result is optimal mulling and high-quality, profitable castings.
Feature : 1. Pre-mixing with back-blending and controlled retention
...more

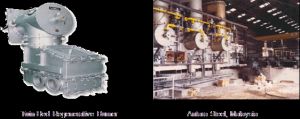

Regenerative Burner (Twin Bed Burners)
These burners recovers waste heat from furnace exhaust gases to preheat combustion air to significantly reduce fuel consumption over conventional burners or burners with recuperators. These burners have exceptionally low NOx emissions and high fuel savings make it a perfect option for high temperature furnaces. The higher the process temperature, more is the saving potential.
Feature : Low NOx emissions • High Efficiency • No complicated refractory stabilizers or baffles
...more
Regenerative Burner
These burners recovers waste heat from furnace exhaust gases to preheat combustion air to significantly reduce fuel consumption over conventional burners or burners with recuperators. These burners have exceptionally low NOx emissions and high fuel savings make it a perfect option for high temperature furnaces. The higher the process temperature, more is the saving potential. • Low NOx emissions • High Efficiency • No complicated refractory stabilizers or baffles • Improved Pilot and mounting • Modular Construction for flexibility Application: • Reheating Furnaces • Forging Furnaces • Heat Treatment Furnaces • Aluminum Melting Furnaces • Glass Melting Furnaces
...more
Ratiotrol Oil Valves
Ratiotrol valves are accurate and used for automatic control proportioning of oil and air flow. Ratiotrol valves maintains the balance between fuel and combustion air for complete combustion in burner. It is used to control burner from high-fire to low-fire and vise versa i.e., as combustion air is turned up or down, the Ratiotrol controls the oil to flow in proportion. Ratiotrols are available in two sizes.
...more

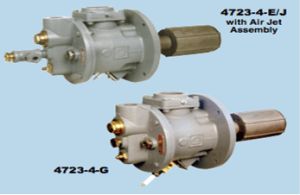

Radiant Tube Gas Burners
These burners uses every square inch of available tube surface for heat transfer. It avoids hot spots and burnout. • High Heat Release • Even Heat Release • Low Burner & Tube Maintenance • Cold or Preheated Combustion air • Easy lighting
...more

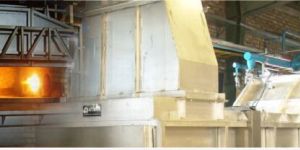

Pusher Reheating
Wesman has a full range of Pusher type Reheating Furnaces up to a capacity of 150 MTPH to offer to the steel rolling industry. These furnaces can be Top Fired or Top & Bottom Fired, depending on the cross section of the charge material. Billets or slabs are charged on the hearth side by side so that it can be pushed from the charge end the discharge end by means of a electro-mechanical or hydraulic Pusher Machine. The material can be end-discharged at the opposite end or by side-discharge by an Ejector, to suit customer’s mill requirements. All machinery for automatic operation such as Slab Extractors and Pinch Rolls to suit each typical requirement is tailor made to give best results. The furnaces are fired with Wesman’s high efficiency burners supported by a full complement of combustion system consisting of combustion fan, atomizing fan, oil heating and pumping systems andor gas trains. In addition auto ignition, flame failure safety and complete control systems are offered. Practically any type of liquid or gaseous fuel can be used viz. Furnace Oil, Light Diesel Oil, LPG, Natural Gas, Coke Oven gas, Blast furnace gas, Producer gas singly or a combination of any oil or gas in case of dual fired furnaces. To improve fuel efficiency, Recuperators for heating combustion air up to 500 deg C is provided. For customers requiring even more fuel efficiency, Wesman Regenerator burners can be offered that can give air preheat of 1000 deg C or more. All Wesman furnaces are lined with a combination of high alumina bricks backed by insulation bricks to minimize the skin temperature. High temperature ceramic fiber is also used in various locations to reduce heat losses and reduce maintenance. Roof design can be suspended type of hatch back depending on the design requirements.
...more
Proclaim Sand RECLAIMER
WESMAN SIMPSON PRO-CLAIM SAND RECLAIMER - for Reclaimed Sand that performs as well as – or better than – new. In today's competitive market, you can't afford to miss the savings and technical advantages from reclamation. Sand is the largest foundry process waste, typically constituting about 70% of total waste volume. Fortunately, most foundry sands are reclaimable and can be effectively reused.
Features : bullet The original Pro Claim,bullet Higher productivity,bullet Cost Saving
...more
Process Boiler Burners
Steam / compressed air atomized L or D series burner are used with either D-type integral wind box or suitable to install on common wind box on process boiler. � Range 4 to 120 million BTU / hr. � Wide range application � Oil (light or heavy grade), Gas or Oil-gas combination � Robust construction � Wide turndown with good atomization Mainly in Water tube boiler for following application: � Steam Generation � Process Heating � Power Generation etc. � Large capacity Hot Air Generator � Drying Ovens
...more

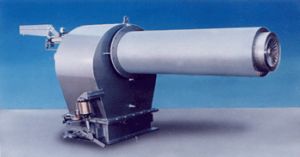

Pressure Jet Burners
The primary demands of a process burner are flame geometry and combustion performance maintained over wide turndown ratios to handle fluctuating load demands and spinning reserves, with minimum draught loss to conserve power. • Robust fixed geometry construction • Suitable for automatic and remote control • Able to burn oil and gas as individual fuels or combined • Ability to clean oil or gas nozzles while firing on alternative fuel • Wide turndown with good atomization • High combustion performance with low excess air • Fixed burner guns avoiding the need for retraction • Suitable for vertical, horizontal or angled application • Burns all grades of liquid fuel and wide range of gases • Low atomizing steam consumption with constant pressure over turndown range
...more

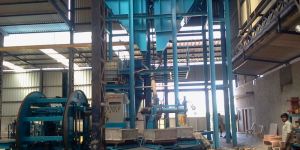

NO BAKE MOLDING PLANT
For preparation of moulds the plant should essentially have a Continuous Mixer and Compaction Table. Sizing of the Mixer has a relationship with the size of the Mould to be prepared and the hourly production rate of the plant. Typically a no bake mould half should not take more than 20 minutes to be filled with sand mix. Based on this as well as number of moulds to be prepared per hour, the hourly capacity of the Mixer in TPH can be determined. Upstream of Rollover Machine is either a Carousel type Rotary Moulding Unit or a Fast Loop type Linear Moulding Line. In both of these, the basic purpose is to provide a time lag to the mould half so that the same gets properly cured before being stripped off the pattern. Carousel is a rotating disc with multiple waiting stations (in the form of small roller conveyors) on it. Fast Loop is a set of powered Roller Conveyors and Transfer Cars to form a closed loop along with the Rollover Machine.
...more

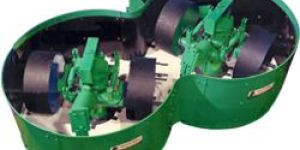

Multi-Mull Continuous Mullers
altWesman Simpson Multi-Mulls are specifically designed to provide large volumes of high-quality molding sand on a continuous basis and utilizes the same effective mulling technique as the Simpson Mix-Muller.
...more

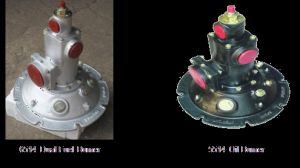

Luminous Long Flame Burners
In some operations a direct flame radiation over a large area is desirable. Luminous long flame (Fire-all) burners have considerable length and they can fill a large volume of combustion space with flame having little temperature variation along their length. This permits more effective use of hearth area because of uniform temperature head through out the combustion space. • Pre-heated combustion air up to 350 degree centigrade can be used • Suitable for Vertical Top and Bottom firing also • Range 0.53 to 7.3 Mkcalhour Application: • Bar Billet and Ingot Re-heating Furnace • Aluminum Melting and Holding Furnace • Ladle Tundish Pre-heating • Hot Air Generator • Shuttle Kilns • Forging Furnace • Rotary Kiln & Calciner
...more
Limiting Orifice Gas Valves
Limiting Orifice Gas Valves regulates the flow of gas in the burner for adjustment of air gas ratio. Limiting Orifice Valves are installed in upstream of nozzle mix gas burner for adjustment air gas ratio. A V-port plug is adjusted to increase or decrease of flow of gas. Limiting Orifice valves are not designed for turning off gas for which suitable shut-off valves are to be installed in the upstream.
...more
INTENSIVE MULLING
Intensive mulling in a Speedmullor is accomplished by horizontally mounted muller wheels compressing the sand against the mixer wall. Shearing and blending is provided by a series of plows mounted on the mixer crosshead. Rotating at high speed, the combination of mullor wheels and plows provide full development of the bentonite and other additives.
...more

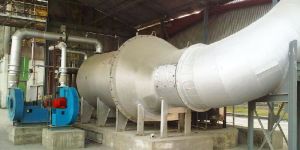

Hot Air Generators
Wesman has a full range of Hot Air Generators Air Heaters of both horizontal & vertical type up to a heat release capacity of 25 Million KCal per hour to offer to Cement, Chemical, Fertilizers, Minerals and Tea industries. The hot air generator shall consist of three segments, which is, the combustion chamber, the conical venturi mixing chamber and the outlet chamber. The circular combustion chamber will have the burner wall at one end. The burner shall be fitted on to the burner wall at one end of the combustion chamber that will fire directly into the chamber. The combustion chamber shall be made of two concentric shells wherein the inner shell lined with refractory material, will work as combustion chamber and the dilution air will be forced through the annular gap available between the two concentric shells. Dilution air is forced into the air heater with the help of a forced draught centrifugal fan that will mix with the products of combustion in the conical venturi mixing chamber, also lined with insulation material. Hot air at desired temperature and quantity will emanate from the outlet chamber that is also normally lined with insulation material.
...more
hot air burners
Hot air Magna Flame Burners operate with hot air from recuperators or other heat recovery devices to save energy. • Range 3 to 68 million Btu hour • For application up to 1425 degree centigrade • Standard low NOx capability • Fits the flame to the combustion chamber • Distributes the heat where it’s needed • High turndown capabilities • Dual Fuel, Gas or Oil (light or heavy grade) • Broad stability range • Excellent performance with cold or hot air Application: • Re-heating Furnace • Glass Melting Furnace • Non-ferrous Melting Furnace • Rotary Calciners • Boilers • Air Heaters • Incinerators
...more
High Velocity Stationary Burner
In a furnace the re-circulation of products of combustion can substantially contribute to the speed of heating and temperature uniformity. For low temperature ovens and dryers, suitable re-circulating fans are generally provided to achieve temperature uniformity. However, fans are not practical for high temperature furnaces and kilns. Excess air can help in re-circulation but this will result in wastage of fuel. 30% excess air for a 1100 degree centigrade furnace will require additional 24% fuel than stoichiometric firing. In comparison, high velocity gases entrain and re-circulate more than seven times of own volume will eliminate need for fans or excess air. Tempest and Hiram burners are the answer for such applications. • Wide range of application, 300 to 1650 degree centigrade operating temperatures • Inherently low emissions • 18,000 to 500,000 kcal hr capacity range • 300 degree centigrade preheated air • Durable construction, • Dual fuel usage • Wide air fuel ratio flexibility Application: • Ceramic Tunnel and Kilns • Heat Treatment Furnaces • Car Bottom Furnaces Scrap • Preheaters Galvanizing Tanks • Air Heating and Drying
...more
