winner electronic Dahisar, Mumbai, Maharashtra

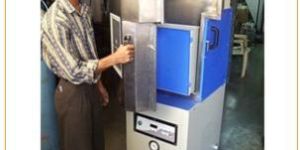

Model name : Vertical model for powder & solids Vertical 5 to 10 kg Vacuum chamber size : 550 Width x 200 Length x 700 mm Height. Over all Size : 600 x 600 x 1500 Construction : Complete SS 304 Vacuum Pump : 20 / 40 cum Electrical consumption : Maximum 2.00 / 3 KW can be connected to domestic 15 amp domestic supply. Packing cycle : 2 to 3 Cycles/ minute depending upon the product to vacuum packed Pouch Hanging arrangement : SS hooks Winner special : • Maintenance free Vacuum actuator for lifting sealing bars. Does not    require compressor. • Fiber glass sealing bars for short circuit protection.

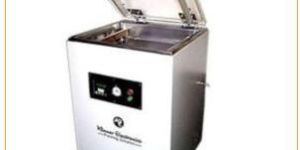

Model name : Floor Model Midi. Vacuum chamber size: 625 Width x 550 Length x 350 mm Height. Over all Size : 675 x 665 x 850 Construction : Complete SS 304. Lid : SS dome with Transparent Acrylic widow. Gas Flushing : By default Vacuum monitoring & control : German dial gauge, & vacuum sensor optional Vacuum Pump : 40 cum / 63 cum Electrical consumption : Maximum 3.5 KW only 3 Phase Packing cycle : 2 to 3 Cycles/ minute depending upon the product to vacuum packed       Winner special : • Maintenance free Vacuum actuator for lifting sealing bars. • Fiber glass sealing bars for short circuit protection.

Mini Table Top Vacuum Packing Machine Model name : Table Top Mini. Vacuum chamber size: 365 Width x 375 Length x 80 mm Height. Over all Size : 415 x 490 x 350 Construction : Complete SS 304. Lid : Transparent Acrylic. Gas : Optional with 4 nozzles. Vacuum monitoring & control : German, dial gauge & vacuum sensor optional Electrical consumption : Maximum 1 KW, can be operated on domestic connection. Packing cycle : 2 to 3 Cycles/ minute depending upon the product to vacuum packed.       Winner special : • Maintenance free Vacuum actuator for lifting sealing bars. • Fiber glass sealing bars for short circuit protection

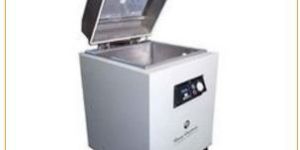

Floor Model Vacuum Packing Machines With Nitrogen Gas Flushing   Winner Electronics packaging solutions manufactures Vacuum packaging machine floor model with inbuilt Nitrogen gas Flushing. We have produced different sizes as per customer’s requirement. This particular machine has been supplied to HAL (Hindustan Aeronautics Limited, The overall Machine size is 600 Width x 665 Length x 960 Height and the vacuum Chamber size is 600 Wide x 525 Length x 350 mm Height. The machine is built up with Stainless Steel 304 or SS 304 Chamber and Mild Steel cabinet with transparent Acrylic window to observe the process.. The vacuum pump is of 666 LPM capacity. Electrical consumption maximum 2.5 KW. Packing cycle is 2 to 3 / minute. We can fabricate machine of any size to suit your product and capacity.

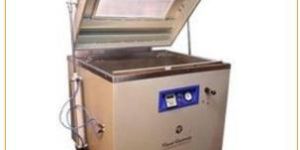

Speciatiality of Winner Electronics is we manufacture vacuum packing machine for different applications. This model is also unique like Printing ink tin container (canister) Vacuum packaging machine. This machine is made for packing woolen blankets where upon the volume of the blanket is reduced and more blankets can be shipped in single container. Again We are the first to make this type of machine in India. Vacuum chamber size of this particular model is 1100 wide x 800 deep x 150 mm high. The acrylic viewing window is provided to observe the process. As the weight of the lid is 125 kg it is operated by Pneumatic cylinders. The cycle time is 45 seconds for two folded blankets of 400 x 500 mm.

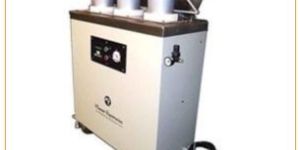

Packaging Solutions manufactures Printing ink tin container (canister) Vacuum packaging machine. We are the first to make this type of machine in India. This particular model is for three tin packaging. Though we can produce for any capacity and also inline packing. The size of vacuum chamber of this model is 850 wide x 200 High x 250 deep. It operates with only two parameter setting. Castor wheels are provided for easy movement of the machine. Packing cyle is 4 to 5 minute per batch. The working of the machine: Place the tins filled with the ink, lids placed on the tins in the vacuum chamber and close the chamber. After specified time lid of the Vacuumed chamber will open. And one can remove the vacuum packed tins.

Model name : Table Top Mini. Vacuum chamber size : 465 Width x 440 Length x 80 mm Height. 100 Height mm optional Over all Size : 415 x 490 x 350 Construction : Complete SS 304 Lid : Transparent Acrylic or SS Dome optional. Vacuum Pump : 10 cum Gas Flushing : By default 4 nozzles Vacuum monitoring & control : German dial gauge, & vacuum sensor optional Electrical consumption : Maximum 1 KW can be operated on domestic connection. Packing cycle : 2 to 3 Cycles/ minute depending upon the product to vacuum packed.       Winner special : • Maintenance free Vacuum actuator for lifting sealing bars. • Fiber glass sealing bars for short circuit protection.

Model name : Table Top Lab Unique features : Temperature controller for sealing bar, three gases purging and 4 actuators Vacuum chamber size : 465 Width x 440 Length x 80 mm Height. 100 Height mm optional Over all Size : 415 x 490 x 350 Construction : Complete SS 304 Lid : Transparent Acrylic or SS Dome optional Vacuum Pump : 20 cum Gas Flushing : By default 4 nozzles Vacuum monitoring & control : German dial gauge, & vacuum sensor optional Electrical consumption : Maximum 2 KW can be operated on domestic connection. Packing cycle : 2 to 3 Cycles/ minute depending upon the product to vacuum packed. Winner special : • Maintenance free Vacuum actuator for lifting sealing bars. • Fiber glass sealing bars for short circuit protection

Model name : Table Top Commercial Vacuum chamber size : 465 Width x 440 Length x 80 mm Height. 100 Height mm optional Over all Size : 415 x 490 x 350 Construction : Complete SS 304 Lid : Transparent Acrylic or SS Dome optional Vacuum Pump : 20 cum Gas Flushing : By default 4 nozzles Vacuum monitoring & control : German dial gauge, dial gauge & vacuum sensor optional Electrical consumption : Maximum 2 KW can be operated on domestic connection. Packing cycle : 2 to 3 Cycles/ minute depending upon the product to vacuum packed.       Winner special : • Maintenance free Vacuum actuator for lifting sealing bars. • Fiber glass sealing bars for short circuit protection

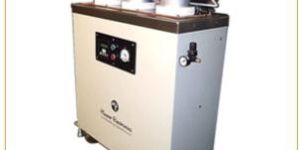

Model name : Printing Ink Tin packing. Vacuum chamber size: 800 Width x 250 Length x 200 mm Height. Over all Size : 830 x 300 x 850 Construction : SS 304 / MS Lid : SS dome with Transparent Acrylic widow Vacuum monitoring & control : German dial gauge, & vacuum sensor. Vacuum Pump : 40 cum. Electrical consumption : Maximum 3.5 KW only 3 Phase Packing cycle : 3 to 4 Cycles/ minute depending upon the product to vacuum packed.       Winner special : • Maintenance free Vacuum actuator for lifting sealing bars. • Fiber glass sealing bars for short circuit protection.

Model name : Printing Ink Tin Packing Vacuum chamber size : 800 Width x 250 Length x 200 mm Height. Over all Size : 830 x 300 x 850 Construction : Complete SS 304 Lid : SS dome with Transparent Acrylic widow Vacuum Pump : 40 cum Vacuum monitoring & control : German dial gauge, & vacuum sensor optional. Electrical consumption : Maximum 3.5 KW only 3 Phase Packing cycle : 3 to 4 Cycles/ minute depending upon the product to vacuum packed Winner special : • Maintenance free Vacuum actuator for lifting sealing bars. • Fiber glass sealing bars for short circuit protection.

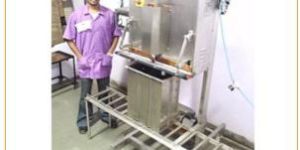

Model name : Nozzle Single Head for bulk packing 25 kg Nozzle Single Head Nozzle : Single 25 mm Over all Size : 1150 x 915 x 1000 Construction : Only Chamber SS 304 Lid : MS dome with Transparent Acrylic widow Vacuum Pump : 40 cum / 63 cum Electrical consumption : Maximum 3.5 KW only 3 Phase Packing cycle : 2 to 3 Cycles/ minute depending upon the product to vacuum packed. Winner special : • Maintenance free Vacuum actuator for lifting sealing bars. • Fiber glass sealing bars for short circuit protection.

The vacuum chamber size of this machine is 365 x 375 x 80 . The lid of the Table Top machine is flat transparent Acrylic to observe the .complete process.. Domes shape lids are also available. Electrical consumption of machine is 0.5 Kw. Packing cycle is 3 to 4 Cycles minute depending upon the product to be packed.

Model name : Floor Pneumatic Vacuum chamber size : 1100 Width x 800 Length x 200 mm Height Over all Size : 1150 x 915 x 1000 with lid opening 1600 mm Construction : Only Chamber SS 304 Lid : MS dome with Transparent Acrylic widow Vacuum monitoring & control : German dial gauge, & vacuum sensor optional Vacuum Pump : 40 cum / 63 cum / 100 cum Electrical consumption : Maximum 3.5 KW only 3 Phase Packing cycle : 2 to 3 Cycles/ minute depending upon the product to vacuum packed.       Winner special : • Maintenance free Vacuum actuator for lifting sealing bars. • Fiber glass sealing bars for short circuit protection.

Winner Electronics packaging solutions presents Vacuum Packing Machine floor model. This machine is specially made for packing MIG welding wire spools and welding rods. It has wide chamber to accommodate 450 mm long welding rods. Vacuum Chamber size is 630 Wide x 350 Depth x 105 Height. The machine is made up of Stainless Steel 304 and mild steel cabinet with transparent Acrylic viewing port to observe the process. The machine is supplied with Vacuum pump of 440 or 666 LPM Packaging cycle is 2 to 4 cycle/minute depending upon the product with electricity consumption of 1 to 1.5kw.

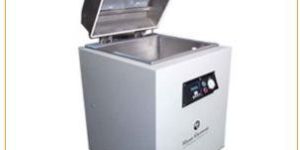

Model name : Floor Model Jumbo Vacuum chamber size: 625 Width x 550 Length x 350 mm Height. Over all Size : 675 x 665 x 850 Construction : Complete SS 304. Lid : SS dome with Transparent Acrylic widow Vacuum Pump : 40 cum / 63 cum Gas Flushing : By default Vacuum monitoring & control : German dial gauge, & vacuum sensor optional Electrical consumption : Maximum 3.5 KW only 3 Phase Packing cycle : 2 to 3 Cycles/ minute depending upon the product to vacuum packed       Winner special : • Maintenance free Vacuum actuator for lifting sealing bars. • Fiber glass sealing bars for short circuit protection.

Model name : Double Chamber Vacuum chamber size : 450 Width x 500 Length x 100 mm Height. Over all Size : 500 x 515 x 850 Construction : Complete SS 304. Lid : SS dome with Transparent Acrylic widow Vacuum Pump : 20 cum, 40 cum, 63 cum. Vacuum monitoring & control : German dial gauge, & vacuum sensor optional Electrical consumption : Maximum 3.0 KW can be connected to domestic electric supply. Packing cycle : 2 to 3 Cycles / minute depending upon the product to vacuum packed.       Winner special : • Maintenance free Vacuum actuator for lifting sealing bars. • Fiber glass sealing bars for short circuit protection.   Winner Electronics Packaging Solutions produces Double Chamber Vacuum Packaging Machine. While vacuum packing maximum time is consumed for placing the bag in the vacuum chamber. With double chamber machine, while one chamber vacuums the product, one can arrange the bags in second chamber. Hnece the production is double. The overall size of the machine is 1125 Wide x 615 Depth x 950 Height and that of vacuum chamber is 500 x 450 Depth x 100 Height. It is made up of stainless steel with Acrylic viewing port which makes it easy to view the process. Packing cycle is 2 to 4 / minute depending upon the product. The Sealing Bar of the machine is 490 mm long with vacuum pump of 25-40 M3/Hour. The electricity consumed by the machine is 1 to 1.5Kw maximum.

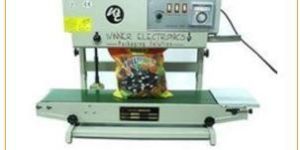

Winner Electronics manufactures Continuous Band Sealers with a variable speed controller. The machine is powder coated with Green and Siemens Gray glossy finish colours. The sealing band has a Diamond design with a maximum width of 15mm. The speed of the machine is 10 to 12 meters/ minute and the pouch speed will depend upon the skill of the operator. Nitrogen gas flushing will comes with an option. This is stwo in one machine which can be converted into Horizontal or vertical in just 5 minutes. The machine is provided with free spare parts like Motor Driver PCB, Teflon belts 5 pairs, Rubber Pulley, Date and batch code embossing set, Drive belt one pair, Screw driver & two spanners.

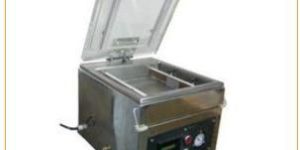

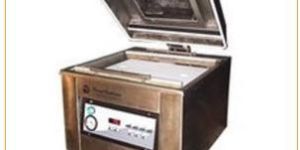

Winner Electronics presents table top Vacuum packaging machine. This is Commercial model & size of the vacuum chamber of this model is 550 x 440 x 100.. The lid of the Table Top Commercial model is fabricated from steels 304 with transparent Acrylic window to observe the complete process.. Electrical consumption of this model is 1.5 Kw. Packing cycle is 3 to 4 Cycles/ minute depending upon the product to be packed.

We are among the most preferred destination for Vacuum Sealing and Packaging Machines, Floor Model, Table Top Mini Vacuum, Flat Bed for Nonvegeterian food products, Vertical Vacuum Packing for liquid like products, Bulk Vacuum packing machine like 25 kg and more, Continuous Sealer, Jar Sealer, Pedal Sealer.

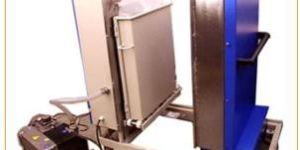

Model name : Bulk packing SSMS Vacuum chamber size : 800 Width x 175 Length x 1000 mm Height. Over all Size : 850 x 300 x 850 Construction : Complete SS 304 Gas : By default Vacuum monitoring & control : German dial gauge, dial gauge & vacuum sensor optional Vacuum Pump : 40 cum / 63 cum /100 cum Electrical consumption : Maximum 3.5 KW only 3 Phase Packing cycle : 2 to 3 Cycles/ minute depending upon the product to vacuum packed Winner special : • Maintenance free 3 nos. Vacuum actuator for lifting sealing bars. Does not    require compressor. • Fiber glass sealing bars for short circuit protection.

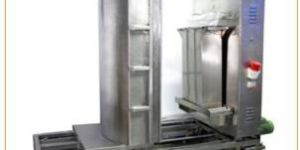

Model name : Bulk packing SS 304 Vacuum chamber size : 800 Width x 175 Length x 1000 mm Height Over all Size : 850 x 300 x 850 Construction : Complete SS 304 Conveyor : Roller, take off and take in Dome : Motorized optional Gas : By default Vacuum monitoring & control : German dial gauge, dial gauge & vacuum sensor optional Moulds : Specially for wrinkle free sealing 2 nos. SS 304 Vacuum Pump : 40 cum / 63 cum /100 cum Electrical consumption : Maximum 3.5 KW only 3 Phase Packing cycle : 2 to 3 Cycles/ minute depending upon the product to vacuum packed Winner special : • Maintenance free 3 nos.Vacuum actuator for lifting sealing bars. Does not    require compressor. • Fiber glass sealing bars for short circuit protection.
