Wire Wound Rheostats Dealers in Mumbai

• Brand Name: R-OHMS
• Operating Temperature: 250 DEG
• Rated Power: 100 WATT -5KW

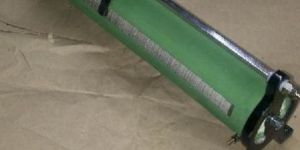

We are offering wire wound rheostats. Squire piece made of material is fitted with contact sliders in the guide squir rod. Bright chrome plated phosphor bronze strip which makes immediate contact with the guide rod. A backlite knob is fitted with squire piece for sliding up and down.

High Power to size ratio, Low surface temperature, Elegant look over whole range, Exceptional stability and reliability against severity of damp heat conditions and other environmental abuses, Low temperature coefficient over entire range, Anodized aluminum housing ensures good humidity seal, Designed with serrations on Aluminum housing for proper thermal conductivity, Terminations are silver plated, High level voltage protection.

• Brand Name: RITEOHMS

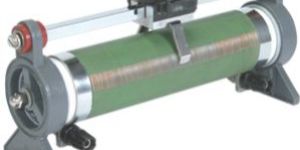

We are offering wire wound rheostats 1) core porcelain tube, non magnetic, non inductive tobular type 2) contact block: square piece made of brass material is fitted with contact sliders in the guide rod. Bright chrome plated phosphors bronze strip which makes immediate contact with the guide rod. A backlit knob is fitted with square piece for sliding up and down 3) solid draven brass rod bright chrome plated square 4) contact material: multiple brushes of phosphorus bronze strip, rolled strip gives springy action to contacts 5) winding wires : eureka wire for low ohmic value and nichrome wire 80/20 grade for high values 6) temprature rise – 200 degree c above ambient temperature 7) high voltage test : 2kv ac for 1 minute between end support and any one of 3 wires terminal of the wire 8) end support – aluminium bracket plated 9) terminals: bright chrome plated bass nuts and screws one at each end of leaner type wire wound resistors and third one at both the side of the guide rod 10) all electrical connectors are made from chrome plated material 11) rotary sliding rheostats, double tbe and multiple tubes non standard value wattage on specififc request available from 100m a to 100 a 0.3 ohms to 25ke

Wire Wound Rheostats, high wattage resistors, rheostats load bank, Resistors

Wire Wound Rheostats, High Voltage Impulse Resistor
