Automatic Wire Drawing Machines Dealers in Mumbai

• Approximate Block Weight (kgs.): 1850,1550,1450,800
• Diameter of Drum: 750 mm (30"),610 (24"),560 (22"),460 (18")
• Inlet Wire Size (mm): 12,8,6,4

The wire rod to be drawn is pointed in the Wire Pointing Machine. This pointed wire is inserted through the die of the first Wire Drawing Machine and fastened to a locking device on the drum. The drum is then started. As the drum rotates, the wire fastened to the drum gets pulled and coiled around the drum. Since the wire getting pulled is passed through the die having a higher inlet diameter and a lower outlet diameter, the drawn wire diameter gets reduced. The starting end of the drawn wire is released from the lock of the first drum, is passed through the overhead loop and pulley provided, is brought down and is inserted through the die of the second drum and drawn through this die for further reduction. Thus, the wire is drawn through all the wire drawing drums of the set in a continuous manner to get the required finished diameter of the wire. When the drum of the last wire drawing machine gets fully loaded with the drawn wire, the machine will be stopped to unload the finished material and then restarted. (If one opts for the continuous coiling machine, the drawing process will not have to be stopped for this purpose), When the bundle of input rod finishes, the machine should be stopped. The end of this bundle is welded to the end of a new bundle of rod using the butt welding machine. Then the process is to be continued.

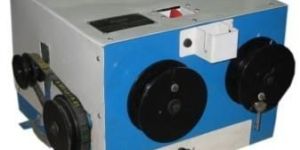

This is a single pass two speed motorized wire drawing machine. It is supplied with 0.5 HP 220 volt Single phase AC elec., motor, switch & V belt. The machine also has a thread twisting arrangement.

Wire drawing machine advantages • transmission through reducer in oil bath • reel with electronic friction • very functional operator panel • optional electronic winding unit • strong, solid frame • very reliable • compliance with the required standards the vm6p, vm10p and vm12p models are multi-pass straight-line drawing machines designed to process ferrous, non-ferrous and noble wires, which are available in two versions: variable speed, adjusted via potentiometer, or 2 fixed speeds (vm6p2, 10p2 and 12p2) in both cases the movement is ensured by a three-phase motor with alternating current transmission through reducer in oil bath and is able to guarantee a drawing speed of up to 80 mmin. explanation the movement is ensured by a three-phase motor with alternating current transmission through reducer in oil bath and is able to guarantee a drawing speed of up to 110 mmin. The steel conical reel with hard chrome surface comes with a mechanical clutch with auto-leveling tempered discs for the constant tensioning of the wire and the smooth startup of the system; a closed-circuit cooling and lubrication device ensures the temperature dispersion of the die-holder group and the motorized conical reel during processing in order to delay wear and collect scrap materials. An easily accessible, highly functional control panel allows the operator to manage all operations in an immediate, streamlined fashion. Activations via foot pedal when the machine is both open and closed. The vm6p, 10p and 12p drawings are equipped with optional electronic winding, and safety protection in accordance with internationally required standards.

• Brand Name: AKEW
• Voltage: 230 V
• Types Of Metal: Gold, Aluminium, Brass
• Production Capacity: 10
• Operating Mode: Automatic
• Min Finish Wire Diameter: 0-1 mm
• Layout: Horizontal
• Frequency: 50 Hz
• Max Inlet Wire Diameter: 0-3 mm

  Leading Manufacturer of jewellery wire drawing machine and automatic jewellery wire drawing machine from Mumbai. Owing to our vast manufacturing facilities, we are manufacturing and supplying Jewellery Wire Drawing Machine. The machine made available by us is designed for drawing gold and silver wire. Our range comes with interchangeable steel reel winders for winding the drawn wire. Besides, the frame of the machine has a cast iron support, a metal base and a heavy duty cast iron drawing roller. Features: Sturdy High performance Less power consumption

Six pass wire drawing machine for reducing the wire guage of gold and silver wires for use with jewelry. this is an ideal geared type floor model motorized wire drawing machine with arrangement to hold six wire drawing dies at one time. It is the ideal machine for goldsmiths and gold chain manufacturers having requirement for thin wires in large quantity. it is fitted with special self-adjusting wire winding system so that the wire does not break during operation. It is fitted with motorized coolant pump to keep the drawing dies cool for better finish & longer die life. we also have a bench model single pass two speed motorized wire drawing machine. It is supplied with 0.5 hp 220 volt single phase ac elec., motor, switch & v belt. This machine also has a thread twisting arrangement. we also offer motorised draw bench to draw wires and tubes with or without copper insert for making hollow chains and other similar use in gold jewellery and chain production. kindly ask for details.

• Types of Metal: Copper, Aluminum, Brass
• Diameter: 0-0.5 mm, 0.5-1 mm, 1-1.5 mm, 1.5-2 mm, 2-2.5 mm, >2.5 mm
• Max Inlet Wire Diameter (mm): 0-3 mm, 3-6 mm, 6-9 mm, 9-12 mm
• Layout: Vertical and Horizontal
• Gauge: 18 SWG, 22 SWG, 26 SWG
• Min Finish Wire Diameter (mm): 0-1 mm, 1-2 mm, 2-3 mm, 3-4 mm
• Automation Grade: Automatic, Semi-Automatic, Manual

• Usage: Industrial
• Country of Origin: Made in India
• Automation Grade: Automatic
• Frequency: 50 Hz
• Power: 5 HP
• Capacity: 400 Kg/Day
• Phase: 3 Phase
• Voltage: 220 V
• Body Material: Mild Steel
• Power Source: Electric
• Surface Finish: Color Coated

• Capacity Round: 1" 25mm, 1.25" 36mm
• Hex: -5/8" -16mm, -1" -25mm
• Garden Size: 7" x 3.5" 175mm x 75mm , 8" x 4" 200mm x 100mm

We are a leading exporter of Bar Drawing Machines which can be availed at industry leading prices. These machines are available in various standard sizes and also they can be customized as per the client needs.

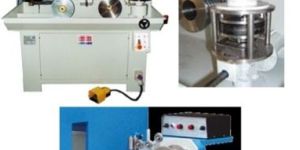

The VM/6P, VM10P and VM/12P models are multi-pass straight-line drawing machines designed to process ferrous, non-ferrous and noble wires, which are available in two versions: variable speed, adjusted via potentiometer, or 2 fixed speeds (VM/6P2, 10P2 and 12P2) In both cases the movement is ensured by a three-phase motor with alternating current transmission through reducer in oil bath and is able to guarantee a drawing speed of up to 80 m/min. Advantages:   Transmission through reducer in oil bath Reel with electronic friction Very functional operator panel Optional electronic winding unit Strong, solid frame Very reliable Compliance with the required standards   Explanations:   The movement is ensured by a three-phase motor with alternating current transmission through reducer in oil bath and is able to guarantee a drawing speed of up to 110 m/min. The steel conical reel with hard chrome surface comes with a mechanical clutch with auto-leveling tempered discs for the constant tensioning of the wire and the smooth startup of the system; a closed-circuit cooling and lubrication device ensures the temperature dispersion of the die-holder group and the motorized conical reel during processing in order to delay wear and collect scrap materials. An easily accessible, highly functional control panel allows the operator to manage all operations in an immediate, streamlined fashion. Activations via foot pedal when the machine is both open and closed. The VM/6P, 10P and 12P drawings are equipped with optional electronic winding, and safety protection in accordance with internationally required standards.

• Design: Customized
• Features: Sturdy construction, Corrosion resistance, High strength, Fine finish
• Payment Terms: L/C (Letter of Credit)/T/T (Bank Transfer)
• Material: Synthetic Diamond
• Automatic Grade: Semi-Automatic
• Hole Type: Round Mould

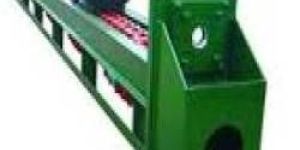

Our exclusive plethora of Draw Bench Machine is very efficient in working. Durable machines are acknowledged for consistent working with heavy load. These bench machines are made by our professionals employing premium grade metal which is recommended by experts. Besides this, we are offering all our draw bench machines to consumers in safe packing to avoid damage.

We are offering 8 pass wire drawing machine. model ak-wdm8 is a 8 pass drawing machine, designed for drawing gold and silver wire. The drawing process takes place through a series of draw plates with calibrated holes that decreasing by 0.1 mm in diameter the machine is composed by a sturdy metal frame that holds the motor, transmission, the cooling liquid tank, the unwinding reel, the motorized winding reel with adjustable clutch . This drawing machine comes with interchangeable steel reel winders for winding the drawn wire. The machine frame has a cast iron support, a metal base, and a heavy duty cast iron drawing roller. The winding reel has a plate-type clutch with ring gear and adjustable ring nut on the transmission that permits gradual start-up of the machine to prevent the wire from breaking. All of the transmission parts are mounted on bearings and have oil bath lubrication and a special filter applied to the scavenge pipe to permit recovery of metal filings. The machine also has safety guards and devices.

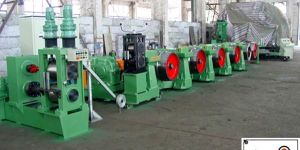

We are dealing in supplying of Aluminium Wire Drawing Machinery.

Wire drawing machines are suitable and known for their performance in the field of wire drawing. Graded casted part are mounted on steel fabricated frame to bear the maximum load and fatigue to give trouble free service. The machines are available for different size of wire rods.

Cold drawing is a metalworking process where the metal is stretched by using tensile forces at room temperature. In this process desired size of the tube is achieved by drawing it through a die which is smaller than the tube, elongating the length and reducing the diameter of the tube. Cold drawing process enhances the quality of the tubes with smooth surface finish, precise dimensions and high strength. Machine used for drawing is called a draw bench. Shalco has this machine in various sizes in order to achieve smaller sizes.

• Hole Type: Round Mould
• Features: Sturdy construction, Corrosion resistance, High strength, Fine finish
• Material: Synthetic Diamond
• Automatic Grade: Semi-Automatic

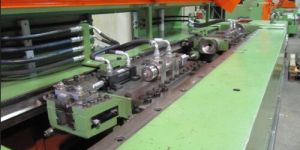

Draw Benches - New Draw Cell   A new drawing machine with toothed rack drive has been designed and built for the drawing of steel tubes up to 140 mm diameter. The single 1200 kN draw bench is working with drawing speeds of up to 80 meters per minutes, drawing length max 20 meters. The installation is equipped with tube separation, prebench as lifting table, draw bench with toothed rack drive, motoric adjustment of mandrel rod counterbearing, die stand with suction device, tube brake, high-performance sampling saw, scrap trough and trough for finished material.

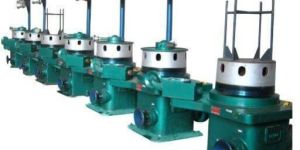

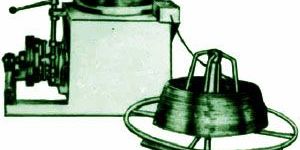

Six Block OTO Type Wire Drawing Machine Wire Drawing Machines are available from 3 Blocks to 11 Blocks & 300MM to 600 MM dia. DOUBLE BOX  TYPE CONTINUOUS WIRE DRAWING MACHINE FOR NO TWIST can also be offered. Bull Block Type Wire Drawing Machine & Double Dack Type Wire Drawing Machine Product Specification General Construction:All Drawing Blocks are internally water cooled by multi jet spray. The Blocks are manufactured from special quality cast iron. Die Box: Die Box Comprises of two separate compartments, one for the dry shop drawing lubricant, & another one for water cooling of the die. The box is adjustable in vertical & horizontal positions. Operator Controls :START-STOP Push Button, INCH foot switch, ON, OVER LOAD, GUARD OPEN indicators, etc. Guards:Machines have rear steel plate guard and also wire mesh guard provided covering the units from front. All mesh guards are electrically interlocked and when guard is open entire machine will shut down. Pull In Tong:Box type tongs with hardened jaws are supplied with each machine to cover the full range of wire sizes to be produced. The Tongs have a length of chain and a hook to fit into the pockets of each blocks. Note: Max. Power & Finished speed shall vary as per application.

This is an excellent quality heavy duty five feet length motorized draw bench. This machine is ideal to draw soldered hollow tubes of copper, gold and silver. It is equipped with heavy duty chain and is fitted with single phase AC drive electricals for longer life and maintenance free operation.  The machine uses standard diamond and carbide drawing dies.

The copper wire from the outlet is fed into an continuous resistance inline annealer available from 40 KW to 350 KW annealing power and 800 Amp. to 7000 Amps current (max)
