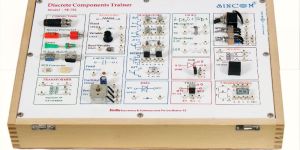

Product Category :  Electronics Components Display Boards (Series : 700)Product Name : Discrete Components Board (Components Testing Board)Model No. :  SE-722Product Details This is High Quality Poly coated wooden box with printed multicolor diagram includes assorted Electronics components on white acrylic sheet. This is Discrete Electronics Components Display-cum-Testing Board equipped with different types of basic electronics Components with their symbols and testing  techniques. On-Board various types of components for displays and testing are Resistors-Fixed-Variable-Semi Variable, Capacitors-Fixed Disc- Electrolytic-Gang, Diodes-PN Junction Si/Ge - Zener Diode-LED, Transistors-BJT NPN/PNP- JFET-MOSFET-UJT, SCR-DIAC-TRIAC, Switches-SPST/SPDT/DPDT, Relays 12V SPDT, Seven Segment Display, Transformer-Step Down center tap and Connectors- BNC Pin/Socket-Banana 4mm/2mm- D type male/female-PCB Connectors. Objectives : To Study Symbols of various types of Basic Electronics Components. To Observe the types of various Electronics Components like Resistors, Capacitors, Diodes, Transistors, SCR,DIAC,TRIAC, Switches, Relays, Display, Transformer and connectors. To study the Testing techniques of all these Electronics Components using Analog/Digital multimeter. Accessories Included : Analog Multimeter (1No), Digital Multimeter (1No), set of Patch cords and Instruction manual.

• Operating Voltage: 5v
• Input Voltage: 7v - 12v
• Microcontroller: atmega8
• Digital io pins: 14 (of which 6 provide pwm output)
• Analog input pins: 6
• Pwm output: pins 3, 5, 6, 9, 10, and 11 can provide 8-bit pwm output

We are offering areduino usb + atmega 8.areduino usb + atmega 8 board is a microcontroller board based on the atmega8. Areduino usb + atmega 8 connects to the computer with a standard usb cable and contains everything else you need to program and use the board and has 14 digital inputoutput pins (of which 6 can be used as pwm outputs), 6 analog inputs, a 16 mhz crystal oscillator, a usb connection, a power jack, an icsp header, and a reset button. Areduino usb + atmega 8  contains everything needed to support the microcontroller; simply connect it to a computer with a usb cable or power it with a ac to dc adapter or battery to get started.Detail : comes with an atmega8 with a pre loaded arduino boot loader auto reset feature pin13 onboard led, with current limiter resistor tx and rx onboard led serial pins : pin 0 and pin 1 can be used to receive (rx) and transmit (tx) ttl serial data external interrupts : pins 2 and 3 can be configured to trigger an interrupt on a low value, a rising or falling edge, or a change in value 8 kbytes flash program memory 512 bytes eeprom
