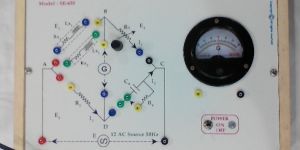

Product Category :  Electrical Network Circuits and Bridges Lab Trainer  (Series : 600)Product Name : Maxwell’s BridgeModel No.: SE-635Product Details : This has Built-In AC 12V/50Hz/500mA Power source with current limiting resistor Rs, the arms of LC bridge has two fixed and one variable known resistors, one fixed capacitor wired with Two Unknown Inductors Lx1/Lx2 of mH value to study the Maxwell's Bridge to determine the value of these unknown Inductors, facility to select two unknown inductors, Galvanometer used for null indication, maximum test points to measure all the elements of a bridge. Objectives : To Study the Maxwell's Inductance-Capacitance Bridge. To Study measurement of Unknown Inductance. To Determine Q Factor. To Compare the Theoretical and Practical Values. Accessories Included :  Set of Patch Cords, Operating Manual
