Hydraulix Industrial Flow Solutions Ring Road, Nagpur, Maharashtra

Material Of Construction Forged A105, A182(F5, F9, F11, F22, F51, F55, F304, F316, F316L) Cast Steel WCB, CF8, CF8M, CF3, CF3M, LCB, WC6, WC9, C12, 4A, 6A Sizes Forged Cast Steel 2” to 48”(50m to 1200mm) Pressure Class Forged Cast Steel #150, #300, #600, #900, #1500, #2500 Construction DetailsDesign Forged Cast Steel Dual Plate, Axial Flow, Non Slam Type Design Standard Forged Cast Steel API 6D API 594

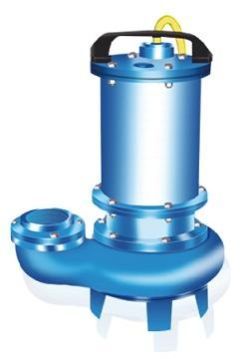

Submersible Sewage Pumps Operating Range Capacity - Q- Up to 100 M3Hr. TDH H - Up to 30 Mtr. H.P. 0.5 – 2.0 HP (Single Phase 230 V) 0.5 – 7.5 HP (Three Phase 415 V) Solid Handle Size Up To 50 mm Del. Size 50 mm To 100 mm

Self Priming Mud Sewage Pumps Operating Range Capacity - Q- Up to 650 M3Hr. TDH H - Up to 50 Mtr. Pump Sizes - DN 40 mm To 200 mm Speed - N 14402880 rpm at 50 Hz & 17503500 rpm at 60 Hz Temperature 110 ° C

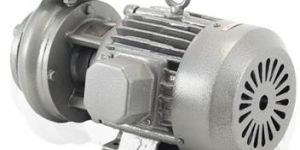

S.s. Monoblock operating range capacity - q- up to 120 m3hr tdh h - up to 60 mtr pump sizes - dn 25 mm to 50 mm speed - n 14502900 rpm temperature 80â° c

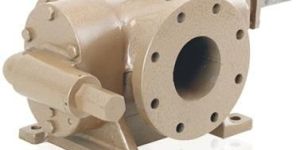

Rotary Gear Pumps Operating Range Capacity - Q- Up to 125 M3Hr. TDH H - Up to 17 KgCm2 Pump Sizes - DN 12 mm To 150 mm Viscosity 100000 CST Speed - N Max. Speed In 1440 rpm Reduction As A Function Of Viscosity Temperature 110° C

Sizes Forged 0.5" - 2" (15mm to 50mm) Cast Steel 2" to 24"(50m to 600mm) Pressure Class Forged #800, #1500, #2500 Cast Steel #150, #300, #600, #900, #1500, #2500 Construction DetailsDesign Forged Inverted Plug Pressure Balanced Cast Steel One Inverted Plug Pressure Balanced Design Standard Forged BS 5353 Cast Steel BS 5353 API 6D API 599

Material of construction forged a105, a182 (f5, f9, f11, f22, f51, f55, f304, f316, f316l) cast steel wcb, cf8, cf8m, cf3, cf3m, lcb, wc6, wc9, c12, 4a, 6a sizes forged 0.5” to 2” (15mm to 50mm) cast steel 2” to 48”(50m to 1200mm) pressure class forged #800, #1500, #2500 cast steel #150, #300, #600, #900, #1500, #2500 construction detailsdesign forged bolted bonnet, os & y-type cast steel bolted bonnet, os & y-type rising stem.

Hydraulic Test Pumps Testing Capacity- UP TO 10000 PSI ( 704 KGCM3) Hydraulic Test Pumps Material of Construction- M.S. Tank Cast Iron Handle PVC Branded Hose Pipe Pressure Release Valve Pressure Gauge

High Pressure Multistage Pumps Operating Range Capacity - Q- Up to 150 M3Hr. TDH H - Up to 350 Mtr. Pump Sizes - DN 32 mm To 100 mm. Speed - N 14502900 rpm at 50 Hz & 17503500 rpm at 60 Hz Temperature 120° C Pressure 38 Bars

Material Of Construction Forged A105, A182 (F5, F9, F11, F22, F51, F55, F304, F316, F316L) Cast Steel WCB, CF8, CF8M, CF3, CF3M, LCB, WC6, WC9, C12, 4A, 6A Sizes Forged 0.5” to 2” (15mm to 50mm) Cast Steel 2” to 24”(50m to 600mm) Pressure Class Forged #800, #1500, #2500 Cast Steel #150, #300, #600, #900, #1500, #2500 Construction DetailsDesign Forged Bolted Bonnet, OS & Y-Type Cast Steel Bolted Bonnet, OS & Y-Type Rising Stem Design Standard Forged API 602 Cast Steel BS 1873 DIN 3356

Fuel Injection Internal Gear Pumps Operating Range Capacity - Q- Up to 6000 LPH. TDH H - Up to 30 KgCm2. Pump Sizes - DN 38” To 1” Speed - N 14502900 rpm at 50 Hz & 17503500 rpm at 60 Hz Temperature 200° C

Material Of Construction Forged A105, AISI 4130 Cast Steel WCB, CF8, CF8M, CF3, CF3M, LCB, WC6, WC9, C12, 4A, 6A Sizes Forged 2-116” to 5-18” Cast Steel 2” to 48”(50m to 1200mm) Pressure Class Forged 2000, 5000, 10000, 20000 PSI Cast Steel #150, #300, #600, #900, #1500 Construction DetailsDesign Forged Through Conduit, Piggable Cast Steel Through Conduit, Piggable

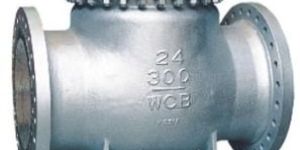

Material Of Construction Forged A105, A182(F5, F9, F11, F22, F51, F55, F304, F316, F316L) Cast Steel WCB, CF8, CF8M, CF3, CF3M, LCB, WC6, WC9, C12, 4A, 6A Sizes Forged 0.5” to 2” (15mm to 50mm) Cast Steel 2” to 36”(50m to 900mm) Pressure Class Forged #800, #1500, #2500 Cast Steel #150, #300, #600, #900, #1500, #2500 Construction DetailsDesign Forged Bolted Cover, Lift Check Type Cast Steel Swing Check Design Standard Forged API 602 Cast Steel BS 1868 API 6D DIN 3356

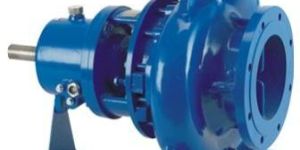

Centrifugal Pumps Operating Range Capacity - Q- Up to 1100 M3Hr. TDH H - Up to 150 mtr Pump Sizes - DN 25 mm to 300 mm. Speed - N 96014502900rpm at 50 Hz & 115017503500 rpm at 60Hz Temperature 350° C

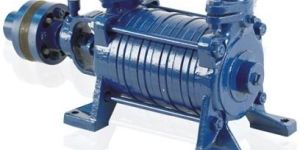

Boiler feed self priming pumps operating range capacity - q- up to 20 m3hr. tdh h - up to 250 mtr pump sizes - dn 15 mm to 50 mm speed - n 1450 rpm at 50 hz & 1750 rpm at 60 hz temperature 90° c pressure 26 bars

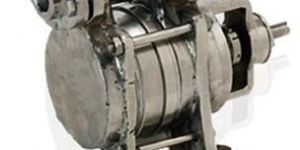

Barrel Pumps Operating Range Capacity - Q- Up to 10 M3Hr TDH H - Up to 60 mtr Pump Sizes - DN 25 mm To 50 mm Speed - N 1450 rpm at 50 Hz & 1750 rpm at 60 Hz Temperature 90° C

Sizes Forged 0.5" to 2" (15mm to 50mm) Cast Steel 2" to 48"(50m to 1200mm) Pressure Class Forged #150, #300, #600, #800, #900, #1500, #2500 Cast Steel #150, #300, #600, #900, #1500, #2500 Construction DetailsDesign Forged Two Piece & Three Piece Cast Steel One Piece, Two Piece, Three Piece, Top Entry, Trunnion, Block & Bleed Design Design Standard Forged BS EN ISO 7292 API 6D API 608 Cast Steel BS EN ISO 7292 API 6D API 608

We are leading supplier of huge range of Butterfly Valve.

We deals in supplying of wide range of gun metal valves ibr.

We are well known for supplying of wide variety of bronze metal valves ibr.
