Load Cell Dealers in Nagpur

• Material: Alloy Steel
• Usage/Application: Weigh Bridge
• Load Capacity: 30T,40T,50T

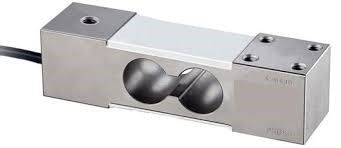

We provide Load Cells at market leading prices. We have wide range of load cells from 22.5Kgs to 4000kgs load cells used, in different applications like admixture, cement, water and Weigh Bridge weighing units. And as per OEM standards specidifiations which helps to get accurate calibration results.

Ultrasonic level sensors measure the distance or presence of target objects by sending a pulsed ultrasound wave at the object and then measuring the time for the sound echo to return. Knowing the speed of sound, the sensor can determine the distance of the object. Agecho ultrasonic sensors salient features: • agecho ultrasonic sensors are available with output options such as analog current 4-20ma,analogue voltage 0-5v,onoff signal, trigger output for multi-sensor application, pulse width ,serial ttl ,serial rs 232c. • agecho sensing range: 200mm to 1000mm … up to … 6000mm. (19.7feet) (0-200mm is dead band). • agecho accuracy is 1% of the full scale. • agecho operating voltage 12v dc, with reverse polarity protection.(24v dc optional) • agecho is very useful non-contact type of sensing or presence or counting of object. Onoff type signal is also available. • agecho is self-calibrated. Microcontroller is present in each sensor. This provides direct distancedepth reading with better calibration and communication with the controller module. • agecho is very easy to install, rugged design for use in dusty and humid conditions, suitable for outdoor as well as indoor use. • agecho very useful for non-contact distancelevel measurement. The distance of the target is measured, not just its presence, but gives directly 4-20ma, serial or pulse width data proportional to the distance of the target. • agecho operating temperature 0 to 65 degree celsius. • agecho temperature compensated measurement for better accuracy (optional). • agecho unaffected by ambient light, object color or any other optical characteristic. Works with hard materials like metal sheet, plywood, or soft materials like cloth and paper, rubber etc.

• Frequency: 200 KHz
• Brand: AG Electronics
• Sensing Distance: upto 3 meters
• Detection Distance: 3 Meter
• Input Trigger Signal: Continuous,triggered,pulse width,serial TTL,RS232,RS485
• Output: 4-20 mA ,0-5V , Pulse
• Sensor Angle: 8 degrees
• Operating Temperature: 0-70 degrees Celsius
• I deal in: New Only

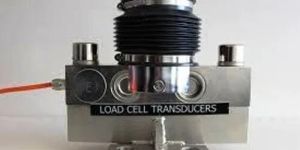

• Material: Alloy Steel
• Application: Weighbridges

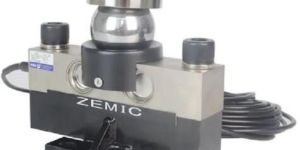

• Brand: Zemic
• Capacity: 30 ton
• Ingress Protection: IP68
• Features: Built-In microcontroller and A/D convertor
• Load Cell Certifications: OIML
• Maximum Excitation: 15V DC
• Cable length: 20 meter
• Model Name: HM9B
• Output sensitivity ( = FS ): +- 0.002
• Max.number of load cell intervals: 3000
• Ratio of min. LC verification interval: 7500
• Safe overload: 150%
• Ultimate overload: 300%
• Zero balance of FS: < +- 1.5%
• Excitation, recommended voltage: 12 V
• Input Resistance: 775 +- 5 Ohms
• Output Resistance: 700 +- 7 Ohms
• Insulation resistance at 50V DC: >= 5000 M Ohm
• Compensated Temperature Range: 40 Degree C
• Operating Temperature Range: 70 Degree C
