Power Supply Accessories Dealers in Hingna, Nagpur

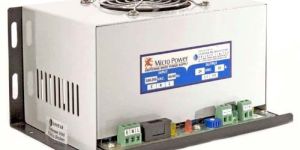

We have come up with highly efficient 24VDC SMPS with modern current mode PWM Controller and MOSFET based design. This 24VDC SMPS is appreciated for its reliable performance which comes as a result of high quality components used in the production process. Our 24VDC SMPS is a user-friendly product which is easy to install and maintain. Moreover this 24VDC SMPS is properly tested by the experts to give a smooth and safe functioning. Features Maximum output power of 125WHigh efficiency, High reliability, Low costAC input voltage range 180V ~ 265VACBuilt-in EMI filterLow Ripple and NoiseSoft start circuit to limit the AC inrush currentScrew type input and output connectorsCompact, light weightMomentary output short circuit protection, over voltage protection100% Full load burn-in test Specifications Input CharacteristicsInput Voltage180V – 265V AC.Input Frequency45 – 60 Hz.Input Connector3-pin screw type connector.IndicationInput Ok – Yellow colour LED.Input Protections3 Amp, 20mm fast blow, Glass fuseMOV, for input over voltage protection.FiltersEMIRFI.Output CharacteristicsOutput Voltage24 VDC..Output Current5 A.Max. Output Power125 W.Output Connector2-pin screw type connector.Output IndicationOutput Ok – Green colour LED.OVP – Red colour LED.Output ProtectionsOver Voltage Protection.Line Regulation< +- 0.5%.Load Regulation< +- 0.5%.Ripple and Noise< +- 1% P-P.Environmental CharacteristicsOperating Temperature55oC at Full Load and 70oC at 60% load.Maximum Temperature Rise50oCCoolingBy free air convection.Relative Humidity95% NC.General CharacteristicsEfficiency70%.Hold Time> 20mSec on full load.Dimension (L X W X H) mm110 X 105 X 60MountingPanel Mounting Note All these parameters are specified at 230V AC inputFor continuous improvement, specifications are subject to change without prior intimation

• Type: Switch Mode Power Supply
• Certification: ISI Certified, ISO 9001:2008 Certified
• Application: Industrial Automation
• Color: Grey
• Condition: New
• Frequency: 50hz
• Phase: Single
• Cooling System: Air Cooling
• Input Voltage: 100...500 VAC
• Output Voltage: 24 VDC
• Cooling: Fan

leveraging on our enormous business proficiency and a skilled team of personnel, we are engaged in offering a vast range of smps power supply. In adherence with the standards laid down by the industry, our offered products are accessible with us in multiple specifications. Besides this, these can be availed from us at reasonable rates.features: latest state of the art current mode pwm controller. mosefts & ufr diodes used - increases reliability & efficiency. consumption 230/25 vac compact, light weight, very efficiency saving valuable & costly power. dc ups for battery backed instruments. all i/o connections are available on wire connectors or screw terminals input: on board emi / rfi filter fuse protection, soft i/p rages: ac = 90-270 v upto - 50 w ac = 90-135 v or 180-270 v dc = 9-15 v or 20-60 or 90-270 v ac = or 90-135 v or 180-270 output: led status indicator line & load regulation < +/-0.5% ripple & noise < +/-1% p-p o/p, s/c, protection with optional ovp for single o/p - precise current limit with vvcc & o/p voltage +/-5% adjustable units can be directly paralleled for higher current requirements by using external diode blocks (n+1) redundancy possible i/o isolation 2 kv / 4 kv. Upto 50 deg. C ambient you can also call this product as power pack, dc to dc converter, switch mode power supply, etc.
