Shree Vyankateshwara Industries Bhandara Road, Nagpur, Maharashtra

We supply paper plate machine from hand operated model to automatic hydraulic paper plate machine.

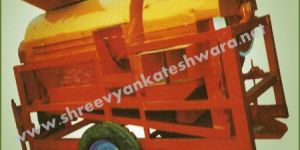

We are specialized in manufacturing a range of Thresher, that cater to the requirements of agricultural industry. These are manufactured using premium quality material and are acknowledged for their robust design, corrosion resistance and can withstand every climatic condition. Designed as per international standards, our range can also be customized as per the requirements of clients. Available from 7.5 hp to 35 hp OM paddy thresher consists of worm type threshing cylinder, oscillating box, winnowing and cleaning attachment, feeding chute etc. The body is made of high quality steel and sheets to withstand maximum wear and tear. these threshers can be operated both with motor and diesel engine tractors. during threshing the paddy crop's straw is separated from grain by worm type cylinder. The straw is thrown out from the machine with the help of blower. Other impurities like dust/dirt are thrown out through other outlet. Extra blower is provided for cleaning of grains, which clears the left-over impurities. our paddy thresher is also available with the straw walkers. In these threshers, straw is thrown back by straw walkers.

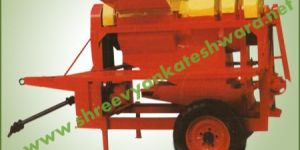

We manufacture multicrop thresher. The crops like red gram, mustard, sorghum soyabean, wheat, millets etc, can be threshed with this thresher as it designed with latest technology. Double speed system This special provision is made to control the higher strike of threshing rotor to avoid any breakage of grain during threshing. Rpm of threshing drum and suction blower can be increased or decreased as and when required mentioned as under: • Threshing drum 500 to 720 rpm • Suction blower 750 to 950 rpm 1. Threshing rotor and double speed system duly balanced by computerized system. For Easy and smooth feeding conveyer is provided. 2. First the crop is cut by the blades then moves to pegs for threshing. 3. 50percent more output than other threshers.

we offer pulverizer specially designed for small and large scale industries. made from 10mm thick ms plate. for pollution free environment this machine reduces the dust emerging from machine due to dust collecting balloon system fitted in the machine. specification:- type size power motor r.p.m. capaciy/ hr om1phase 8" x 4" 2 h.p. 8" 3500 10-15 kg om1phase 10" x 5" 3 h.p. 8" 3500 15-20 kg om/01 12" x 5" 3 or 5 h.p. 10" 4000 30-40 kg om/03 14" x 7" 7.5 h.p. 10" 4000 60-80 kg om/04 16" x 10" 10 h.p. 10" 4000 90-100 kg om/05 18" x 10" 15h.p. 10" 4000 100-120kg om/06 20"x 12" 20h.p. 10" 4000 130-150kg

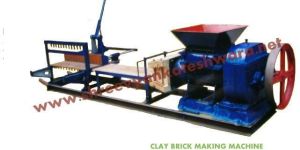

Weight 770 Kg (only Clay Brick Making Machine) Capacity 1500-2000 Brick Brick Size 240 x 115 x 75 mm or any size as per your requirement with the difference of 10 to 15 mm only. Electric Motor 15 H.P 1440 RPM Diesel Engine 18 HP We are into manufacturing of clay brick machines, with the most competitive rates and without compromising on quality. The machine weighs around 770 kgs and has the capability of producing 1500-2000 bricks. The raw material could be soil, clay, etc.. which needs to be properly treated before making bricks. These bricks are suitable for making houses. The size of the bricks can be modified according to the requirement.

Color : Green ( as required)

We manufacture chaff cutter. • Works on 3 HP three phase motor or any diesel engine of the same power. • Output 200 kg to 250 kgs per hour • Length of cut 3/8” to ½’’ and ½’’ to 5/8’’ • RPM required 300 to 350. • Before starting the machine, fill the main gear box with 200 to 250 ml lubricating oil no 90 and the outer gear box with 100 to 150 ml lubricating oil no 90. • Never use any blank oil or any used oil. • Always keep the blades sharp. Keep a distance of 1/16’’ or min. 1.5 mm between the blade and the mouth piece. The bevel pinion gear system is used because of this system you can change the motions (Reverse, Forward) instantly. This is a great advantage for the machine operator. It prevents the hand from goin into the chaff cutter as well as choking of the machines.

We offer Gasoline Sprayer Om 767.

Color : White
