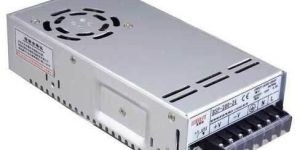

Switch Mode Power Supply Dealers in Nagpur

• Type: Smps
• Certification: CE Certified
• Application: Power Converting
• Weight: 300-500gm
• Color: Silver
• Warranty: 6months
• Driven: Electric

SMPS is an electronic power supply that incorporates a switching regulator to convert electrical power efficiently.12V DC supply can be easily derived from the household AC supply with transformation, rectification, filtering and stabilisation. These power supplies have a bulky steel- or iron-laminated transformer that provides a safety barrier for the low-voltage output from the AC input, and reduces the input from typically 230V AC to a much lower voltage.

leveraging on our enormous business proficiency and a skilled team of personnel, we are engaged in offering a vast range of smps power supply. In adherence with the standards laid down by the industry, our offered products are accessible with us in multiple specifications. Besides this, these can be availed from us at reasonable rates.features: latest state of the art current mode pwm controller. mosefts & ufr diodes used - increases reliability & efficiency. consumption 230/25 vac compact, light weight, very efficiency saving valuable & costly power. dc ups for battery backed instruments. all i/o connections are available on wire connectors or screw terminals input: on board emi / rfi filter fuse protection, soft i/p rages: ac = 90-270 v upto - 50 w ac = 90-135 v or 180-270 v dc = 9-15 v or 20-60 or 90-270 v ac = or 90-135 v or 180-270 output: led status indicator line & load regulation < +/-0.5% ripple & noise < +/-1% p-p o/p, s/c, protection with optional ovp for single o/p - precise current limit with vvcc & o/p voltage +/-5% adjustable units can be directly paralleled for higher current requirements by using external diode blocks (n+1) redundancy possible i/o isolation 2 kv / 4 kv. Upto 50 deg. C ambient you can also call this product as power pack, dc to dc converter, switch mode power supply, etc.

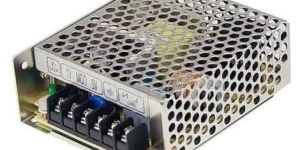

• Type: Switch Mode Power Supply
• Certification: ISI Certified, ISO 9001:2008 Certified
• Application: Industrial Automation
• Color: Grey
• Condition: New
• Frequency: 50hz
• Phase: Single
• Cooling System: Air Cooling
• Input Voltage: 100...500 VAC
• Output Voltage: 24 VDC
• Cooling: Fan

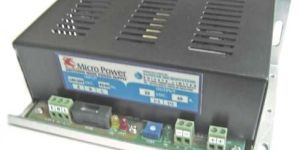

We have come up with highly efficient 24VDC SMPS with modern current mode PWM Controller and MOSFET based design. This 24VDC SMPS is appreciated for its reliable performance which comes as a result of high quality components used in the production process. Our 24VDC SMPS is a user-friendly product which is easy to install and maintain. Moreover this 24VDC SMPS is properly tested by the experts to give a smooth and safe functioning. Features Maximum output power of 125WHigh efficiency, High reliability, Low costAC input voltage range 180V ~ 265VACBuilt-in EMI filterLow Ripple and NoiseSoft start circuit to limit the AC inrush currentScrew type input and output connectorsCompact, light weightMomentary output short circuit protection, over voltage protection100% Full load burn-in test Specifications Input CharacteristicsInput Voltage180V – 265V AC.Input Frequency45 – 60 Hz.Input Connector3-pin screw type connector.IndicationInput Ok – Yellow colour LED.Input Protections3 Amp, 20mm fast blow, Glass fuseMOV, for input over voltage protection.FiltersEMIRFI.Output CharacteristicsOutput Voltage24 VDC..Output Current5 A.Max. Output Power125 W.Output Connector2-pin screw type connector.Output IndicationOutput Ok – Green colour LED.OVP – Red colour LED.Output ProtectionsOver Voltage Protection.Line Regulation< +- 0.5%.Load Regulation< +- 0.5%.Ripple and Noise< +- 1% P-P.Environmental CharacteristicsOperating Temperature55oC at Full Load and 70oC at 60% load.Maximum Temperature Rise50oCCoolingBy free air convection.Relative Humidity95% NC.General CharacteristicsEfficiency70%.Hold Time> 20mSec on full load.Dimension (L X W X H) mm110 X 105 X 60MountingPanel Mounting Note All these parameters are specified at 230V AC inputFor continuous improvement, specifications are subject to change without prior intimation

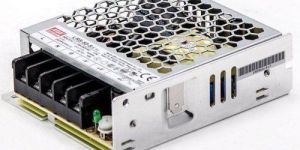

Being a client-centric company we are engaged in manufacturing and supplying Switch Mode Power Supply. Switch Mode Power Supply is widely appreciated for its robust construction and design. Further, we ensure easy and safe delivery of Switch Mode Power Supply gaining maximum customer satisfaction. Highlights : Sturdy construction Best quality Efficiency Excellent packaging Minimum Order Quantity : 100 pcs Power Range Wide Input Range 130 – 290 V A Out Put Range 12 V Dc , 5 a Ac=0.8a Mosfet Based Design for Constant Current Output & Low Heating P.F.C. 95 % Specification P.W.M. Mode Using for More Efficiency Wall Mounting Slim Look Cabinate Sort Circuit Protection ( Auto Restart ) Using (mov) for High Voltage Protection Using ( Ntc) for Over Temperature (thermal ) For Indoor Use Only Compatible for Cctv Camera , Led Lighting Board and Led Strip Etc

• Application: LED Lights
• Design: Smps
• Phase: Single Phase
• Display Type: LED
• Frequency: 50 Hz
• Input Voltage: 5 V
• Output Current: 20 ampere
• Output Type: Single

• Type: Smps
• Application: Charging, Power Converting
• Color: Black, Brown, Grey
• Voltage: 110V, 220V, 380V
• Warranty: 1year, 2years
• Driven: Electric

We are the main supplier of this product.

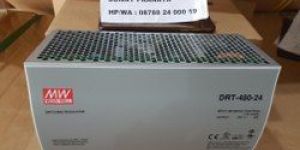

• Phase: Single Phase
• Usage/Application: Industrial Automation
• Brand Name: aNY
• Design: Smps
• Output Type: Single
• Material: Stainless Steel

The SMPS Step-Down Transformer provides Unregulated DC Supply which after Filtering, Switching control  Transistor, High frequency  rectifier & filter provides a Regulated O/P which depends on the duty cycle of switching transistor. This circuit provides DC +12V & + 24V/1Amp  DC O/P with facility to study the line regulation and maximum test points for connecting the meters in the circuit. Objectives : To Study the operation of Switching Mode Power Supply (SMPS) Circuit.  To Observe & Note the regulated DC O/P. To observe & Note the time period/frequency of Switching. To Observe & Note  Change in DC O/P  w.r.t. Change in AC I/P Voltage applied to SMPS Transformer (line Regulation). Accessories Included :   Set of Patch Cords, Operating Manual. In Built Digital Meters options are also available on demand.
