Transistors Dealers in Nagpur

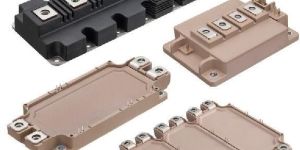

• Type: IGBT
• Certification: CE Certified
• Weight: 100-150g
• Color: Black
• Feature: High Performance
• Voltage: 600V DC to 1600V DC
• Current Ratting: 10A to 1200A

The trainer has DC +12V/500mA Fixed Power supply, Two NPN Transistors BC548 in CE  mode with identical collector load resistor, four resistors & four capacitors bank as a feedback components wired as positive feedback amplifier to provide Astable multivibrator O/P at both the collectors with the facility to vary the frequency.Objectives : To Study operation of Astable (Free-running) Multivibrator using transistor. To Observe & Note the waveforms at the base & collector of two transistors. To Observe & Note Change in Switching Times & Frequency of Oscillation w.r.t. change in RC  feedback Components. Compare the Theoretical & Practical values. Accessories Included : Set of Patch Cords, Operating Manual.

Transistors, Electronic Components, electronic condensers
