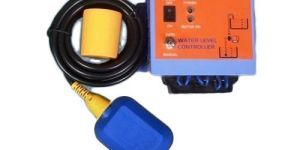

Water Level Controller Dealers in Nagpur

• Application: Controls Water Level
• Voltage: 220 V
• Port of Dispatch: Amravati
• Production Capacity: 400 in two weaks
• Delivery Time: 3-7 Busines Days
• Packaging Details: Cartage Box

With our modern transportation amenities, safe and on-time deliveries are rendered by us! All those who are looking for a reliable name offering Water Level Controller can get in touch with us!   Features : Switches ON the Pump when the water in the Overhead Tank goes below the Pre-decided minimum level Switch OFF the Pump when the water Level in the Overhead Tank Reaches the Maximum Level therefore Prevents Overflow Switches OFF the pump when the water Level Reaches the Minimum Level in the Under Ground Thank there for prevents Dry Running Increase the Pump set life Fully automatic Shall again switch ON the Pump when there is sufficient Water in the Underground Tank Manual ON/OFF Switch also Available Low Maintenance No more overflow or Dry Run thus Saving Water Electricity & Manpower Avoid seepage of roofs and walls due to overflowing tanks With One year warranty will be provided Advantages : Corrosion Free Sturdy and durable need not maintain No current/Voltage is passed through water level Water, therefore No Electrolysis Salt Deposition Long Life (More than 9 Million Operation) Rust Proof Can be used In Hard water

• Color: Ivory
• Features: Automatic/ semi-automatic
• Application: Pump,motor
• Material: ABS
• Mounting Type: Wall Mount
• Voltage: 110-240V AC 50/60Hz
• Brand Name: AG Electronics
• Dimension: 120X120X50, 80x65x40 mm
• Operating Temperature: -5 to +85 degrees Celsius
• Phase: Single Phase
• Application: Domestic Water level controller for Single Tank
• Included Components: 3 Float Sensors
• Pump Rating: upto 3 HP Single Phase

• Type: Tank Controller
• Use: Industrial
• Material: Metal
• Feature: Eco Friendly
• Shape: Rectangular
• Finishing: Polished

In many places such as hostels, apartments, school/colleges, hospitals, etc, overhead tanks are used for storing the water. As the requirement of water is large, controlling of tank is very important. Overhead Tank Controller is a specially designed circuit to overcome this problem. Overhead Tank Controller has two sensors named as HIGH and LOW immersed into the tank with reference, which is at positive potential. The motor is on until the tank is full. When it reaches to HIGH level, the motor automatically turns OFF and it remains OFF until water level goes below LOW sensor and then it becomes on again. Thus, Overhead Tank Controller prevents the overflow of water.About the Circuit : The circuit is designed using IC1, which consists of four AND gates and IC2, which is used in bistable mode. The HIGH and LOW sensors are connected to one of the input of two AND gates at pin 8 and 12 respectively. Other inputs are connected to positive supply through resistors. The output of these two AND gates at pin10 and 11 are given to input of another AND gate at pin 5 and 6. The output of this AND gate at pin4 is given to threshold input pin6 of IC2. The trigger input pin2 of IC2 receives input from LOW sensor. When the tank is empty, logic of AND gate and input of LOW sensor make pin6 and pin2 of IC2 are low. IC2 gets set, output at pin3 goes high which in turn makes transistor T1 on, and relay energized. When water reaches to LOW level, output at pin3 of IC2 remains unchanged and relay remains on. When water reaches to HIGH level, pin6 of IC2 becomes high which resets IC2. Output at pin3 goes low and relay goes off. It remains off until water level goes below LOW sensor and then becomes on again. LED D2 gives the visual indication of relay on or off. When D2 glows indicates that the relay is on. When it turns off indicates that the relay is off.

We are offering water level controller. Water level controller high quality water level controller is available. With following features switch-less sensing elements. sump sensing (don’t let the motor run if sump is empty). auto and manual toggle switch with led indication. Motor status indicator overflow buzzer in manual mode (optional). functions : switch on the motor when water in overhead tank decreases below the mark. switch off the motor when overhead water tank get filled up to the mark. No need to switch on and off manually. technical specification: single phase 230v supply. sensing wire work upto 250 feet length. up to 5 hp single phase motor can be used warranty terms. Returns are accepted only on grounds of any manufacturing defects. returns shall be accepted within 7 days after receiving product. replacement will be done only after receiving defected product.
