Land Drilling Rig Dealers in Namakkal

• Country of Origin: India
• DTH Drill Size Min. - Max: 8-10 Inch
• Depth: Up to 600Mtr
• Rotary Drill Size Min. - Max: 12-16 inch
• Pull Back: 22450kgf
• Pull Down: 10950kgf
• Hoisting Speed: Up to 50Mtr/min
• Mast Length: 8950mm
• Rotary Head Drive: 6950mm
• Air Compresser: 1350cfm/350psi
• Power Pack Max Pressure: 220Kg/cm2
• Power Pack Capacity: 850Ltr
• Prime Mover Rated Capacity: 260Hp@2200Rpm
• Rod Handling Capacity: Up to 6mtr
• Torque: 600Kg-m
• Rotation speed: 0-100rpm
• MRC bXst: 125x800 - 2no
• Water Injection Pump Flow: 80ltr/min
• Water Injection Pressure: 40Kg/cm2
• Mud Pump Bxst: 175x200mm
• Max Flow: 1685 ltr/min
• Max Pressure: 20Kg/cm2

EHD Trolley 650   Diameter 6"dia bore holes Depth 150 mtr Application Piling/Water Well Drilling Rig Formation Soft/hard Prime Mover Power source for hydraulic from suitable diesel deck engine Mounting The rig unit is mounted on a suitable single axle trolley Mast Light Duty channel structure Max capacity – 8 tons (17600 lbs) Height – 3mtr(10 ft) Rod handling capacity -1.5mtr(5ft) PULL UP SPEED 6.5 mtr/min (23 ft/min) PULL UP FORCE 4600 kg PULL DOWN FORCE 2750 kg PULL DOWN SPEED 10.5 mtr/min (4.5ft/min) Hydraulic System 140 kg /cm2 (2000 psi) Jacks Four Hydraulic Jacks Compressor Suitable compressor

• Application: Heavy Constructional Drilling Work
• Feature: Easy To Operate, High Strength, Highly Durable
• Warranty: 2 years

• Max torque: 400 kg- mtr
• Max. Speed: - 0 to 80 rpm

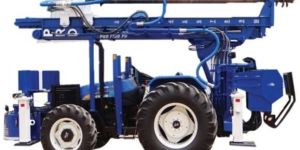

PRD Tractor Pilling Rig PRIME MOVER: Tractor engine 75 hp for hydraulic operated rig. PULL UP AND PULL DOWN: Max pull up speed - 14 mtr min (46 ft min).

dth drill rig, Blast Hole Drill Rigs, Material Handling Equipment
