MAHESHWARI ORGANOCHEM Komarapalayam, Namakkal, Tamil Nadu

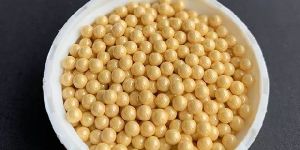

Ceria-stabilized Tetragonal Zirconia Polycristal (Ce-TZP) bead is made with state-of-the-art dropping and rolling method. The 20% cerium oxide rare earth contributes to the highest density of zirconium oxide series beads. The uniform gloss working surface results from consistent zirconia polycristal, which is the guarantee of lower bead and energy consumption. It is recommended to grind the high hardness and viscosity slurry in high energy density bead mills.   Micro-structure of delicate, uniform, dense ceramics of the Quartet, it has a gem-like hardness and density, is a series of grinding all the zirconium-mediated a most Shen. Its excellent wear resistance and fracture toughness is particularly suited for high-solid-phase high-viscosity, high hardness of the paste for grinding and dispersion of pure; good match at the same time high input energy and the high shear machine sanding. Applications1, wear-resistant, corrosion-resistant products: paints, textiles, paints, printing and dyeing 2, high strength, high toughness products: magnetic materials, piezoelectric ceramics, dielectric ceramics 3, to prevent pollution: medicine, food, cosmetics 4, Ceramics: Electronic ceramics, refractory ceramics, structural ceramics   Real Density: >6.0g/cm3 Bulk Density: ≥3.75g/cm3 The Maheshwari® type ZC 6.1 made of zirconium oxide / cerium stabilized have very good wear resistance. Their longevity gives you  grinding or dispersing beads at an attractive price and your product quality is guaranteed. Fields of application for grinding / dispersing of lacquer and paint systems for grinding / dispersing organic and inorganic pigments for grinding / dispersing dyestuffs for dyeing textiles, plastics for grinding and preparation of electroceramics for the preparation of glazes for magnetic ceramics, ferrites for technical/mechanical components for dispersing fungicides, herbicides and insecticides for ultra-fine grinding down to the nanometer range for grinding minerals and precious metals

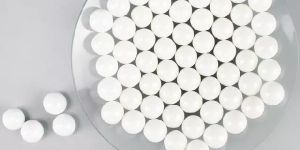

ZIRCONIA BALLS: High whiteness and  Features: 1. High hardness. 2. High wear resistance. Alumina ceramic is the material of choice for alumina wear parts. 3. Good tenacity, impact-endurable, no break under high speed impact. 4. Higher density than any other grinding bead brings higher grinding efficiency, thus allowing higher solid proportion or increased material flow. The main advantages of ZrO2 ceramic ball to steel balls are:1. It is 23% lighter than the steel ball, which reduces the centrifugal force, rolling and wear of the channel during high-speed and accelerated operation of the bearing;2. The friction coefficient is small and the rotation flexibility is good;3, high temperature resistance, the use temperature can reach 750 ° C, more resistant to chemical corrosion than steel;4, can work under the conditions of no oil lubrication; no metal pollution; no magnetic; electrical insulation.   Vickers hardness> 1200Bulk density ≥3.7g/cm3Inner dia.of orifice: 2mmSelf abrasion 2.0KN (Φ2mm)Material: ZrO2(94.8%±0.2%) Y2O3(5.2±0.2%)CharacteristicsGood stability, strong acid and alkali resistance.Has excellent toughness, compressive strength, etc., impact resistance, not broken.Low abrasion (ppm level), minimal wear on equipment, is the best grinding medium.The zirconium bead has good roundness, smooth surface, bright, high density, good strength, inertness, and hardness, and is aperfect and fine spherical grinding medium.Application areas: Inks, inks, coatings, pigments, fuels, glazes, papermaking, electronic materials, battery materials, siliconoxide, titanium dioxide, kaolin, calcium carbonate, chemical fiber catalysts, pharmaceuticals, biochemicals, cosmetics and other nanomaterials.Size:Φ0.3-60mmSpecificationDensity> 6.05g/cm3Vickers hardness> 1200Bulk density ≥3.7g/cm3Inner dia.of orifice: 2mmSelf abrasion 2.0KN (Φ2mm)Material: ZrO2(94.8%±0.2%) Y2O3(5.2±0.2%)CharacteristicsGood stability, strong acid and alkali resistance.Has excellent toughness, compressive strength, etc., impact resistance, not broken.Low abrasion (ppm level), minimal wear on equipment, is the best grinding medium.The zirconium bead has good roundness, smooth surface, bright, high density, good strength, inertness, and hardness, and is aperfect and fine spherical grinding medium.Application areas: Inks, inks, coatings, pigments, fuels, glazes, papermaking, electronic materials, battery materials, siliconoxide, titanium dioxide, kaolin, calcium carbonate, chemical fiber catalysts, pharmaceuticals, biochemicals, cosmetics and other nanomaterials.

Packaging Type : Wooden Box

Type : Pearl Beads

Certification : ISO 9001:2008 Certified

Finishing : Glossy

Country of Origin : India

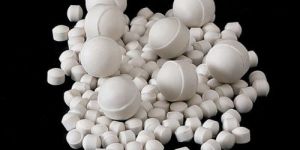

High Performance Steatite Ceramic Balls: Available in percentages of 92% and lower from 0.5mm-60mm. They are easier to use than cylinders and one of the most popular medias for ball milling. Technical Details Density: 3.60 gm/cc. Hardness: 7.5  Composition: Magnesium and Silicate  Color: off White Shape: Spherical & Cylindrical Bulk Density: 2.20 kg/l; 4.90 #/l; 8.20 kg/gal; 18.00 #/gal

Type : Steatite Balls

Color : Snow-white

Country of Origin : India

AISI 440C Stainless steel ball   Size: 0.35mm- 50.8mm Grade : G10-G200  Hardness: HRC56-58  Magnetic:Martensitic steel, magnetic Features: high precision, good corrosion resistance, strong rust and wear resistance. Applications:Bearings, stamping / hydraulic parts, valves, aerospace, seals, refrigeration equipment, high-precision instruments, etc.

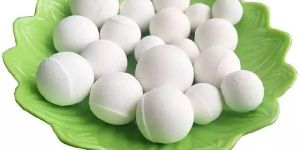

Ceramic beads made of aluminium-silicon oxide Maheshwari® A 99.3 aluminum oxide beads have a high degree of purity with an Al2O3 content of > 99% and with secondary components of < 0.7%. These beads are ideal for use in agitator bead mills and in the wet grinding of aluminum oxide raw materials, e.g. for technical components, coatings and for high-quality paints and inks. The advantage is the availability of beads down to 0.5mm-60mm.   Technical Data: High purity ≥ 99.3 % Al2O3 Specific Weight ≥ 3.8 kg/dm3 Bulk Density ≥ 2.3 kg/dm3 Roundness ≥ 0.93 (ratio width/length (xmin/xmax)) Colour: White  Fields of application In the mining industry A 99.3 ceramic beads are used for the grinding of minerals and precious metals. Quality attributes The ceramic beads type A 99.3 have a dense sintered structure, a smooth surface, high roundness and high hardness.

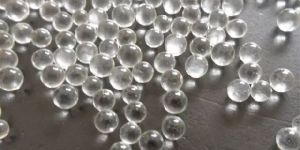

Glass beads made of quartz glass (synthetic silica glass) to form a high-purity grinding bead. Type Q glass beads made of high-purity synthetic silica glass are formed into beads and then sintered in a defined manner.   Fields of application Use as ultra-pure beads for cell disintegration and autogenous grinding; grinding of conductive pastes, glass paints and high-purity silicate materials; in the laboratory as carrier material with bioactive or catalytic surface; as filler material in the cosmetics industry, semi-conductor industry and pharmaceutical industry; as radiation conductor in the UV range (disinfection); optical sphere/half sphere for UV sources/wave guides; photovoltaic sphere with transmission of 170 – 5,000 nm; filter material for very high temperatures and many other applications. Advantages Highest chemical purity with SiO2 content ≥ 99.98 % Highest chemical resistance of all glass types (hydrolytic class HGB 1, acid resistance class S1 and alkali resistance class A1) High light transparency from IR to UV wavelength range (170 – 5000 nm) High roundness of beads dMIN / dMAX ≥ 0.95 Very high service temperature of 1100 °C (1300 °C also possible for short periods) Very high thermal shock resistance

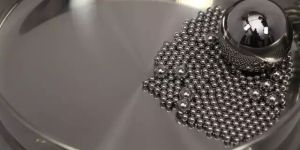

Chrome Steel Balls – Grinding Media for your Ball Mill Polished to stunning elegance, Maheshwari Chrome Steel Grinding Balls are the Rolls Royce of the grinding ball industry. A dynamic and reliable steel ball, the intelligent design of this ball mill media is owed to our breakthrough technology, which enables us to take the finest chrome steel and vacuum-de-gas it. Because this process sets free all trapped air in the formulation, our chrome balls are produced with no air pockets—which results in a fully solid metal ball. So, the chrome steel balls in your ball mills grind your product—not each other. Through hardened and rust resistant, the high density and superb hardness of Maheshwari Chrome Grinding Balls make these grinding media balls ideal for ball mill grinding, including the crushing, mixing, and dispersing of even the hardest raw materials and the most viscous liquids. Maheshwari Steel Balls will transform your ball mill operation into a lean, mean, grinding machine.   Material: AISI52100 / Suj-2 / 100Cr6 / Gcr15 Hardness: HRC 66-69 Usage: precision bearings, precision parts, precision milling and grinding

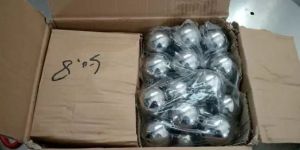

Diameter: 0.5mm-100mm Hardness: HRC 55-60 Material: AISI1010/1015/1045/1085 carbon steel. Grade: G10 - G1000 Application  1. General industry for automobile, motorcycle, bicyclemanufacturing, special bearings & micro – ball for the electronics industry..2. High accuracy & low noise motor bearing& householdappliance bearings3. High - speed, low noise special bearing4. Ball valves for liquid and gas etc.
