Tractor Mounted Drilling Rig Dealers in Namakkal

• Drill Depth: 500 - 1500 Ft.
• Tractor: New Holland / Form Tractor / As per Customer Request
• Pull Up Force: :4500 Kgf
• Prime Mover: Tractor Engine
• Pull Up Speed: 30m/min
• Pull Down Force: 2300 Kgf
• Rotation Speed: 0-100 RPM
• Pull Down Speed: 24m/min
• Rotation Torque: 120 Kgf
• Minimum Suggested: 500CFM & 200 PSI
• Hydraulic Jacks: Four Hydraulic Jacks Extracted Stroke Is 610mm
• Drill Rods: 4.5-6.5 Inch

• Capacity: Tractor New Holland 75 HP or 90 HP 4x4 Pile drilling 1200 mm diaupto -50mtrs - DMC (Direct Mud Circulation ) method, DTH Curn Rotary Drilling 200 mtrs, 6- bore
• Mast Structure: Sturdy Steel Channel Construction Length 5000 mm, Head travel of 4000 mm rod handling 3 mb- drill rods 4 � " 0D
• Top Head Rotary Drive: Capable speed range from 0 - 80 rpm, Torque of 400 kgs RIP' through spur gears.
• Feed System: Pull up force 7900 kgs, pull down force 5400 kgs Pull up speed 35 mtrl min, Pull down speed 23 mtr/ min
• Stabilizer: Four Hydraulics leveling jacks with pilot operated check valves
• Breakout Wrench: Hydraulically operated break out wrench for breaking drill pipes Joints
• Control Panel: Swing out Control panel is located at rear location for easy operation of drilling rig
• Optional: AIR Compressor on Inlay for 0th Only
• Auxiliary Winch (optional): Hydraulic operated auxiliary winch is mounted on top of the mast for handing of drill rods, tools and accessories
• Optional Drilling Attachments: Core Drilling, RC Drilling, Geotechnical Drilling

• CAPACITY: 4" - 6" dia bore holes up to 200 mtrs
• HYDRAULIC SYSTEM: 162 kg / cm2 (2350 psi)

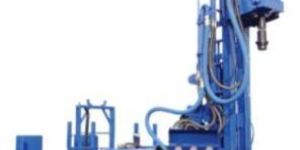

PRD Tractor Mounted Rig which are available in various models, sizes, and working capacities. The equipment is provided with water injection pump, hydraulic system, rotary head that helps in performing 4" to 6" dia. bore holes up to 200 meters. Known for their excellent rod handling capacity, these are also provided with additional attachments such as screw centrifugal mud pump driven by deck engine or hydraulic motor.
