Motorised Wood Working milling machine with adjustable & tilting work head for milling straight and cross cutting of wooden planks such as for casing, capping, grooving tennonning, etc., equipped with 3 jaws self centering true chuck for holding cutters, moulding block and circular saw cutting attachment having table working surface 23" x 8" cross travel 12" vertical travel 24" spindle speed 3500 RPM complete with 2 HP AC 440350 motor and starter.

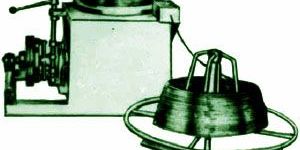

Wire drawing machines are suitable and known for their performance in the field of wire drawing. Graded casted part are mounted on steel fabricated frame to bear the maximum load and fatigue to give trouble free service. The machines are available for different size of wire rods.

Vertical Fine Boring Machine is specially designed for fine and accurate machining of cylinder bores. Manufacturers ensures years of trouble free operation as every phase of manufacturer is under strict quality control. Base and column are of high grade casting. Boring head travels on a Hardened & Grounded finished guide ways column protected with bellows. Boring head is fitted with hardened alloy gears to give smooth feed and side on column. Controls are provided on one side of the machine on a comfortable position and easy operation.

Heavy duty vertical bandsaw machine provided with cast iron machine table and guards for safety of the operator with saw guide for alignment of the saw blade complete with suitable electric motor 3 phase 440 volts, motor pulley, V belt starter and motor attachment.

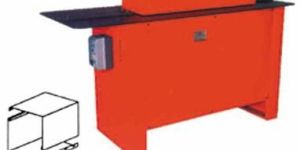

Used for joining sheet metal at right angles on straight runs. This is a more sophisticated joint than the Pittsburgh lock, requiring less labour, The male section snaps tightly into the female with an almost unbreakable joint. The machine is capable of forming a maximum of 20 swg (1.00 mm).

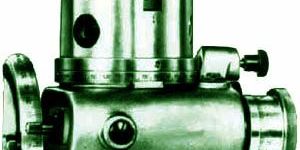

UNIVERSAL INDEXING FIXTURES is having swivelling and tilting arrangement suitable for working at desired or compound angle on any machine. Indirect indexing by work and work wheel. Direct indexing by easy disengagement from worm and wormwheel. Work dial hard chrome plated for wear and corrosion resistance. Available in 110 mm dia of true chuck and chucks swivelling 0 to 360 degrees and chucks tilting 0 to 90 degrees.

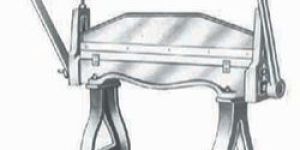

Heavy duty hand operated truck folding machines specially suitable to form heady and large right angle and curved folds on the sides of the trunks and also suitable for folding the sides of trays and various other similar articles with help of suitable eddies, operation through the bed by eccentric shaft raising and lowering the top beam, top beam has adjustment for height, complete with one M.S. bending die for 9o0 (sqare )bends, a set of gauges and bench mounting stand.

Treadle guillotine shearing machines are indispensable in sheet metal industries as they lead amongst all on account of versatile design, rigid construction, rigorous tests for the capacities and appearance. They are specially designed for rapid and continuous cutting of steel sheets of varied widths and trimming them in unlimited lengths. Available in cast iron body or in all steel construction.

Heavy duty box section, M.S. Body, Double leverage type for quick cutting of light rods, lever retaining spring to hold handle failing off accidently. Model AMI 16,20 and 24 are single leverage type.

The Universal Tool & Cutter Grinder is a robust machine capable of dealing with a wide range of tool & cutter Grinder operations. It is available as a steel cabinet mounted, machine and is designed for the rapid sharpening of H.S.S. milling cutters, spiral mills, metal slitting saws side and face cutters reamers, tap and with suitable attachments lathe tools, end mills formed cutters etc. A totally enclosed wheel head motor with a double ended spindle carriers one standard and one extended wheel adaptor which can be mounted on either end and will receive both the Cup and dish wheels supplied with the machine. The spindle, with runs at 2800 r.p.m. is controlled by reversing switch built into the main body of the machine. The wheel head is mounted on an engraved base plate which can swivel through 360D and can be clamped in any position. It is supported by a cast iron column having vertical adjustment, by means of a hand-wheel at the base of the machine. The column can be looked in any position and movement can be accurately controlled by means of a friction mounted micrometer dial. The upper work table is provided with the slot which not only serves as means of fixing the tooth rest etc. but also enables accurate location of the loose centre heads. It is graduated either side of the Zero setting and can swivel through 180D Provision is also made for taper setting in INCHES per FOOT. Longitudinal movement of the table is obtained from a rack pinion operated by a conveniently placed Handle or, if required, can be operated by hand pressure only. The table is located on accurately machined vee and flat ways and is fitted with adjustable stops which can limit he movement of the table in and position. Cross traverse is accurately controlled by a hand wheel situated at the front of the machine which is fitted with a friction mounted micrometer dial.

Handoperated toggle action bench press ideally suitable for blanking, piercing, riveting, bending or punching, T-slotted table is provided with tool bolster for circular type die and setting plug for alignment. The ram is adjustable for tool height.

Motorised heavy circular saw machine provided with table has a rise and fall movement adjustment tilts upto 45° complete with suitable motor 3 phase, 440 volts motor pulley, V belt starter saw guard rip fence and one saw blade.

Thread Cutting Machine Type BIC are fully automatic and simple in adjustment. The threads formed on these machines are deep and clean, accurate and perfect with point.

Spring controlled hand operated or treadle operated arbour press ideally suitable for pressing solid, hollow and eyelet rivetting, staking, flaring, numbering, marking, assembling etc. The press is provided with adjustable stroke, automatic spring return of spindle, adjustable spring tensioning device ans T slotted base surface.

Indigenous make semi automatic motorised top & bottom double seaming machine Model DSI suitable to seam top and bottom of square or irregular shaped tin containers upto maximum 13" cross section x 17" height or approx. 20 liters fluid capacity tins, spindle speed required 350 R.P.M. complete with 2 HP. AC 440350 electric motor, starter, pully belt, guard and one chuck suitable for K.O. type 4 gallon tin containers approx weight 750 kgs.

Shearing Machines have been designed and developed through structural analysis technique for continuous production, accuracy and repeatability having the following main features:

Orbital series electronic control low cost orbital silent rivetting machines having micromatic stop for precise height control with graduated ring, equipped with additional handle for major daylight adjustment, electronic timer infinitely variable from 1 to 6 seconds, equipped on standard control panel having pillar type construction, standard throat depth of 150 mm. Bench model, all wear parts hardened and ground, electropneumatically operated complete with solenoid valve electrical foot-switch, suitable electric motor, F.R.L., 1 set of standard rivetting tool and anvil.

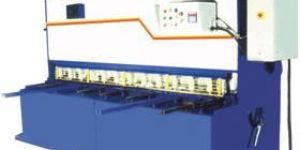

Ram & Table designed with inclined member and box type structure for maximum strength. Positive holding of Hyd. Hold downs avoids slippage of sheet during cutting stroke. HCHCr Blade suitable to MS & SS. Hardened Transfer bars. Front gauging by disappearing stoppers mounted on front squaring arm.

Hand operated bench mounting standard single station punch press, a multi-purpose precision machine which perforates holes of various sizes, and shapes upto 4" dia in 16 gauge steel-rapidly and efficiently. Used also for an unlimited variety of blanking, drawing, embissing and forming operations. Adjustable side and back gauges incorporated in the machine allow precision gauging for exacting duplicating operations. Perfect alignment of the punch head is assured at all times by a dove-tail shaped ram which is hardened and precision ground. The roller cam provides tremendous pressure at the point of impact.

Portable orbital Sander used for sanding and polishing veneers, wood sheet metal primers of filters, to remove oil paint laquer, wall paper or rust equipped with special A.C. motor having shock proof insulation against 1500 volts, having sanding stroke 5 mm, sanding pad size 115 x 225 mm (12 sheet) motor watts 250 suitable for operation on AC 220 volts, single phase 50 cycles, 300 RPM electric supply, approx. weight 3.91 Kgs.

A multitude of forming and duplicating operations can be performed with leaf type Precision bending brakes in experimental and production quantities. Particularly for the "Small" jobs such as making of closed boxes and chasis for appartus Radio cabinet parts etc. Precision bending brakes are extremely handy as to this last, the versatile possibilities of the finger combinations are self evident.

The portable electric shear model 'AMI-3' is very useful and an indispensable tool in all workshops, assembly line, erection sites, coach building shops, tin smith and alike industries as it is handy, convenient and easily accessible to different types of shearing jobs in various materials upto 3 mm thickness (in M.S. with tensil strength 45kg sqr. mm.) for straight, round, ovel, curved andor irregular shapes at rapid speed reducing thereby the production and maintanance cost considerably. A moving cutter moves against a stationary one in the anvil. The cutting speed is high and there is no loss of material. While a shear can be used for splitting sheets where the resistance to bending is not great, they are not recommended for cutting across wide and thick plates. On heavier gauges of material they should be regarded as trimming shears, main portion remaining flat; while the cut portion is bent away beneath the anvil. The anvil is designed so that scribed lines are well in view and are easily followed allowing straight lines and curves to be easily cut. The minimum cutting radius is approximately 3.12lnch. Blades are of special die steel and are of simple design. They are of sufficient length to stand fro 10 to 15 grindings. The motor is for intermitent operation and is of fan cooled type, suitable for operation on AC. 220 volts, single phase, 50 cycles with built-in "ON" "OFF" Switch, 2 meter long cable and plug.

Hand operated Precision Notching machine cuts all shearable materials especially useful where box, chasis and panel blanks are to be made. Notches as large as 160 mm x 150 mm in 16 Swg. mild steel can be made at the corner or in any position along the edge of a sheet. Ease of operation makes possible production rates which offen rival those of power driven equipment. Powerfull action of notcher is obtained through use of a roller cam, minimum operator effort is needed. Notches larger and smaller than 90° can be made in two operations. Straight shearing job can be done, too. Two handles of different lengths are provided. Short handle for production speed on lighter materials; long handle for notching heavier materials.

The Sheet Metal Nibbling Machine is a rugged, sturdy and reliable multipurpose machine capable of sheet cutting & forming operations. Its verstility is best expressed by terming it the Sheet Metal Workers lathe. The working principle on which nibbling operates is the sheet is cut or formed between the fast reciprocating motion of an upper tool (powered by an electric motor and driven by an ecentric crank) and a stationery lower tool, by progressive punching, as the sheet is fed.
