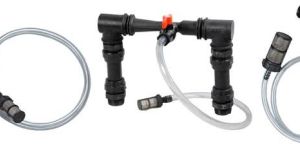

The Venturi Injectors, which we offer, are the easiest way to give acid treatment and fertigation. These Venturi Injectors can be also be used in series with a motor for carrying out fertigation application without any loss in discharge in system lines. We are a reliable name to get Premium Venturi Injectors. Types Available : We Have Different Types Plastic Venturies - 2", 1" and 3/4":¾� Ventury : It sucks 50-100 liters/hr. at 0.4-0.6 kg/cm2 differential pressure. It comes with full assembly & also without assembly. Full assembly consists of composite pipe with adaptors & also suction tubing, cock & strainer filter. Without assembly ventury comprises only suction tubing, cock & strainer filter1� Ventury : It works at 0.4-0.5 kg/cm2 differential pressure & capacity of 50-150 liters /hr. It also comes with suction tubing, valve & strainer.2� Ventury : It works at 0.5 kg/cm2 differential pressure & capacity of 500 liters /hr. It also comes with suction tubing, valve & strainer.2" Turbo Ventury : It works at 1200 liters/hr. It comes with suction tubing, valve and strainer. It is one of the most popular of all

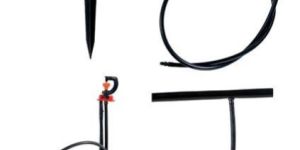

The clients can get to choose from a wide range of Sprinkler Irrigation Systems from us. We are among the dependable name to get world-class Sprinkler Irrigation System at rates that will never break the bank. With efforts to win the trust of clients, we have become a reputed Manufacturer and Exporter of Sprinkler Irrigation System from Nasik. Micro Sprinkler Systems : Micro sprinkler systems are used where complete area is to be covered perfectly without causing any harm to the crop/plantsMicro sprinklers are made from the best quality polyacetal resin to give the maximum life. Each Micro sprinkler assembly consist of Micro Sprinkler with 1 meter of 4 mm tubing and 4mm connector which can go into the 12 mm or 16 mm lateralSpecial holding stakes to hold the assembly firmly also available as an optional itemThe unique and the most important feature of this micro sprinkler is that it covers a radius of over 3mtrs at a 1 .2kg/cm2 pressure of water in the lateral, giving a discharge of 70lph, with a 90% uniform coverage of water; higher coverage at minimum pressure.It is recommended that for effective working of the system the micro sprinklers should be installed at 4mtrs intervals on 16mm laterals with the maximum of 7 micro sprinklers per lateral. The laterals should also be put at every 4 meters.Very uniform wetting of the entire area is achieved- hence better and higher yields-pays you back with increased profits in 1st year itself Most important is the cost - these micro sprinklers are now available at the most reasonable cost and hence have all the advantages over the conventional sprinkler system with best uniformity -hence substantial saving of water and cheaper to install; highly affordable.This is the future of the irrigation industry and already all leading and progressive farmers are switching onto this system. This is best suitable for all crops where it is necessary to cover entire area, like ginger, safed mush, onions, etc. and all vegetable plantations and nurseries Midi Sprinkler : Midisprinkler System is used particularly for plantation with a height of above 2ft. These are the only ones which give best uniformity at the ht of 2.5 feet -3 feetOperates at only 1.5kg/cm3 pressureIt covers a radius of over 4mtrs, giving 100 LPH discharge with a 90% uniform coverage of water - to be installed at a ht of 2.5 feet Available with 12 mm adaptor connector for low costAlso, with 2.5 feet stake having 12/16 mm connectorAll components are made up off tough engineering plastics hence more durable & unbreakable. Can be used for all types of crops like ginger, onion, shatavari, vegetables & nurseriesVery economical and effective for stevia, etc. To be installed at 5 meters � 5 meters maximum 5nos for 16mm lateral and 3 nos for 12mm lateral Easy to disassemble & clean Mini Sprinkler System : Mini Sprinkler Systems are used where complete area is to be covered perfectly without causing any harm to the crop/plants. Mini Sprinkler are made from the best quality polyacetal resin to give the maximum lifeEach Mini Sprinkler assembly consists of mini sprinkler rotating head which is fitted to stake having 12mm/16mm connector for connecting directly to the 12/16mm lateralThe unique and the most important feature of this Mini Sprinkler is that it covers a radius of over 6 meters at a 2kg/cm2 pressure of water in the lateral, giving a discharge of 300 lph, with a 90% uniform coverage of waterIt is recommended that for effective working of the system the Mini Sprinkler should be installed at 7mtrs intervals on 16mm laterals with ideally 2 (maximum 3) Mini Sprinkler per lateral. The laterals should also be put at every 7 metersUniform wetting of the entire area is achieved- hence better and higher yields- pays you back with increased profits in 1st year itselfMini Sprinkler Systems have all the advantages over the conventional sprinkler system with best uniformity -hence substantial saving of water and cheaper to install. These Mini Sprinklers are highly affordableThey are more durable than the Micro-sprinkler Systems but need 2kg/cm2 pressure as against 1.2 kg/cms2 required for micro-sprinklersThis is the future of the irrigation industry and already all leading and progressive farmers are switching onto this systemThis is best suitable for all crops where it is necessary to cover entire area, like ginger, Safedmusli, onions and medicinal plants and all vegetable plantations and nurseries

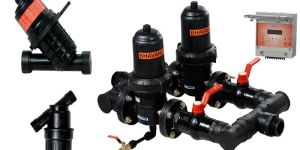

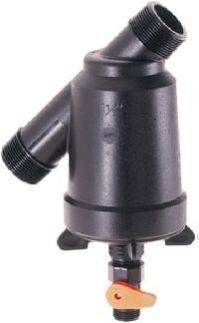

From us the clients can get a variety of Screen Filters with different discharges, capacities and inlet outlet diameters depending on the application. These Screen Filters come with an independent or single central flushing system. We are a reliable Manufacturer and Exporter of Screen Filters from Nasik (Maharashtra). Furthermore, these Screen Filters are economical and handy than a single large filter. Advantages : Comes with an inbuilt air release valve on the top that works as flush valve when in normal operationEasy cleaning of the stainless steel mesh filter element as water goes from inside to outside and the suspended matter can be easily unclogged by a water jet on the outer sideEasy flushing with the help of flushing valve2 filters attached in parallel are available. This double filter arrangement helps in pressurized flushing of the filters by just operating the inlet valvesSpares and spare-parts available at reasonable prices Technical Specifications : Capacity : 10m3 Discharge : 10,000 liter/hourInlet and outlet diameters : 2�Comes with an opening spanner with flushing arrangement Capacity : 20m3 Discharge : 20,000 liters/hrInlet and outlet diameters : 2�Comes with an air valve cum flush valveOptional flange arrangement Capacity : 30m3 Discharge : 30,000 liters/hrInlet and outlet diameters : 2.5�Comes with an air valve flush valve and opening spanner Discharge : 5000 liters/hr Inlet and outlet diameters : 1�Used for smaller applications including landscapeVery affordableCan be used for household purpose Discharge : 3000liters/hr Inlet and outlet diameters : 3/4th�Used for smaller applications including landscape.Very affordableCan be used for household purpose Bottle filter Inlet and outlet diameter : 16mmFits perfectly to a 16mm lateralUsually used for small applicationsUsed in small kits New Screen filter : Inlet and outlet diameter : 3" Double filters- Parallel filters for higher volumes of filter requirements (Battery of filters) : Capacity per pump : 20,000 liters/hrInlet and outlet diameter : 2�Comes with an independent or single central flushing systemMore economical and handy than single larger filter Double filters -Parallel filters for higher volumes of filter requirements (Battery of filters) : Capacity : 60,000 liters/hrInlet and outlet diameter : 2.5�

From us the clients can get a variety of Screen Filters with different discharges, capacities and inlet outlet diameters depending on the application. These Screen Filters come with an independent or single central flushing system. We are a reliable Manufacturer and Exporter of Screen Filters from Nasik (Maharashtra). Furthermore, these Screen Filters are economical and handy than a single large filter. Advantages : Comes with an inbuilt air release valve on the top that works as flush valve when in normal operationEasy cleaning of the stainless steel mesh filter element as water goes from inside to outside and the suspended matter can be easily unclogged by a water jet on the outer sideEasy flushing with the help of flushing valve2 filters attached in parallel are available. This double filter arrangement helps in pressurized flushing of the filters by just operating the inlet valvesSpares and spare-parts available at reasonable prices Technical Specifications : Capacity : 10m3 Discharge : 10,000 liter/hourInlet and outlet diameters : 2�Comes with an opening spanner with flushing arrangement Capacity : 20m3 Discharge : 20,000 liters/hrInlet and outlet diameters : 2�Comes with an air valve cum flush valveOptional flange arrangement Capacity : 30m3 Discharge : 30,000 liters/hrInlet and outlet diameters : 2.5�Comes with an air valve flush valve and opening spanner Discharge : 5000 liters/hr Inlet and outlet diameters : 1�Used for smaller applications including landscapeVery affordableCan be used for household purpose Discharge : 3000liters/hr Inlet and outlet diameters : 3/4th�Used for smaller applications including landscape.Very affordableCan be used for household purpose Bottle filter Inlet and outlet diameter : 16mmFits perfectly to a 16mm lateralUsually used for small applicationsUsed in small kits New Screen filter : Inlet and outlet diameter : 3" Double filters- Parallel filters for higher volumes of filter requirements (Battery of filters) : Capacity per pump : 20,000 liters/hrInlet and outlet diameter : 2�Comes with an independent or single central flushing systemMore economical and handy than single larger filter Double filters -Parallel filters for higher volumes of filter requirements (Battery of filters) : Capacity : 60,000 liters/hrInlet and outlet diameter : 2.5�

Excellent saving of water � among the most underrated resources � is guaranteed by this Online Drip Irrigation System. This Online Drip Irrigation System uses the cutting-edge dripping technology for working. We offer the Online Drip Irrigation System at rates that will not break the bank. Hard work has helped us become a reliable Manufacturer and Exporter of Online Drip Irrigation System. Consists Of : Laterals : Available in 12 mm and 16 mm outside diameter with 1 mm -1.3 mm wall thickness conforming to IS specification. These laterals are made from virgin LLDPE material with black master batch additives of the highest standards to give the best UV resistance for very long-life operations These are also available with anti-rodent additives using bifferant that is not harmful but prevents rodents from bitingDrippers : Openable Turbo Type : Non pressure compensating: Available in 4 and 8 lph discharge with ISI Mark. Each dripper is individually factory tested for discharge to give the best uniformity. The material used is of best quality for complete uv stability and life. Also available in pressure compensating 4 Iph discharge.J- Type : These are very low cost drippers with relatively lower uniformity but can be easily opened and cleaned. Particularly used where there is too much of salt in the water; available in 4, 6. 8 and 12 Iph dischargeEden : Pressure compensating with no drain non openable drippers. These are imported specially used for applications where very high uniformity is required and all the drippers are required to start at one time; available in 2 and 4 lphNew PCND Dripper : These drippers have been newly developed by us and would be available at the price of regular drippers in the market - only Rs.210 each. With these drippers all plants at any length or level would get the same quantity of waterMicrotubes : Available in 1 .2, 1 .3, 1.5 and 4 mm in LLDPE virgin material

Brand Name : ECOFLO/Bhavani Drip

Material : Plastic

Diameter : 16mm

Color : Black

Length : Upto 50 m

Our highly cost effective Irrigation System design with very reasonable ex factory pricing results in unbeleivably low cost per acre.

Type : DRIP

Brand Name : BHAVANI

Material : PE

Diameter : 20MM 16MM 12MM

Thickness : 0.2MM TO 1MM

Length : ANY

Application : ANY

After-Sales Service Provided : YES

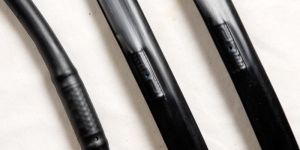

This Integrated Drip Line is lightweight, including a turbulent flow emitter inseparably welded to the upper wall of the pipe. This Integrated Drip Line labyrinth emitter features a self-cleaning, built-in strainer at its inlet, and a wide chamber at its outlet for minimizing clogging. Long labyrinth of this Thin Walled Integrated Drip Line allows for uniform discharge rate and precise irrigation patterns at long lateral lengths. Advantages : Self-cleaning features with minimum cloggingUniform discharge rate throughout the length of the drip lineEasy roll-up, storage and re-use season after seasonLow costDurable drip lines Technical Specifications : Outer diameter : 17mmThickness : 0.2 mm, 0.3 mm and 0.5 mmDischarge : 2 lph and 4 lphSpacing between the drippers : 40 cm, 50 cm and 60 cmLife of the drip lines : 2 years for 0.2 mm, 3 years for 0.3 mm and 5 years for 0.5 mm thickness drip linesRequires filtration

We are offering ecoflo treadle pump. a light weight foot operated treadle pump that with simple stepping action can suck upto 5000ltrs per hr water from 25ft depth and discharge to a height of 45 ft with a pressure enough to run small mini sprinkler irrigation or even a drip system. A must for small and marginal farmers.

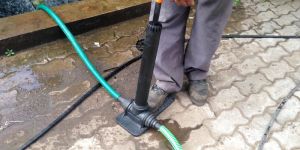

An innovative, portable and low-cost Ecoflo Irrigation Hand Pump is offered by us to be used in irrigation. This Ecoflo Irrigation Hand Pump works on the principle of Traditional Frame Fit Pumps � the same principle, which is used for pumping air in the bicycle tires through a long air chamber. This Ecoflo Irrigation Hand Pump enables easy pumping of water through long distances. The use of integrated plastic components in this Ecoflo Irrigation Hand Pump makes it robust, less costly and lightweight. Features : Suction of water from up to 15ft well or water sourceDeliver water up to a height of 35ftTransport water up to 200mtrs.Delivers up to 2000litres/hrRun drip and sprinkler kits to irrigate an agriculture plotWeighs about 1kg and can be ported to any place by any personNo electricity requirement, works on hand power by any person100% plastic pump, hence less wear, less maintenance and long-lifeThis hand pump can not only be used for agriculture but for any purpose where water has to be pumped Instructions : Attach a suction pipe along with the foot valve to the suction side of the pump as indicated on the pump showing the IN arrowAttach the discharge pipe on the on the OUT side of the pumpHold the pump in upright position using your legs and initiate the reciprocation action of the piston using your hands on the handleLubricate the moving part of the piston regularly to have smoother and better results

Brand Name : Ecoflo

Material : PE/PP,high performance PE grades

Length : Upto 20 m

Whether it is dripper opening spanner, lateral stop clocks or connectors, our assortment of Drip Irrigation Accessories includes the best. We are ranked as a reliable Manufacturer and Exporter of different types of Drip Irrigation Accessories from Nasik (Maharashtra). These Drip Irrigation Accessories are easy to fit and can withstand demanding applications. Types Of Drip Irrigation Accessories Available : We have practically every type of connector required for a drip systemTees with many combinations Micro-tees specially for using micro-tubesHolding pegs for puffing the outlets of micro-tubes in placeSpecial Connectors for Integrated drip lines We can custom design and supply any type of connector Lateral Stop Cocks : Can be used for controlling the flow and also for flushing at the ends- available in 12mm and 16mm Lateral Filters : 16mm 2mtr>3 filter, 16mm strainer filter, 1 2mm strainer filter with stainless steel mesh for smaller systems and added filtration Dripper Opening SpannerDripper Hole PunchMistake/ hole plugs

Available in different capacities, this Disc Filter can withstand high pressures. We offer these Disc Filters at the market leading rates. By keeping a tab on the latest Disc Filter Manufacturing Techniques, we have become a reputed Manufacturer and Exporter from Nasik (Maharashtra). Disc Filter Availability : Capacity : 30mtr3 Inlet and outlet diameter : 2.5"Capacity : 50mtr3 Inlet and outlet diameter : 3"

Material : Iron

We are offering thin walled drip inline. thin walled driplines diameter 12mm and 16mmm with flat drippers at 30-6o cms spacing 2lph and 4 lph available in thickness from 0.25mm to 0.6mm. Very cost effective solution for drip irrigation.

Thickness : 10mil to 24mil

Material : Latest PE grade with much more life than available in market

A boon for small-sized land irrigators, this Micro Irrigation Kit uses the leading-edge drip irrigation technology. This Micro Irrigation Kit is pre-assembled and apt for irrigating small commercial vegetable farms. We are a reputed Manufacturer and Exporter of Micro Irrigation Kit. This Micro Irrigation Kit ensures hassle-free working. Details : Suitable for small land holdersA perfect entry level low cost, very affordable, yet modern & latest drip irrigation technologyAn introduction to higher earning with higher yields in agricultureInline Vegetable Drip Kit � 100 sq. meters (Life 2-5 yrs)A pre-assembled and packaged kit useful for cultivating small commercial vegetable plants in 10 rows of 10mtrs length and with spacing of 1 meter such that one Inline pipe can water a row of plants. In a area of 100 square meters, the drum kit comprises a 200 liters water storage viz. drum, barrel, water bag, etc. placed at an average height of 1 meter to allow the water to flow by gravity. Has 10 rows of Drip lines 10 meters long with 30 cm-50 cm spacing flat drippers - thickness of 0.2mm-0.5mm. (2-5 years life) Inline Vegetable Drip Kit � 200 square meters (Life 2-5 years)A pre-assembled and packaged kit useful for cultivating small commercial vegetable plants in 10 rows of 20mtrs length and with spacing of 1 meter such that one Inline pipe can water a row of plants. In a area of 200 square meters, the drum kit comprises a 200 liters water storage viz. drum, barrel, water bag, etc. placed at an average height of 1 meter to allow the water to flow by gravity. Has 10 rows of Drip lines 20 meters long with 30 cm -50 cm spacing flat drippers - thickness of 0.2 mm-0.5 mm. (2-5 years life) Inline Vegetable Drip Kit : 500 sq. meters (Life 2-5 years)
