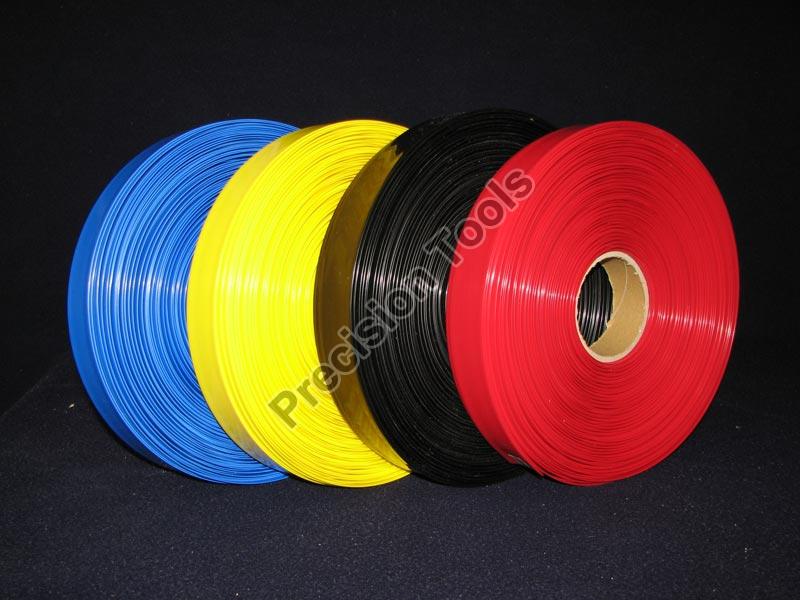

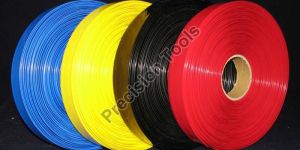

Bus Bar Sleeves
Get Price Quote
We are a foremost Electrical Insulation Sleeve manufacturer catering sleeves to insulate Electrical Bus Bar Sleeves & Conductors across the globe with a unique identity established over a period of time with consistent performance. Shrinkin'Sleeves" used to Insulate Bus Bar Sleeves and Conductors provide excellent insulation with a High Dielectric Strength & a Good Retention of Dielectric Strength under Wet Conditions Physical & Electrical Properties Tensile Strength : > 300 kg/Sq. Cm. Ultimate Elongation : > 250 % Insulation Resistance : 3 x 106Mega ohms (at R/T) Dielectric Strength : 12 KV ( B.D.V. : 15 KV ) Shrink Temperature : 120o Centigrade Shrink Ratio : MD - 10 % TD - 40 % Continuous Operating Tempt : - 05 to 1100 Centigrade Corrosive effect - Non Corrosive : Resistant to acid, alkalis & oil Fire Retardation : Self extinguishing, Non flammable Type : Creased type

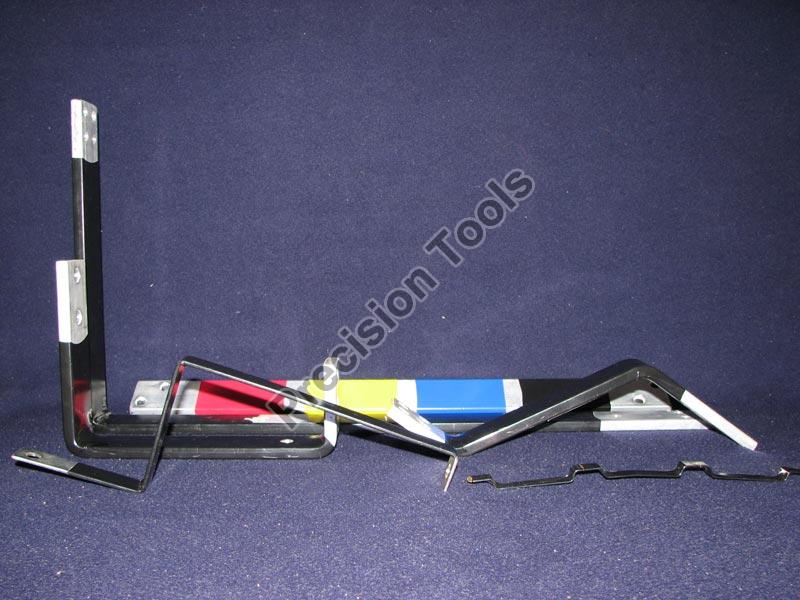

BUS BAR SLEEVE
Get Price Quote
Best Deals from Busbar Sleeve

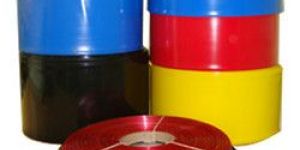

Busbar Sleeve
Get Price Quote
Sleeve is being sued by leading switchgear manufacturers for insulation of Busbar for Low Tension Switchgears. Suitable for Busbars of 25mm to 200mm width and 6mm to 12.5mm thickness. The sleeve width from 17mm to 250mm. With standing voltage of 11kV & breakdown voltage of 15kv. Thickness 0.2mm.

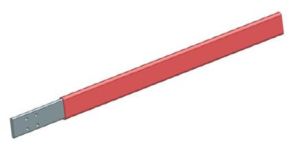

Bus Bar Sleeves
Get Price Quote
The 3M heat shrinkable bus bar insulation tubing range is suitable for round and rectangular bus bars for upto 52 kV applications. The tube is made of a special formulated heat shrinkable cross linked polyolefin based material providing excellent electrical insulation property for both indoor and outdoor environments. The tubing’s which is of Reddish brown colour, has excellent electrical insulation, high resistance to splitting, good moisture resistance and excellent track resistance properties. The tubing shrinks upon application of heat from temperature of 120 – 150 deg C using gas torch in the field and in oven for large scale production, or heating in electric oven. The tubing provides insulation and protection against flash over and accidentally induced discharge. It provides adequate insulation in the places where space is constraint. Application The use of 3M ATX tube provides protection of live bus bar from phase to phase to and phase to ground failures. By using ATX tubing’s, equipment can be designed by reducing air spacing between bus bars. This will help in reduction of the switch gears equipment.
Bus Bar Sleeves
Get Price Quote
