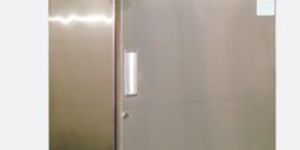

Cooling Chambers Dealers in Nashik

• Voltage: 220V
• Power: 1-3kw
• Driven Type: Electric
• Phase: Single Phase
• Automation Grade: Automatic
• Temperature Range: 2 to 8 Degree C
• Accuracy: ± 1.5 Degree C
• Uniformity: ± 2 Degree C

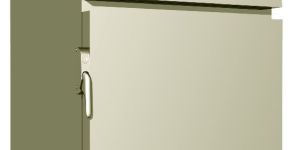

Equipment : PLC based Cold chamber (stand alone) (Also available in controller based ) Control system : Allen Bradley PLC controlling temperature. Also connected to IOT device to access chamber via mobile Refrigeration system : An eco-friendly refrigerant (R-134) is used in a compressor which satisfies the requirement of CFC free cooling system. Copeland (Emerson) make compressor will be hermetically sealed and coupled with evaporation coil& condenser Air circulation : To get an uniform temperature a centrifugal blower connected to a motor will blow the air from up to down, controlled by PLC Heating system : SS. U shaped nichrome wire Insulation : 80 mm sheet of PUF (Poly Urethane Foam) Trays : Stainless steel perforated or wire mesh as per the requirement. Trays will be adjustable as per sample size Illumination : LED light is provided for bright illumination and low power consumption Fault Indications : Audio visual indication is provided for all types of fault occur in the chamber Validation port : A 60 mm port hole sealed with silicon rubber is provided on the side wall of chamber for validation purpose Sensors : PT 100 sensor to sense both temperature software : CDAQ complying 21 CFR part 11   Optional features To avoid critical conditions and for ease of operation Standby refrigeration system Hooter GSM technology Extra trays Extra sensors   Certification : ISO 9001:2015   Wireless access : A direct access to chamber is possible via mobile using IOT device

• Warranty: 1 Year
• Brand Name: Make
• Temperature Range: 2° C to 8 °C
• Accuracy: +1.5 °C
• Uniformity: +2.0 °C
• Use in: Laboratory

Features 21 CFR PART-11 Compliance Log data, Event data, Audit Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition. Optional Features SCANNER GSM TECHNOLOGY HOOTER SYSTEM EXTRA TRAY NOTE: MK* :- MK1 / MK2 / MK3 MK**-S :- Split type Condensing Unit MK**- S200CO & MK**- S300CO are Panel & Trolley type (Split Type Condensing Unit)

• Temperature Range: 2° C to 8 °C
• Accuracy: +1.5 °C
• Uniformity: +2.0 °C

Features:21 CFR PART-11 ComplianceLog data, Event data, Audit Trail data, E-Records &E-signatures, Graphical analysis & Data acquisition.Optional FeaturesSCANNERGSM TECHNOLOGYHOOTER SYSTEMEXTRA TRAY

• Temperature Range: 2° C to 8 °C
• Accuracy: +1.5 °C
• Uniformity: +2.0 °C

Features 21 CFR PART-11 Compliance Log data, Event data, Audit Trail data, E-Records & E-signatures, Graphical analysis & Data acquisition. Optional Features SCANNER GSM TECHNOLOGY HOOTER SYSTEM EXTRA TRAY

We are offering cold chamber. Technical specification temperature range: 2° c to 8 °c accuracy: +1.5 °c uniformity: +2.0 °c features 21 cfr part-11 compliance log data, event data, audit trail data, e-records & e-signatures, graphical analysis & data acquisition. Optional features scanner gsm technology hooter system extra tray

cold chamber, Laboratory equipment AMC Service, Calibration Service
