Position Indicators Dealers in Nashik

• Feature: Blow-Out-Proof, Casting Approved
• Weight: 42 grams.
• Direction of Rotation: D- Clockwise
• Display: Angled, Straight Numerator
• Pack Type: Carton Box
• Shape: Round

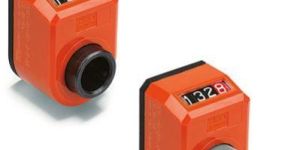

Base and case High-resistance polyamide based (PA) technopolymer.   Black base. Case in the following colours: C2: RAL 2004 orange, glossy finish. C3: RAL 7035 grey, glossy finish. C1: RAL 7021 grey-black, glossy finish. The ultrasonically welding between the base and the case prevents separation and avoids dust penetration.   Window Transparent polyamide based (PA-T) technopolymer, moulded over the case and with a perfect seal (avoid contact with alcohol during cleaning operations).   Display It indicates the displacement of the mechanism controlled by the spindle from the start position (0). Four-digit roller counter. The digits of red rolls show the decimal values. An additional graduated scale next to the last decimal digit offers further accuracy of reading. The display can be in different positions (see "Example of description for ordering"). AN: inclined display, counter in upper position. AR: inclined display, counter in lower position. FN: front display, counter in upper position. FR: front display, counter in lower position.   Internal gasket O-ring front sealing in NBR synthetic rubber, between the case and the boss.   Rear gasket Foam polyethylene, supplied.   Standard executions Bushing with Ø 14 mm H7 reamed hole, fitting to shaft by means of a supplied grub screw with hexagon socket and cup end, included in the supply. DD51: black-oxide steel boss. DD51-SST: AISI 303 stainless steel boss.   Direction of rotation D: clockwise. Increasing values with clockwise rotation of the boss. S: anti-clockwise. Increasing values with anti-clockwise rotation of the boss.   Features and applications Direct drive digital position indicators can be assembled on passing through spindles in any position to give direct reading of the positioning of a machine component. They are suitable also for motor driven applications (see "Example of description for ordering").   Ergonomy and design Compact roller counter, ergonomically designed digits for rapid reading. The readability of the counter is increased by the magnifying window.   Special executions on request Special readings after one revolution. Case in different colours. Completely sealed digital position indicators with IP 67 protection class, see EN 60529 table obtained by means of a brass bushing with double seal ring inside the rear cavity of the base.   LB - locking device The DD51-LB position indicators are designed to lock the spindle on which they are mounted to avoid the risk of accidental adjustment alterations due to vibrations. To lock or unlock the spindle rotation, simply move the lever, in pos. A equivalent to unlocked spindle, in pos. B equivalent to locked spindle.   Following repeated locking cycles, the special device is highly wear resistant and functions perfectly over time.   To order the indicator with spindle locking add the –LB index after the code and description (e.g. CE.84101-LB DD51-AN-00.50-D-C3-LB).
