Surge Wave Receiver
1 Piece (MOQ)
Features : Guides the operator to be on the route of cable while locating cable fault. Dual Display for indicating intensity of ACOUSTIC and MAGNETIC channel. Separate loudness , gain & level control for ACOUSTIC and MAGNETIC channel. BATTERY CHECK function and BATTERY LEVEL indication. Back lighting facility to permit night time operation. MUTE function to eliminate all surrounding disturbing noise. Clear ACOUSTIC signal with good noise immunity. Robust construction.
Country of Origin : India
...more

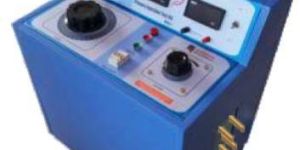

Single Unit Primary Injection Kit
1 Piece (MOQ)
Features : Customization as per customer’s requirements. Built in Digital Timer for measuring tripping time Designed to offer continuously variable output current Single compact unit equipment for easy operation Adequate MCB protection from overloads Current range from 100A to 3000A.
Country of Origin : India
...more
Resonating Inductor
1 Piece (MOQ)
It is well known fact that a parallel L/C circuit has very high impedance at a particular frequency called resonating frequency ( w = 1//L C ).At this frequency the system draws minimum current form the source. This fact is normally used in correcting the lagging power factor due to heavy inductive loads. Similarly the leading power factor drawn by capacitance loads can be corrected by connecting inductor in parallel.The same phenomenon is used to extend the current capacity of the power source used for Capacitive loads. Ideally by suitable selection of inductor the power supply capacity can be increased by forty folds or more but practically because of system losses a ten fold increase is easily achieveFeatures : Spot selective Inductor Selection chart directly printed on Equipment Trolley mounted Interlock protection for HV window
Color : White
Application : Industrial
Certification : CE Certified
Country of Origin : India
Voltage : 6.6KV, 12KV, 15KV
...more

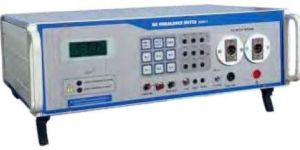

RC Unbalance Meter
Features : User selectable testing measurement MODES Compact and light weight instrument Micro Controller design for ease of operation small portable, light weight constructed in Best Resolution for all parameters Data download Windows based software (Optional) Automatic Operation for 2 Pairs with QCTS2 Software (Optional) Parameter Measurement : CR, RU, LR, K1, K2, K3, E1, E2, E3
Country of Origin : India
...more

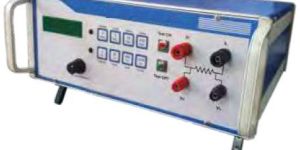

QTWRM-10D Transformer Winding Resistance Meter
1 Piece (MOQ)
Features : True Four Terminal Measuring technique eliminates lead resistance natural errors in 2 wire measurements Regulated and Highly stable 10 Amp Current Source 4 ½ Digital LED Display 0.1uOhm resolution on 2mOhm range Protection against back EMF for high inductive loads Stable and fast measurement Data Download via RS232 / USB port with Software (optional)
Power Source : Electric
Application : Industrial
Country of Origin : India
...more

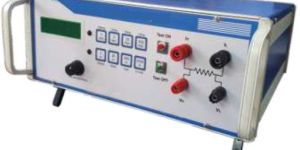

QTWRM-10 Transformer Winding Resistance Meter
1 Piece (MOQ)
Features : True Four Terminal Measuring technique eliminates lead resistance natural errors in 2 wire measurements Regulated and Highly stable 10 Amp Current Source 4 ½ Digital LED Display 0.1uOhm resolution on 2mOhm range Protection against back EMF for high inductive loads Stable and fast measurement Data Download via RS232 / USB port with Software (optional)
Power Source : Electric
Application : Industrial
Certification : CE Certified
Country of Origin : India
...more

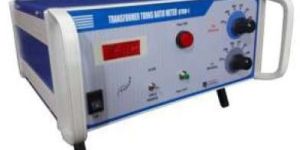

QTTR-3 Transformer Turn Ratio Meter
1 Piece (MOQ)
Features : Automatic operation, No balancing is required Measures and displays transformer ratio 3½ digit LED display of ratio. True 4 terminal measurement. Resolution of 0.01 in the range 20 Fully protected against any wrong connections. Single Phase / three phase model
Power Source : Electric
Application : Industrial
Country of Origin : India
Power Supply : 230V AC, +10%, 50Hz, single phase
...more

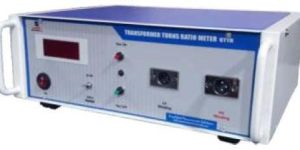

QTTR-1 Transformer Turn Ratio Meter
1 Piece (MOQ)
Features : Automatic operation, No balancing is required Measures and displays transformer ratio 3½ digit LED display of ratio. True 4 terminal measurement. Resolution of 0.01 in the range 20 Fully protected against any wrong connections. Single Phase / three phase model
Power Source : Electric
Country of Origin : India
Power Supply : 230V AC, +10%, 50Hz, single phase
...more

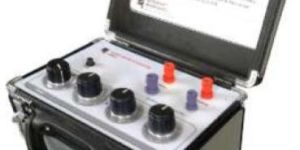

QTRS-1 Transformer Turn Ratio Meter
1 Piece (MOQ)
Features : State of art design Suitable for Test voltage 110V AC Protection against wrong connection
Power Source : Electric
Application : Industrial
Country of Origin : India
Ratio Range : 0.8 to 2000
Accuracy : 0.5%
...more

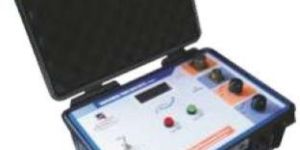

QTRM-3 Transformer Turn Ratio Meter
1 Piece (MOQ)
Features : Automatic operation, No balancing is required Measures and displays transformer Ratio & Excitation Current True 4 terminal measurement. Fully protected against any wrong connections. Single Phase / Three phase model Download via USB port (optional)
Power Source : Electric
Country of Origin : India
Ratio Range : 0.8 - 2000 (Autoranging)
Accuracy : + 0.5% FSD + 3 Digits
...more

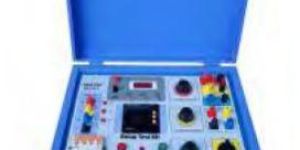

QRTK3 Relay Test Kit
1 Piece (MOQ)
Features : Potential free start and stop signal Continuously adjustable outputs Portable Models Digital Ammeter, Voltmeter and time interval meter (Unitimer) UniTimer automatically puts OFF the output, when timer reaches to its maximum value of the selected range to ensure safety of the instruments as well as the item under test. Wide range of measurement, i.e. From 0. 001 second. To 99.99 secs in two ranges
Color : Blue
Country of Origin : India
...more
QRTK1 Relay Test Kit
1 Piece (MOQ)
Features : Potential free start and stop signal Continuously adjustable outputs Portable Models Digital Ammeter, Voltmeter and time interval meter (Unitimer) UniTimer automatically puts OFF the output, when timer reaches to its maximum value of the selected range to ensure safety of the instruments as well as the item under test. Wide range of measurement, i.e. From 0. 001 second. To 9999 secs in four ranges
Color : Blue
Country of Origin : India
...more

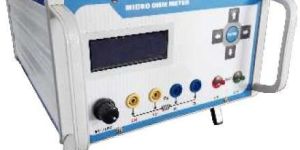

QRM1T Micro Ohm Meter
1 Piece (MOQ)
Features : True Four Terminal Measurement Regulated and Highly stable 2 Amp Current Source Conductivity Calculation in IACS% 0.1uOhm resolution on 2mOhm range 20 X 4 Backlite LCD Display Stable and fast measurement Temperature Measurement and Correction Length Correction facility Suitable 1 Meter Test Zig Download via RS‐232 / USB port with Software (optional)
Driven Type : Electric
Power Supply : 230V AC, 50Hz, 1 Phase
Type : Automatic
Accuracy : + 0.5% Of Reading + 5 Digit For 2mOhm Range
Certfication : CE Certified
Country of Origin : India
...more

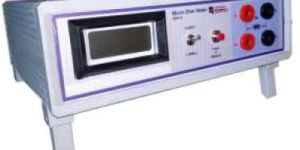

QRM-1S 2 Amp. Micro Ohm Meter
1 Piece (MOQ)
Features : True Four Terminal Measurement Regulated and Highly stable 10 mAmp max Current Source 3 ½ Digital LCD Display 0.001 Ohm resolution on 20Ohm range Protection against back EMF for high inductive loads Stable and fast measurement
Driven Type : Electric
Color : Blue, White
Application : Industrial
Accuracy : +0.5% of reading + 4 Digit
...more
QRM-1S 1 Amp. Micro Ohm Meter
1 Piece (MOQ)
Features : True Four Terminal Measuring technique eliminates lead resistance natural errors in 2 wire measurments Regulated and Highly stable 1 Amp Current Source 3/4 4 Digital LED Display 0.1uOhm resolution on 3mOhm range Stable and fast measurement Download via RS232 / USB port with Software (optional) Protection against back EMF for high inductive loads
Driven Type : Electric
Color : Blue, White
Application : Industrial
Country of Origin : India
Power Supply : 230V AC, 50Hz, 1 Phase
...more

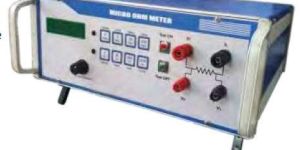

QRM-10 Micro Ohm Meter
1 Piece (MOQ)
Features : True Four Terminal Measuring technique eliminates lead resistance natural errors in 2 wire measurements Regulated and Highly stable 10 Amp Current Source 4 ½ Digital LED Display 0.1uOhm resolution on 2mOhm range Stable and fast measurement Data Download via RS232 / USB port with Sofyware (optional)
Type : Automatic
Certfication : CE Certified
Country of Origin : India
Power Supply : 230V AC, 50Hz, 1 Phase
...more
QRM-1 2 Amp. Micro Ohm Meter
1 Piece (MOQ)
Features : True Four Terminal Measuring technique eliminates lead resistance natural errors in 2 wire measurments Regulated and Highly stable 2 Amp Current Source 4 ½ Digital LED Display 0.1uOhm resolution on 2mOhm range Stable and fast measurement Download via RS232 / USB port with Software (optional)
Driven Type : Electric
Color : Blue, White
Country of Origin : India
Power Supply : 230V AC, 50Hz, 1 Phase
...more

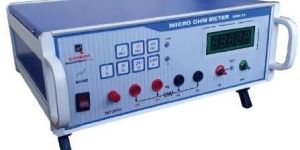

QRM-1 1 Amp. Micro Ohm Meter
1 Piece (MOQ)
Features : True Four Terminal Measuring technique eliminates lead resistance natural errors in 2 wire measurments Regulated and Highly stable 1 Amp Current Source 4 ½ Digital LED Display 0.1uOhm resolution on 2mOhm range Stable and fast measurement Download via RS232 / USB port with Software (optional) Protection against back EMF for high inductive loads
Driven Type : Electric
Color : Blue, White
Country of Origin : India
Power Supply : 230V AC, 50Hz, 1 Phase
...more

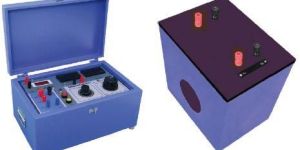

QPIK1 Primary Injection Kit
1 Piece (MOQ)
Features : Customization as per customer’s requirements. Designed to offer continuously variable output current Single compact unit equipment for easy operation Adequate MCB protection from overloads Light weight CT Type Design for easy transportation Current range from 100A to 2000A.
Country of Origin : India
...more

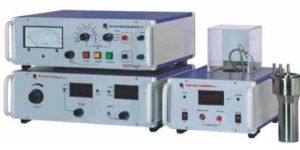

QOTS-M Oil Test System
1 Piece (MOQ)
Country of Origin : India
Test voltage : 0 to 600 VAC
Accuracy : ± 1.0% ± 1Volt
...more

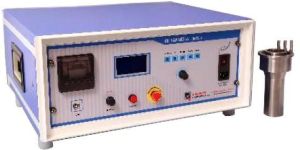

QOTS-A Oil Test System
1 Piece (MOQ)
Country of Origin : India
Test voltage : 0 to 600 VAC
Accuracy : 1.0% 1Volt,
...more

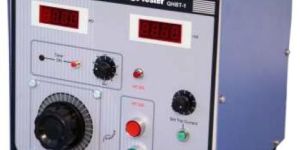

QHBT High Voltage Tester
1 Piece (MOQ)
“QUADRANT” make ‘Automatic AC/DC HIGH VOLTAGE TEST SET’ are ideal to test dielectric strength of different insulating materials , motor winding transformers, Ceramic HV insulators, cables and different electrical components. It is useful in transformer manufacturing industries, HV motor manufacturing units, cables and insulator industries etc.
Country of Origin : India
...more
QHBT-1 High Voltage Tester
1 Piece (MOQ)
Features : Suitable for AC breakdown Digital Voltage/ Current Display Zero Start, Over Load Tripping Protection Builtin timer Robust design, easy to operate User Selectable Tripping Current Test ON Indicator Audio Indicator (optional)
Country of Origin : India
...more
QDPIK1 Primary Injection Kit
1 Piece (MOQ)
Features : 1000 Amp DC Current Source Various Parameter Display Complete system mounted on powder coated trolley Push buttons for Start, Stop & Reset for safe operation Overload Indication and Auto cut off
Country of Origin : India
...more
