Rishabh Instuments pvt. ltd.(100%eou) Satpur, Nashik, Maharashtra

The RISH Ducer F11 F12 measuring transducer is used for frequency measurement. The output signal is proportional to measured frequency and is either a load - independent DC current or a load - independent DC voltage.

The purpose of the Tap position transducer is to convert tap position of transformers to equivalent analogue output. Outputs can be given as input to either RTU or indicator or recording instrument. Input variable and measuring range are programmed with the aid of a PC and the configuration software. The device has one input channel and two independent out puts.

We are the manufacturer of our products. Some of our successful collaborations have been in manufacturing of Meter movements, Complete analogdigital meters, Multilayer SMT PCB assemblies, Digital meters sub-assemblies, Transformer cores, Coil windings, Small transformers, Punched metal components & Plastics injection moulding components.

The unit is a port powered two-channel (half-duplex) RS-485 to RS-232 converter. It converts the balanced halfduplex RS-485 signals to TD and RD RS-232 lines. The unit is powered from the RS-232 data and handshake lines whether the lines are high or low. An external power supply can be connected to two terminals on the RS-485 connector if no handshake lines are available. Although the converter uses handshake lines to power itself, no handshaking is required to control the RS-485 driver. The RS-485 driver is automatically enabled during each spacing state on the RS-232 side. During the marking or idle state, the RS-485 driver is disabled and the data lines are held in the marking state by the 4.7k ohm pull-up and pull-down resistors. The value of these resistors may need to be changed to a different value when termination is used in order to maintain the proper DC bias during the idle state.

Weight : < 50 g

RCT203 is a programmable counter and RPM indicator used to counts events, measures frequency, motor-speed, and cable length as well as measure motor and shaft speeds up to 5000 Hz. For even greater accuracy, RCT203 can be programmed to take in multiple pulse-inputs over 1 rotation and display the correct value via a scaling calculation.

ON-OFF Switches, Change over Switches, Multi-step Switches, Volt-Ammeter Switches , Selector Switches, Mains Switching, Coolant Pumps A focused standard range of Rish Cam series Rotary Cam Switches cover most applications with different contact designs, contact material and terminals allow their use as control switches, instrumentation switches and motor control switches, as well as in electronic circuitry and in aggressive environment according to IECEN 60947-3 and VDE 0660 part 107.

The Rishabh Reverse Power Protector provides continuous surveillance for a.c. generators operating in parallel or for boosting mains supplies. On site adjustment of the trip point and time delay ensures accurate protection against “motoring’ in the event of engine failure and prevents tripping from surges during synchonising. Adjustable setpoint, Adjustable time delay, LED trip indication, 2 pole relay contacts, Internal differential (factory settable only), Auto Reset

Tap position transducer RISH Ducer coverts resistance to proportional analogue output signal. The analogue output signal is either an impressed current or superimposed voltage which is processed by other devices for purposes of displaying, recording and or regulating a constant. Input measuring range is programmable. It is programmed with the aid of PC and corresponding software. Other parameters relating to the analogue output, transmission mode, operating sense and the open-circuit supervision can also be programmed. The transmitter fulfils all the important requirements and regulation concerning electromagnetic compatibility EMC and Safety (IEC 1010 resp. EN 61010). It was developed and is manufactured and tested in strict accordance with the quality assurance standard ISO9001.

The reed type frequency meters, FQ 72 96 housed in moulded polycarbonate cases are suitable for the measurement of These instruments offer several advantages in switchboard and Generating Set Panels. Number of meters can be mounted in a single Cut out (Mosaic mounting). Front glass, Bezel & Dial can frequencies in the range of 45 to 65 Hz. be easily replaced.

Voltage : Rated Voltage ± 15 %

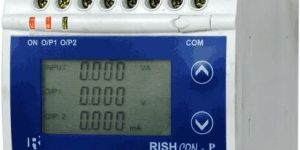

P transducer is used to measure and convert active, reactive, apparent power, Phase angle & Power Factor of a Single-phase or Three-phase AC system with balanced or unbalanced load into a proportional load independent DC current or voltage output signal.Onsite transducer can be programmed using front key & display or through programming port or through RS 485. For transducer without display & RS485 programming port can be used for onsite programming.

The moving coil indicators and a phase angle adjuster are used to monitor changing power factor conditions on ir-reversible balanced load systems.The power factor is indirectly determined by measuring the phase angle φ between current and voltage (both sinusoidal). However the indicators are calibrated in values of cosine of the angle φ.

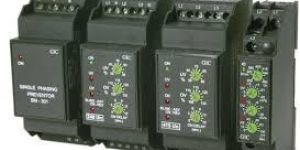

Portable pumps, Portable compressors, Motor driven mixing equipment, Motors - Single Phasing, Gensets - correct engine rotation, All portable equipment, All rotating machines An illuminated LED indicates when the relay is energised. LED trip indication 2 pole relay contacts, Auto Reset

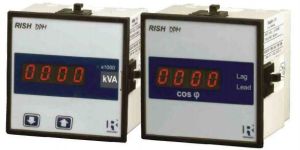

RISH DPM Power 96x96 series measures system active Power (Import Export),Reactive Power (Import Export), Apparent Power & Power Factor of Three phase and Single phase Network. It has 4 digit single line auto ranging LED display with polarity indication. Active Power (kW) DPM, Reactive Power (kVAr) DPM, Apparent Power (kVA) DPM, Power Factor (PF) meter.

Voltage : 5…120%

Reference Temperature : 23°C +/- 2°C

LCD Touch Screen with user interface panel. Comes with 3 6 programmable input channels. Have 6 12 alarm outputs and 4 8 digital outputs. Visualization of measurements in graphical forms. Compatible with MS windows CE operating System. CE Approved and safety as per European Norms.

The meter is distinguished by a high measurement accuracy, legible backlit LCD display and an attractive price. Meter is supplied from measurement circuit. The device fulfils the requirements of installation's category III for the product designed.

We are the manufacturer of our products. Some of our successful collaborations have been in manufacturing of Meter movements, Complete analogdigital meters, Multilayer SMT PCB assemblies, Digital meters sub-assemblies, Transformer cores, Coil windings, Small transformers, Punched metal components & Plastics injection moulding components.

The moving iron panel meters, DE 487296144 housed in moulded polycarbonate cases are suitable for the measurement of AC currents for frequency range of 15...400Hz and voltages in the frequency range of 15...100Hz. Moving iron meters indicate rms-values practically independent of waveform even of high harmonics. Error of indication may occur for extreme waveforms (e.g. phase gating controls) & for frequencies above 100KHz. These meters offer several advantages in switchboards and Generating Set Panels. Number of meters can be mounted in a Panel cut out Mosaic mounting). For CT operated ammeters, dials can be fitted based on CT ratio. Glass and bezel can be easily replaced.

We are the manufacturer of our products. Some of our successful collaborations have been in manufacturing of Meter movements, Complete analogdigital meters etc.

MPR is an auxiliary relay and it should be used along with the motor starter only. The effective working of MPR will depend on efficient working of electromagnetic motor starter. Before installing MPR check whether the motor starter is operating perfectly by starting the motor with "START" push button and switching it off by "OFF" push button. If motor does not "START" or "STOP" on respective operations, the starter needs to be serviced. Do not install MPR with faulty motor starter.

Current transformers convert an alternating current usually high in to a proportional lower one, depending on their use. Measurement type CTs are required to transform the primary current, at various classes of accuracy, as specified by the class designation, over a current range from 1 to 120 percent of its rated primary ratio. The design of this type of transformer requires the inclusion of a core and winding which will when connected to its rated burden; perform within the limits of error as indicated by the standard’s specification. It is an advantage for a measurement type transformer to saturate above this range, which provides a protection against damage to instruments by limiting the secondary current when surge currents or faults appear in the primary circuit.

System Voltage : 720V maximum

We are engaged in manufacturing and supplying a wide range of Kilo Watt Meters. These Kilo Watt Meters are manufactured following international industry standards, and assures superb performance. Kilo Watt Meters offered by us are widely.

The Agam AIT 501 is the 5KV Smart Digital Insulation resistance tester with diagnostic features like PI, DAR. Has selectable test voltages of 500V, 1000V, 2500V and 5000V & Insulation resistance measurement upto 1 TOhm. An compact tool for Insulation testing designed smartly.ITI series is a low voltage insulation tester which is best suited for testing motors, transformers, generators, switch gears, cables, house hold appliances, on-site maintenance and service departments.

We are the manufacturer of our products. Some of our successful collaborations have been in manufacturing of Meter movements, Complete analogdigital meters, Multilayer SMT PCB assemblies, Digital meters sub-assemblies, Transformer cores, Coil windings, Small transformers, Punched metal components & Plastics injection moulding components.

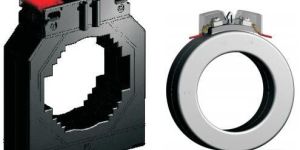

Rish Protection class CTs are square & round type encapsulated with UL94V-0 approved polycarbonate.These CTs used for protection purpose (acc class 5P10, 10P10 etc)& features wide range of primary current ratings, Busbar sizes,case widths,having wall, cable, bus bar & DIN rail mountings
