Technoshell Automations Pvt. Ltd. Ambad, Nashik, Maharashtra

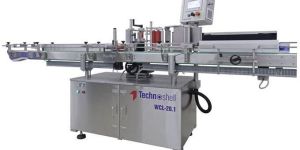

Applications: Wrap around labelling of round shaped containers Technical Data: Label Dispensing Speed: 20 meters / minute^ Accuracy: Label positional accuracy of ±0.5mm Power: 1.3kW, three phase, 415 VAC, 50Hz Max. Part Height: 300mm Max. Part Diameter: 120mm Min. Part Height: 30mm Min. Label: 30mm (height)* Max. Label: 200mm (height) Media Roll Size: 300mm (diameter) Machine Weight: 600KG Operating Air#: 60LPM (0.06m3/min) at 6 bar ^Speed in BPM is dependent on part diameter and labellength. *If all your label heights are less than 100mm, our WCL20.1.100 model is suitable. #For use with optional two roller attachment. Optionals: Two roller attachment Language options for different countries Label break sensor Remote Diagnostics Label roll diameter sensor to alarm roll changeover Accept/reject station Password and user log facility 21 CFR part 11 PackML

High speed, highly accurate full wrap around and oriented half labelling on plastic cosmetic tubes. This high speed (upto 65 tubes/min), highly precise labelling machine is suitable for: 3650 label wrap around with and without cap opitons Oriented labelling by sensing eye mark on the tube OR by sensing flip notch on flip-top caps. Machine description: The 12 mandrel turret of the TL-60 is indexed by a servo motor and the functions performed various stations are: 2 station for tube loading on the mandrel. Corona unit (optional) Servo motor driven pre-orientation of tube by sensing printed eye mark on the tube OR servo motor driven pre-orientation of tube by sensing flip notch of flip-top caps (optional) Labelling with servo motor driven tube rotation Servo motor operated indigejously designed efficient label dispensing unit Tube unloading from the mandrel onto out-feed flat belt conveyor 'GOOD TUBE/BAD TUBE' selection In-feed conveyor for tube feeding Modem for remote diagnostics (optional) Features & Benefits: Rigid construction and simple operation Quick and easy change-over for diffetent tube sizes State-of-the-art controller system TUBE TEST MODE to make the machine settings with minimum wastage Recipe feeature for fast recall of different tube settings Exhaustive diagnostic feature and alarm system Technical Specifications: Speed; 3650 laeblling/Orientation labelling - upto 65 tubes/min Tube diameter: Dia 19mm to 60mm Tube Length with Cap: 80mm ot 240mm Positioning accuracy of label with orientation: -/+ 1mm radially Electrical connection: 3* 415 Volts AC, 50 Hz, 14 kW Pneummatic connection: 6 to 8 bar. Dust, water and Oil free Air consumption: 330 LPM Memory for programm storage: Upto 500 recipes Options: Pre-Orientation of tubes with reapect to flip notch of flip-top caps

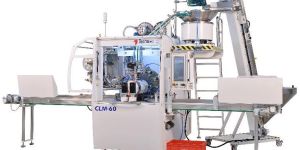

Fully automatic Tube Labelling and Cappping machine for applying wrap-around or oriented half labels and Capping screw-on & oriented snap-on caps on Oval & Round extruded & laminate cosmetic tubes. Features: Designed for labelling 3650 full wrap around label or oriented half labels on round tubes. Highly accurate capping of tuebs with screw-on or oriented snap-on caps. 12 mandrel turrent with mechanical indexer. Rigid frame construction with all compoments being either powder coated or elecroless plated. Compact Footprint- Takes half the floorspace compared to a leabelling and a capping machine. 'TUBE TEST MODE' to make the machined settings with minimum wastege. Intuitive and easy to use large vertical touch screen HMI Can store upto 500 recipes of tube + cao types for quicker recall of settings during changeover 'BAD' tube rejection. Exhaustive diagnosis feature and alarm system. Technical Specification: Machine mechanical speed: upto 60 tubes/min Tube diameter: Dia 19 mm to 60 mm Tube length: 75 mm to 220 mm with cap Positioning accuracy of the cap notch with respect to tube eye mark: +/-2mm (only in case of snap-on flip top cap) Memory for program storage: upto 500 recipes Torque tightening accuracy in case of screw-on caps: +/-2 kg.cm Electrical connection: 3 × 415 volts AC, 50Hz, 20 kW Electric Supply: L1, L2, L3, N, PE Air Supply: 7-10 bar Supply current: 6 Amp Load: 20kW Optional attachments: Pre-orientation drive for flip-top caps Tube surface treatment unit Outfeed flat belt conveyor Modem - for remote diagnostic Inspection station Language Options Tube packer - for auto filling of tube in the bulk packing cartons Cap elevator - for auto feeding of caps onto vibratory bowl feeder

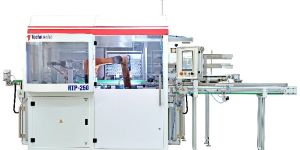

application: high speed, robotic tube packer which uses a 6-axis robotic arm, for high speed pick and placement of tubes (plastic, laminate) into boxes. features: 6-axis robotic arm to pick and place tubes 12.1" vertical hmi screen wireless tablet for easy setting all over the machine remote diagnostics with modem operator login and login history quick and easy changeover technical specifications: speed: 250 tubes/min tube types: extruded and laminate tubes tube diameter: 19mm to 60mm tube length: 75mm to 250mm box type: shoe type and flap type boxes with or without plastic bag inserted. box size: max 630mm×630mm×250mm & min630mm×425mm×90mm air supply: 6-8 bar electric supply: 6-8 bar weight: 2500kgs .

Application: High speed, robotic tube packer which uses a 6-axisrobotic arm, for high speed pick and placements of tubes(plastic, lamitubes) into boxes. Features: 6-axis robotic arm to pick and place tubes Tubes are always guided Angular box placement High flexibility and reliability Extremely low change parts requirement for different tube sizes Very low changeover time Box buffer ensuring continuous packing operation Box loading conveyor with controllable loading orientationand a horizontal unloading conveyor Technical Specifications: Speed: upto 150 tubes / minute Tube diameter: minimum 19mm, maximum 60mm Tube length: minimum 70mm, maximum 250mm Box size: maximum (600x600x250) mm

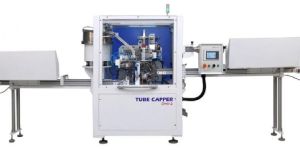

tube capper series4 - integrated machine for top sealing and screw-on capping for laminated and plastic tubes.   the 6 mandrel turret of series 4 capping machine is indexed by a mechanical indexer. functions tube loading on the mandrel from infeed conveyor al. top sealing screw-on capping screw-on cap tightening tube unloading from mandrel on the outfeed conveyor specifications: speed for different cap types : upto 60 tubes per minute fez / stand-up / long nozzle tube diameter : dia.12.7 mm to 35 mm tube length with cap : 80 mm to 240 mm cap height : 10 mm to 45 mm electrical connection : 3 x 415 volts ac x 50 hz, 4.5kw pneumatic connection : 6 to 8 bar. Dust, water and oil free machine dimension : length 4.6 m / depth 3 m / height 2.2 m standard color : combination of ral 9016 white and blue layout : tube flow from right to left (r2l) options: top sealing attachment outfeed conveyor infeed conveyor machine layout from left to right (l2r) remote teleservice

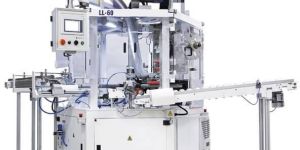

LL-60 is unique in its application as it is the first time that a machine with lacquering and labeling application on tubes is offered. This compact machine is developed for high speed label applications and can apply paper, PVC, opaque & transparent labels. The machine is distinguished by its high performance, simple operation, quick change-over and low maintenance.Combining the LL-60 with our Capping Machine CP-60+ could help you to set up a dedicated production line for labeled tubes. The various operations that are possible on this unqiue machine are flame / corona treatment, UV lacquering, UV curing and label application. Features: Rigid construction and simple operation Few change parts for different tube sizes Cool UV from GEW Quick & easy change-over for different tube sizes State of the art controller system Rejection of faulty tubes 'TUBE TEST MODE' to make the machine settings with minimum wastage Recipe feature for fast recall of different tube settings Exhaustive diagnostic features and alarm system Multiple language option* Modem for tele-service (optional) *Depends on availability of language font Technical Specifications: Tube size : dia 25 to dia 60mm Tube length : 80mm 200mm Number of Mandrels : 12 Nos. Output* : Upto 60 tubes per minute Label length : Upto 355 deg. Label roll diameter : Upto 250mm Memory storage : Upto 500 recipes Pneumatic connection : 6.5 to 8 bar, oil and water free Electrical connection : 3 x 415V, 50 Hz, 9 KW Operation : Fully automatic Standard paint : RAL 9016 white *Depending on diameter, labeling speed, quality of lacquer & label

application: top and peripheral hot foil stamping and heat transferfor caps / closures in single machine. features: automatic handling of caps state-of-the-art pick and place systems for cap handling rigid structure with linear guideways precision foil speed control with stepper motor indexer with 5 stations multiple sensors including safety switches designed for peripheral foil stamping on round and tapered caps* easy to customise recipes user login (with dynamic factory setting password) language change as per customer requirement detailed plc component diagnosis dual foil feed for two colour top stamping heat transfer on any or both of the two setups can be done technical specifications: cap diameter up to 60 mm (max) cap length up to 25 mm (max) output 25 caps per minute .

Semi-automatic, Versatile machine for hot foil stamping and embossing on various applications. One of the most versatile machine for paper application present in the market. This machine has wide acceptance among the wedding card manufacturer. Applications: Embossing, Debossing and Stamping on Jeans Labels,Wedding Cards, Cartons and other paper articles. Features: Large size hot foil stamping,embossing and debossing - Say YES to wide range of jobs. Embossing and stamping in one stoke - Save cost. Excellent repeat accuracy - Low rejection. State-of-the-art PLC - ensure excellent stamping result. Easy & precise stamping block adjustment for excellent stamping results and quick settings Hydraulically operated machine with unique toggle mechanism delivers high stamping force with low power consumption. Dual dove tail guides for stamping plate UP-DOWN movement offers excellent positional repeatability. Digital setting for stamping parameters - precise parameteer control hence proper stamping Power coated / Elecrtoless Nickel / Hard chrome plated machine parts prevent corrosion and enhance machine life. Dual START button for operator's safety. Jumping foil feed system offers enormous foil saving. Technical Specifications: Stamping plate size: 300mm x 350mm Stamping Force: 5000 kgf Table size: 400mm x 450mm Job height: 100mm max Heaters: 1000W x 2 nos Foil width: 10mm-300mm Power: 3.2KW, 3 Phase, 415V AC, 50Hz Speed: Upto 15 strokes/min Dimentions: 1000mm x 1000mm x 1900mm Optional Attachments: Black mark sensor. Conformity to CE norms. Single phase power operation instead of 3 phase power.

The STM 500 LC is a hot foil stamping and heat transfer machine designed for decorating cylindrical (round) and conical (tapered) caps, at a speed of up to 30 caps/minute. STM 500 LC has been specifically designed for caps such as liquor caps, thus allowing better decoration and attractiveness on the conical surfaces of caps and closures. Features: Rigid frame construction Linear slides for all motions Stepper motor drive for carriage stroke and speed control for achieving higher speeds Adjustable pneumatic stroke for achieving higher speeds Stepper motor drive for foil advance to reduce wastage 4-axis adjustable stamping head Touch screen operator interface adjustable for height and angle 3 side safety enclosure Language options for different countries Multiple sensors such as foil break sensor, low pressure sensor, cap non-ejection sensor Technical Specifications: Machine Speed: up to 30 caps / minute Cylindrical Stamping: Dia - 60mm (max), Width - 75mm (max) Conical Stamping: Max developed area - 200mm x 100mm (consultation required with Technoshell) Maximum Angle of Cone: Consultation required with Technoshell Flat  Stamping: Max stamping area - 200mm x 100mm Optionals: Auto cap feeding Bowl feeder with noise reducing enclosure Heat transfer capability Can be integrated with upline/downline machines Remote Diagnostics Password and user log facility Noise reduction enclosure for bowl feeder

Application: Hot foil stamping and heat transfer machine designed for decorating flat top surface of caps and closures. Features: Automatic handling of caps. Indexer with 5 stations. Adjustable pneumatics stroke for achieving higher speeds. 4-axis adjustable stamping head. Multiple sensors such as foil break sensor, low pressure sensor, cap non-ejection sensor. Touch screen operator interface adjustable for height and angle. Easy to customize recipes. Language change as per customer requirement. Detailed PLC component diagnosis. Technical Specifications: Machine speed: upto 30-32 parts/min Flat stamping: Dia­­­ 90(max) | Height 20(max) Stamping Plate: 115mm(length), 100mm(depth) Supply voltage: 230V AC, 50/60 Hz Supply current: 5 Amps Load: 1.5 kW Air supply: 7-10 bars Air consumption (at 6 bar): 0.15 cubic meter/min Optional attachments: Auto part feeding Bowl feeder with noise reduction enclosure Heat transfer capability Dual foil feed for two color top stamping 3 side safety enclosure Can be integrated with up-line/down-line machine Remote diagnostics User login with dynamic factory setting password

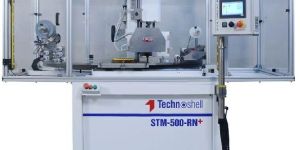

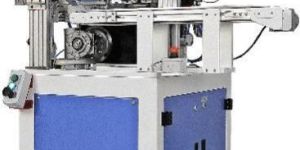

applications: small flat & round plastic articles, pen boxes, visiting cards, tooth brush handles, jewellery boxes, jeans brush handles, audio & video name plates, gift articles, logos, diary civers, security seal numbering, cosmetic packaging, playing card packaging, flip tops & screw on caps, digit wheels, nail polish and lipstick caps. similar model for specific applications are: stm-500-f - suitable for printing flat articles stm-500-i - equipped with 3 station indexing table - suitable for printing flat articles stm-500-r - suitable for printing round articles stm-500-dw - specially designed for printing on digit wheels features: cost effective solution for low order quantity. state-of-the-art plc ensures excellent stamping result. large sizes of caps upto 60mm can be hot foil stamped. very low cost of acquisition. easy & precise stamping block adjustment for excellent stamping results and quick settings. suitable for plastic articles. long machine life - powder coated / electroless nickel plated / hard chrome plated machine parts. technical specifications: stamping plate size: 150mm x 200mm stamping force: 500kgf @ 6.5 bar job height: 200mm/100mm heaters: 400w x 4 nos. power: 2kw, single phase, 230v ac, 50hz dimensions: 1000mm x 1000mm x 1900mm foil width: 10mm-150mm max speed: upto 20 strokes/min optional attachments: black mark sensor for heat transfer foils. hologram sensor for hologram foil. blow moulded bottle stamping attachment. numerator attachment with pnematic actuation system (for serial numbering). foot operated start switch. conformity to ce norms. automatic part loading system. .

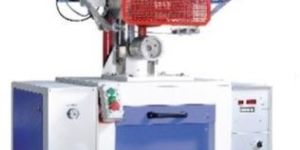

the machine model stm-300-rn is used for heat transfer/hot foil stamping on pens & ball pens, compass boxes, jewellery boxes, decorative plastic beads, cosmetic containers, refrigerator parts, casseroles, a.c. Parts, hologram transfers, water bottles, scales and other instruments, thermos flasks, electrical switch boards, plastic packaging boxes, plastic combs etc. This machine has wide acceptance in the cosmetic and decorative printing industries. technical specifications: stamping width : 175 mm stamping force : 300 kgf job diameter : 7 mm to 300 mm (without optional attachments) slider stroke : 200mm max. Flat article : 125 mm length x 150 mm width heaters : 1 kw x 2 nos. power : 2.5 kw, single phase, 230 v ac, 50hz dimensions : 1200mm x 900 mm x 2000mm ht

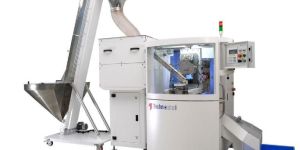

the machine model stm-150-cs+ is a versatile machine for hot stamping on circular and non-circular caps. This machine had wide acceptance in the cosmetic and decorative printing industries. features suitable for the line stamping on non-circular & circular plastic articles. state of the art plc  offers ease parameter settings. conforming to ce norms. servo driven main spindle offers very high speed operation. machine can work with narrow width foil offers foil saving. single station machine reduces set-up time & tooling costs. automatic ejection of part * - increases productivity. easy set-up & operation easy roller alignment in y axis and angle adjustment reduces set up time. *depends on availability of language font technical specifications max. Article size : diameter 100mm oval ratio : 2:1 (max dia : min dia) stamping width : 50mm max. Speed of stamping : upto 60 parts** / min air supply : 7 kg / cm2 air consumption : 30 cfm power : 2.5 kw, single phase, 230v ac, 50 hz foil width : 7mm 50mm weight : 600 kgs approx. dimensions : 1600 mm x 1400 x 1800mm **feasibility depends on part shape and size.

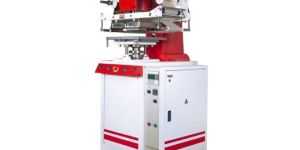

application: highly versatile hot foil stamping and heat transfer machine designed for decorating round and tapered, flat. And profiles of plastic parts. technical data: machine speed: up to 6-10 parts/minute flat object size: max stamping area - 500mm(l)x500mm(w)x210mm(h) cylindrical object size: max dia 300mm heater: fsr-1000 foil width: max 210mm roller size: dia 125mm, width 200mm air consumption : 150lpm (0.15m3min) electrical supply: 3 phase, l1, l2, l3, n, pe supply voltage: 415 vac, 50hz load: 4.2kw machine weight: approx. 680kg optional: cylindrical attachment (fixed foil feed) carriage attachment (moving foil feed) conveyor attachment black mark sensor stripper unit cam assembly conformity to ce norms remote diagnostics password and user log facility

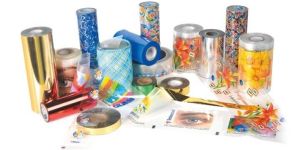

heat transfer foil is made by rotograuver process. Image is created by color pigment. Multi color jobs can easily be created. the foil consists of adhesive lacquer, ink layer, protective lacquer and release paper. Metalic foils are also present in silver and golden. we offer foil cutting machine which can slice precisely upto minimum 7mm width.   features:- brilliant, multi-colored graphics: gravure printed quality photographic resolution metallic like colors vignettes & tones permanent, safe decoration: moisture & chemical resistant durable dry process (no wet inks/screens) sustainability: print can remain on plastic containers during recycling & regrind

We offer foil cutting machine which can slice precisely upto minimum 7mm width. Technical Specifications: Motor: Single phase 1/4 Hp. Roll length : 640 mmyy Core dia : 25 mm Slice width : 5 mm Minimum Max. Roll dia : 100 mm

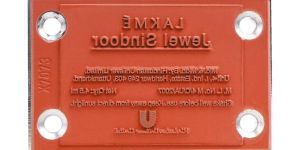

To make your products very attractive & stand out on the shelves, we at Technoshell are always striving to support you with the finest hot stamping dies and blocks. We offer Jigs, Fixtures, Foils, Stamping Blocks, Dies, Rollers and other accessories to provide a One Stop Shop to all your stamping needs. To further strengthen our capabilities for offering world class dies & blocks, we have established an association with R.E Bowers & Freeman Ltd, UK who have more than 60 years of experience of producing excellent Dies, Blocks, Punches, Coding Boxes etc.   Features   Silicon Rubber Dies: Contoured dies, High Definition dies, and Dual hardness dies. Metal Dies: Hot stamping dies for graphic applications, Embossing Dies, Digit Wheel printing dies Silicone Rollers - Coreless rollers or with cores of steel and aluminium .

with an intension to offer excellent solution for automation of various manufacturing, packing and material handling processes, we have manufactured our first generation delta robot. this is an advent of our intention of development of high quality robots for various applications. .

High speed, highly accurate automatic capping machine to fix screw-on caps and oriented snap-on caps on oval and round plastic and laminate tubes. This high speed, highly precise capping machine which works upto 80 tubes per minute is suitable for fixing : snap-on caps on tubes with servo driven orientation and linear motor assisted mechanism. Screw-on caps with servo controlled torque tightening mechanism. Applications: oval tube snap-on capping oval tube screw-on capping machine description: the 12 mandrel turret of the cp-60-or is indexed by a mechanical indexer and the functions performed at various stations are: 2 stations for tube loading on the mandrel 2 stations for top sealing (optional) snap-on capping with tube and cap orientation and linear motor assisted capping screw-on capping (optional) screw cap tightening with pre-settable torque control tube unloading from the mandrel onto servo driven out-feed bucket conveyor good tube / bad tube selection in-feed roller conveyor for tube feeding 'star wheel' arrangement for loading tubes on the mandrel 'vibratory bowl feeder' for cap feeding 'cap elevator' (optional) to ensure caps are fed to the bowl feeder in timely manner features and benefits: operator friendly and simplicity - ease of operation quick change-over and easy settings- 'small batch size- no problem anymore' accurate and flexible - always meet customer demand sorting good tubes/bad tubes - get rid of improper capping complaints surveillance and maintenance - minimum down-time technical specifications: speed: round tube snap-on capping - upto 75 tubes per min / round tube screw-on capping - upto 75 tubes per min / oval tubes screw-on capping - upto 70 tubes per min / oval tubes snap-on capping - upto 70 tubes per min tube diameter: dia 19mm to 60mm tube length with cap: 80mm to 240mm cap height: 10mm to 45mm positioning accuracy of flip top cap and print mark position on the tube: +/-2mm torque tightening accuracy in case of screw-on caps:

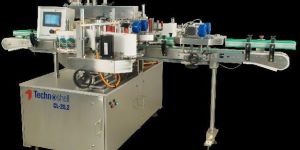

Applications: Front & back labelling of flat shaped containers suitable for pharma & Oil industry. Technical Specifications: Speed : 20 m / min Power : 4.4 KW Accuracy : +/- 1 mm Max. Component Height : 500 mm Minimum Component Height : 50 mm Minimum Label height : 30 mm Maximum Label Height : 250 mm Maximum roll Diameter : 350 mm Machine Weight : 700 Kg Optionals: Language options for different countries Label break sensors Remote diagnostics Password and user log facility

CHT-500 is used for Heat Transfer on conical and round parts. Features: Rigid Structure for long machine life Stepper motor for part rotation and foil feed unit's swivelling for conical printing Synchronous motion for rotation of part and foil feed unit Very easy to operate Low changeover time Use of vacuum to hold parts for positional accuracy All adjustments are provided with scale Touch screen operator interface adjustable for height and angle Fully enclosed control cabinate UPS backup for silicon roller safety Technical Specifications: Speed: 10 parts/min Power: 5kW, 3 Phase, 415V AC, 50/60Hz Air consumption: 0.1 cubic.meter/minute Max part diamention: Dia 150mm, Ht 10mm Min part diamention: Dia 40mm, Ht 40mm Max development angle: 30 degree (consultation required) Max foil width: 250mm Foil roll size: Dia 150mm, 1" to 3" core Weight: 700 kg Optionals: Three side guard Fixed foil feed Manual loading of heat transfer labels Language options for different countries Foil break sensor Black mark sensor Remote Diagnostic Password and user log facility

The ultimate machine to apply hot foil stamped bands on oval, round, and other closures of different shapes. This ultra high speed machine which works upto 90 caps per minute is a work horse for the large volume production set-ups. Features and Benefits: Highly versatile machine - adaptable to various convex shapes for stamping Ultra high speed operation - increased productivity Easy setup and operation - single set of tooling Offers upto 30% foil saving - machine can work with narrow foil width Offers an ease of parameter setting - on account of state-of-the-art touch screen panel Technical Specifications: Max article size: 100mm dia Oval ratio: 2:1 (max dia : min dia) Stamping width: 40mm max Cap length: upto 50mm Speed of stamping: upto 90 parts/min Air supply: 7kg/sq.cm Air consumption: 40cfm Power: 3kW, single phase, 230V AC, 50 Hz Foil width: 7mm - 50mm Weight: 800 kgs Standard diamentions: 1600mm*1400mm*1800mm Optional Attachments: Automatic part loading system Noise reduction enclosure for bowl feeder Counting and diverting arrangement - Reduce your dependance for 100% inspection End of foil roll - Bring down rejection and eliminate piece inspection Cap elevator to feed caps on the bowl feeder - Ensure the machine dosen't starve for caps Heat transfer attachment - Cater to innovative market demand Confirmity to CE norms
