TECNA Weldcon brings you the latest and most sophisticated Welding Controller Units built by TECNA. TECNA has a range of Welding Controller Units that are designed and built keeping various application areas in mind. All control Units are invariably Microprocessor Controlled and manufactured using the latest technology in electronics. Compliance with RoHS is ensured during the production stage and Silicone Based Compounds are totally eliminated in contents to ensure compliance with Sheet Metal Workshop Manufacturing Requirements. To ensure modularity and scalability, each control unit is designed to have some basic built - in functions, that can be extended by addition of optional accessories, which enhance and add new functions and capability to the control unit.

TECNA S.p.A. produces and distributes a complete range of BALANCERS having a capacity from 0,2 up to 180 kg and an available wire stroke up to 3 meters. The TECNA BALANCER is an essential device to eliminate the operator's labour, to increase productivity by cutting down idle times and to improve the work quality. Furthermore, the use of the TECNA BALANCER reduces hoses and cables wear and avoid eventual damages to both people and tools. The application of the TECNA BALANCER is absolutely versatile: it may be used for bench or assembly line works and it may be suitably applied to small tools, industrial suspended welders and multiple screw drivers. The TECNA balances are produced in conformity with the DIN 15112 Directive. Thanks to their high structural technology and their compliance with the laws in force, they are BG certified by the relevant German Institute for their safe use in the working environment. TECNA produces a new range of BALANCERS, ATEX certified, suitable to be installed in potentially explosive areas composed by flammable gases or combustible dusts.

WELDER MAIN FEATURES Medium frequency welders, designed to obtain high quality welding. Modular design of mechanical structure, arms, brackets, cylinders. Cylinder with chrome plated stem for heavy duty works and long life; adjustable anti-rotation device. Lubrication free pneumatic components to eliminate oil mist and to protect the environment. Adjustable double-stroke cylinder with key control. Electrodes descent without pressure for both maintenance and set-up. Built-in compressed air filter unit and tank. Compressed air disconnection device. Water-cooled transformer, plates, electrode-holders and electrodes; transformer with epoxy resin coated windings. Two stage electric foot control for clamping and welding pieces only if correctly positioned. Pre-setting for additional double stage electric foot switch connection for the direct recalling of a different welding program. Arranged for all models: two-hand safety control with timer and removable key selector, assuring the best safety. The two-hand control device is standard on projection models only (it is available upon request on spot welder models). Emergency push-button to stop the machine immediately. Protection with automatic circuit breaker. Flow-switch which stops the machine if the cooling water does not flow. WELDING CONTROL UNIT TE700 - Inverter command with medium frequency IGBT, with possibility of choosing the operating frequency of the inverter between 1000 Hz and 4000 Hz. Storage of up to 300 welding programs; 255 may be called from external devices. Possibility of associating an 8-character alphanumeric identifier with each weld program. Possibility of managing as many as 4 different welding transformers or as many as 4 different kinds of electrodes through the same control unit. Overheating protection for the welding transformers. Up to 32 programmable parameters for each program. Slope up, Slope down, pulses, pre-weld, post-weld functions and adjustment of the welding times with units of 1 mS. Display of the RMS of the welding current, energy, power, RMS value of voltage at the electrodes, of the initial and final resistance, of the machine's thermal use percentage, of the machine's use percentage and, as an option, of the initial thickness of the material to be welded and the indentation at the end of the weld. 6 WORKING MODES - constant current, constant power, constant voltage, FIX, constant energy, DYNAMIC mode. Limit indicators for: Current, voltage at the electrodes, energy, power, inverter use ercentage, initial and final resistance of the material to be welded; thickness and indentation limit of the material (optional). Double stroke function. Stepper function to compensate the wear and tear of the electrodes with programmable curves and possibility of intervening independently on the welding time and current through differentiated stepper laws. Possibility of using 4 different stepper options associated with 4 different spot counters associated with each weld program. Control of 5 solenoid valves 24 VDC max. 5 W with selfprotected output. Output for proportional solenoid valve. Selectable languages: Italian, English, French, German, Spanish, Hungarian, Swedish or Portuguese. Possibility of managing as many as 4 different electrode tip dressings at the same time through 4 different spot counters (optional).

MAIN WELDER FEATURESDC Three-phase welding machines, offering the following additional features - - High power factor- Reduced load on plant primary electrical service.- Balanced load distribution on the three phases.- Reduced effect of magnetic materials between arms on the welding current.- Reduced installation costs. Welding control units with welding current direct reading. Six-phase silicon rectifier with device to check the diodes proper clamping. Protection of the diodes against excess voltages, and temperature. Synchronous SCR contactor insulated from the cooling water circuit with protection thermostat. Standard on all models: two-hand safety control with timer assuring the best safety, and removable key selector. The two-hand control push-buttonsare standard on projection welders only (they are available on request on spot welders). Two-stage electric foot control for clamping and welding pieces only if correctly positioned. Pre-connected for additional double stage electric foot control for the direct recalling of welding program No.2 (not on units equipped with rotary selector recall). Emergency push-button to stop the machine immediately. Protection with automatic circuit breaker. Water-cooled transformer, plates, electrode-holders and electrodes; transformer with epoxy resin coated windings. Pneumatic cylinders with chrome plated stem and low friction seals which do not need lubrication. Adjustable double stroke with key control, cylindrical guided stems with adjustable anti-rotation device, prismatic precision roller guides. Complex pneumatic cycle, with electrode low pressure squeeze. Pressure program on demand. Built-in compressed air filter unit and tank. Compressed air disconnecting device. Electrodes descent without pressure for both maintenance and set-up. Flow-switch which stops the machine if the cooling water does not flow (it works with either city water or recirculating water).

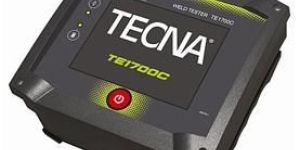

The TE1700 "WELD TESTER" is a portable instrument purposely designed for measuring the parameters of resistance welding. By using probes of different kind, the same instrument enables measurement of the welding current, the force at the electrodes, the voltage at the electrodes, the energy, the resistance and the thermal current. It is possible to adjust the analyzer through the LCD touch screen, an indispensable and highly performing diagnostic tool which offers a graphic display of the waveforms of the selected signals. It is suitable for measuring on standard machines in alternate current (AC), direct current three- phase rectified and medium frequency machines (DC/MFDC) and capacitor discharge machines (CDW): AC - Measurement of the current true effective value (RMS); the peak current value both positive and negative; the conduction angle in degrees; the welding time in cycles & in cycle steps; RMS voltage value, the peak voltage values both positive and negative. DC/MFDC - Measurement of the RMS value and of the current maximum value, the slope time and welding time in ms, the RMS and peak voltages. CDW - Measurement of the welding time in ms; the current true effective value (RMS), the current slope up time, the maximum RMS current value, the current slope downtime, the peak voltage values. Blanking Function - Initial and final blanking function with programmable time interval, it prevents measurement errors in the presence of slope and allows to verify the correct first insertion delay. Blanking function - It prevents measurement errors due to high impact force and it allows to estimate the latter. Wide availability of measurement transducers. Automatic recognition of the connected sensor, Storage of the measured values (30.000 max) and statistical analysis of the last 100 welds. USB 2.0 output - It enables the use of a flash memory drive for storing data and waveforms (in bitmap ad csv formats). Bluetooth® port - For displaying and recording the measured data. Our TE1700 transfers the data acknowledged by the PC after each measurement automatically, without needing to press any button. Supply by means of Ni-Mh batteries and battery charger included in the standard supply. Battery life of approximately 24 hours depending on usage. Suitcase for carrying the measurement instrument and the accessories. Welding tables included. Possibility of setting 3 limits windows. Integrated clock.

TECNA S.p.A. produces and distributes a complete range of BALANCERS having a capacity from 0,2 up to 180 kg and an available wire stroke up to 3 meters. The TECNA BALANCER is an essential device to eliminate the operator's labour, to increase productivity by cutting down idle times and to improve the work quality. Furthermore, the use of the TECNA BALANCER reduces hoses and cables wear and avoid eventual damages to both people and tools. The application of the TECNA BALANCER is absolutely versatile: it may be used for bench or assembly line works and it may be suitably applied to small tools, industrial suspended welders and multiple screw drivers. The TECNA balances are produced in conformity with the DIN 15112 Directive. Thanks to their high structural technology and their compliance with the laws in force, they are BG certified by the relevant German Institute for their safe use in the working environment. TECNA produces a new range of BALANCERS, ATEX certified, suitable to be installed in potentially explosive areas composed by flammable gases or combustible dusts. The ergonomic structure of the TECNA BALANCERS has been designed for facilitating each use operation, ranging from movement easiness to body robustness, from simple use to lifting power. TECNA, as producer, provides special and customized versions on demand.

Welding is a power hungry process. Be it in any form. Optimizing power consumption in Resistance Welding Process has never been more effectively addressed than these machines. This is possible because of specially designed transformers. They have very low secondary voltages and very high thermal currents.

Years - long experience cast into the future For More than 40 years, TECNA has marked an outstanding trail of passion, technology & Innovation. Boasting a deep experience oriented to the future, TECNA is now introducing a different & more efficient way to perform the resistance spot welding. TECNA recalls it's past as well as its many worldwide successful welding units which have stood & still stand for the innovating genius conveying in the clever intuitions &dedication of professional. Its equipment is always enriched with revolutionary ideas & its ingenious solutions, pushed to the edge of technology & performance, are the outcome of years of constant research & innovation. Third generation Servo Robot Guns were launched in European market in 2012 & are now ready to hit the Indian market.

TECNA Robot Guns are available in various combinations of Actuators and Technologies. This complete range is evolved with time and technology. Actuators : Pneumatic Actuator & Servo Motor Technology : Single Phase AC & Medium Frequency DC Power Ratings : 36KVA to 103KVA And various combinations of the above. This wide variety of combination gives rise to multitude of models available for selection.

Welding control units with welding current direct reading. Six-phase silicon rectifier with device to check the diodes proper clamping. Protection of the diodes against excess voltages, and temperature. Synchronous SCR contactor insulated from the cooling water circuit with protection thermostat. Standard on all models: two-hand safety control with timer assuring the best safety, and removable key selector. The two-hand control push-buttons, are standard on projection welders only (they are available on request on spot welders).

MAIN FEATURES TECNA Weldcon brings you the latest and most sophisticated Welding Controller Units built by TECNA. TECNA has a range of Welding Controller Units that are designed and built keeping various application areas in mind. All control Units are invariably Microprocessor Controlled and manufactured using the latest technology in electronics. Compliance with RoHS is ensured during the production stage and Silicone Based Compounds are totally eliminated in contents to ensure compliance with Sheet Metal Workshop Manufacturing Requirements. To ensure modularity and scalability, each control unit is designed to have some basic built - in functions, that can be extended by addition of optional accessories, which enhance and add new functions and capability to the control unit. Firmware of control units is very easily upgradable. This ensures that customer works with the latest software that is possible. Control Units are easily integrated on to the existing machines for improved performance and additional functionality. They can also be supplied in Kit Form for System Integrators manufacturing automated welding machines. A full fledged welding controller cabinet, complete with SCR and required add - ons can also be built and supplied, for Ready to Install situations. Base Control Units     Control Unit Description TE90 Microprocessor based Welding Controller Unit, with Simple SCR Firing Angle Control, for Manual and Pneumatically Operated Machines With Current Compensation Function TE91 Microprocessor based Welding Controller Unit, with Simple SCR Firing Angle Control Specially Built for Multi Spot Welding Head Machines, having Cascade and Concurrent Function. With Current Compensation Function. TE101 A Simple Microprocessor based Welding Controller Unit, with Simple SCR Firing Angle Control With Built - in Ammeter for display of actual measured Welding Current. TE550 A Full Fledged Micro - processor Based Welding Control Unit with Constant Current and Direct Secondary Feedback Function.Extensible by multiple add - ons like, Networking, Robot Handshaking Protocols, Constant Energy Function, Proportional Valve Etc. TE800 A Full Fledged Micro - processor Based Welding Control Unit with Constant Current and Direct Secondary Feedback FunctionSpecially meant for Networked Operation using PLC.

Compliance with RoHS is ensured during the production stage and Silicone Based Compounds are totally eliminated in contents to ensure compliance with Sheet Metal Workshop Manufacturing Requirements. To ensure modularity and scalability, each control unit is designed to have some basic built - in functions, that can be extended by addition of optional accessories, which enhance and add new functions and capability to the control unit. Firmware of control units is very easily upgradable. This ensures that customer works with the latest software that is possible. Control Units are easily integrated on to the existing machines for improved performance and additional functionality.

MAIN FEATURES:Formed Brackets Instead of fabricated for better strength, Use of Oil-less bushes for cylinder ram movement for less friction, wear and increased reaction time.lmproved Holder assembly for easier approach to JOB, lmproved design of secondary circuit for better welding current, lmproved design of secondary circuit for better water cooling.

Equipped with IS0 standard transformers, these guns form the middle range of the available variety. While maintaining the transformer standards compatible with international IS0 specifications, every attempt is made to make the machine compact and light weight. Superior degree of operator comfort is ensured for fatigue free continuous operation, resulting in higher production and shorter pay back periods.

A completely revamped product design for Servo Motor Guns. Modern and novel design, minimum parts and ease of maintenance. Possibility to integrate a built-in force sensor for closed loop force feedback are the highlights of this generation. MAIN FEATURES Design - TECNA Robot guns are designed as per European standards. The unique design can accommodate motor from any robot manufacturer. The compactness, user friendliness and maintainability of Tecna manual guns is earned forward to Robot guns design too. Every part or subassembly of the gun is subjected to life cycle test before accommodating into the product. Modular design enables standard parts for all guns. Product Range - As per TECNA's philosophy of optimisation ,AC robot guns are available in 32 KVA, 36 KVA, 54 KVA, 60 KVA, 75 KVA. MFDC guns are available in 56 KVA and 90 KVA. Increase in productivity - The electrode opening can be precisely controlled and travel distance between the spots can be reduced. This results in reduced spotting and traveling time. The electrode opening position can be defined for each spot reducing the opening and closing time of electrodes resulting in reduced spotting time Precise control on Welding Force - As The welding force is controlled by Current utilized by servo motor, actual force while welding can be controlled precisely. Welding force for each spot can be programmed as per welding requirement of different combination of sheets to be welded. Inbuilt Force Transducer - To receive real time feedback of Force while welding is also available as option. This is achieved by integrating a Force Transducer built inside the gun mechanism. Precise control on Heat Generated ( Energy Consumed) while welding - Three important parameters of welding are Current, Time and Resistance. With TECNA constant current secondary feedback Welding Control, Current and time are precisely monitored. The contact resistance is dependant on actual force applied while welding. Servo system controls the force accurately resulting in generating required Heat for welding. Soft Closing - Electrode Closing speed is reduced just before they touch the panel. This results in reduced Dents and increase in electrode life as initial impact of electrodes is avoided. Correct welding position - This servo system can identify Tip wear, Deflection in arms and tip position. This helps for correct welding position of the gun. Environment Friendly - Operational noise of welding gun is reduced by soft closing also they don't produce air exhaust noise. Conversation with robot - For the convenience of Integrator and robot manufacturer this system is available with various fieldbus options. Interface modules for fieldbus DeviceNet, Profibus, Ethercat are available as standard, ensuring compatibility of communication protocol with wide range of Robots. After Sales - USP of Tecna in INDIA is after sales and service support. This continues with regional offices with adequate spares. Options Available As a standard Tecna robot guns are supplied with Robot make motor reducing hassles to customer. Option of Tecna Motor is also available. As a standard Tecna robot guns are supplied with AC Constant current secondary feedback controller. Option of MFDC control and transformer is also available As a standard Tecna robot guns are supplied with Copper arms. Option for Aluminum arms is also available. Tecna Robot Guns are also available with Pneumatic and servo pneumatic systems.

Microprocessor based Welding Controller Unit, with Simple SCR Firing Angle Control Specially Built for Multi Spot Welding Head Machines, having Cascade and Concurrent Function. With Current Compensation Function. TECNA has a range of Welding Controller Units that are designed and built keeping various application areas in mind. All control Units are invariably Microprocessor Controlled and manufactured using the latest technology in electronics.

Extremely versatile, it is the ideal equipment for the repairs in car body shops. It allows to single-spot weld rivets, screws, self-threading rivets, washers and pins. It is possible to perform shrinking. A quick straightening of panels is carried out thanks to the 3 point star on the percussion extractor. Improved versatility to allow the use of different accessories for sheets straightening

MAIN FEATURES There are applications and situations where the MFDC resistance welding is the best choice available. Although there are significantly higher initial prices, the overall cost of using MFDC over single and three-phase SCR control may actually be significantly lower. Significant Energy Savings - For plants that cannot purchase more electrical power, the MFDC approach may allow you to do more projects with less energy. lmproved and Consistent Power Factor - The MFDC load appears to have unity power factor, which would then reduce penalties assessed by the power company. Automatic Load Distribution - The MFDC load is evenly distributed across all three phases. The bank of capacitors that are found on the MFDC system allow for current to be drawn from the bank as well as from the line thus reducing peak line currents. Welding is Tolerant of Electrical Line Disturbances - The energy reserve of the capacitor banks will smooth out line notches and line spikes even while welding is taking place. Precise Welding Current Control - The MFDC utilizes IGBTs for switching. These are turned on and off at the rate of 400 to 2000 times per second. By controlling both the turn on and turn off, the MFDC can determine the current to control. Conventional controls utilize SCRs for switching. These are turned on by the weld control but then remain conducting until the line voltage crosses the zero point during the base frequency line cycle. Because of this, conventional single phase controls must use a predictive algorithm rather than a deterministic approach. Also, if an under or over compensation occurs on one of the cycles, the conventional AC control will have to wait until the next period of the base frequency whereas the MFDC need only wait a fraction (1/20th nominal) of that time. Attains Target Current Immediately - DC systems of the SCR type have a rise time prior to its steady state. Since the MFDC is so responsive, it is possible to create full phase firing during the natural rise time to lessen that period of time. More Process Friendly - The MFDC eliminates undesired inter-cycle cooling periods that exist in AC resistance welding processes. Welding therefore can occur faster which would then reduce heat waste and the problems associated to eliminating that waste. Low Inductive Loses in Secondary Circuit: Due to DC current, the inductive losses in secondary circuit because of the magnetic metal content in between secondary circuit are minimized giving accurate control on welding current. Higher Current Deliveries : lmproved short circuit currents up to 30 KA are useful for welding materials like Brass, Copper, and Aluminum. Lower Cycle Times : As the welding periods are in milliseconds and inter cycle non activity is avoided, thus cycle time of weld is reduced resulting in higher productivity. Lower Weight and Size of the equipment : This increases the maneuverability of the machine resulting in reduced fatigue to the operator.

Welding is a power hungry process. Be it in any form. Optimizing power consumption in Resistance Welding Process has never been more effectively addressed than these machines. This is possible because of specially designed transformers. They have very low secondary voltages and very high thermal currents. Low losses also mean lower internal heat generation and as such lower cooling water requirement. Modular design, commonized spare parts are part of the design philosophy.

Welding control units with welding current direct reading. Six-phase silicon rectifier with device to check the diodes proper clamping. Protection of the diodes against excess voltages, and temperature. Synchronous SCR contactor insulated from the cooling water circuit with protection thermostat. Standard on all models: two-hand safety control with timer assuring the best safety, and removable key selector. The two-hand control push-buttons are standard on projection welders only (they are available on request on spot welders). Two-stage electric foot control for clamping and welding pieces only if correctly positioned. Pre-connected for additional double stage electric foot control for the direct recalling of welding program No.2 (not on units equipped with rotary selector recall). Emergency push-button to stop the machine immediately. Protection with automatic circuit breaker. Water-cooled transformer, plates, electrode-holders and electrodes; transformer with epoxy resin coated windings.

  Extremely versatile, it is the ideal equipment for the repairs in car body shops. It allows to single-spot weld rivets, screws, self-threading rivets, washers and pins. It is possible to perform shrinking. A quick straightening of panels is carried out thanks to the 3 point star on the percussion extractor. Improved versatility to allow the use of different accessories for sheets straightening

Bench Mounted Spot & Projection Welding Machines Space Saving: As machine is mounted on bench, the lower space can be utilized for storage of WIP and FG Higher Electrical Efficiency : Due to small form factor and shorter secondary lengths, these machines are more energy efficient. Welding currents upto 25 kA and electrode force upto 800kGF make it pissible to weld most of the jobs.

main features formed brackets instead of fabricated for better strength use of oil-less bushes for cylinder ram movement for less friction, wear and increased reaction time. lmproved holder assembly for easier approach to job lmproved design of secondary circuit for better welding current lmproved design of secondary circuit for better water cooling lmproved design of transformer for better water flow ( increased water flow of 25%) to increase the efficiency and life modified programme selector switch weld on/off toggle switch on pendent error reset/ restart switch on pendent   main features of controller microprocessor based sophisticated control unit with constant current operation single board smd construction for very high reliability diagnosis mode for troubleshooting program sequence operation advanced diagnostic data display of every spot 63 programs memory with 31 direct recalls (1 2 recalls provided on machine) hardware lock with universal key to prevent unintentional unauthorised changes.

Formed Brackets Instead of fabricated for better strength Use of Oil-less bushes for cylinder ram movement for less friction, wear and increased reaction time. lmproved Holder assembly for easier approach to JOB lmproved design of secondary circuit for better welding current lmproved design of secondary circuit for better water cooling lmproved design of Transformer for better water flow ( increased water flow of 25%) to increase the efficiency and life
