Vibrating Feeder Dealers in Nashik

The rd vibrating & grizzly feeder have been designed for the toughest applications capable of high capacity and the ability to process abrasive material, either in stationary or mobile plants (tracks or wheels). Rd vibrating feeder is a kind of linear direction feeding equipment. It is generally installed in front of the primary crusher, conveys big blocks continuously and evenly while removing the dirt and impurities by screen bars. with a rd vibrating feeder the primary plant can reach the maximum efficiency speed & stroke adjustable: better feed control of the primary crusher long stroke capability: better scalping efficiency (when the feed contains high ration of flaky material) rubber suspension: smoother shut down of the unit, safety (fingers), reduced noise, and better isolation ratio unique feature of stroke angle adjustment to suit application needs modular heavily built twin-vibrator mechanism with large size roller bearings welded steel body reinforced with heavy joists for impact loads technical specification: model dimension in mm capacity th power hp vf 0.5 x 2mtr 500mm x 2000mm 10-30 3 hp vf 0.9 x 1.8 mtr 1100mm x 1500mm 30-50 7.5 hp vf 0.8 x 2 mtr 800mm x 2000mm 50-90 7.5 hp vf 1 x 3 mtr 1000mm x 3000mm 90-150 15 hp vf 1.2 x 3 mtr 1200mm x 3000mm 150-250 25 hp

SINGH Horizontal PAN Vibro Feeders are designed for regulating the feed rate to the Crusher by separating the materials for sizing, removing the unwanted and by passing the smaller for the Crushers so as to maximize the Crushing capacity. SINGH PAN Vibro Feeders come in lower profile and are longer in length. The Vibrating unit consists of two balanced, counter Rotating Shafts. They generate an elliptical motion throwing the materials upwards and forward with continuous turning actions. The timing gears are adjustable to control the direction of the throw and the concentration of Vibrating action. SINGH Horizontal PAN Vibro Feeders are also available with unbalanced Vibratory Motors and Electrical Motors.

  TECHNICAL SPECIFICATIONS :   VIBRATING FEEDER :   The vibrating  action of the feeder conveys material while separating  loose fines. This  provides smooth, controlled feed rates to maximize capacity of the plant. The fines drop to the bottom of the  feed material and are passed through  the grizzly section.  Gizzly bars are tapered to improve  scalping action. Bar spacing  is adjusted for controlled  fines removal. Heavy duty spring suspension provides protection and cushioning impact and vibration . SALIENT FEATURES :   Increases  productivity Sorts out wastages & fines  Increases efficiency of machine at primary or secondary stage crushers Continuous feeding of material

Vibratory Feeders, Inclined screens, reciprocal feeders

vibrating hopper, Stone Crushers, Jaw crusher, Heavy Duty Conveyor Belt

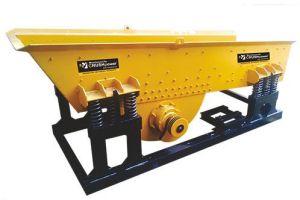

Grizzly Vibrating Feeder, Jaw crusher, Jaw Crusher Plates
