Voltage Transformers Dealers in Nashik

We are offering High Tension Transformer that finds application in heavy industries. Our High Tension Transformer is suitable for both indoor as well as outdoor installation. The High Tension Transformer is equipped with a voltage regulator that allows it to regulate and stabilize the high voltage temperature. Due to this efficiency, our High Tension Transformer is applicable in several industries.   Details : Indoor CTS : Bar Primary CT (primary current from 200A to 2500S) Window Type CT (primary current from 200A to 5000A) Wound primary CT (promary current from 5A to 400A) Voltage Class : Upto 33KV for all types STC : upto 40Ka / 3 secs. For all types output & accuracy as per relevant standard Outdoor CTS : Live tank CT (primary current from 5A to 1600A) Dead tank CT (Primary current form 5A to 1600A) Voltage class : upto 33KV for all types STC : upto 40KA / 3secs. For all types output & accuracy as per relevant standard Low Tension Voltage Transformers : Tape wound type Epoxy Resin Cast type Voltage ratio, output, & Accuracy as per relevant standard High Tension Voltage Transformers Indoor VTS : Epoxy resin cast single-phase earth Epoxy resin cast single phase unearthed (two pole insulated) type Epoxy resin cast 3 phase 3 limb type Epoxy resin cast 3 phase 5 limb type (With residual winding) Voltage class : upto 33K for single phase and upto 15KV for 3 Phase Voltage Factor : 1.2 continuous / 1.9 for 8 hrs Voltage ratio, output & accuracy as per relevant standard Outdoor VTS : Single phase earthed type Voltage Class : upto 33KV for all types Voltage factor : 1.2 continuous / 1.9 for 8 hrs Insulation : Active part encapsulated in epoxy resin active part in oil impregnated paper type Voltage Ratio, output & accuracy as per relevant standard

• Country of Origin: Made in India
• Brand Name: Suvidhi industries
• Accuracy Class: 0.2
• Material: Copper
• Primary Voltage: 220V
• Phase: 3

p.T415 v ac / 110 v ac @ 50 va vail, from us, the best quality Control Transformer. The Control Transformer, offered by us, is being manufactured under the strict guidance of the engineers and other professional. Control Transformers are made using the premium quality raw material. Besides, we can handle the bulk orders of Control Transformer as per the requirement of the clients.

Potential Transformer Our Potential Transformers are designed to present negligible load to the supply being measured and have an accurate voltage ratio and phase relationship to enable accurate secondary connected metering, with following technical deatails: A- Indoor PT with Epoxy insulation up to 33KV Burden and accuracy class as per IS Standard. V F can range upto 1.9 for 8 Hrs. Single pole,Double pole or 3 phase PT B-Oil cooled PT up to 33KV Burden and accuracy as per IS standard V F can range upto 1.9 for 8 Hrs. Single or 3 phase

• Material: Aluminium
• Color: Silver
• Shape: Cylindrical
• Capacitance: 2 Mfd
• Usage/Application: Power
• Impregnation: Dry Type
• Tolerance: 10%

• System Voltage: 720V maximum
• Ambient temperature: -25°C to +40°C

Current transformers convert an alternating current usually high in to a proportional lower one, depending on their use. Measurement type CTs are required to transform the primary current, at various classes of accuracy, as specified by the class designation, over a current range from 1 to 120 percent of its rated primary ratio. The design of this type of transformer requires the inclusion of a core and winding which will when connected to its rated burden; perform within the limits of error as indicated by the standard’s specification. It is an advantage for a measurement type transformer to saturate above this range, which provides a protection against damage to instruments by limiting the secondary current when surge currents or faults appear in the primary circuit.

• Rated Voltage: 72.5 to 420 kV
• Standard: IEC, IS

We are known for delivering the orders within the specified time frame owing to our modern transit facilities. As a promising name, we bring forth a quality-centralized range of products that are designed and produced using the high quality raw material. We check the material on several counts prior to procurement. Our HV inductive voltage transformer is widely used for metering and relay protection of 33kv 40.5kv, 50 or 60Hz system.

We offer Lt Transformer.

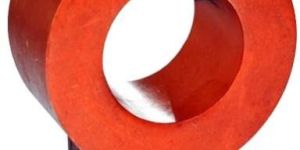

• Core Type: Ring Core Type CT
• Material: Cast Iron
• Phase: Three Phase
• Accuracy Class: 0.5
• Rated secondary current: 5A or 1A
• Rated output capacity: 5-60VA

It is not possible to use line current directly for measurement and relaying purpose due to its high value and insulation problem. CURRENT TRANSFORMER which is widely known as 'CT' is a piece of electrical equipment which converts line current ( primary current ) in to small standard current values which are suitable for the devices to which it is connected e.g. measuring instruments, meters, protection relays.

The company is ranked amidst the prominent Constant Voltage Transformer Manufacturers, Exporters, and Suppliers from Nashik, India. The Constant Voltage Transformer is made by using the finest components and materials in compliance with the set industry standards. Our Constant Voltage Transformer is offered at very competitive prices.

High Voltage Transformers, CONTROL TRANSFORMERS, Current Transformers

Potential Transformers, Current Transformers, Erection Supervision Service

Voltage Transformers, Electrical Transformers, Toroidal Transformers

Indoor Low Tension Transformers, Metering Cubicle

Potential Transformer, 11Kv Metering Cubicle

Epoxy Indoor Voltage Transformer, metering cubicles

Voltage Transformer, Current Transformer, analog meter coils

Constant Voltage Transformer
