Aimil International Vashi, Navi Mumbai, Maharashtra

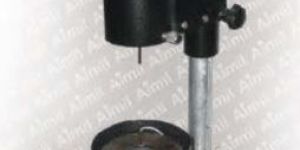

Aimil Visco 2000 Features: The Aimil Visco 2000 Viscometer is specially designed to perform ASTM 04402 & BIS 73 high temperature testing of asphalt binders. The viscometer features an electrically heated thermal chamber with an auto - tuned PIO controller for precise regulation of asphalt temperatures up to 300C. supplied complete with a C25 titanium bob & stainless steel cup. Single point measurements can be performed via the instrument front panel and displayed on the built in keyboard or optional printer, eliminating the need for a PC. However, if more sophisticated tests and analysis is needed, the viscometer can be interfaced with a PC and can be used in conjunction with Aimil Visco software. The components are: • Heater casing - the surrounds the cup containing the sample which heats it. • Thermal cover (one half shown)- this cover the sample to maintain a uniform sample temperature. Do not make measurements without it in position.

Power : 220V / 230V AC, 50Hz,

Salient features: • loading accuracy as high as± 1 % of the indicating value • strain measurement at variable speed to cover a wide range of materials adjustable by the manual control valve. • high reading accuracy and rugged design of digital display. • simple control to facilitate ease of operation. • fully enclosed and protected load measuring system. • robust load frame with extremely rigid construction. • large effective clearance between columns enable testing of standard specimen as well as structures. • motor driven threaded columns for updown movement of lower cross-head for quick change over of specimen, grips and attachment. • wide range of standard and special accessories computerized universal testing machine: it has a micro processor based electronic panel, precision strain gauge type pressure transducer for load measurement, rotary encoder with rack for cross-head displacementextension indication, rs 232 com port for pc interface, data entry for specimen dimension, serial number, gauge length. Unit selection for load, displacement. Results include load vs displacement curve, maximum displacement, uts, % elongation, young's modulus & proof stress (if extensometer is used). Accuracy and calibration: aimil universal testing machines are controlled for precision and accuracy during every stage of manufacturing. The machines are calibrated in accordance with bs: 1610 and is standards. Aimil utm comply with grade a of bs 1610: 1964 and grade 1 of is : 1828 - 1991. An accuracy of± 1 % is guaranteed from 20% of the load range selected to full load. Below 20% of the selected range the maximum permissible error is 0.2% of the full load reading. Suitable for operation on 440v, 50hz, three phase, ac supply. Features: • tensile & compression testing • transverse test & bend & re-bend test • shear test • rubbertextile test • extensometer test

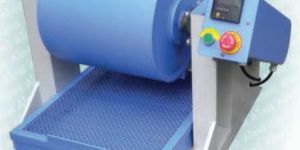

Primarily designed for grinding pigments. The material is ground at a specific speed by using a specific quantity of grinding media (steel balls) for a specific period. The equipment is used for making the ground cement samples in Lab in cement industries and in paint plastic and granite industries. Equipment is provided with revolution counter. Range of ball diameters available is 12.5mm dia to 40mm dia from 94 nos. to 43 nos. respectively should be ordered separately.

The apparatus consists of a glass tube with one end having bell mouth entrance connected to a constant head water tank and at the other end a valve is provided to vary the flow rate. The tank is of sufficient capacity to store water for conducting the test. A capillary tube is introduced centrally in the bell mouth for feeding dye from a small container placed at the top of tank, through polythene tubing. By varying the rate of flow, the reynold's number is changes. This also changes the type of flow. Visual observation of dye(thread) will indicate the type of flow, which can be confirmed from the reynold's number computed. Present setup is self contained water re-circulating unit, provided with a sump tank and a centrifugal pump etc. Flow control valve and by pass valve are fitted in water line. Flow rate of water is measured with the help of measuring cylinder and stop watch. Scope of experimentations: to determine the reynold's number and hence the type of flow either laminar or turbulent. To study transition zone.

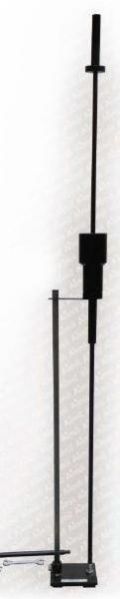

• a simple and robust instrument for rapid in-situ measurement of the structural properties of road pavements. • provides fast and efficient method of obtaining information. • for continuous measurements up to a depth of 800 mm and 1,200 mm with the extension rod. • portable and can be accommodated in a carrying case. The pavement dynamic cone penetrometer (dcp) is a very robust instrument, designed for rapid in-situ evaluation of strength of sub- grade and the bases for roads & runway pavements. Continuous measurements can be made down to a depth of 800 mm, or when an extension is fitted, to a depth of 1200 mm. Where pavement layers have different strengths, the boundaries can be identified and the thickness of the layers determined. A typical test takes only a few minutes and the instrument therefore, provides a very efficient method of obtaining information which would normally require test-pits. Correlations have been established between measurements with dcp and california bearing ratio (cbr) so that the results can be interpreted and compared with cbr specifications for pavement design. Agreement is generally good over most of the range but differences are apparent at low values of cbr, especially for fine grained materials. It incorporates a 8kg weight dropping through a height of 575 mm and a 60°cone having a diameter of 20mm. It is supplied complete with assembly tools and weighs 20kg approx.

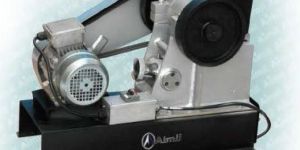

Designed to speed-up crushing of aggregates, Ores, Mineral, Coal etc. Compact and rugged for Lab use and small production units. Mg Steel Jaws adjustable to 6mm opening. 250kg material can be crushed n upto 8 hour shift. Discharge opening range - 3 to 10mm Suitable to crush any type of stone upto 45mm Extra strong steel frame Suitable for chemical and cement Labs.

Aimil Series Compression Testing Machines are the finest of their types available. Their rugged construction and extreme simplicity makes it possible for even non-technical personnel to operate them with ease and complete dependability. In particular, the portable units, which are small in dimensions, sturdy and light in weight, make quality control testing possible in areas where commercial testing facilities are not available and where the transportation of larger and much heavier machines would be difficult. Aimil Compression Testing Machines conform to IS: 14858(2000) and calibrated with an accuracy of± 1 % as per the requirement of 1828(Class 1) . It can also be supplied as per BS : 1881 and other associated International Standards. These machines are available in 50kN, 1OOkN, 500kN, 1OOOkN, 2000kN, 3000kN & 5000kN Capacities. Compression Testing Machines Classification : Analogue models. Digital models with pace rate indicators. Micro Controller based models with automatic pace rate controllers. Fully Automatic models. Salient Features of Compression Testing Machines are: High stability. Self-aligning platen assembly. Load Gauges are calibrated in kN against certified Proving Rings, traceable to NPL NCC BM. Suitable for testing cubes and cylinders of various sizes. Using special platens, bricks can also be tested. Logged data printing facility through a parallel port interface available in digital and micro controller based versions. Calibration process accreditated by NABL (National Accreditation Board for Laboratories). Machines with CE mark also available, on special request. Operator's safety features like metal door with a perspex window and overload tripping device are provided in all models.

Brand Name : AIMIL

Certification : Conforms to BS-12390, ASTM C39, C 109, ASH TO T22, ASTM, EN and BS

Application : Compression testing of concrete

Function : Compression and Flexural strength of cubes, beams and cylinders can be measured

Power : 220V / 230V AC, 50Hz,

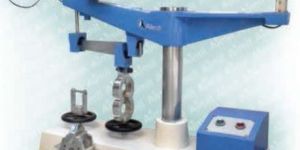

Primarily used by cement manufacturers to determine the tensile strength of briquette specimen and for flexure strength too.
