We offer vpi dry type transformer. Description these transformers are specifically needed in distribution network for feeding basements or stilts of high-rise buildings, hotels, malls, stadium, air ports, chemical & refinery plants. Following are the dimensional,weight & quantity details along with standard losses for conventional 11kv & 22kv dry type (vpi) transformer (off circuit type). Technical specifications duty type- outdoor indoor ground mounted type voltage class- upto 22 kv no of phases- 3 phase frequency- 5060 hz vector group- dyn1 or dyn5 or dyn11 or any specific class of insulation- f or h with temp rise of 90 or 115 deg c or as per customer requirement tap changer type- off circuit type or on load type tapping range- + 2.5% x 2 for octc or + 2.5% x 2 & - 2.5% x 6 for oltc or as per customer requirement winding material- aluminium or copper with multi paper nomex-aramid covering applicable standards- is 11171, iec 60726 enclosure painting- powder coated with ral 7032 shade or as per customer requirement assured features windings are electrically balanced to minimize axial & radial short circuit forces. Coils are held rigidly in place between insulators clamped to the upper and lower core frames under high compression. Polyester resin or thixotropic epoxy resin impregnation or silicon varnish as per the application is used. High temperature resistant materials are used including nomex aramid papers, silicone coated fibre glass and pressure sensitive glass tape. Adequate ducts between coils, discs for maximum air flow and reduced hot spot temperature. Step-lap designed crgo laminations for lower losses and excitation current.

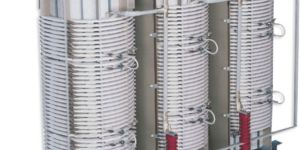

We are offering vacuum pressure impregnation dry type transformer, duty type- outdoor indoor ground mounted type voltage class- upto 22 kv no of phases- 3 phase frequency- 5060 hz vector group- dyn1 or dyn5 or dyn11 or any specific class of insulation- f or h with temp rise of 90 or 115 deg c or as per customer requirement tap changer type- off circuit type or on load type tapping range- + 2.5% x 2 for octc or + 2.5% x 2 & - 2.5% x 6 for oltc or as per customer requirement winding material- aluminium or copper with multi paper nomex-aramid covering applicable standards- is 11171, iec 60726 enclosure painting- powder coated with ral 7032 shade or as per customer requirement.

We are offering unitised substation. Description unitised substation are designed for locations where space and safety is a concern, population density is high, such as urban centre. Unitised substation is divided in three section or compartment � medium voltage, transformer and low voltage switchboard. Unitised substations are designed in accordance with is 14786 iec 61330 standards with degree of protection for ip23 for transformer and ip54 for mv & lv compartments or as per customer requirement. Technical specifications mv switchgear- 3.3 to 33 kv type of switchgear- lbs sfu breaker rmu insulation medium- sf6 gas or vacuum tripping- fuse relay short circuit rating- up to 20 ka or as per customer requirement type of cooling- oil immersed dry type rating- 100 to 2000 kva voltage -3.3 to 330.433 kv or any specific phase frequency- 3 phase 50 or 60 hz. Vector group- dyn1 or dyn5 or dyn11 or any specific. Mv switchgear- acb's, mccb's current rating- up to 3250 amps voltage- 433 volts no. Of poles- 3 4 short circuit rating- 50ka or as per customer requirement assured features windings are electrically balanced to minimize axial short circuit forces. Coils are held rigidly in place between insulators clamped to the upper and lower core frames under high compression. Precise casting under vacuum ensuring low partial discharge. Smooth surface finish and robust construction of mv & lv cast coils. Adequate ducts between coils, discs for maximum air flow and reduced hot spot temperature. Step-lap designed crgo lamination for lower losses and excitation current.

We are offering unitised substation are designed for locations where space and safety is a concern, population density is high, such as urban centre. Unitised substation is divided in three section or compartment – medium voltage, transformer and low voltage switchboard. Unitised substations are designed in accordance with is 14786 / iec 61330 standards with degree of protection for ip23 for transformer and ip54 for mv & lv compartments or as per customer requirement. Echnical specifications mv switchgear- 3.3 to 33 kv type of switchgear- lbs / sfu / breaker / rmu insulation medium- sf6 gas or vacuum tripping- fuse / relay short circuit rating- up to 20 ka or as per customer requirement type of cooling- oil immersed / dry type rating- 100 to 2000 kva voltage -3.3 to 33/0.433 kv or any specific phase / frequency- 3 phase / 50 or 60 hz. vector group- dyn1 or dyn5 or dyn11 or any specific. mv switchgear- acb's, mccb's current rating- up to 3250 amps voltage- 433 volts no. Of poles- 3 / 4 short circuit rating- 50ka or as per customer requirement.

Tower and conductors. power grid approved upto 765 kv aaac, acsr, aac conductors up to 91 strands galvanisation line up to 18 mtrs length.

Substation technical specifications epc, turnkey project & unitised substation solution. rating upto-132kv substation layout, construction & commissioning.

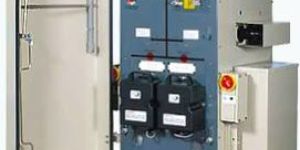

Ring main unit features rmu-11kv & 22kv sf6vcb circuit breaker.

We offer power transformer. Technical specifications ratings upto- 20 mva voltage class- upto 33 kv no of phases upto- 3 phase frequency- 5060 hz applicable standards- is 2026, iec 76, ansi, ieee insulating fluid- pcb free mineral oil, both inhibited & uninhibited, as per isiec and customer requirement class of insulation- class a tap changer- octc, oltc, as per customer requirement assured features highest dielectric insulation property to withstand lightening impulse. Pre heating of coils under vacuum as to achieve desired compression height and maximum shrinking of coils. Permali wood clamping rings for uniform compression of primary and secondary windings. Coil clamping screws for sustaining high mechanical strength due to short circuit forces. Adequate ducts between layers, coils, discs for maximum oil flow and reduced hot spot temperature. Step-lap designed crgo laminations for lower losses and excitation current.

We are offering porcelain rewireable kit kat fuses, rated voltage : 415 v rated frequency : 50 hz rated insulation voltage : 500 v rated current rating : 163263100200 amp.

Modular switches and solution switches & sockets outlets bell press & double pole switches tvtelephonedate outlets dimmer & fan regulators.

Lt switchgears and control gear mcb,db, rccb, isolator, rcbo mccb, acb contactors, relays plug & sockets energy meters & monitoring systems. Energy meters & monitoring systems.

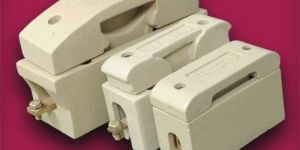

Kit-kat fuse features fuse base & carrier both are manufactured from high grade porcelain. fuse base & carriers are available from 16a to 500a different rating and design as per g.e.b specification. providing for bus bar connection & cable connection both end in different rating units. porcelain rewireable kit kat fuses rated voltage : 415 v rated frequency : 50 hz rated insulation voltage : 500 v rated current rating : 163263100200 amp.

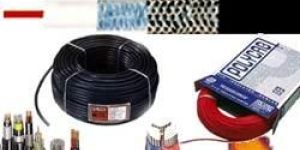

We are offering high tension cables, wires and lt, ht, and ehv cable building wires fr/frls lt pvc/ xlpe power & control cable ht cable upto 33 kv ehv cables 66kv to 550 kv.

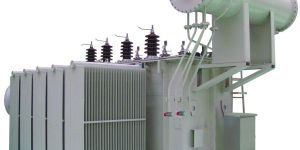

Distribution transformer. Technical specifications ratings- upto 5 mva voltage class- upto 33 kv no of phases- upto 3 phase frequency- 5060 hz applicable standards- is 2026, iec 76, ansi, ieee insulating fluid- pcb free mineral oil, both inhibited & uninhibited, as per isiec and customer requirement class of insulation- class a tap changer- octc, oltc, as per customer requirement assured features highest dielectric insulation property to withstand lightening impulse. mechanical design to withstand short circuit forces arising during faults. optimum oven heating under vacuum as to achieve desired compression height and maximum insulation resistance (ir) to windings. adequate ducts between layers, coils, discs for maximum oil flow and reduced hot spot temperature. step-lap designed crgo laminations for lower losses and excitation current. pre compressed insulation material for minimal moisture absorption.

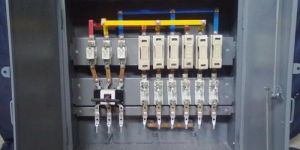

Distribution box with kit-kat technical specifications kva rating- 63 kva 100 kva voltage- 433 v frequency- 50 hz phases3 phase- solidly grounded neutral approximate full load current of transformer 84 a 133 a no outgoing circuits 2 nos note: specification of lt db will be depending upon the area and its type.

CT-PT Product Range Our product range varies from Low Voltage to High Voltage Current and Voltage Transformers with multiple applications. Our various products Outdoor Oil Cooled Current and Voltage Transformers upto and including 132kV. Outdoor Combined Unit of Current and Voltage Transformers upto and including 33 kV. Resin Cast, Indoor Current and Voltage Transformersand Residual Voltage Transformers upto and including 33kV. High Current Ring Type Current Transformers upto 20,000A, 22kV system voltage for Generator Busducts.

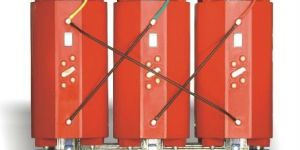

we offer Cast Resin Transformer. Description These Transformers are specifically needed in distribution network for feeding basements or stilts of high-rise buildings, hotels, Malls, stadium, air ports, chemical & refinery plants. Following are the dimensional weight & quantity details along with standard losses for conventional 11KV,& 22kv Dry Type (CRT) Transformer (off circuit Type). Technical Specifications Duty Type- Outdoor Indoor Ground Mounted Type Voltage Class- UPTO 33 Kv No of Phases- 3 Phase Frequency- 5060 Hz Vector Group- Dyn1 or Dyn5 or Dyn11 or any specific Class of Insulation- F or H with Temp Rise of 90 or 115 Deg C or as per customer requirement Tap Changer Type- Off Circuit Type or On Load Type Tapping Range- + 2.5% X 2 for OCTC or + 2.5% X 2 & - 2.5% X 6 for OLTC or as per customer requirement Winding Material- Aluminium Or Copper with multi paper covering Applicable Standards- IS 11171, IEC 60726 Enclosure Painting- Powder coated with RAL 7032 Shade or as per customer requirement Assured Features Windings are electrically balanced to minimize axial short circuit forces. Coils are held rigidly in place between insulators clamped to the upper and lower core frames under high compression. Precise casting under vacuum ensuring low partial discharge. Smooth surface finish and robust construction of MV & LV cast Coils. Adequate ducts between coils, discs for maximum air flow and reduced hot spot temperature. Step-lap designed CRGO laminations for lower losses and excitation current.

We offer cable jointing kits. lt cable jointing kits for 1.1 kv cables heat shrink termination & straight through kits cold shrink termination & straight through kits push on termination & straight through kits tapex straight through kits kastex termination kits
