Cast Steel Valves Dealers in Navi Mumbai

• Country of Origin: India
• Design: ASME B 16.34 / BS1873 / IBR
• Pr. & Temp Rating: ANSI B 16.34
• Face to Face & End to End Dimensions: ASME B 16.10 (upto 18″)
• Flange Ends: ASME B 16.5
• Butt Weld Ends: ASME B 16.25
• Testing: API 598 / EN 12266 PART 1 (BS 6755 PART 1)

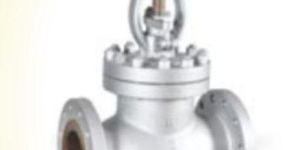

The IVGLC range of globe valves incorporates state of the art design features to provide a rugged construction, reliable operation and long life. These valves are suitable for normal services to most belligerent applications covering all segments of the process industries including oil & gas, refineries, petro chemicals, fertilizers, power plants and common utilities. An ideal valve for the flow isolation as well as flow regulation duty.Our valves can be provided with special features like water sealed gland for vacuum service, bypass arrangements for pressure balancing, special cleaning for oxygen service, multi-start spindle for low effort operation, extended spindle / bonnet for pit mounted / low temperature service &  NACE compliant materials for sour service in petroleum industries, etc.The valves can be provided with a motor operation wherever required. The high pressure range incorporates a pressure sealed bonnet design for reliable scaling.Key Features : The product designs are in accordance to ASME B16.34 / BS 1873 / IBR with reliable sealing & sturdy construction to ensure excellent performance. Outside screw & Yoke (OS & Y) construction. Back Seat arrangement to provide isolation of stuffing box for on-line serviceability. All trim material available as per API 600.. Pressure sealed bonnet for ASME #900 and above to provide excellent sealing against increased line pressure. Self aligning disc is provided for proper sealing. Full range of Body / Bonnet & Trim material available. Valve Bypass / Deep stuffing box arrangement optionally available. Valves are available in Flange End & Butt Weld End connections (Other end connections can be provided on request). Gear / Electrical operator can be provided if required. Locking arrangement can be provided with hand wheel / Gear operator, if required. Position indicator / limit switches for ON-OFF indication provided on request. Parabolic disc can be provided on request.

  Compensator Steel Plug Valves (bottom entry) & Lubricated Plug Valves (top entry) comply with the Specifications of API 6-D & API-599. Mechanical and pressure Balance fixture to avoid jamming of the plug. Flanged RF or RTJ ends, Threaded ends or Butt Weld ends. Meets Fire Test in accordance API-6FA. Flanges in accordance ANSI/ASME B16.5. Hand-wheel, Impact Hand-wheel, Chain-wheel, Gear operation, Electric, Pneumatic or Hydraulic Actuation as per Customer requirements. Bi-directional. Test in accordance API-6D.
