Conductivity Controller Dealers in Navi Mumbai

• Features: Microprocessor based for fast and accurate measurements. Weatherproof Case and Compact Design (IP 54) Programmable Relay & 4 to 20mA Outputs with user defined Hysteresis Programmable High & Low Alarm functions Etc.

TDS Conductivity are the primary controlling parameters for any process used in a wide variety of industries ranging from water, chemical, pharmaceutical, food processing etc. Our online controllers are used to monitors these process parameters continuously and helps to take corrective action with its relay & current outputs. These reliable, accurate and robust meters are designed with a compact housing which fits in standard industry panel. Also these meters can be easily calibrated and can display multiple parameters at the same time.

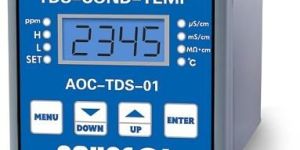

We are offering conductivity controller. This instrument is a panel instrument for on-line monitoring of industrial process conductivity. Range switch over and constant check can both be freely set and adjusted through the operation component on the rear panel; unique signal collecting and processing technology and special thick film circuit are adopted to make measurement accurate and operation stable; there are also other features such as linearized data, automatic temperature compensation, not subject to the length change of cable and maintenance-free. It has control function, including setting of over limit of conductivity, and the outputs are control contacts. It’s an ideal auxiliary instrument of various types of small pure water equipment sepicification: measurement range: 0~20, 0~200, 0~2000 (μscm) optional accuracy 1.5% (fs) stability ±2 × 10-3 (fs) 24h display mode back light 3.5 lcd digital display auxiliary electrode 1.0cm-1 plastic electrode thread dimension 12″pipe thread control output mode single relay contact (normally open) contact capacity 5a250v ac ( with resistive load) environment conditions temperature: 0~50; relative humidity: ≤85% temperature compensation automatic compensation with 25 as the reference temperature. Cable length 5m or on other agreement (5~30m) temperature compensation automatic compensation with 25 as the reference temperature power supply ac 220v ±10% 50hz cable composition rvp+coaxial 75-2 double shielding operation pressure of conductance cell 00.5mpa cable length 5m or on other agreement dimensions 48 × 96 × 100mm (height × width × depth) slot dimensions for installation 45 × 91mm (height × width)
