Current Transformers Dealers in Navi Mumbai

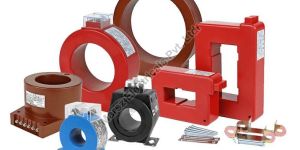

We are offering current transformer. Tiepl series current transformers are made with selected core materials to suit different applications,. Ct`s & pt`s upto 36 kv tape insulated resin casting asb casing ring type bar type accuracy class 0.2, 0.5, 0.5s, 1, 5 etc rated burden 0.1 va to 25 va tailor made specifications as per is 2705

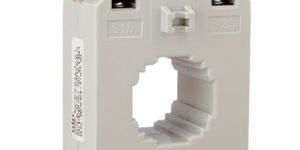

ABS Moulded, Ultrasonically Welded Current Transformers in various apertures for Cable and Bus bar mounting. Features: ABS plastic moulding Apertures accepting a wide range of bus bar CTs are ultrasonically welded and unbreakable Adwantages: Easy bus bar mounting Highly cost effective Applications: Switchgear Distribution System Generator sets Control panels Control Devices Overload Protection

MECO Split Core Sensor's have a high secondary to primary turn ratio. These sensor's give a standard 5A AC or 1A AC output (any one only) which is suitable to conveniently measure on Single Three Phase Circuits with good stability and high anti-interference ability. It is ideal for power and energy measurement with high precision and small phase angle error in applications related to electric power, communication, monitoring and control. it can measure a variety of electric parameters without removing cables.

• System Voltage: 720V maximum

Rated Primary Rating: 30 to 600A, Rated Secondary Output: 5A, Rated Burden: 1.5 to 5VA, Accuracy: 1 to 5, Operating Frequency: AC 50Hz 60Hz.

• Dielectric Strength: 2.5KV at 50Hz for 1 min
• Dielectric Resistance: 100M Ohms @ 500V DC
• Working Frequency: 50 - 400Hz
• Ambient Temperature: -25˚C

Electronic energy meter, power transducer, precision power meter and other power and energy monitoring devices, Over current protection circuit of motor and other electrical appliances.

• System Voltage: 720V Maximum
• Certification: CE
• Feature: Applicable for bus bar with aperature upto 100mm
• Rated Primary Rating: 30 to 4000A
• Rated Secondary Output: 5A
• Rated Burden (VA): 1/1.25/1.5/2.5/3/3.75/5/7.5/5/10/15
• Accuracy: 0.5/1/3/5
• Operating Frequency: AC 50Hz / 60Hz
• Mounting: Panel Mount/DIN Rail Mount (Optional Accessory )
• Applicable Standard: IEC 61869-2

We deals in manufacturing of wide range of current transformers

Current Transformers, Multifunction Meters, Energy Meters

Current Transformers, CONTROL TRANSFORMERS, Ignition Transformers

Current Transformers, Distribution Transformers, Potential Transformers

Current Transformer Oil Cooled, Computer AMC Services, repairing tools

Current Transformers, Potential Transformers, Reactors, choke inductor

Counters and Current Transformers, electrical metering

Ring current transformer, Isolation Transformers
