Data Loggers Dealers in Navi Mumbai

• Feature: Long lasting , Non-interrupted functionality , User-friendly interface

Memory for 32,700 readings,LCD to show logging information easily,Free selectable measurement cycle from 1sec to 24hrs,Battery life: more than 3 years (Under Ideal condition at 22oC),Display all status for Alarm and Record through 2 LED’s,Alarm display if user-defined maxmin values are exceeded,Analysis software used to view graphically or Text mode for logging data,USB Computer Interface (Advanced Software Program for all windows)

• RANGE:: -30℃ TO 70℃.
• DISPLAY:: MULTIFUNCTION LCD.
• RESOLUTION:: 0.1°C
• RESPONSE: TIME: 11 MIN.
• BATTERY LIFE:: CR2032/REPLACABLE BY CUSTOMER.
• DATA STORAGE:: 32000 VALUES.
• BRAND:: TEMPMATE.

Description Monitoring your cold chain – It’s easy with tempmate.®-M1 temperature data loggers tempmate.®-M1 data loggers were especially developed for monitoring temperature-sensitive products throughout the entire cold chain. Thanks to customer-specific settings being made directly in our factory, the tempmate.®-M1 data loggers are ready for immediate use recording the relevant refrigeration data. Automatic PDF report The automatically created PDF report contains extensive information that you can use to assess the goods being monitored: data curve, statistical values such as MIN, MAX, AVG, MKT and every single measurement value shown in table form. Your benefits from our temperature data loggers at a glance Transparent recording of temperature fluctuations within a cold chain Economical and reliable Very small and light: can be inserted into virtually any package Multi-Use No additional software required for analyses Detailed analysis with chart and table Secure and easy download of encrypted data files Display shows the status The innovative Multi-Use data logger tempmate.®-M1 with integrated USB port is the ultimate data logger for economical temperature monitoring of your stationary refrigerators and transported goods.For carrying out the analysis, the tempmate.®-M1 is connected directly to the USB port. A PDF report is then automatically generated. This shows the temperature profile as well as all individual values plus statistical information. No hardware (such as cables or interfaces) or software required.In order to adjust the data logger’s settings or analyse the measurement data, the free tempbase.®-D software is required.

• Weight: 5.8 oz (165 g)
• Memory Size: 0 or 2 universal inputs: 62,000 readings; 4 universal inputs: 128,000 readings
• Battery Life: 6 years (approx.)
• Agency Approvals: CE, RoHS.

The Series UDL Universal Input Data Loggers are available with 0, 2, or 4 universal inputs. Each universal input can be individually configured to accept a thermocouple, RTD, thermistor, voltage, or current input. All Series UDL data loggers have an internal temperature sensor and a digital input which can be used as a trigger to start logging or as a pulse counter for interfacing with flowmeters or other sensors with a pulse output. Optional features include an internal humidity sensor, an LCD display, and an external humidity and temperature sensor. The Series UDL loggers interface to the USB port of a PC. The unit includes software, USB connection cable and installed battery.

A chart recorder is an instrument used to record various process and electrical signals. The most traditional chart recorders record data on paper.

• Power supply: 90 to 270 VAC
• Inbuilt transmitter: 24 DC supply

Pressure recorders its terminator MTR Series Circular Chart Recorders for recording & monitoring of process parameters like Temperature humidity, Pressure Vacuum, flow & pH Graph size available 6”, 9” and 11” & Model MW 600, MTR 900, MTR 1000, in 1 or 2 Pen continuous marking. It is micro controller based unit and stepper motor driven pen & chart Movement.

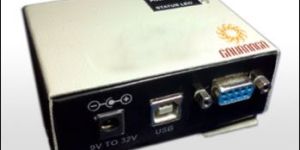

Serial Data Logger is an easy to add data storage to any device or system. The SDL-01 is a compact, rugged device that captures data from any device equipped with a serial port and stores it in FAT16 to FAT32 compatible files on a Secure Digital card. It also has an USB port with standard Mass storage driver, which can emulate the device as USB pen drive, for retrieving the files. Features: • Low-power consumption • Low-cost • Built in RTC • Standalone unit • USB Mass storage Port • Industrial real-time export capabilities. • Support text, raw, binary data and protocols • Use any baud rate, number of data bits or stop bits, parity, hardware and software flow control. • Programming is not required to configure the software to collect data.

• Weight: About 8.0kg
• DC voltage: ±13.8mV, ±27.6mV, ±69mV, ±200mV, ±500mV, ±2V, ±5V Built-in voltage divider (option): ±10V, ±20V, ±50V
• Input designation: SIngle scale (standard), double / triple scale (option)
• Accuracy ratings: DC voltage input: ±0.25% of input span Thermocouple and RTD: ±0.5% of input span (except for some inputs)
• Indicating resolution: Approximately 1/3,600
• Chart paper: Fanfold type, effective chart width 180mm, total width 200mm, total length 20m
• Recording points: 1, 2, 3, 4, 6, 12
• Recording systems: Ink pad dotting 1: Red, 2: Blue, 3: Sky blue, 4: Green, 5: Brown, 6: Purple, 7: Orange, 8: Gray, 9: Blue, 10: Greenish brown, 11: Scarlet, 12: Violet
• Chart speed: 12.5, 25, 50, 75, 100, 150mm/h
• Dotting interval: 6 seconds/point
• Chart speed accuracy: ±0.1% (based on chart paper scale)
• Power supply: 100 to 240VAC, 50/60Hz
• Ambient temperature: 0°C to 50°C
• Ambient humidity: 20 to 80%RH (no dew condensation)
• Illumination: With LED lamp, 3 levels of brightness, and lights can be OFF.
• Power consumption: Maximum: 20VA (100V AC), 25VA (240V AC)

• Features: 24X7X365 days recording. , Web Streaming

vLogger is a powerful broadcast and media application used by customers for recording, monitoring and archiving their broadcasted content. vLogger captures and stores your broadcast signal 24x7 to meet all your business needs. It allows the logged video to be viewed on any standard PC using a dedicated application or a web interface. All recordings are segmented and indexed with basic metadata attached automatically and is made available for remote browsing immediately.

• Features: Real time, 24/7/365, continuous battery system monitoring System integration flexibility with advanced notifications High return on investment

The Midtronics CELLGUARD™ SYSTEM combines wireless communication with patented, field proven battery conductance analysis technology. It lowers total cost of ownership while providing the most thorough and easy to access stationary battery health diagnostics offering

Provides Enhanced Features for Data Acquisition or Multi-zone PID Control Applications Supports up to 16 Modular Controller Modules Stores Module Configuration Information and Automatically Reprograms Replaced Modules Protocol Conversion Feature Converts up to15 Protocols Simultaneously Extensive Built-in Driver List Allows Easy Data Mapping to PLCs, PCs, and SCADA Systems 2  RS-232 Serial Ports 1 RS-422/485 Serial Port 10 Base-T/100 Base-TX Ethernet Port Independent Serial Ports Provide Virtually Unlimited Integration Methods CompactFlash ® Slot Allows Process Data to be Logged Directly to CSV Files

• Display: 2 row four digit 7 Segment LED
• Brand Name: DPM
• Memory: 256 KB
• Features: Channels skip Facility,Auto/Manual mode
• Dimension: up to 8 channel 96(H) x 96 (W)x 130 (13) More than 8 channel 96 (H) x 184 (W) z 130 (D) Mounting
• Programming: Through 4 tactile keys 81 Special Function
• LED Indication: Scan Status, Relay Status, Communication Status, Input status
• Connectivity with PC: RS-232 / RS-485 / USB / Printer Port
• Sensor Inputs: ROD / Thermocouple (J,K,R,B,N )
• Communication Protocol: Modhus WIZ / Modous ASCII
• Logging Intervals: Minutes/Seconds
• Enclosure: Metallic enclosure/ Flame proof
• Power consumption: Less than 5 VA
• Alarm Relay: Common Alarm (High/Low)
• Relay Contact Rating: 5A/230VAC
• No. Of Channels: 4/8/12/16 Memory
• Linear Inputs: 4-20mA, 0-20mA, 0-1VDC, 0-5VOC, 0-10VDC
• Supply Voltage: 190 - 270 VAC,50 Hz
• Operating Temperature: -10 to 80 DegreeC Humidity 0 to 90% (non-condensing)

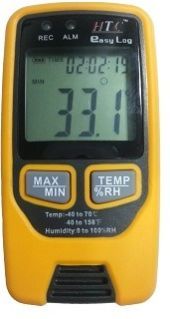

We are offering humidity data logger. Fast response time (0.1 min) windows compatible software, data downloading & presentation, in-built memory, flameproof box available, multiple communication modes
