Dhanvanthri Engineers Pvt. Ltd TTC Industrial Area, Navi Mumbai, Maharashtra

Sometimes also called as Escaveyors, are used for Box Carton Lifting chain conveyor for Horizontal Vertical transport. Unit + On-Floor + No Accumulate. Used for low-frequency intermittent vertical transfers. Carrier used to raise or lower a load to different levels of a facility (e.g., different floors andor mezzanines). Differs from a freight elevator in that it is not designed or certified to carry people. Can be manually or automatically loaded andor controlled and can interface with horizontal conveyors. Also called: Conveyor Integrated Continuous Lifts (CICL) Vertical Reciprocating Conveyors (VRC) Continuous Vertical Lifts (CVL)

Cooling tunnels maybe fabricated – two blowers force ambient or outside air in while drawing the heated air from the parts out the opposite end. Simply passing air over a part results in significantly faster cooling.

Carrying and Moving Toughed Belt for material conveying with Belt resting on transom Angular rollers or Bent sheet slide bed with structure and supports complete with drive units. Trough Belt Conveyors are designed to leverage the open frame and trough effect of the rubber belt to fully contain the load of materials. Trough belt conveyors are the most widely used and efficient means of moving bulk materials because they are manufactured to Convey high tonnage of materials, handle a gradual curved concave or convex incline path over long runs, convey horizontal …

Orientation Changing Mechanisms for Heavy components or for ony container emtying function using Pneumatic or Electrical sub-assemblies for the Tilting, Tumbling, Upending, Lifting, Turning operations.

Flat Belt Conveyor mounted with Extra set of pushing and retracting Pulleys to create a telescopic effect of the belt.   TELESCOPIC BELT CONVEYOR – TRUCK LOADING/UNLOADING Telescope in retracted condition. >>>>>> Telescope in extended condition. This type of Belt conveyor is mainly used for loading or unloading of unit loads in the form of boxes or bags from the transport vehicle to the Dock. The length of the telescopic boom is equivalent or lesser than the length of the base conveyor in order to balance the load. The width of the belt and the speed of the conveyor can be as per requirement but maintained within safe limits depending on the application. Applications: For Truck Loading and Unloading   Effective Sizes: Belt: 300mm to 800mm Wide Boom: From 'X' to '1.75X' Length   Equipment Type: Telescopic Belt Conveyor   Industries Catered: Warehousing Process Industry Any   Materials Conveyed: Cartons Bags and Sacs Unit Loads   Method: Manual Mechanised   MOC Available: Belt: PVC Green, PU : Structure: M.S., S.S. 304

Spiral conveyors are ideal to transfer loads from level to level quickly and efficiently, without interrupting the conveyor process, without extra manual handling or transfers to other equipment. They’re ideal for entresol, for multilevel buildings, or elevated conveyor lines. Convey cartons, totes, or any other load from level-to-level with unit load spiral conveyors

Spiral conveyors are ideal to transfer loads from level to level quickly and efficiently, without interrupting the conveyor process, without extra manual handling or transfers to other equipment. They’re ideal for entresol, for multilevel buildings, or elevated conveyor lines.Convey cartons, totes, or any other load from level-to-level with unit load spiral conveyors

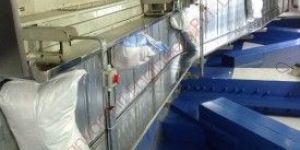

Slat Plate connected to Roller Type Chain with detachable attachment for creating accumulation of slats at intervals. Assembly Lines Testing Lines Packing, From 200mm to 1200mm Wide, Automotive Components Electrical Components Unit Loads, Slat: M.S. Plate or frame with Corner Rollers; Structure: M.S., S.S. 304, Aluminum.

Slat Plate connected to Roller Type Chain with detachable attachment for creating accumulation of slats at intervals. Automotive Components Electrical Components Unit Loads

Controlled Atmosphere conveying with Minimum Spillage and with Dust extraction nozzles and rubber based seals for protection of conveyed material.

These types of conveyors are basically for bulk materials with variable properties depending on the application. They can be sealed against dust or moisture, jacketed to act as dryer or cooler.

Rope Drum Hoist are used for bi-direction movement and for lifting of very heavy loads. Finds use for control of heavy dam-gate; while Units with Marine standards are meant for hrbour use and on ships.

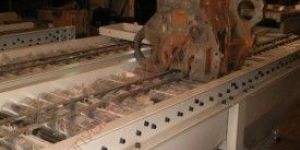

Powerised Roller Conveyors are used to carry load at controlled speed. Roller to Roller transmission chain driven roller conveyors are used where the properties of the item are not suitable for easy movement with gravity and also where dirt, oil, grease and other contamination are present. The driving chain or chains are at any one end of the rollers and are covered from the surrounding environment. These conveyors can be designed for a accumulating type of equipment by converting the rollers into a power & free type of configuration. Machined Pipe Rollers with End Bearings, Welded Sprockets, common shaft and mounted at certain pitch on structure. The inclined power conveyor increases usable space by utilizing basements, mezzanines, lofts, and other limited access areas; providing an uninterrupted flow of goods to and from these areas.

Flat Belt Conveyors with Centre Drive for Forward/Reverse Movement and Mounted on Powerised Trolley for Left/Right.

Powerised Roller Conveyors are used to carry load at controlled speed. Roller to Roller transmission chain driven roller conveyors are used where the properties of the item are not suitable for easy movement with gravity and also where dirt, oil, grease and other contamination are present. The driving chain or chains are at any one end of the rollers and are covered from the surrounding environment.These conveyors can be designed for a accumulating type of equipment by converting the rollers into a power & free type of configuration.

Machined Pipe Rollers with End Bearings, Spring actuators, Cone Couplings, Welded Sprockets, common shaft and mounted at certain pitch on structure. ZLP type: Wherever it is undesirable to have loads accumulating against one another, Zero Line Pressure versions enhance the flexibility of our powered roller systems, thus enabling the non-contact accumulation of goods. With the use of a simple electro magnetic brake, this zero line pressure arrangement negates the need for a complicated control system. Lineshaft conveyor systems are purposely used when situations require back to back accumulation, but with as little pressure on the leading product as possible. This occurs via the design of the system which is that the lineshaft which is driven by the motor doesn’t drive the belts directly but turns inside a nylon spool, driven via elastomer belts. By stopping the package on the roller the spool stops. This type of system is generally used in such places where final production stages require the packaging of products into cardboard / tote boxes. Therefore lineshaft powered roller conveyors are generally sought in warehousing / packaging environments Applications: Conveying Accumulation Stop and Go   Effective Sizes: From 48mm to 60mm Dia   Equipment Type: Power and Free Roller Conveyor   Industries Catered: Automotive Warehousing Oil Industry Any   Materials Conveyed: Automotive Components Pallets Drums Cartons   Method: Mechanised Automated   MOC Available: M.S., S.S. 304 Pipe

Cooling tunnels maybe fabricated – two blowers force ambient or outside air in while drawing the heated air from the parts out the opposite end. Simply passing air over a part results in significantly faster cooling. Why you need paint spray booth ? LAW : There is a statutory requirement under the Factories Act that adequate ventilation be installed wherever spray painting is carried out. SAFETY : Spraying paint may involve fire risk from both solvent and overspray deposits. A spray booth is essential to dispose off both.

Flat Belt Conveyor moving at centre with both side stationary Tables to suit requirement of operation on conveyor.

Packing Station With Roller Conveyor is a wide range of pick and pack tables for assembly lines made specifically for your products. Increasing efficiency in your packing.Packing stations can be designed to suit most applications, they take up no extra room and enable the operator to perform a number of tasks in a small area.

Flat Belt conveyor Pivoted at Rear end and having two positions at discharge end actuated by pneumatic cylinder at specified time cycle based on PLC Control Logic and sensors.

Multi-Tier Conveyor  allow the option to expand the conveyor line upward.Perfect for delivery and take-away systems or inspection systems, unfinished or uninspected packages can be delivered on one conveyor, then placed on another conveyor when finished.Conveyors can move in different directions and at different speeds.

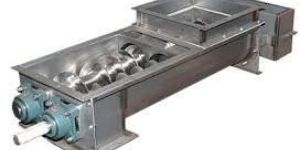

W’ or Multiple ‘U’ Shaped Rolled Trough with Inner Screw Flights with Specific Diameter and Pitch connected to End Plates,Rubber Chemicals Process Industry Detergents Any,Powders Granules Rubber Chemicals Bulk Materials
