General Instruments Consortium Kamothe, Navi Mumbai, Maharashtra

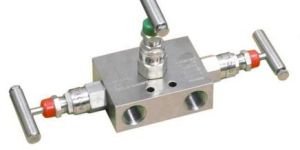

designed for applications to facilities remote mounting of differential pressure instruments. dimensions shown above are for the standard 54 mm or 2 18 inch instrument connection centre distance found in majority of instruments. the manifold is also available for instruments with other centre distances for instrument connections (as 55mm,56mm and 57mm) but dimensions shown will vary.

Brand Name : G3VMPP1

Material : A105,A182 GR F304, A182 GR F 316 Monel, Hastelloy, Duplex

Media : www.generalinstruments.co.in

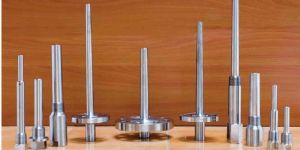

Thermowells are provided to protect the basic sensor from mechanical damage and corrosion. An extremely sturdy design may increase the life of the sensor but may lead to a poor response. Similarly, a delicate design will have poor life but will improve the response time. Therefore, a proper balance needs to be struck. Barstock thermowell is normally offered upto as insertion length of 600mm. Fabricated Thermowells are recommended above 600mm.

Safety pattern all ss construction theses pressure gauges are well suited for the process industries such as chemicals, petro chemicals, energy or gas industry, food processing, nuclear, etc these gauges have been provided with a solid baffle wall and blow out back which immediately releases the pressure in the enclosure in the event of an accidental rupture of the sensing element. For more details please visit our website: www.generalinstruments.co.in

Brand Name : General

Certification : ISO 9001, ISO 14001, ISO 18001

Accuracy : +/-1% FSD (0.5% on request)

Sandwich type diaphragm seals are the most commonly used diaphragm seal. The diaphragm is sandwiched between top chamber & bottom chamber flange.these are available threaded as well as flanged process connection. For low pressure range and smaller flange sizes, "i" section type diaphragm seals are used. For more details visit our website : www.generalinstruments.co.in

Brand Name : General

Certification : ISO 9001, ISO 14001, ISO 18001

Reflex level gauges applicable upto 200 kgcm2 and upto 400 deg cent cryo applications upto-196 deg cent toughened borosilicate glass with swerrations for applicability in critical, acidic, cryo and temperature zone ibr certified device available nace,h2s service compatibility applicable.

Suitable for receiving pneumatic signals of level and flow transmitters. Compliance to latest en-837 standard input range: 0.2 to 1kgcm2 or 3 to 15 psi accuracy+- 1% fsd (standard), +-0.5% fsd on request

Certification : ISO 9001, ISO 14001, ISO 18001

Color : www.Generalinstruments.co.in

General has been designing and manufacturing reliable, high quality pressure switches and differential pressure switches for accurate control of the process equipments to suit to most of the industrial applications in various process industries including oil, gas, power, steel, chemical, petrochemical, soap, cement, paper, sugar, pharmaceutical etc. Generally pressure switches are available with sensing element of bellow, diaphragm & piston and differential pressure switches with sensing element of diaphragm. Rigorous and continuous tests are conducted for design and quality conformance. For more details please visit our web site: www.Generalinstruments.co.in

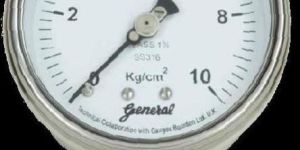

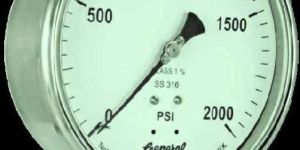

Pressure gauges intended for process industries such as chemicals, petro- chemicals, enrgy or gas industry, food processing, nuclear, etc. These pressure gauges have been designed to satisfy requirements to operate in aggressive environment. Also we are certification with ce & atex certificate. For more information please visit our website: www.generalinstruments.co.in

Brand Name : General

Material : SS 316/L, Monel,Brass

Certification : ISO 9001, ISO 14001, ISO 18001

Accuracy : +/-0.5 / +/-1 FSD

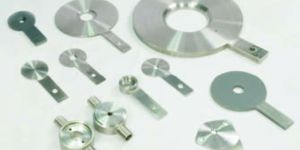

General's orifice plate is a thin plate with a hole in the middle or edge depending on design as per application. It is usually placed in a pipe in which fluid flows. When the fluid reaches the orifice plate, the fluid is forced to converge to go through the small hole; the point of maximum convergence actually occurs shortly downstream of the physical orifice, at the so-called vena contracta point. As it does so, the velocity and the pressure changes. Beyond the vena contracta, the fluid expands and the velocity and pressure change once again.by measuring the difference in fluid pressure between the normal pipe section and at the vena contracta, the volumetric and mass flow rates can be obtained from bernoulli's equation.

Brand Name : General

Certificate : CE, ATEX,CRN

Designed for used in applications for throtting purpose and straight shut off of liquids, gas or vapour service. These needle valves are available with a variety of end connections and stem packing.

Brand Name : General

Designed for use in purpose applications for throttling and straight shut off of liquids, gas or vapour service, these needle valves are available with a variety of end connections and stem packing. For mor details visit our website: www.generalinstruments.co.in

Brand Name : General

Material : Model : NV M/F

Accuracy class+_ 0.25% fsd rugged construction 1.2 fold over range capability for short duration traceability to nationalinternational standardlaboratory special carrying case (wooden box) with each gauge.

Certification : ISO 9001, ISO 14001, ISO 18001

Liquid filled system based on liquid (other than mercury) expansion principle is used for measuring temperature ranging from(-)30°c to 250°c. It has faster response and the same is available in rigid stem as well as capillary type for remote sensing. Every angle type can be offered in all ss construction. Generally used where mercury type thermometer is not used in industries such as food, pharmaceutical, etc. The main advantages is its minimum immersion length required for sensing (as low as 30mm suffices for proper sensing thereby making it ideal for installing in lower line sizes)

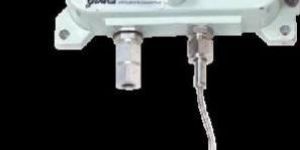

Indicating temperature switch combines indication with switching (in order to make or break the associated electrical circuit). Can be offered with contact assembly as well as microswitch (as a combination of switch and movement) For more details visit our website: www.generalinstruments.co.in

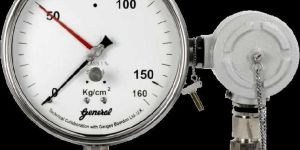

Combination of indication and switching choice of electrical contacts and microswitch one or two contacts available switch setting throughout the range externally high repeatability and low hysteresis weatherproof or flameproof hosung mil connector provided optionally. For more details please visit our website : www.generalinstruments.co.in

Model Number : IPSH/LFIPSH

Brand Name : General

General has been designing and manufacturing high quality differential pressure indicating switches to suit to most of the industrial application for accurate control of the process equipments. Rigorous and continuous tests are conducted for design and quality conformance. For more details visit our website: www.generalinstruments.co.in

Brand Name : General

Accuracy : Bellow type with Micro switch:+/- 1% FSD(for Indication) & +/-2%FSD (for Switching)

Gas filled temperature gauge overcomes most of the limitations of other members of family. It is offered in a very wide temperature range i.e. (-) 200 to 80°c. Practically any stem length can be offered and capillary length as long as 25 mtr, without any loss of accuracy. Inert, non hazardous, non toxic nature of the filled system makes it virtually ideal choice of cross section of industries. For more details visit our website: www.generalinstruments.co.in

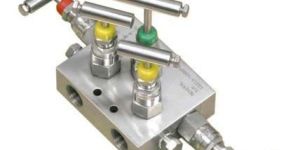

Five valve mainfold g5 vmpp-1 incorporate two process isolation valves, one equalizer valve and two drainvent valves with separate connections in a compact manifold block. The model g5 vmpp-1 is dsigned for remote mounting away from the differential pressure instrument and joined by tube or pipe impulse lines. They have threaded connections of which the most popular are detailed below but also available to suit other sizes and standards.

Brand Name : General

Material : G5VMPP1

Media : www.generalinstruments.co.in

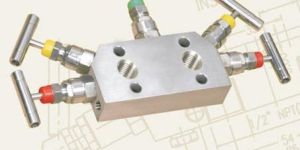

Five valve manifold model g5 vmc 1 g5 vmc2 is designed as a new series of process instrument manifold for particular transmitter models.the coplanar manifold when assembled to transmitter has the advantage of compact size with ease for operation in minimum space, thereby eliminating several components integrating the manifold to the transmitter. The coplanar manifold has two isolating valves, one equalizer valve and two vent valves and two bottom test ports duly plugged. The manifold dimensions illustrated are for standard 54mm or 2 18 inch instrument centres but available for other centres. The direct mounting facility to the base of the differential pressure transmitter results in lesser leakage points and more accurate measurements. For more details visit our website : www.generalinstruments.co.in

Model Number : G5VMC1/G5VMC2

Material : A 105,A182/A479 GR F 304, A 182/A 479 GR F 316, Monel, Hastelloy, duplex

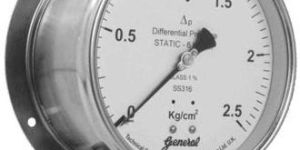

Bellow type construction. Reference standard : EN-837. All SS internals. Chemical seal unit (optional) for process suitability. Accuracy+- 1%FSD. A set of two stainless steel bellows mounted on a force balance enables direct reading of the actual differential pressure. Each bellow of the pressure without any damage or shifting being caused to the instruments. For more information please visit our website: www.generalinstruments.co.in

A diaphragm seal is a device in which a flexible membrane (diaphragm)seals and isolates the measuring instrument from the process medium. The instrument side of the diaphragm is filled with appropriate fluid. The pressure exerted by the process fluid on the Diaphragm is hydraulically transmitted through the seal fluid to be the pressure sensing element. Diaphragm seal protects the pressure sensor from the harmful and hazardous effect the process fluid.

Brand Name : General

Certification : ISO 9001, ISO 14001, ISO 18001

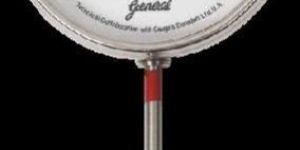

The bimetal thermometer employs a bimetal strip in the form of helix(it works on the principle of thermal expansion- two metals having different coefficient of expansions are joined to form a bimetal. The resultant expansion of bimetal is proportional to temperature). Bimetal dial thermometers are simple in construction, yet rugged. They are used for measurement of temperature in most of the industrial applications. They are offered in the range of (-) 50°c to 600°c. With rigid stem having bottom or back entry. It can also be offered in every angle rotatable construction.
