ISHAR HOIST & CRANES PVT. LTD. Mahape, Navi Mumbai, Maharashtra

Capacity range from 1 Ton. to 25 Ton.Automatic double pawl braking system.Light weight robust construction.Low effort to lift maximum load.Double cover protection.Alloy Steel Grade 80-Load Chain.Zinc plated hand chain as standard.Built in overload protection device.Each Chail Block is proof tested to 50% overload.Fully forged hooks are fitted with safety latches as standard.

Hercules single girder eot cranes are easy to maintain because of the modular design of Hercules Hoists which has a modular design and makes it possible for the crane to be maintained in its installed position.We have adjustable limit switches for our cranes and hoists of reputed makes.

Hercules single girder eot cranes are easy to maintain because of the modular design of Hercules Hoists which has a modular design and makes it possible for the crane to be maintained in its installed position.We have adjustable limit switches for our cranes and hoists of reputed makes.Hercules Cranes are load tested at 125% of the capacity at the site before handing over to our clients.

Automatic double pawl braking system.Light weight robust construction.Low effort to lift maximum load.Alloy Steel Grade 80-Load Chain.Zinc plated hand chain as standard.

electric wire rope hoist.Helical gears that run on antifriction ball bearings with lubrication made of alloy steel and hardened for long lasting and durable performance of the electric wire rope hoist.DC Fail safe Electro magnetic disc brakes which automatically operate in case of any power failure and avoid coil burn outs incase of fluctuations making the wire rope hoists able to give trouble free performance and safety.

Material lift, "LIFT UP" Cage Lift Goods Lift is a product backed by 38 years of manufacturing experience. It is manufactured under stringent inspections & quality controls, using the best quality raw material & bought outs. It is perfectly engineered to meet the clients requirements keeping in mind that it is used by such labour with little knowledge of the lift. The operation is kept very simple & markings are elaborately highlighted on the switches for the ease of the operator. The lift machine is also made keeping factor of safety in mind.

Electro mechanical door interlocks with limit switches are provided on collapsible gates. Lever type limit switches are provided on each floor. In addition to above limit switches a very sensitive counter limit switch is provided (in power circuit) for over hoisting & over lowering.

Hercules overhead traveling cranes are designed and manufactured in accordance with IS 3177 OR IS 4137 and classes ranging from M1, M2, M3, M4, M5, M6, M7 and M8, considering adequate factor of safety with respect to appropriate duty classifications. The structural parts of Hercules industrial cranes are designed in accordance with IS 807.In case of double girder crane, a crab is used for hoisting and cross traversing machinery move on the top of two bridge girders. The bridge girders could be of box type construction made from rolled plates or made of standard rolled section depending on the capacity and span of the crane.

We offer flexible electric wire rope hoists. We are pleased to introduce ourselves as one of the professionally managed group of companies engaged in design, manufacturing , supply, erection & commissioning of various types of cranes, hoists, chain pulley blocks, cage lifts, etc since past 36 years.

We offer flame proof electric wire rope hoists. Flame proof electric wire rope hoists we are pleased to introduce ourselves as one of the professionally managed group of companies engaged in design, manufacturing , supply, erection & commissioning of various types of cranes, hoists, chain pulley blocks, cage lifts, etc since past 36 years.

We are offering electrical winches. We are pleased to introduce ourselves as one of the professionally managed group of companies engaged in design, manufacturing , supply, erection & commissioning of various types of cranes, hoists, chain pulley blocks, cage lifts, etc since past 36 years.

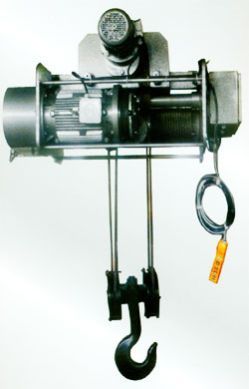

We are offering electric wire rope hoists. Design & constructional features of "hercules" electric wire rope hoists • heavy duty robust designs ensures smooth & safe operations even in the most critical applications • modular construction ease of maintenance as each component i.e. Motors, brakes, gear - box & control panal are easily accessible and maintainable in its installed position, resulting in huge saving of time and labour • manufactured in an iso 9001 : 2008 certified co. An assurance of seamless quality & interchangeability of parts • rope drum accurately machine rope drum of seamless pipe mounted on heavy duty bearings for longer life. • rope guide its unique & sturdy design ensures easy change of wire rope and prevents rope slackening • specially designed s4 crane duty motors • alloy steel precision cut case hardened gears ensuring smooth working & longer life • brakes heavy duty fail safe disc brakes. Complete safety and ease of adjustment. • control panel components of reputed make. We specifically give 24v control voltage for complete operator safety also available hoists with creep speeds, higher lifts, special application hoists & in flp construction also. Prices on request.

We are offering Cap. 0.25 Tons till Cap. 20 Tons, also avalable in high lifts till 60 mtrs. Also available in FLP Type.

We are offering electric chain hoists. We are pleased to introduce ourselves as one of the professionally managed group of companies engaged in design, manufacturing , supply, erection & commissioning of various types of cranes, hoists, chain pulley blocks, cage lifts, etc since past 36 years.

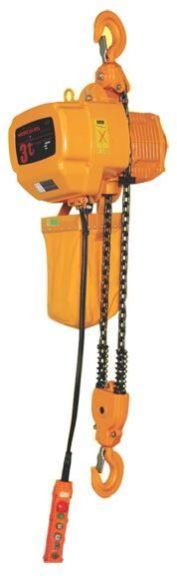

Electric chain hoist, Body Shell : Made of light aluminium alloy, this is light weight, but extremely hard. The cooling lines are specially designed to ensure quick heat dissipation. at the rate upto 40% continuously. It is oven baked Paint.The integral enclosed structure is most suitable for places like chemical & Electro Plating Plants.

We are offering eot cranes, "hercules" eot cranes •i-beam box type construction for bridge girders. •a tapered plate design is incorporated for joining the end carriages to the griders thereby ensuring smooth flow of stresses. •the end carriages are incorporated with l.t.wheels machined out of en-8 forged blanks and mounted on "l" type bearing housings with anti-friction bearings.

Ishar Hoist and Cranes Pvt. Ltd. are manufacturers of Double Girder EOT Cranes in India under our brand name HERCULES and LIFT UP. Being in this business for the past 40 years our Directors have immense experience and knowledge about these cranes. Hercules overhead traveling cranes are designed and manufactured in accordance with IS 3177 OR IS 4137 and classes ranging from M1, M2, M3, M4, M5, M6, M7 and M8, considering adequate factor of safety with respect to appropriate duty classifications. The structural parts of Hercules industrial cranes are designed in accordance with IS 807.In case of double girder crane, a crab is used for hoisting and cross traversing machinery move on the top of two bridge girders. The bridge girders could be of box type construction made from rolled plates or made of standard rolled section depending on the capacity and span of the crane.

We are pleased to introduce ourselves as one of the professionally managed group of companies engaged in design, manufacturing , supply, erection & commissioning of various types of cranes, hoists, chain pulley blocks, cage lifts, etc since past 36 years. Our products are known under the brand names of "hercules" and "lift up"

Chain blocks, Capacity range from 1 Ton. to 25 Ton, Automatic double pawl braking system, Light weight robust construction, Double cover protection.

We offer cage lift. Cage lifts specifications •"lift up" cage lift goods lift is a product backed by 38 years of manufacturing experience. It is manufactured under stringent inspections & quality controls, using the best quality raw material & bought outs. It is perfectly engineered to meet the clients requirements keeping in mind that it is used by such labour with little knowledge of the lift. The operation is kept very simple & markings are elaborately highlighted on the switches for the ease of the operator. The lift machine is also made keeping factor of safety in mind. •"lift up" cage lift goods lift are incorporated with all safety features. •cage:cage is fabricated from rolled steel section and m.s. Plates which are strong enough & robust in construction. These cage lifts are provided with collapsible doors & landing platforms. •hosting arrangement :in hoisting mechanism we are providing 24 fall wire rope reeving system which give absolute vertical movement to cage & to arrest misalignment. •cage guide tracks : special machined.

Cage is fabricated from rolled steel section and M.S. plates which are strong enough & robust in construction. These cage lifts are provided with collapsible doors & landing platforms.It is manufactured under stringent inspections & quality controls, using the best quality raw material & bought outs. It is perfectly engineered to meet the clients requirements keeping in mind that it is used by such labour with little knowledge of the lift.

We are offering geared ball baering or pull push trolleys to be mounted on i-beams for traveling with heavy loads.

We are pleased to introduce ourselves as one of the professionally managed group of companies engaged in design, manufacturing, supply, erection & commissioning of various types of cranes, hoists, chain pulley blocks, cage lifts, etc since past 36 years.
