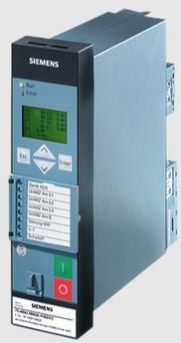

Voltage Frequency Protection Relay
We are the main supplier of this product.
Theory : Numerical
Brand Name : SIEMENS

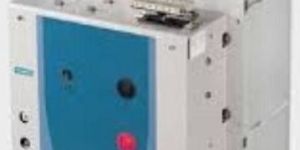

VCB Breaker Spares
Application : Industrial
Type : VCB
Brand Name : Siement
Voltage : 415 V
Current : 250A
Frequency : 50 Hz
Power Source : Electric
...more
Telecontrol Systems
telecontrol: comprehensive network information telecontrol systems based on eneas provide multi-hierarchical monitoring and remote control, as well as node functionalities on all network levels. They also permit consistent remote maintenance through process communication.one special benefit is their modular structure, with a scalable system family for all applications. This allows them to be flexibly adapted to the primary process and its spatial distribution, and ensures long-term expandability with minimal effort. All the components used are based on a shared system architecture and technology. Because identical communication functions are used, the available protocols can be employed on all telecontrol systems.as part of the evolutionary development of our solutions, we consistently aspire for upward compatibility in order to guarantee maximum investment protection and future viability. Taking this as our basis, we develop sophisticated migration concepts that allow you to cost-effectively updating the technology of the obsolete systems.
...more
Substation Automation System
70,000 Per Piece

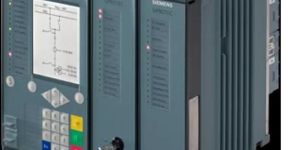

SIPROTEC 7VE85 Relay
paralleling device siprotec 7ve85 is specifically designed for the synchronization of generators (power plant units) with the power grid or synchronization of 2 electricity-supply systems. the 1.5- and 2-channel synchronization function is the made function of the siprotec 7ve85. To warrant a high level of security and reliability, the software works with various monitoring functions. In addition, the most important hardware components are duplicated. Two different measuring algorithms are used in accordance with the multi-channel redundancy. This avoids overfunctions through systematic errors. At the same time, the different methods of measurement are applied and processed independently of each other with different memory areas. The high level of reliability and flexible options to adapt to the equipment requirements allow a wide variety of applications. digsi 5 permits all functions to be configured and combined as required. stabilization function for the output of adaptive frequency control pulses synchrocheck function for manual synchronization analog output of operational measured values* commissioning (measurement of the operating time of the circuit breaker, sample synchronization) functionality for protection and network decoupling tasks undervoltage protection (ansi 27) overvoltage protection (ansi 59) voltage differential protection (ansi 60) overcurrent protection (ansi 50/51) vector jump overfrequency (ansi 81) underfrequency (ansi 81) rate-of-frequency-change protection (ansi 81r) instantaneous high-current tripping (ansi 50hs) instantaneous tripping at switch upon error power protection active/reactive power (ansi 32/37) power-plant disconnection (ansi 37) circuit-breaker failure protection (ansi 50bf) circuit breaker reignition monitoring (rbrf) extensive cyber security functionality, such as role-based access control (rbac), protocolling security-related events or signed firmware simple, quick and secure access to device data via a standard web browser – without additional software
...more

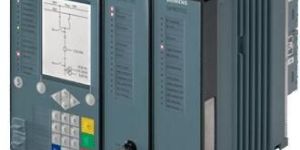

SIPROTEC 7VE85 Numerical Relay
paralleling device siprotec 7ve85 is specifically designed for the synchronization of generators (power plant units) with the power grid or synchronization of 2 electricity-supply systems. the 1.5- and 2-channel synchronization function is the made function of the siprotec 7ve85. To warrant a high level of security and reliability, the software works with various monitoring functions. In addition, the most important hardware components are duplicated. Two different measuring algorithms are used in accordance with the multi-channel redundancy. This avoids overfunctions through systematic errors. At the same time, the different methods of measurement are applied and processed independently of each other with different memory areas. The high level of reliability and flexible options to adapt to the equipment requirements allow a wide variety of applications. function digsi 5 permits all functions to be configured and combined as required. stabilization function for the output of adaptive frequency control pulses synchrocheck function for manual synchronization analog output of operational measured values* commissioning (measurement of the operating time of the circuit breaker, sample synchronization) functionality for protection and network decoupling tasks undervoltage protection (ansi 27) overvoltage protection (ansi 59) voltage differential protection (ansi 60) overcurrent protection (ansi 50/51) vector jump overfrequency (ansi 81) underfrequency (ansi 81) rate-of-frequency-change protection (ansi 81r) instantaneous high-current tripping (ansi 50hs) instantaneous tripping at switch upon error power protection active/reactive power (ansi 32/37) power-plant disconnection (ansi 37) circuit-breaker failure protection (ansi 50bf) circuit breaker reignition monitoring (rbrf) extensive cyber security functionality, such as role-based access control (rbac), protocolling security-related events or signed firmware simple, quick and secure access to device data via a standard web browser – without additional software
...more

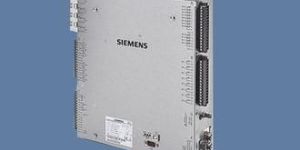

SIPROTEC 6MU80 Relay
merging unit siprotec 6mu80 for conventional instrument transformers. This device allows conversion of current substations to process bus substations without change in the primary equipment.the advantages of process bus can be used, but also a mixed configuration of process bus / non-process bus is possible.siemens process bus solutions not only fulfill the standard but increase customer value beyond. function the siprotec 6mu80 merging units are not only certified according iec 61850-9-2le for process bus applications but include a lot of additional features. Some, but not all, of the additional features are: extended temperature range (-40 ºc – 70 °c) configurable 12 binary inputs / 8 binary outputs time synchronization via pps, irig-b or gps full support iec 61850-8-1 goose prp and hsr (iec 62439) integrated web-server comprehensive engineering with digsi full integration of whole substations in process bus technology by keeping well known engineering concepts of siprotec.
...more
SIPROTEC 6MD86 Power Relay
The SIPROTEC 5 Bay Controller is a control and automation device with optional protection function. It is designed for use in all voltage levels from distribution to transmission. As a full member of the SIPROTEC 5 family, it allows the use of a large number of protection functions from the SIPROTEC library with identical parameters like in the protection devices. The flexible hardware concept enables the exact fitting to all amount of process data.Main function:Bay Controller for medium and high voltage switchgear. Integrated operator panel and key switches (optional). Powerful automation functionality, easily configurable with DIGSI. A large number of protection functions available.Inputs and outputs:-6 predefined standard variants with 8/8-current/voltage transformers,-11 to 75 binary inputs,-9 to 41 binary outputsHardware flexibility:Flexible adjustable HW IO-quantity within the scope of the SIPROTEC5 modular system. The use of a second row allows more than 400 in- and outputs.Width of housing:1/3 x 19 Inch - 2/1 x 19 Inch DIGSI 5 permits all functions to be configured and combined as required. FURTHER FUNCTIONS Integrated bay controller with versatile protection function from medium to extra-high voltage Control of switching devices Synchrocheck, switchgear interlocking protection and switchrelated protection functions, such as circuit-breaker failure protection and automatic reclosing Integrated electrical Ethernet RJ45 for DIGSI 5 and IEC 61850 (reporting and GOOSE) Up to 4 pluggable communication modules usable for different and redundant protocols (IEC 61850, IEC 60870-5-103, IEC 60870-5-104, DNP3 serial and TCP, Modbus TCP, PROFINET IO) Redundancy protocols PRP and HSR Cyber security in accordance with NERC CIP and BDWE Whitepaper requirements Arc protection Graphical logic editor to create powerful automation functions in the device Optional overcurrent protection with 3-pole tripping Also used in switchgear with breaker-and-a-half configuration Overcurrent protection also configurable as emergency function Secure serial protection data communication, also over great distances and all available physical media (fiber-optic cable, 2-wire connections and communication Networks) Capturing operational measured variables and protec-tion function measured values to evaluate the plant state, to support commissioning, and to analyze faults Phasor Measurement Unit (PMU) synchrophasor measured values and IEEE C37.118 protocol integrated Powerful fault recording (buffer for a max. record time of 80 s at 8 kHz or 320 s at 2 kHz) Auxiliary functions for simple tests and commissioning Flexibly adjustable I/O quantity structure within the scope of the SIPROTEC 5 modular system
...more

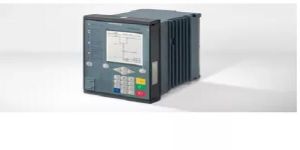

SIPROTEC 6MD85 Relay
The SIPROTEC 5 Bay Controller is a control and automation device with optional protection function. It is designed for use in all voltage levels from distribution to transmission. As a full member of the SIPROTEC 5 family, it allows the use of a large number of protection functions from the SIPROTEC library with identical parameters like in the protection devices. The modular hardware enables the user to integrate as many IO's as needed.Main function:Bay Controller for medium and high voltage switchgear. Integrated operator panel and key switches (optional). Powerful automation functionality, easily configurable with DIGSI. A large number of protection functions available.Inputs and outputs:-5 predefined standard variants with 4/4-current/voltage transformers,-11 to 75 binary inputs,-9 to 41 binary outputsHardware flexibility:Flexible adjustable HW IO-quantity within the scope of the SIPROTEC5 modular system. The use of a second row allows more than 400 in- and outputs.Width of housing:1/3 x 19 Inch - 2/1 x 19 Inch DIGSI 5 permits all functions to be configured and combined as required. FUNCTIONS Integrated bay controller with versatile protection function from medium to extra-high voltage Control of switching devices Synchrocheck and switchgear interlocking protection Integrated electrical Ethernet RJ45 for DIGSI 5 and IEC 61850 (reporting and GOOSE) Up to 4 pluggable communication modules, usable for different and redundant protocols (IEC 61850,IEC 60870-5-103, IEC 60870-5-104, DNP3 serial and TCP, Modbus TCP, PROFINET IO) Redundancy protocols PRP and HSR Arc protection Cyber security in accordance with NERC CIP and BDWE Whitepaper requirements Graphical logic editor to create powerful automation functions in the device Optional overcurrent protection for all voltage levels with 3- pole tripping Also used in switchgear with breaker-and-a-half configuration Overcurrent protection also configurable as emergency function Selective protection of overhead lines and cables with single-ended and multi-ended feeders using protection communication Secure serial protection data communication, also over great distances and all available physical media (fiber-optic cable, 2-wire connections and communication Networks) Capturing operational measured variables and protection function measured values to evaluate the plant state, to support commissioning, and to analyze faults Phasor Measurment Unit (PMU) for synchrophasor measured values and IEEE C37.118 protocol integrated Powerful fault recording (buffer for a max. record time of 80 s at 8 kHz or 320 s at 2 kHz) Auxiliary functions for simple tests and commissioning Flexibly adjustable I/O quantity structure within the scope of the SIPROTEC 5 modular system
...more

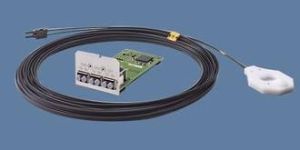

SIPROTEC 5 Arc Protection
electric arcs are among the most dreaded fault scenarios in power supply engineering. They can be caused by a multitude of factors, such as aging of the insulation, environmental conditions as well as operating errors. Electric arcs can cause heavy damage to switchgear and present a serious hazard to operating personnel. The siprotec 5 arc protection detects electric arcs through an optical sensor. Arcs are detected reliably and quickly as they develop, and the protective device can trip immediately and without delay times.the arc protection module is part of the new siprotec 5 series of modular, flexible and intelligent bay devices and can be used in the following device types:support of feeder automation applications, e.g. Fault isolation and service restoration-siprotec 7sj8-siprotec 7sa8-siprotec 7sd8-siprotec 7sl8-siprotec 7vk8-siprotec 7ut8-siprotec 7sk8-siprotec 7um8 function reliable arc detection extremely fast tripping time minimization of thermal damage higher personal safety minimization of downtimes emi safety thanks to purely optical sensors quick and easy retrofitting
...more
Siemens Numerical Relay
Brand Name : Siemens
Phase : Single Phase
Relay Type : Voltage Relay
...more

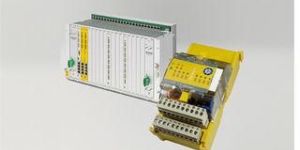

SICAM Safety
safety application on existing hardware safety and standard applications run simultaneously several cp-2019 processing and communication elements can be installed in an automation unit several distributed peripheral elements can be connected to sicam ak use of sicam safety input / output modules binary input and output for 24 v dc analog input for 4 to 20 ma thanks to the terminal module design, a mix of standard and safety modules is possible whether for hydropower plants or in the oil and gas sector, the energy industry relies on automation for energy distribution. But many plant components are safety-critical. So it is good when the necessary safety functions are already incorporated right in the automation solution.
...more

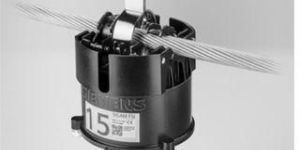

SICAM FSI-Fault Sensor Indicator
the guardian for your overhead line networks (3.3 to 66 kv 50/60hz) utilizing the full range of benefits of distribution automation in overhead line networks requires reliable locating and signaling of earth faults and short circuits in overhead line networks. With sicam fsi (fault sensor indicator), siemens now offers a fault detection device for mv overhead line networks.sicam fsi is available in 2 versions: -6md2314-1ab10 without communication: the faults are signaled directly at the device by leds. Depending on the fault state, a specific flashing light is generated.-6md2314-1ab11 - with communication: in addition to local led display, earth faults and short circuits are transferred to a gateway (sicam fcg) via a secured radio connection. Sicam fcg (fault collector gateway) establishes the connection to a higher-level control center via gprs and sends the messages to the control center using the standardized telecontrol protocol iec 60870-5-104 or via xmpp fault detection trip threshold setting range 75 a to 1500 a inom setting is user configurable from 50 to 500 a enabling closer coordination with the upstream protection system for the network. Trip time is user configurable between 1.5*inom and 3*inom (in steps of 0.5 inom). ∆i trigger setting 5 a to 160 a the rate of change of current (∆i) setting is user configurable in steps of 5 a up to 80 a, 120 a, 160 a. inrush restraint settable time delays for inrush conditions or step changes in load conditions. presence/absence of voltage detection for fault confirmation configuration the sicam fsi – 6md2314-1ab10 - can be parameterized using “fsi web configurator” software. in addition to the above, the sicam fsi- 6md2314-1ab11 - can be parameterized via the sicam fcg over the wireless interface. message acknowledgement / user configurable: by magnet automatically at system voltage restoration automatically over a specified time (user configurable time) remotely with an acknowledgement signal from the control center auxiliary voltage battery (3.6v) service life approx. 10 years temperature range -25 °c to +70 °c housing polycarbonate, uv-resistant protection class: ip65 mounting the sicam fsi is clamped onto the overhead line via the hotstick.
...more
SICAM FPI - Fault Passage Indicator
sicam fault passage indicator (fpi) is a device that is used for detection and signalling of short circuit and earth-fault on medium voltage cable networks.4 external current sensors detect the phase faults (r, y, b) and earth-fault (e).the current sensor detects phase fault and earth-fault current based on the set current threshold detection and communicate to sicam fpi via an optical signal.by using the rotary switch available on the individual sensor, you can set the fault current threshold for phase sensors from 200 a to 1200 a (type 1 series), 200 a to 800 a (type 2 series) and for earth sensor from 10 a to 100 a (type 1 series), 40 a to 300 a (type 2 series).when the current exceeds the set threshold level, the current sensor provides an input via plastic fibre-optic cable to sicam fpi. In this condition, the corresponding leds blink. In normal operating condition, there is no led indication.sicam fpi is used as a fault detection and indication unit. Sicam fpi is used in the feeder and distribution automation of secondary medium-voltage systems that ranges from 10 kv to 36 kv. device characteristic application medium-voltage cable distribution systems 10 kv to 36 kv, 50 hz/60 hz signalization fault indication via leds 3 red leds - phase fault 1 red led - earth fault 1 yellow led for battery health condition inputs and outputs current sensor inputs: phase current r, y, b and earth current e via a plastic fibre-optic cable 2 binary inputs: 1x 230 v ac reset input, 1x remote reset input from dry contact 2 binary outputs potential-free (max switching voltage 250 v ac/ 220 v dc) battery for 2,000 hours, service life of approx. 10 years temperature range -30 °c to +55 ° housing polycarbonate, 96 x 48 x 45 mm (w x h x d) degree of protection: front ip20, rear ip67 for any technical queries, please contact our customer support center
...more
SICAM FCM - Feeder Condition Monitor
the key to continuously improving power supply is essentially in depth knowledge of the relevant conditions of the local network. This is achieved through the use of all available sources connected to the system. Siemens offers a complete portfolio for network monitoring, power quality recording, fault recording, phasor measurement and system software application. Power quality and measurements supports power supply utilities and consumers with solutions required for the precise measurement, recording and reporting of the necessary distribution network data used to continuously determine, adapt and improve the power quality.sicam fcm the finger on the pulse of your distribution network sicam fcm (feeder condition monitor) is a short circuit and ground fault indicator with direction indication which uses protection algorithms and latest low power sensor technology according to iec 60044, yielding top results, particularly in isolated or compensated distribution networks.sicam fcm offers comprehensive measured values to monitor the load of distribution network components thus providing accurate data on the network condition. Live values, e.g. Of a transformer operated at overload, allow countermeasures to be taken in time such as load shedding or reducing the feedback power in the affected network segment. In order to correctly evaluate the condition of the distribution network, sicam fcm provides all relevant data via a modbus rtu interface. device type panel mounted device polycarbonate, 96 x 48 x 119.5 mm (w x h x d) spring-type terminals for all auxiliary connections degree of protection ip20 input circuits 3 inputs for alternating voltage configurable for 100v/√3 or 3.25v / √3 (according iec60044-7) 3 inputs for alternating current for low-power sensor 225mv @ 300a (according iec60044-8) alternative: input l2 configured for sensitive earth-fault detection using low-power sensors 225mv @ 60a (according iec60044-8) ac 230 v 1 fault status reset for external signal 24v upto 60v battery for 2,000 hours, service life of approx. 20 years signalization big display to show live values or detailed fault information e.g. Fault direction 1 red fault led to show status “fault detected” 1 yellow com led to show communication running at the moment 1 green run led to show health status of the sicam fcm itself communication interface rs485 modbus rtu communication for all information and remote configuration measurands trms (true rms) values for all direct measurements phase voltages and currents earth current power frequency and cos ϕ active, reactive and apparent power 15 min average value for all phase currents trailing pointer for currents time synchronization time synchronization via modbus rtu
...more
SICAM FCG-Fault Collector Gateway
the sicam fault collector gateway (fcg) device receives both the load current values and distribution line faults via the sicam fault sensor indicator (fsi)the received information status and events are transmitted to the control center based on the iec 60870-5-104 protocol or to the siemens flic service using the xmpp protocol. The fault detected by sicam fsi is communicated to sicam fcg via short-range radio (srr) communication within a distance of 100 meters.sicam fcg provides 6 binary inputs and 3 binary outputs. Sicam fcg can be configured and diagnosed locally using the web gui by connecting to a pc or laptop computer or remotely via general packet radio service (gprs).the sicam fcg has a plastic housing and it is strongly recommended to mount it within a metal cabinet for additional protection. The global system for mobile communications (gsm) and short-range radio antenna are mounted outside the metallic cabinet. Sicam fsi firmware and parameters can be updated from the sicam fcg.sicam fcg web gui allows you to configure the parameters, display error and event log, upgrade of firmware, and download the configuration. binary interfaces on the terminal block l, all the 3 binary inputs are independent and have a fixed threshold of 8 v. On the terminal block p, 2 binary inputs have a common root (p8, p9, and p10), 1 binary input (p11, p12) is independent.these binary inputs have selectable thresholds of dc 19 v, dc 88 v, or dc 176 v.therefore an optimal adjustment to the pickup voltage can be made in the case of increased interference level.the binary outputs are designed as relay contacts. The terminal block p has 2 relay outputs normally open (no) and one relay output change over (co). The relays can switch voltages up to ac/dc 250 v and currents up to ac/dc 5 a. communication sicam fcg is a gateway device on the communication network between the sicam fsis and the control center. It provides interfaces and supports communication protocols to the sicam fsis (via short-range radio) and to the control center (via mobile networks). The gateway contains an interworking function for the communication exchanged between sicam fsis and the control center.the various device communication interfaces and protocols are available for the communication between the sicam fcg and the control center.sicam fcg has an ethernet interface which supports the device parameterization and the monitoring.the communication interface supports the device parameterization and the transmission of messages and measured values. The information is transmitted in telegrams in a secured way. gms module the module supports 4 frequency bands: 850 mhz, 900 mhz, 1800 mhz, and 1900 mhz.the communication to the control center can be executed based on the iec 60870-5-104 via internet protocol security (ipsec) tunnel and gsm.you can execute the configuration and local diagnostic remotely via gsm. The communication to the siemens flic service is based on xmpp and gsm. short-range radio module the short-range radio module communicates directly with sicam fsi via a radio link in the license-free 2400-mhz band and up to 100 meters. Any overhead distribution line fault or other status change detected by sicam fsi is communicated to the sicam fcg through the short-range radio module. time synchronization in operation, the device needs the date and time for all time-relevant processes. This ensures a uniform time basis and a time stamp for the communication with peripheral devices. The following types of time synchronization are performed according to the parameterization: external time synchronization via network time protocol (ntp) (recommended, see 7.3.1 timesynchronization). internal time synchronization via real-time clock (rtc) (if there is no external time synchronization).
...more
SEL-2600 RTD Module
We are the main supplier of this product.
Place of Origin : Maharashtra, India
Model Number : SEL-2600
Brand Name : Selinc
...more
Ruggedcom VPE1400
communication networks distributed over a wide geographical area such as those used for smart grids or in traffic management are often limited to small bandwidths or expensive public networks. Now information can be processed on site in a virtual environment in the router, thus making room for more devices on the network is a key aspect of the the industrial internet of things (iiot).creating a highly reliable and efficient processing environment virtually anywhere to run local monitoring and data analysis applications is easy and cost effective with the new ruggedcom vpe1400 virtual processing engine.
...more
Ruggedcom RSL910
communication interfaces 2 ethernet over vdsl2 (eovdsl2) interfaces 2 sfp slots supporting gigabit and fast ethernet optics 6 fast ethernet ports (10/100base-tx) ethernet over vdsl port characteristics up to 3.0 km lan segments data rates up to 85 mbps automatically selects fastest data rate based on distance and quality of cable software selectable as master or slave other interfaces failsafe relay universal power supply options fully integrated power supply (no external adapters) universal high-voltage range: 88–300 vdc or 85–264 vac dual low-voltage dc inputs: 24 vdc (10–36 vdc) or 48 vdc (36–72 vdc) terminal blocks for reliable, maintenance-free connections environmental -40° c to 85° c operating temperature (no fans) ruggedcom operating system (ros®) features simple plug and play operation – automatic learning, negotiation, and crossover detection mstp (802.1q-2005, formerly 802.1s) rstp (802.1d-2004) and enhanced rapid spanning tree (erstp™) network fault re .
...more
Ruggedcom MX5000 Enclosure
the ruggedcom mx5000 enclosure is a tough, welded-aluminum, hard mount enclosure, available as an off-the-shelf replacement enclosure for the ruggedcom mx5000re.the ruggedcom-selector lets you configure ruggedcom products quickly, easily, and efficiently, by using targeted navigation through selection menus or by entering item numbers. Selected products can then be ordered directly by transferring the parts list into the industry mall. product features & specs welded-aluminum extrusion construction welded-aluminum mounting brackets for mil901d hard mounting configurable patch panel allows up to 64 mil-grade circular connectors for both copper and fiber media integrated cable management for strain relief removable front panel with emi glass for service and maintenance hard-mounted brackets fit standard 19" rack-mount equipment dual internal mil-grade high-reliability fans minimize internal temperature gradient with no outside air exchange iec 60529 ip65 rated – dust tight, water jets
...more
Ruggedcom modular Ethernet switch
the ruggedcom rsg2100 is a utility-grade, fully managed, modular ethernet switch. It is specifically designed to operate reliably in electrically harsh and climatically demanding utility substation and industrial environments. With its superior rugged hardware design and embedded rugged operating system (ros), the rsg2100 provides improved system reliability along with advanced cyber security and networking features. As such, it is ideally suited for creating secure ethernet networks for mission-critical, real-time control applications.the ruggedcom rsg2100p is a utility-grade, fully managed, modular power-over-ethernet (poe) enabled ethernet switch specifically designed for reliable operation in electrically harsh and climatically demanding utility substation and industrial environments. The rsg2100p comes standard with 4 10/100basetx 802.3af (poe) compliant ethernet ports. It offers modular flexibility for up to 15 additional ethernet ports, including 10basefl / 100basefx / 1000basex fiber and 10/100/1000basetx copper port combinations. The highly versatile rsg2100p can support multiple fiber types and connectors (st, mtrj, lc, sc) without loss of port density. It is an ideal solution to power and connect several ethernet devices (e.g. Ip phones, video cameras and wireless access points) where ac power is not available or cost-prohibitive to provide locally ethernet ports up to 3 gigabit ethernet ports– copper and/or fiber up to 16 fast ethernet ports– copper and/or fiber 2 port modules for tremendous flexibility non-blocking, store and forward switching supports many types of fiber (multimode, single mode, bidirectional single strand) long-haul optics allow gigabit distances up to 70 km multiple connector types (st, mtrj, lc, sc) rugged rated for reliability in harsh environments immunity to emi and heavy electrical surges- zero-packet-loss™ technology- meets ieee 1613 (electric utility substations) class1 with copper ports or class 2 with all fiber ports- exceeds iec 61850-3 (electric utility substations)- exceeds iec 61800-3 (variable-speed drivesystems)- exceeds iec 61000-6-2 (generic industrial)- exceeds nema ts-2 (traffic control equipment) –40°c to +85°c operating temperature (no fans) conformal coated printed circuit boards (optional) 18 awg galvanized steel enclosure hazardous location certification: class 1 division 2
...more

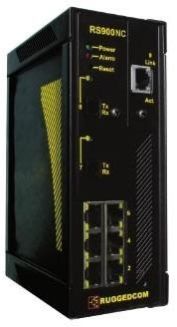

Ruggedcom Ethernet Switch
Brand Name : Siemens
Color : Black
Ruggedcom APE
leveraging the built-in switching and routing capabilities of the ruggedcom rx1500, the ruggedcom ape is a utility-grade computing platform that plugs directly into any member of the ruggedcom rx1500 family and makes it possible to run third party software applications without the complications and inconveniences of procuring an external industrial pc.ruggedcom ape is available pre-installed with microsoft windows 7 embedded, linux, and checkpoint gaia platforms. As it is compliant to the standards of a pc, the user can choose to install and run their customized operating system as they choose.ruggedcom ape provides one gigabit ethernet link on the front of the unit, and another equal, but completely separated link to the backplane of the rx15xx chassis. This physical separation of ports and the special arrangement of the connections on ruggedcom ape make it an ideal platform for networking and security-related applications, examples of which are security appliances, firewalls, network log and load processors, and intrusion sensors.through the use of a virtual machine, old software can be run on new and secure operating systems on the ruggedcom ape, making it possible to extend the life of obsolete and unsupported software. All variants of ruggedcom ape are available with optional conformal coating, and are qualified for operating ambient temperatures of -40 c to +70 c. It meets all the electrical specifications of the ruggedcom rx15xx platform, namely iec61850-3 and ieee 1613 for operation under some of the harshest industrial conditions.general features-microsoft windows 7 embedded-debian linuxcheckpoint gaia-checkpoint gaia hardware form factor: line module for the ruggedcom rx1500 multi-service platform family cpu: intel atom e660t, 32-bit, 5000 mips at 1.3ghz, 512kb cache, intel ht and vt-x supported 2x usb-2 ports ethernet interfaces: 1x gigabit rj45 port on the front face plate, 1x gigabit rj45 port to the rx15xx backplane video: dvi port, maximum resolution 1024x768, intel integrated gma500 at 400mhz. memory:2gb ddr-2 sdd: 8gb and 16gb orderable, sata-ii immunity to emi and high voltage electrical transients meets ieee 1613 (electric utility substations) meets iec 61800-3 (variable speed drive systems) meets iec 61000-6-2 (generic industrial environment)
...more
Power Transformer
We are the main supplier of this product.
Brand Name : Siemens
Thermography For Motors & Generators
Relay Testing Services
System Harmonics Study
Retrofit Solution Services
switchgear services
Electrical AMC Services
Circuit Breaker Testing
