Sancovalves Pvt Ltd Ghansoli, NAVI MUMBAI, MAHARASHTRA

Wedge gate valve Wedge guiding minimizes seat rubbing and scuffing resulting in long cycle life.Hardfaced seating faces resist erosion.Optional live-loading of packing and leakoff.

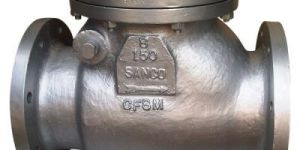

Sanco Swing check valves are used to prevent flow reversal in piping systems. They are suitable for service in horizontal or vertical (flow up through valve only) piping runs. Swing check valves have low pressure drop and are best suited for moderate velocity applications. Correct sizing of Sanco swing check valves is important.

Material : Cast Steel

Color : White

Usage : Oil Fitting

End Connection : Flanged ends as per ANSI B 16.5 & 26" and above ANSI B 16.47 Series A & B, With Gear Operation if the Torque Exceeds 350N, With limit Switch Arrangements for open & Close Position, With Electrical Actuator.

SANCO flexible wedge offers superior tightness of seats and freedom from sticking.Wedge guiding minimizes seat rubbing and scuffing resulting in long cycle life.Body made of superior strength forgings and optional cast steel.SANCO stem seal offers tight seal with little to no maintenance over long periods of time.

Sanco Globe valves are used where throttling or both throttling and shutoff are required. They can also be used for on-off service, but because of high pressure drop, this is generally confined to applications where the valve is normally closed and pressure drop is not important when the valve is open. Normally Sanco globe valves are installed with flow under the disc, but under certain conditions flow over the disc may have advantages.

Finishing : Coated

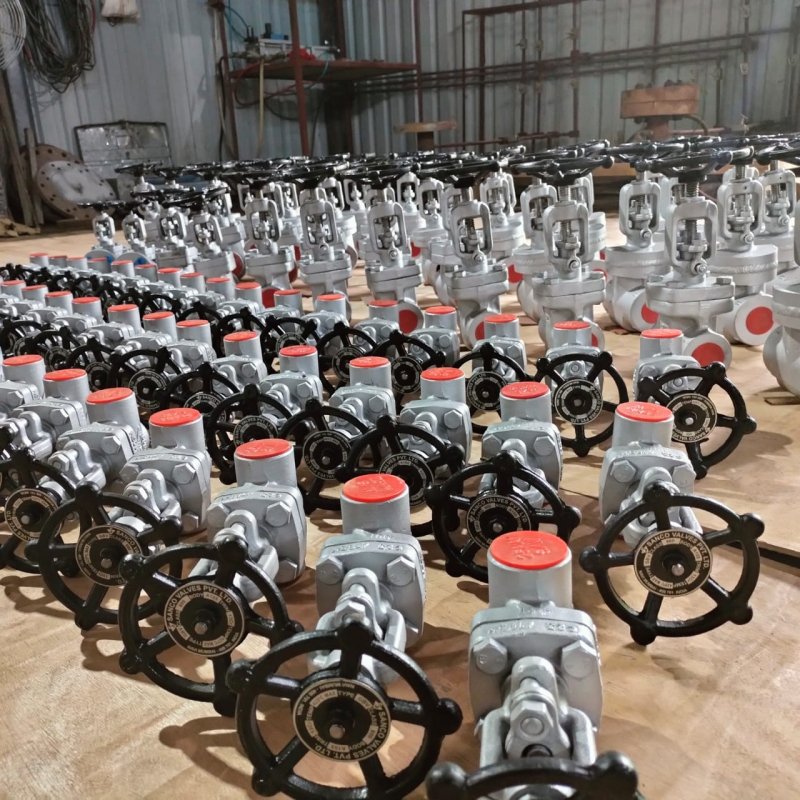

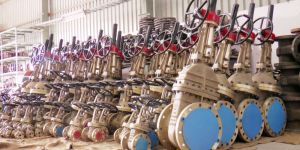

Sanco Gate valves are the most commonly used shutoff valve in the industry today. They are used where minimum pressure drop and bi-directional on-off service is required. Sanco Gate valves are not designed for throttling service. Prolonged use in the partially open position will generally damage seating surfaces. Gate valves are available with a number of wedge configurations (solid, flexible and split) to best meet the specific service conditions.

Sanco Forged Steel Valves are ideal for use in petroleum refineries, chemical plants, power generating plants and in a wide range of other industrial applications.

Forged steel, Size range(s)- NPS 14 - 2 (DN 8 - 50), Pressure rating- ASME Classes 150 - 4500, Standard connections- Threaded, socket weld, flanged.

Superior quality steel is used in the manufacturing process at our multifaceted infrastructure facility. These valves are offered by us in various specifications at industry leading rates.

Cryogenic valves, Size range-(s)NPS 2 - 48(DN 50 - 1200), Pressure rating- ASME Classes 150 - 1500, Standard connections- Cryogenic globe valves

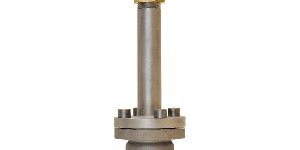

Cryogenic globe valve,Size range(s)-NPS 2 - 16 (DN 50 - 400), Pressure rating- ASME Classes 150 - 600, Standard connections- Butt weld, Flanged.

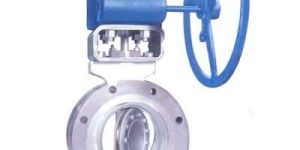

Sanco Butterfly valves are the most commonly used shutoff valve in the industry today. They are used where minimum pressure drop and bi-directional on-off service is required. Gate valves are not designed for throttling service. Prolonged use in the partially open position will generally damage seating surfaces.

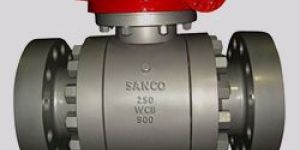

Spades Sanco offers you various range of industrial valves for all your process handling needs. Ball valves are not designed for throttling service. Prolonged use in the partially open position will generally damage seating surfaces. Sanco Ball valves are available with a number of wedge configurations (solid, flexible and split) to best meet the specific service conditions. Sanco Ball valves normally are handwheel operated, but are also available with gearing, electric motor actuators, or cylinder (pneumatic or hydraulic) actuators for remote operation. See Actuators and Accessories section for more detail. * Valves are available in Duplex & Super Duplex Stainless Steel and Nickel Aluminium Bronze. Please indicate Trim required and ask for individual technical data sheets provided separately for these special materials.

Sanco offers you various range of industrial valves for all your process handling needs. Ball valves are not designed for throttling service. Prolonged use in the partially open position will generally damage seating surfaces. Sanco Ball valves are available with a number of wedge configurations (solid, flexible and split) to best meet the specific service conditions. Sanco Ball valves normally are handwheel operated, but are also available with gearing, electric motor actuators, or cylinder (pneumatic or hydraulic) actuators for remote operation. See Actuators and Accessories section for more detail.

SANCO stem seal offers tight seal with little to no maintenance over long periods of time.Optional live-loading of packing and leakoff.Hardfaced seating faces resist erosion. Other sizes and pressure classes available. Contact the company for specifications.
