SG Process Control Instruments Sector 19, Navi Mumbai, Maharashtra

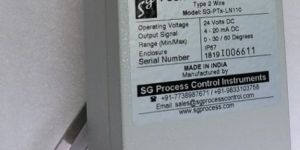

‘SG’ Position Transmitter is a two wire electronic transmitter that converts resistance input into current output.When coupled to any rotary or reciprocating device, the transmitter picks up the travel of that device and provides feedback of rotary or linear displacement. If this signal is supplied to the control room or to an indicating unit, such as ammeter, the current shaft position can be monitored.

Size : 80x120x60 mm

Type : Position Transmitter

Material : Aluminium

Application : Industrial

Feature : Durable, Fine Finished, Good Qualiyty, Long Life, User Friendly

Finishing : Color Coated

Warranty : 1 Yr

Accuracy : +/- 1% FS

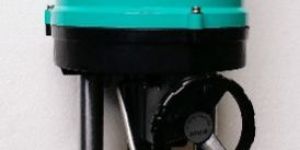

sg-2000 series electric actuator is single phase electric actuator which has been designed for linear, quarter turn and angular actuation applications for remote control of various types of valves such as globe valve, v notch ball valve, butterfly valve, diaphragm valve and various types of dampers such as single louver, multi louver and viv dampers.   sg-2000 series is mainly used for control or regulating duty applications. The special design features of sg-2000 series give value addition to our customers in following ways: - versatality - robustness - reliability - economy available thrust range from: 50 kgs – 1200 kgs available output speed range from: 0.24 mm/sec – 1 mm/sec

Type : Electric Actuators

Voltage : 110V, 220V

sg-1000 series electric actuator is single phase electric actuator which has been designed for remote control of ball valve, butterfly valve, dampers and other actuating devices, which require up to 90 degrees rotary actuation and tight closure in end positions. They are simple in design, compact in size and lighter in weight due to high grade aluminium alloy housing.    the special design features of sg-1000 series give value addition to our customers in following ways: - versatality - robustness - reliability - economy available torque range from: 20 nm – 600 nm available output speed range from: 17 sec/90° - 80 sec/90°

Type : Electric Actuators

Voltage : 110V, 220V
