Surag Instruments Airoli, Navi Mumbai, Maharashtra

Features : Solid state flow sensor with no moving parts for liquids Rugged glass fibre reinforced plastic ensures highest strength and performance Completely encapsulated piezoceramic sensor to detect the vortices Temperature sensor integrated Analogue or pulse output signals for flow and/or temperature Technical Information: Size : DN 15,DN 25 Flow range : 2 to 150 l/min Process Connection : G½”,G¾”,G1¼”,G1”(Male),½”NPT,1”NPT Inner diameter : Ø 13 mm, Ø 25 mm Accuracy :± 2 % of range Reproducibility: ± 0.2 % of range Nominal pressure : PN 10 Medium temperature: Max. 90 °C Material : Body/tube : PPSFortron 40% GF Power supply : 8 to 30 Vdc or 5 Vdc ±5%  Current Consumption : < 25 mA Electrical Connection : 5 Pin plug M 12x1 or RAST 2.5 Protection Class : IP 65,IP 20.

FEATURES: High Precision : 0.01 Pa (0.0001 mBar)Great stabilityDurable & minimal maintenance. DESCRIPTION: The ADT 901 Low pressure test pump is hand operated pressure pump designed to generate either Vacuum up to -0.4 Bar or Pressure up to 0.4 Bar. A high quality screw press is designed for fine pressure adjustment, with precision up to 0.001 mmH2O. To reach the pressure stability as high as possible during the micro pressure calibration, an isothermal bellows chamber is designed for reducing the possible heat effects such as environmental temperature change. Without non-returning valve that is usually used in trouble-maker hand pump, ADT 901 has minimal maintenance required. Two finger-tight connectors installed on the pump allow the user using fingers to connect & disconnect the reference gauge & devices under test quickly & easily without the need for PTFE tape or wrenches. The ADT 901 is an ideal comparison test pump for very low pressure application, like DP Gauges / Transmitters / Magnehelic Gauges & many more.

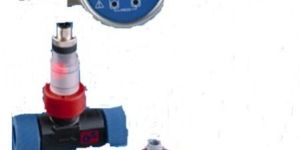

FEATURES Fixed Pulse RateWide Measuring Range (2 to 40 l / min)High Precision Measurement ±0.5% or ± 1% therefore reliable measured variablesHigh Quality Sapphire bearing, low abrasion and extremely long running period.Specially designed guiding blades ensure uniform flow to the rotor from four sides, thus tremendous reduction of wear.Insensitive against pressure peaks, Providing reliable measurement variables even under difficult condition.Any Position can be versatile installed.

FUNCTIONS : Air Velocity & ambient temperatureSelection of unitsHold FunctionMin & Max ValuesAutomatic averageAir flow calculation with coneAdjustable automatic shut-offAdjustable backlightDetection of flow direction Measuring Ranges: Air Velocity: 0.8 to 35 m/sAir Flow: 0 to 99999 m3/hrAmbient temperature: -20 to +80°CDisplay: 2-line LCD displayPower supply : 1 alkaline battery 9V 6LR61Operating temperature (instrument) : from 0 to 50°COperating temperature (probe) : from -20 to +80°CWeight : 190g

FEATURES: Programmable sensor inputs enable the simple connection of numerous sensors Up to 5 alarm outputs (relay, SSR or norm signal).2- or 3-point controller,3-point-step controller as well as PID controller.Safe heater break function.Digital control inputs for external set point setting.RS 485 interface, MODBUS protocol.Programming adapter for easy transfer of operating data. AUTOTUNED , MICROPROCESSOR BASED DIGITAL CONTROLLER PID control function2- and 3-point control function3-point-step control MEASURING INPUTS Resistance thermometer Pt100Semiconductor PTC / NTCThermocouples J, K, S, B, E, L, N, R,T,CVoltage signals 0...50 mV, 0...60 mV NORM SIGNALS 4...20 mA0...10 V OUTPUTS Max. 4, up to 2 x control- resp. 3 x alarm-output possibleRelay SPST 5 A / 2 A / 250 VacSSR drive 14 Vdc/ 7 mA (20 mA) NORM SIGNALS (CONTROL OR SIGNALS) 4...20 mA0…10 V DISPLAY 4-digits 7-segment LEDs 2-lines Process value red, 7 mm high Set value green, 7mm high.

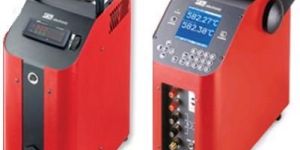

Range from -35°C to 650°CResolution: 0.1°C / 0.01°C Stability: up to 0.03°C Our easy to transport and sturdy calibrators with laboratory accuracy for all areas of applicationIn test bays and development laboratories, temperature sensors have to be tested, adjusted or recalibrated before installation.In sensor production, tolerances of thermocouples and resistance thermometers can be determined and documented clearly only by calibrationControl panel with graphic display and keyboard DISPLAY Block temperatureSet temperatureTest piece temperatureComputer interface RS 232 CPrecision measuring instrument also easily retrofittableControl panel with graphic display and keyboard.

Weight : 12 Kg

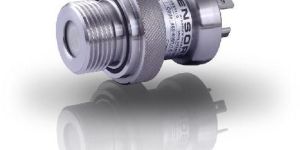

SCREW IN TRANSMITTER CHARACTERISTICS Pressure port G 3/4" flush for pasty and impurified mediaPressure port PVDF for aggressive media  OPTIONAL VERSIONS IS-version (only for 4 … 20mA / 2 --- wire) :Ex ia = intrinsically safe for gases and dustsSIL 2 application according to IEC 61508 / IEC 61511  RANGE:0 to 60 BAR  APPLICATION Plant and Machine EngineeringEnergy IndustryEnvironmental Engineering (water --- sewage --- recycling)Medical technologies.

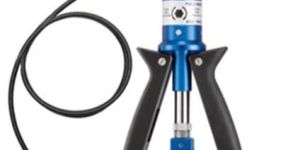

DESCRIPTION: Large, ergonomic adjustment deviceImproved, more precise adjustment of the pressure/vacuum (fine thread)Simple generation of high pressure/vacuum (larger volume)No risk of thread damage (metal insert)No unwanted disassembly possible (fixed stop)Simple change-over from pressure to vacuumRange: Vacuum to 40 bar & Vacuum to 60 barNo additional equipment requiredClear, locked change-overQuicker pressure / vacuum generation (optimised dead space)No unwanted disassembly possible (improved connection method)No pressure losses due to screw connectionsPermanent pressure-resistant tube connections Industrial, long hose (1 m)Ergonomic handles & No risk of injuriesEnclosed, optimised springNo additional shearing forcesOptimised knurled nut for spring adjustment.

FEAUTURES : (1) Configuration of max. 60 channels via inputs,outputs.mathematical /logical functions,controller, profiles or virtual outputs (2) Allocation of clogged channels in 10 groups (max.6 channels per group) (3) Connection of channels Via mathematical logical functions (4) 8 Integrated PID controller (5) Datalogger of max.60 channels (6) Free selectable measuring rate (max.10 Hz) (7) Extensive Trigger function (8) Internal Memory 1.5 GB Inputs : 4...10 V + 4...20 mA Output : 8 relays / 4...20 mA (Analogue Output) Transmitter Supply : 24 Vdc Â± 5% max.200 mA Communication Interface : RS-485 (Modbus RTU),Master / Slave Display : 3.5" TFT Touchscreen,graphics capable,coloured (16-bit),320 x 240 pixels. Housing : Panel Mounting.

The measuring range of the quick-response sensor is  to 20l/min,  2 to 40 l/min or 10 to180 l/min, the process connection occurs via an external thread G½ "or G1" (at 1 to 20l/min)     The advantages of the sensor are :   No moving parts, no wear Free pipe cross section, no additional pressure loss Resistant to soiled liquids Service free.

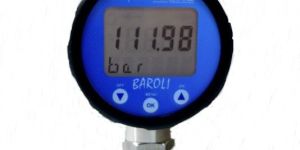

Nominal pressure ranges from 100 mbar up to 700 bar in gauge as well as absolute. The battery powered Digital Pressure Gauge BAROLI has been specially designed for applications in Hydraulics and Pneumatics. It could be installed easily and quickly in site. The display module is continuously rotatable so that a clear readability is guaranteed even in unusual installation positions. OPERATION   The device can be operated menu driven via three push buttons in the touchpad. Besides showing information about the nominal pressure range as well as min./max. pressure of the process, several pressure units (bar, mbar, psi, mWC, inHg, cmHg, mmHg, kPa, MPa & Kg/Cm2) and the position of decimal point can be set by the user. Upper and lower range of the measured range can be recalibrated by the customer. Defaults (factory set point) can be loaded again via menu.   APPLICATION Hydraulics Pneumatics Mechanical engineering CHARACTERISTICS Rugged, Rotatable plastic housing 4.5 digit LC display

INTRODUCTION The SIKA UC mAV is a hand-held process calibrator (conforming toEC standards). It is more particularly intended for calibration and maintenance. It can measure and generate electrical quantities either on siteor in the laboratory. It fulfils voltage and current measuring and generation functions (DC or LF rampsignals) and a continuity test (on passive loop). Owing to its monitoring (regulation) mechanism in transmission mode, the instrument cannot take measurements and transmit simultaneously. APPLICATION Display of results in accordance with a linear conversion law or not. Generation of increments, single or cyclic ramp signals. Its utilisation is facilitated by a series of improvements Fast access to all the functions. Intuitive user interface. Graphic display of 160x160 pixels Connection by 4-mm safety sockets. Powered by 4 AA batteries or a rechargeable battery pack with fast internal charger (Option). The instrument is enclosed in an ABS casing with an elastomer sheath. CHARACTERISTICS Hand-held instrument energized by 4 AA batteries (1.7 Ah Ni-MH battery pack on option). Wrist-strap for carrying and use on sites Graphic 160 x 160 pixel liquid crystal display (LCD). Choice of language of the messages and programming functions, ranges and parameters on 6-key keypad + 1 navigator. Display backlighting accessible via the keypad, with the possibility of programming automatic extinction after a given period of inactivity. Presentation: ABS casing (elastomer sheath on option). Dimensions: 157 mm x 85 mm x 45 mm (without sheath). Weight: 306 g without sheath. Sealing IP54 in accordance with standard EN 60529 UC mAV is compatible with HART transmitters by inserting a 250 resistance which doesn't disturb digital data transfer.

Diameter: 19 / 27 / 35 mmLevel measurement in water, fuel and diesel oil Nominal pressure ranges from 0 - 1 mWC up to 0 - 250 mWC Available in Stainless Steel & Ceramic Sensors. The submersible level transmitter has been designed for continuous fluid level measurement in water and clean to slightly contaminated media. Housing material is 1.4571 (316Ti); the sensor diaphragm is made of 1.4435 (316L). Standard sealing material is FKM; other materials are available on request. Due to the high-value piezoresistive stainless steel sensor the submersible probe LMP 307 features an excellent linearity and good long term stability. On the basis of the excellent metrological features of the stainless steel sensor, it is possible to manufacture the submersible probe with accuracy of 0.05% FSO BFSL also. In addition, the several cable materials (PVC, PUR and FEP) the customer has the possibility to consider different versions of cable protection with different lengths. APPLICATION : Environmental engineering: water supply, sewage treatmentDepth or level measurement in wells and open watersGround water level measurementLevel monitoring in open tanks CHARACTERISTICS : Small thermal effectExcellent linearityGood long term stabilityOutput: 4…20 mA & 0…10 VDC, 2/3-wireAccuracy:0.175 / 0.125 / 0.05% FSO BFSL(0.35 / 0.25 / 0.1 FSO IEC 60770)Option Ex version : (only with 4 -20 mA / 2-wire) ATEX 2006 XOption cable protection with corrugated pipe.

FEATURES: Easy & reliable methods to monitor fluid levelsProven float principleNominal Pressure PN 25Maximum temperature 110°CEasy side installation using threads ¾" or ½" BSPPotential - free contact at signaling transmitterType of protection IP 65Type of Materials: Brass, Stainless steel, Plastic.Maximum Contact Rating : Max.1A,230 Vdc or 48 Vdc, 26 VA or 20 W

CASINGS Aluminum, V-shaped, completely polished, gold-colored anodized (or silvercoloured upon request). Numerals of reading scale printed on the right side. Printing black-colored for easy readability. Adjustable to any desired viewing position and locked by brass nut, spanner size 22 mm. Angle thermometers (90°) have a grooved adapter piece with set screw. ADVANTAGE: When mounting the thermometer, it is not necessary to turn the casing. GLASS INSERTS (CAPILLARIES) Capillary tube of solid glass, bar-shaped, prismatic (optic enlargement of the column), diameter approx. 6mm, oval opening, with yellow background for mercury and white background for blue fluid column. Calibration is deeply burnt, in black, thus being absolutely resistant.The main graduations, which correspond with the printing on the casing, are especially clearly outlined. THERMOMETER EXECUTION straightAngle 90°, backwardsAngle 135°, backwards Temperature Ranges: -60 to + 600°C Division: °C, °F Columns Filling: Blue Fluid upto 200°C & Mercury above 200°C Immersion Tube Length : 63 mm,100mm,160mm, 250mm,400mm Thread Connection : G ½”,G ¾”, M20 x 1.5,M27 x 2 Immersion Tube Material : Brass, Stainless Steel ACCURACY About 1 % of maximum scale value, for thermometers with mercury column.The accuracy of thermometers with an alcoholic fluid meets DIN 16 195 requirements and, consequently, corresponds with the requirements for local reading thermometers.

HYDRAULIC ULTRA HIGH PRESSURE TEST PUMP MEDIA: Oil PRESSURE RANGE: -10 bar to 2500 bar MATERIAL:Ram/adapters: SSTBody: SST/AluminumSeals: Buna-N CONNECTION: ½” NPT (F) FEATURES:Generate Ultra High Pressure(up to 2500 bar)Extremely low leakageDurable and minimal maintenanceEasy to use.

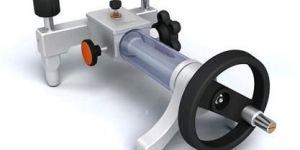

FEATURES: Durable & Minimal MaintenanceExtremely low leakageEasy to usePortable DESCRIPTION: The ADT 927 Hydraulic Pressure Test Pump is a hand operated pressure pump designed to generate Pressure either 90% vacuum or 10,000 psi (700 bar). With the patented screw press technology, the high pressure can be easily generated, increased & decreased smoothly. Without non-returning valve that is usually used in “trouble-maker” hand pump, ADT 927 has minimal maintenance required. Two-finger-tight connectors installed on the pump allow the user using fingers to connect & disconnect the reference gauge & devices under test quickly & easily without the need for PTFE tape or wrenches. The ADT 927 is an ideal comparison test pump for calibrating pressure measuring instruments against test gauges, indicators or transducers in the field or laboratory.

APPLICATION : Cooling Water & Lubricating Oil FEATURES : Flow Rate up to 400 lpm.Various Process connections (⅜" / ¼" / ½" / ¾" BSP M)Different Line sizes (DN 8 /10 / 20 / 25 / 32 / 40 / 50)Maximum working pressure up to 25 barMaximum Working temperature 110°CType: Inline / Insertion / Inline with PVC Pipe section.Adjustable Switching PointLow Pressure DropInstant ResponseHigh RepeatabilityMaterial: Brass / Stainless Steel / PPO Noryl GFN3.

The rugged industrial design is made by Piezo-resistive stainless steel sensor and also available in intrinsically safe model forhazardous area (EEx ia IIC T4). The system pressure is shown on the 4-digit LED display, in addition the display supports programming  using the foil keys; available one analogue output (4-20 mA or 0-10V) and 1 or 2 independent PNP contacts. The display and housing are rotatable, so that the position of the display can be adapted to unusual installation positions and pressure ranges selectable from -1 to 600 bar (gauge/abs), accuracy available ± 0.5%/0.35%/0.25% of F.S. Process connections can be chosen from different sizes. It can be used with any gases or liquids compatible with

DESCRIPTION With advanced microprocessor technology & state of the art silicon pressure sensors, ADT 681 series digital pressure gauge provides an accurate, reliable & economic solution for wide range of pressure applications.They are packed with functionality & remarkably easy to use. To reach the best performance, every silicon pressure sensor in gauges is specially aged, tested & screened before assembly. ADT 681 series digital pressure gauges are unmatched in performance & reliability. Best of all they are surprisingly affordable price. FEATURES Pressure starts from Vacuum up to 2500 Bar with various rangesAvailable in Gauge / Differential / Absolute / Compound Pressure.Eleven Selectable UnitsDifferent Accuracies (0.2% / 0.1% / 0.05% / 0.025% FS)Large, easy to read display with 5-digit resolutionBack lighted display% Pressure indication with fan-shaped graph scale for visual reference.Display flash warning when pressure over 120% FSATEX Certified Intrinsically Safe (Model ADT 681 IS)9V Battery power or AC adapterOptional Windows based software

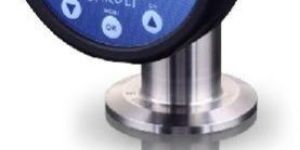

BATTERY POWERED DIGITAL PRESSURE GAUGE SPECIAL CHARACTERISTICS Rotatable housing 2-line LC display 4.5-digit 7-segment display 6-digit 14-segment additional display hygienic process connections Flush Welded FUNCTIONS min / max function with reset function offset and end point calibration setting the pressure unit configuration of switch-off automatic RANGE : -1 Bar to 40 Bar APPLICATION Food Industry Pharmacy ACCURACY ≤ ± 0.125 % BFSL
